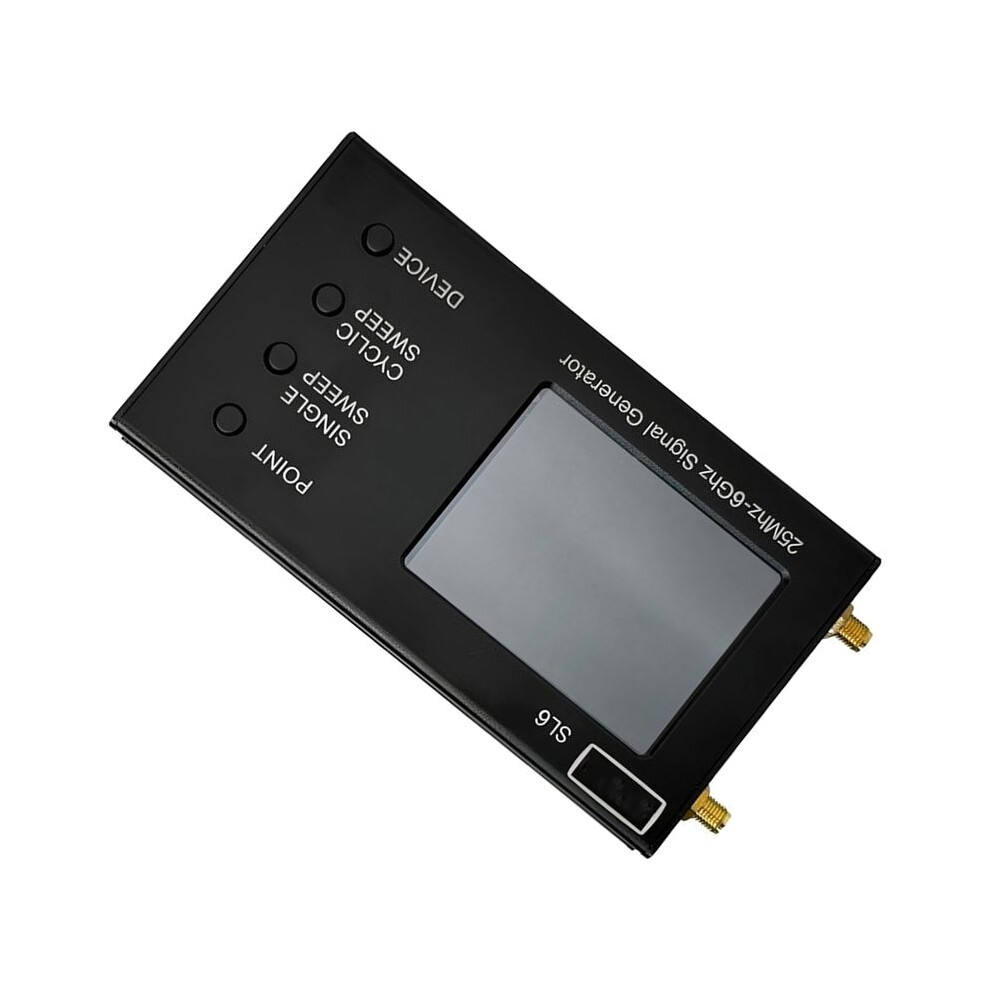

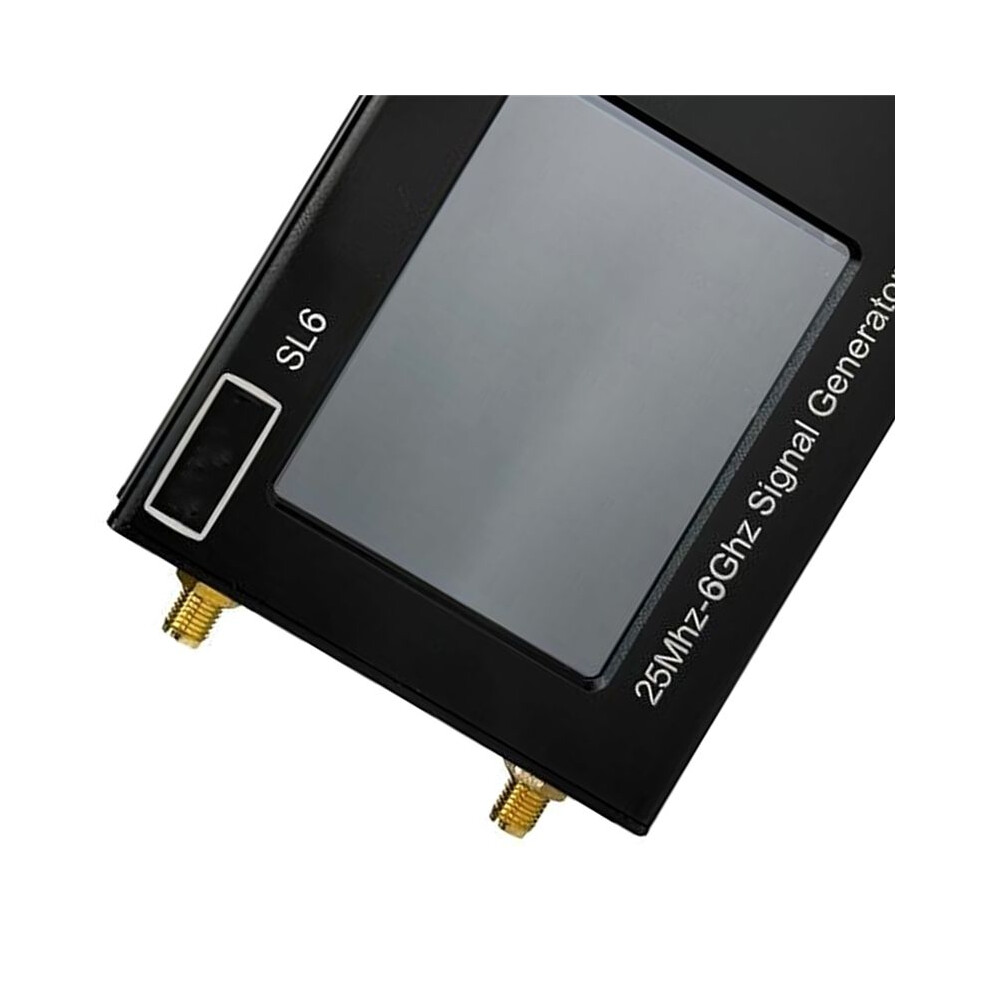

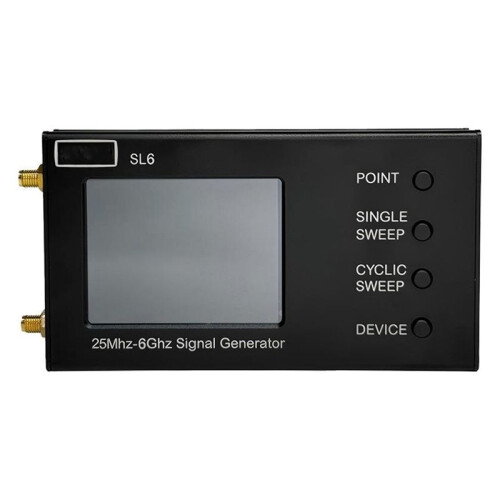

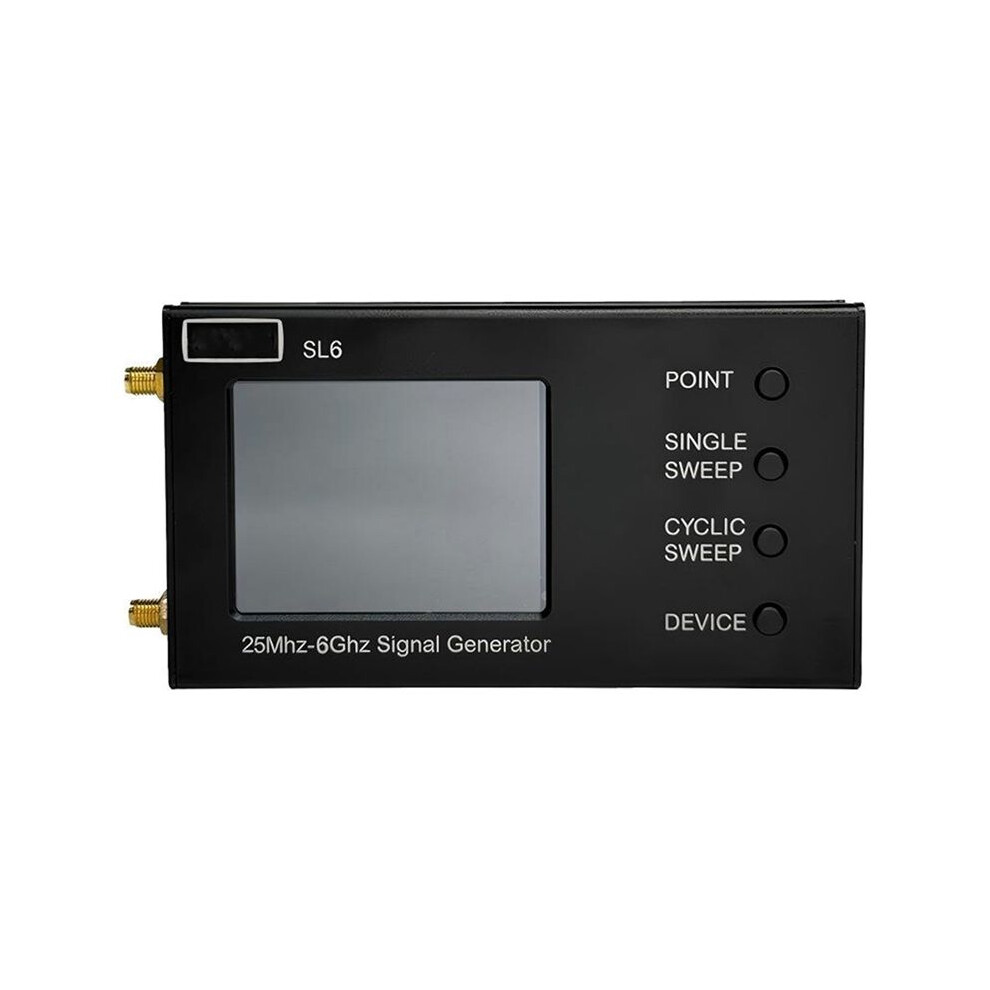

SL6 9kHz-6GHz RF Signal Source MAX2871 Multi-Function High and Low Frequency Sine Wave 9kHz Signal Source

SL6 9kHz-6GHz RF Signal Source MAX2871 Multi-Function High and Low Frequency Sine Wave 9kHz Signal Source Beskrivelse

Product Description: Using MAX2871, AD9834, main control GD32F427, 28-inch (240*320) LCD screen supports USB virtual serial port (driver installation required) communication.

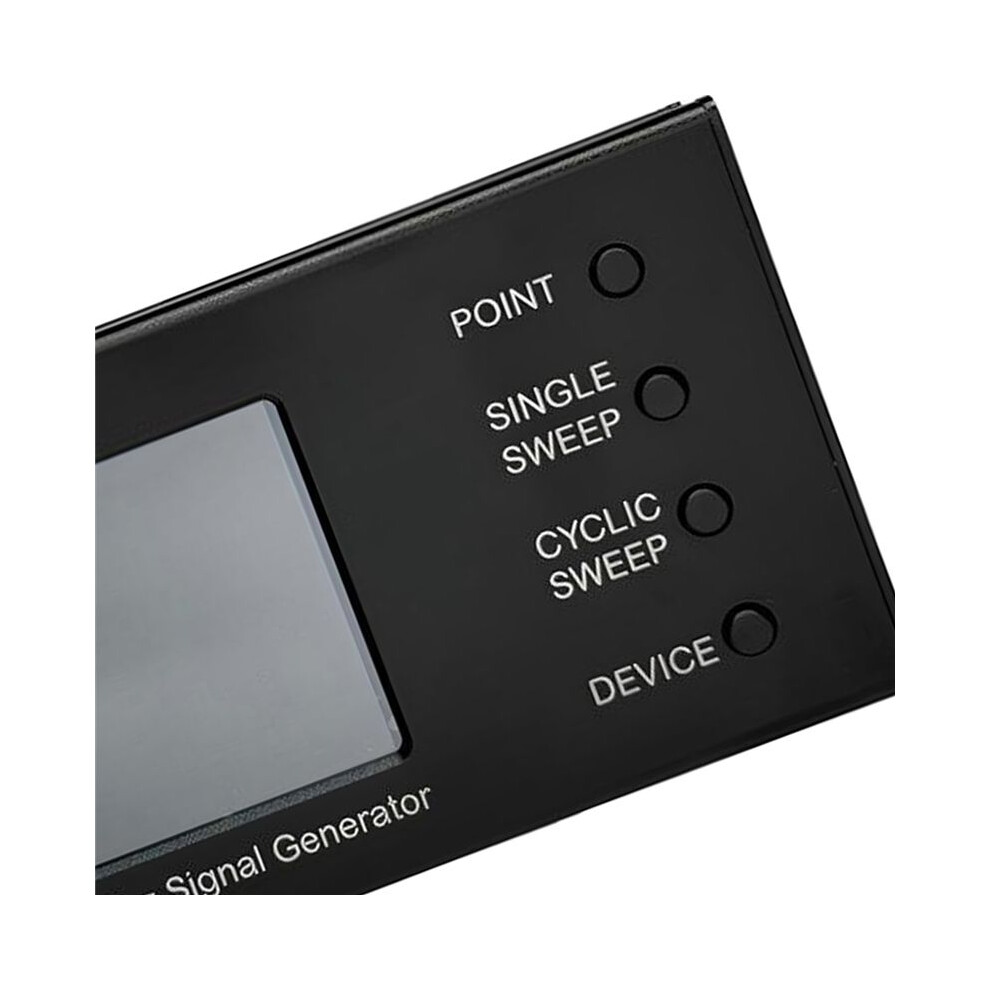

Frequency Point Description: You can directly enter the frequency point mode for setting by pressing the shortcut key, or you can enter the frequency point mode through the button the screen. Frequency control: You need to click the "Set" button, enter the desired frequency point, and turn the "" to achieve frequency point output; Power control: You need to enter the device interface for control, select the gear in the "Power" drop-down box to control the power output size.

Features:
(1) Can generate sine waves with frequencies from 9KHz to 6200MHz
CH1: Generates sine waves with frequencies from 24MHz to 6200MHz
CH2: Generates sine waves with frequencies from 9KHz to 6200MHz
(2) Dual-channel signal output:
CH2: Supports 11-level amplitude adjustment (-25dbm to -15dbm)
(3) Supports sweep frequency and dot frequency working modes
(4) Built-in USB serial port communication
(5) Supports serial port control of frequency sweep and frequency point operations
(6) Supports USB power supply
Frequency Sweep Description:
You can directly enter the frequency sweep mode for setting by pressing the shortcut key, or you can enter the frequency sweep mode through the button the screen. Frequency sweep modes include single sweep and cyclic sweep (sweep once or multiple times). This function requires setting the product's start and end frequencies, as well as the and step size. Power control: Access the device interface and select the power level in the "Power" drop-down box to control the power output.
Color:Black
Material:Metal

Package Contents:
1 * Spectrum Analyzer
