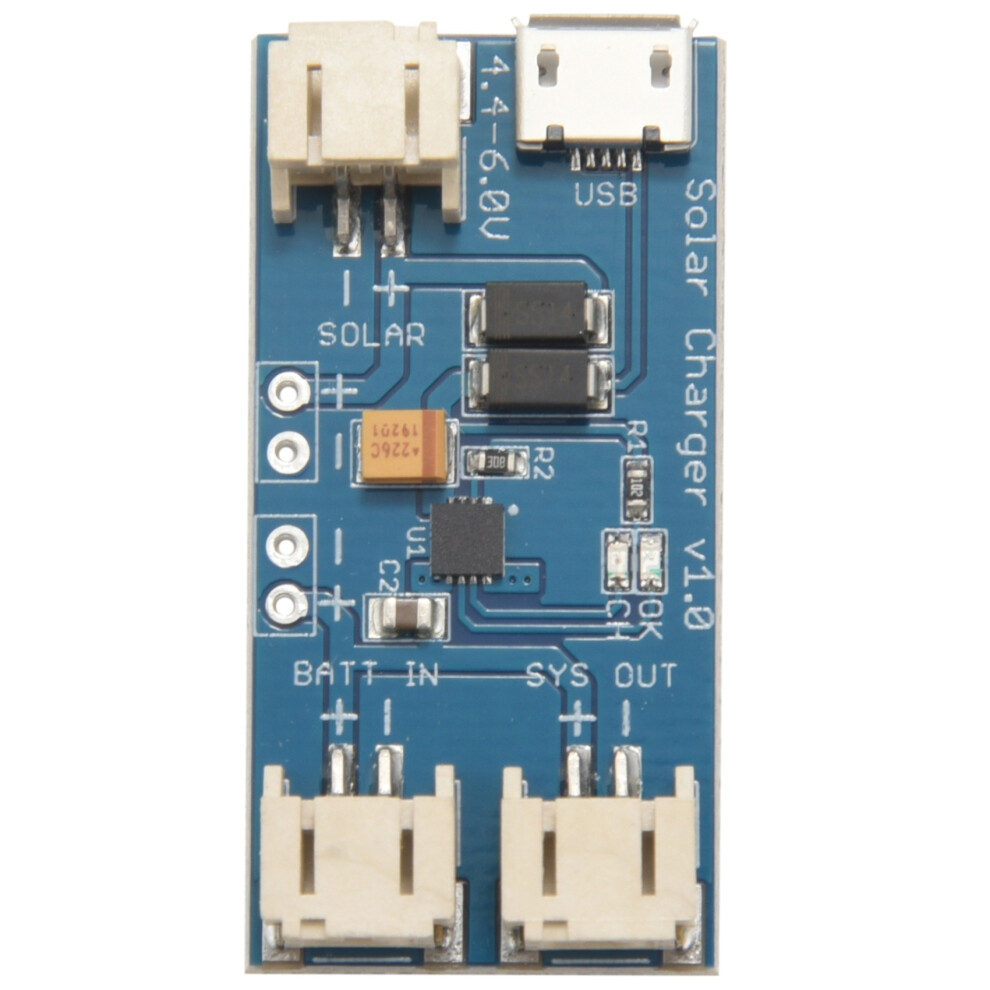

Solar Lipo Charger Board CN3065 Lithium Battery Charger Board Module

Solar Lipo Charger Board CN3065 Lithium Battery Charger Board Module Beskrivelse

This is a super Solar Lipo charger based the CN3065 - a single lithium battery charge management chip.
This Solar charger provide you with the ability to get the most possible power out of your solar panel or other photovoltaic device and into a rechargable LiPo battery. Set- is easy as well, just plug your solar panel into one side of the Solar charger and your battery into the other and you are good to start charging!
The output of the Solar Charger is intended to charge a single polymer lithium ion cell. The load should be connected in parallel with the battery. By default, the Solar charge comes set to a maximum charge current of 500mA with a maximum recommended input of 6V (minimum 4.4V). It's recommended that batteries not be charged at greater than their capacity rating.

color:
Material: PC + metal
Solar panel input: 4.4-6V
Max charge current: 500mA
Interface: 2-pin JST connectors(or PH2.0)
Short circuit protection
Continuous Charge Current to 500mA
Battery status indication ( Red : Charging , Green: Charged )
Support USB Charge (Micro-USB Connector)
Size:2cm x 4cm

Package Contents:1 x module

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
