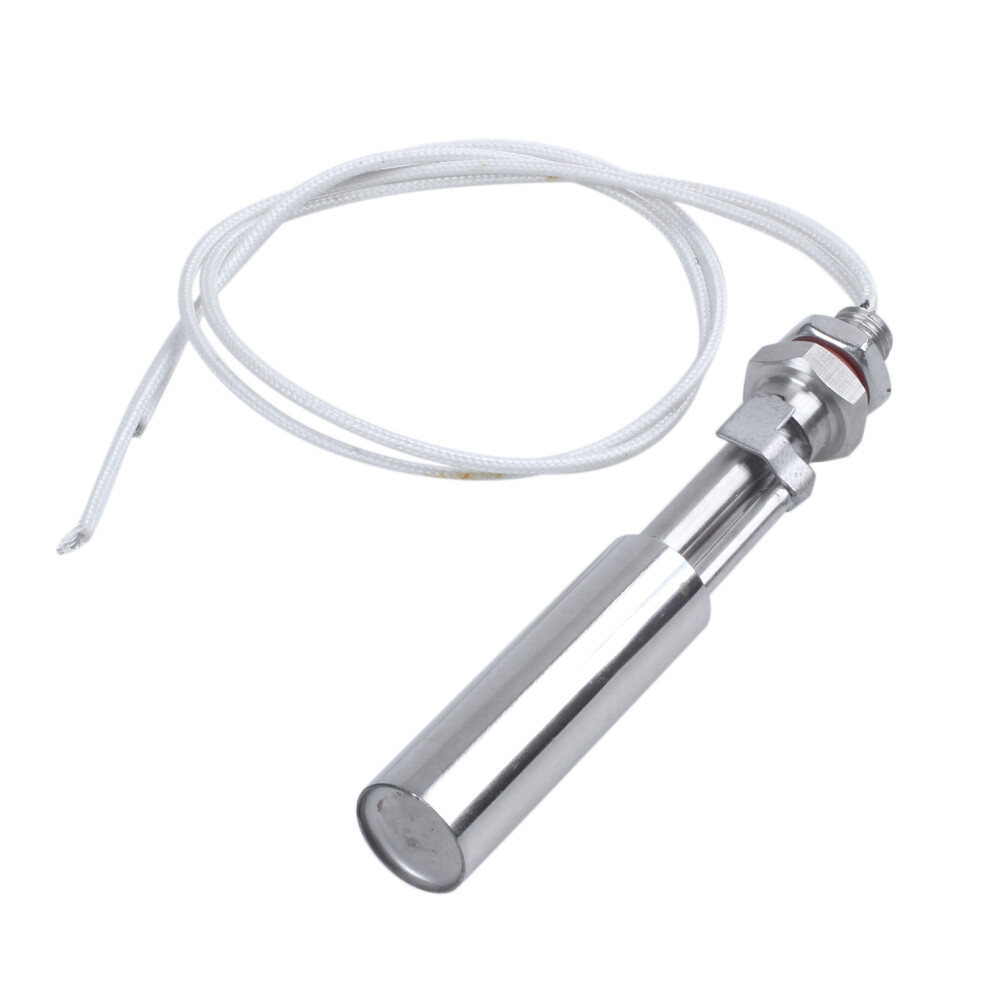

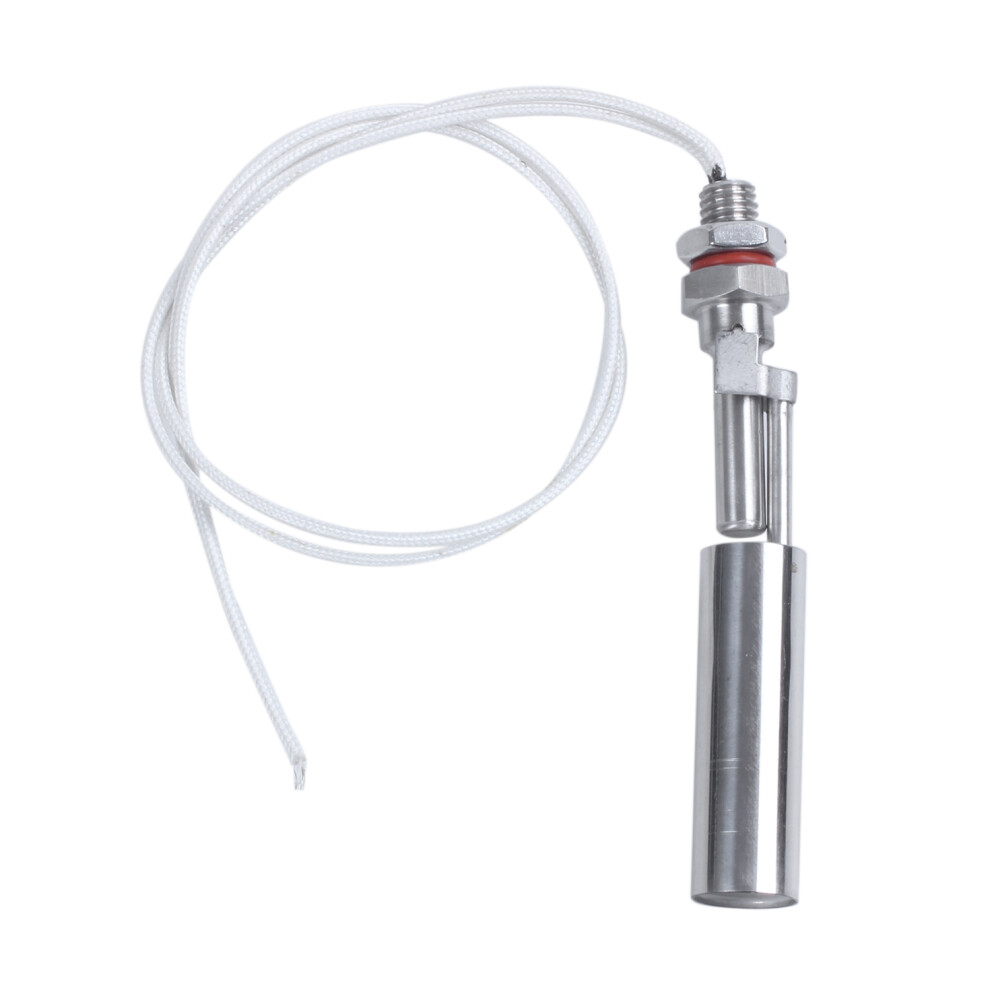

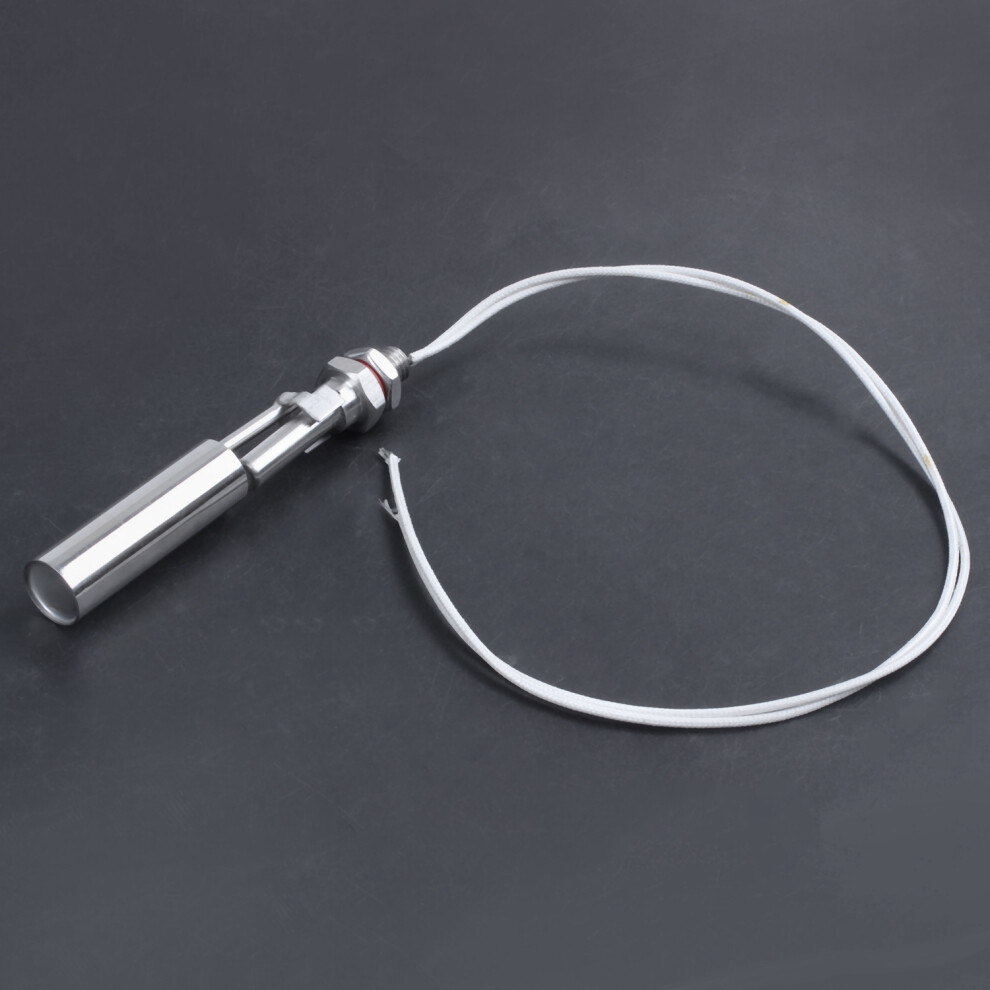

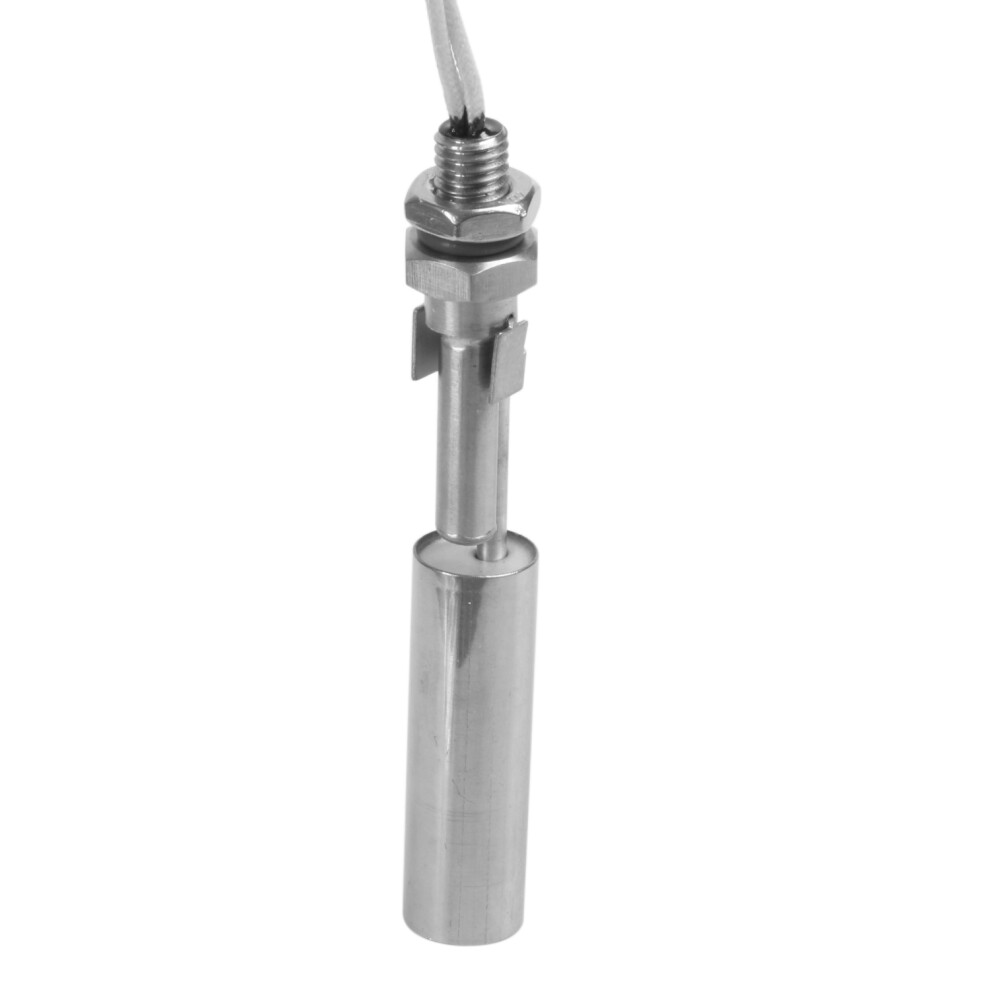

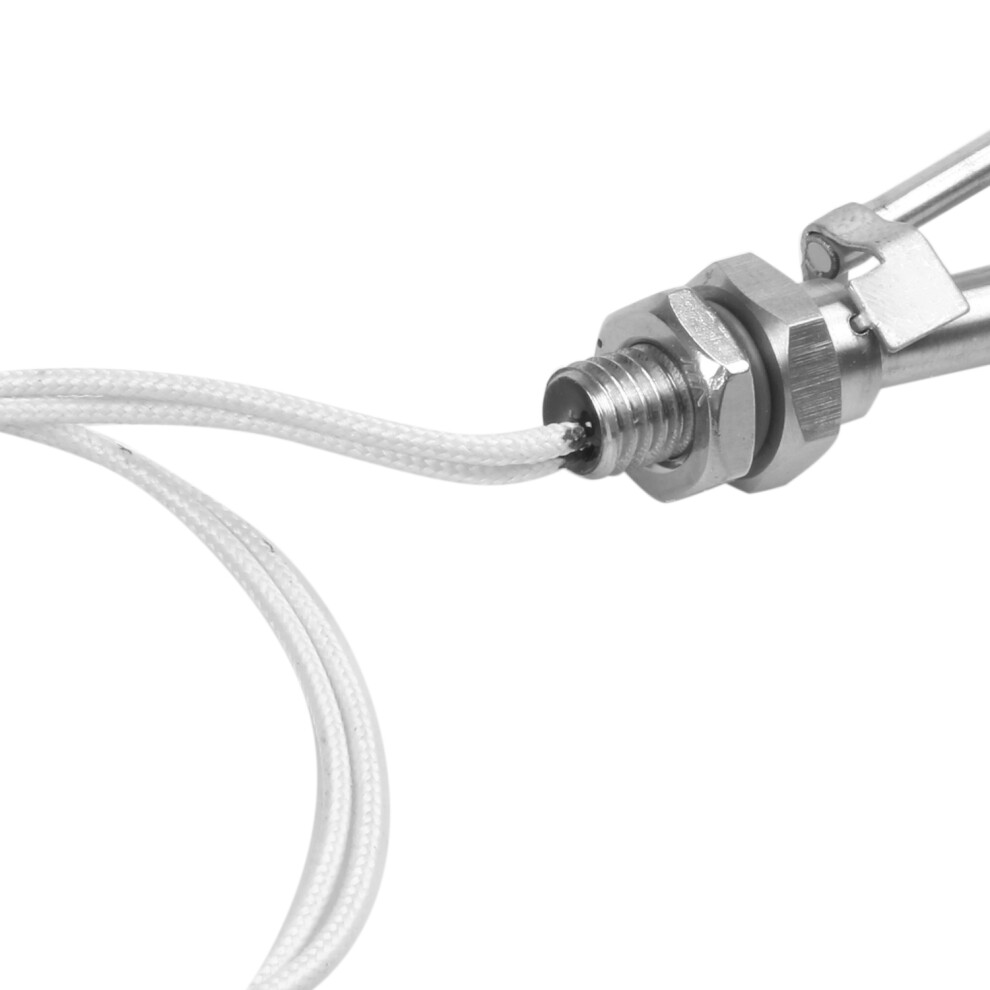

Stainless Steel Breaking Water Level Sensor Horizontal Float

Stainless Steel Breaking Water Level Sensor Horizontal Float Beskrivelse

A float is a device used to sense the level of liquid within a tank.
The may actuate a pump, an indicator, an alarm, or other device.
Use them with hydroponics, saltwater tank, freshwater tank, gardening, aquariums for power control, pet bowls, fish tanks, filtration, heating, pumps, ponds, basement alarms, boats, air condition drain pans, pressure washers, carpet cleaning mach, aquarium, fluid control, ice machines, coffee pots, marine, automotive, automobiles, tropical fish tanks, evaporator coils, condensation , in relays, or what ever your project may be.
Note: because the current that the can carry is much little(0.5A), you must use a relay or contactor when it is connected by a load, relay and contactor are not included here.
Thread Dia: 9.5mm;
Wire Length: 39cm/15.35 inch ;
Float Size: 55 x 17mm/2.2 inch x 0.67 inch (L*D)
Max. Breakdown Voltage: AC/ 220V;
Max. Current: 0.5A;
Max. Voltage: AC/ 100V;
Max Wattage: 10W
Temperature Range: -30C- +125C;
Max. Contact Resistance: 100m Ohm;
Hex Size: 14 x 14 x 4mm/0.55 inch x 0.55 inch x 0.16 inch (L*W*T)
Breaking Height: 94mm/3.7 inch ;
Breaking Angle: 45 Degree;
Body Total Length: 119mm/4.6 inch ;
Product Name: Float
Country of Manufacture: CHINA;
Material: Stainless Steel;
Color: silver
Net Weight: 38g;

Package content: 1 x Water Level Sensor
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
