STM8S STM8L TSSOP20 Burning Testing Downloader Offline Programmer Programming

STM8S STM8L TSSOP20 Burning Testing Downloader Offline Programmer Programming Beskrivelse

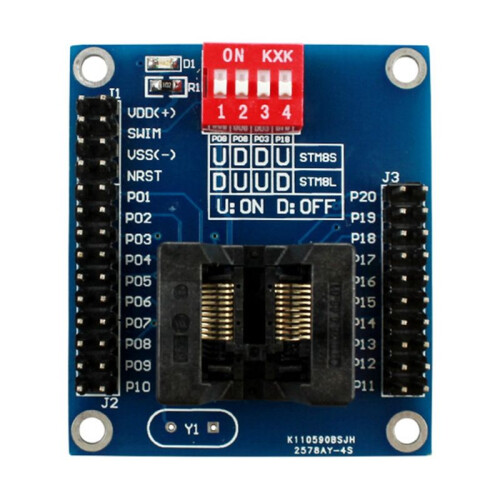

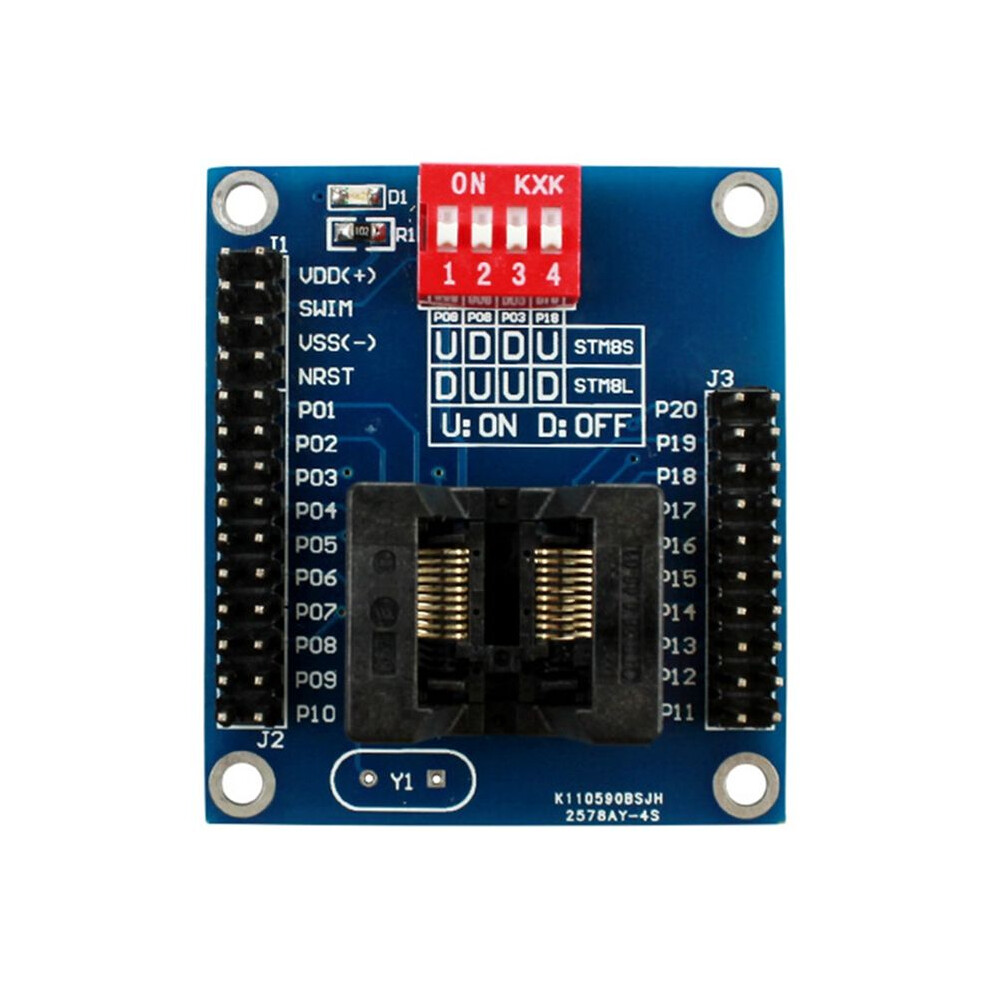

1. STM8S/STM8L Downloader gold-plated chip carrier, stable and reliable performance, It can package for most of TSSOP20 pin spacing of 0.65 mm STM8L and STM8S series chips of the burning, testing, operation, convenient and practical.
2. By SWIM interface, directly related to type of chip test, burning
3. Crystals can be free replacement by the user
4. All I / 0 by 2.54 mm double row needle derivation, convenient for the user to build circuit
5. Through the selection of four dial the code STM8S or STM8L burning

Interface introduction
1. SWIM interface, can be download or test program
2. The MCU 20 pins all lead
3. With power indicator
4. Set aside the external interface of crystals
Instructions: Based the chip to hit four dial the code into the corresponding location, chip for STM8S series, position for U D D U. Chip for STM8L series, position for D U U D, which U dial , D represents to stir. The 3.3 V ,SWIM, GND, RST foot in ST-LINK respectively connect with VDD (+), SWIM, VSS (-), NRST foot of the board and then burning, support model for S003, S903, S103, L101, L151, L051 encapsulation for TSSOP20 STM8 series single chip microcomputer.
Color:
Material: plastic

Package Contents:
1 * STM8S/STM8L Downloader
