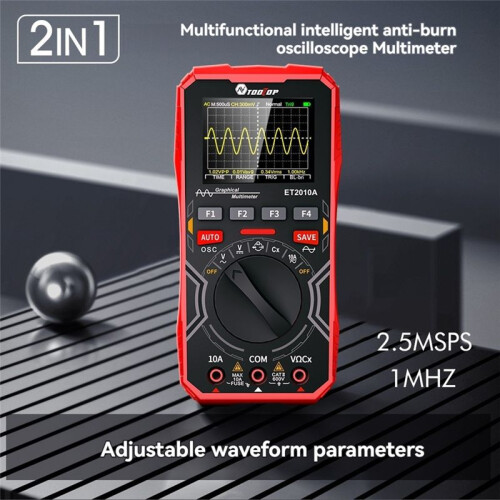

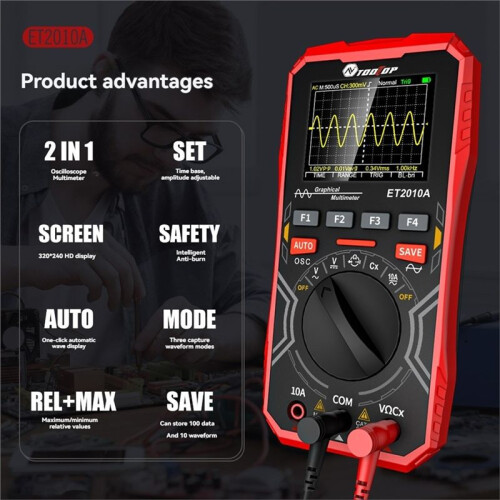

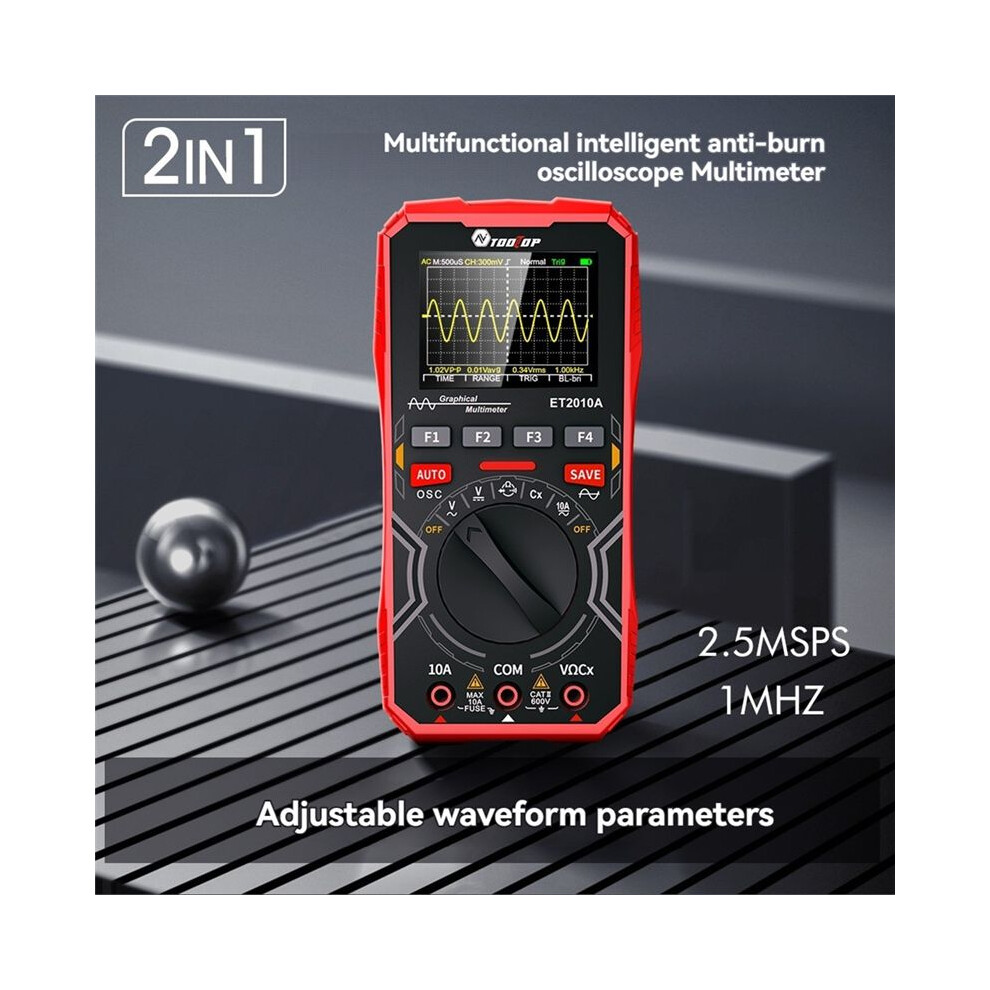

TOOLTOP ET2010A Digital Oscilloscope Multimeter 1Mhz 2.5MSps AUTO Oscilloscope AC/ 600V Graphcial Multimeter

TOOLTOP ET2010A Digital Oscilloscope Multimeter 1Mhz 2.5MSps AUTO Oscilloscope AC/ 600V Graphcial Multimeter Beskrivelse

2.5Msps high-speed sampling, 1MHz analog bandwidth, 4000 count digital multimeter.
One-click visual wave, there are three waveform scanning modes: automatic/conventional/single.
Save function for data and waveform in the measurement;a total of 100 sets of data and 10 waveform can be saved.
When measuring waveforms, you can set parameters independently, such as: base, amplitude, waveform scanning mode, etc.
REL, effectively eliminate the lead resistance, distributed capacitance and interference signal.

Multimeter functions include /AC voltage/current, resistance, capacitance, frequency, duty cycle,diode continuity test.
Automatic/manual switching for measuring range and display of measurement data and historic data the same screen.
Overload protection 10A double protective tube, dual protection of the instrument.
Automatic shutdown in case of no operations for 15 minutes: bright backlight and clear display.
Adopt 2.4 inch color screen display, the display effect is clear.
Higher reliability: no adjustment of potentiometer is required for panel calibration and internal storage calibration.
Automatic measurement function: Vp-p, Vavg, Vrms, HZ
Voltage: 400mV-600V
Current: 4A-10A
Resistance: 400.0Ω-40.00MΩ
Frequency: 5Hz-5MHz
Diode test: Voltage is about 1.5 V
AC Voltage: 400mV-600V
AC Current: 4A-10A
Capacitance: 51.2nF-100uF
Duty cycle: 0%-
Continuity test: Resistance Less than 50Ω,beep
Display: 240x320 Color screen
Backlight: Constantly
Battery: AA batteries x 3(Not included)
Working current: About 65mA
usage : More than 10 hours
Use: 0-+40;Less than 75%RH
Dimensions:77 mmx157 mmx25.5mm
Observation area:49.0 mm x 36.7 mm
Name:Oscilloscope multimeter
Colour:As Shown
Material:Plas
