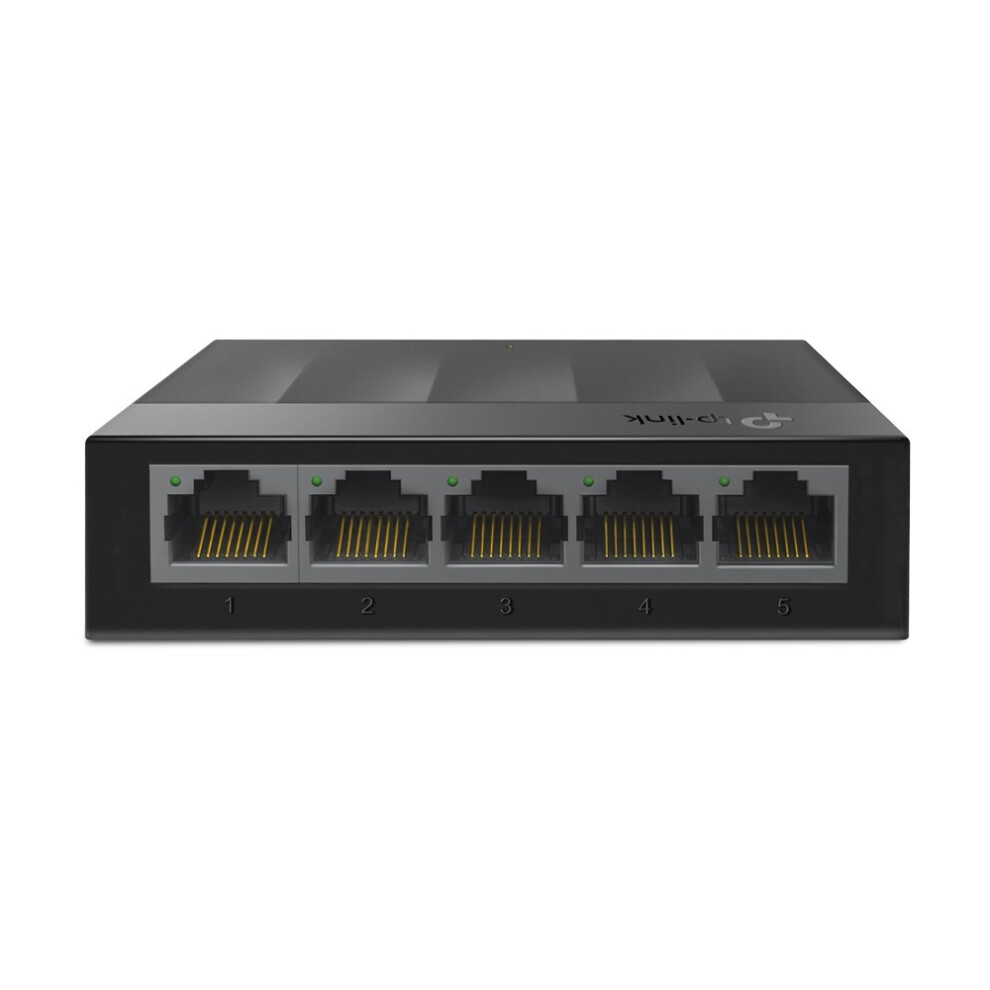

TP-Link 5-Port 10/100/1000Mbps Desktop Network Switch

TP-Link 5-Port 10/100/1000Mbps Desktop Network Switch Beskrivelse

Description Management features Switch type Unmanaged Ports & interfaces Basic switching RJ-45 Ethernet ports quantity 5 Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000) Network Networking standards IEEE 802.3iIEEE 802.3uIEEE 802.3x 10G support No Flow control support Yes Auto MDI/MDI-X Yes Auto-negotiation Yes Data transmission Switching capacity 10 Gbit/s Forwarding rate 7.4 Mpps MAC address table 2000 entries Store-and-forward Yes Jumbo frames support Yes Jumbo frames 16000 Packet buffer memory 1.5 MB Design Rack mounting No Product colour Black Housing material Plastic LED indicators Yes International Protection (IP) code IP20, IP40 Wall mountable Yes Power Power supply included Yes DC input voltage 5 V Input current 0.6 A Power consumption (max) 3.7 W Power over Ethernet (PoE) Power over Ethernet (PoE) No Operational conditions Operating temperature (T-T) 0 - 40 C Storage temperature (T-T) -40 - 70 C Operating relative humidity (H-H) 10 - 90% Storage relative humidity (H-H) 5 - 90% Heat dissipation 12.617 BTU/h Weight & dimensions Width 90 mm Depth 72 mm Height 23 mm Packaging content Quick start guide Yes Certificates Certification CE, FCC, RoHS Despite our best efforts we cannot guarantee that the published specifications and images do not contain errors or mistakes that cannot however constitute the basis for claims.
