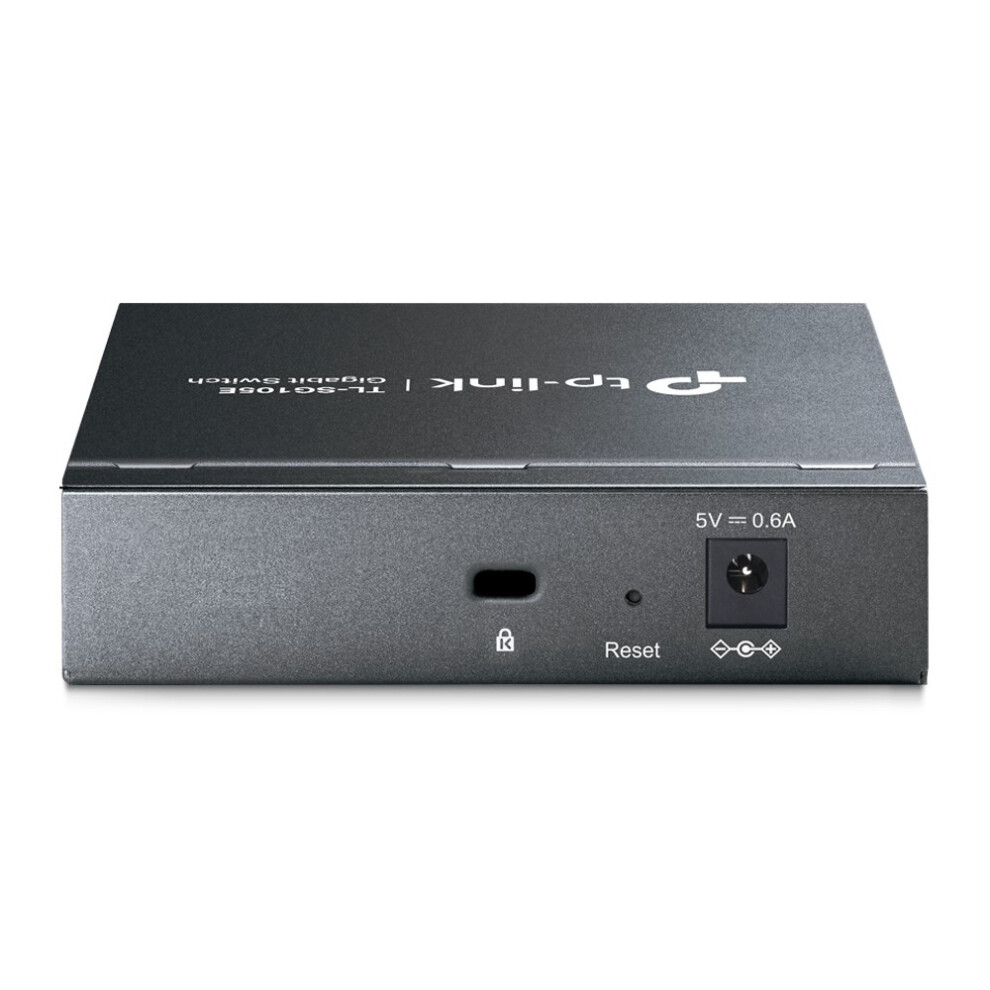

TP-Link 5-Port Gigabit Easy Smart Switch

TP-Link 5-Port Gigabit Easy Smart Switch Beskrivelse

Description Management features Switch type Managed Switch layer L2 Quality of Service (QoS) support Yes Web-based management Yes Ports & interfaces Basic switching RJ-45 Ethernet ports quantity 5 Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000) Gigabit Ethernet (copper) ports quantity 5 Network Networking standards IEEE 802.1pIEEE 802.1QIEEE 802.3IEEE 802.3abIEEE 802.3uIEEE 802.3xExpandFold 10G support No Copper ethernet cabling technology 1000BASE-T100BASE-TX10BASE-T Port mirroring Yes Flow control support Yes Link aggregation Yes Auto MDI/MDI-X Yes VLAN support Yes Number of VLANs 32 Data transmission Throughput 7.4 Mpps MAC address table 8192 entries Store-and-forward Yes Jumbo frames support Yes Jumbo frames 16000 Packet buffer memory 1 MB Security IGMP snooping Yes Design Rack mounting No Product colour Black LED indicators Yes Power Power supply included Yes AC input voltage 220 V AC input frequency 50 Hz DC input voltage 5 V Input current 0.6 A Power consumption (max) 2.82 W Power over Ethernet (PoE) Power over Ethernet (PoE) No Operational conditions Operating temperature (T-T) 0 - 40 C Storage temperature (T-T) -40 - 70 C Operating relative humidity (H-H) 10 - 90% Storage relative humidity (H-H) 5 - 90% Heat dissipation 9.62 BTU/h Weight & dimensions Width 100 mm Depth 98 mm Height 25 mm Packaging content Cables included AC Quick start guide Yes User guide Yes Rack mount kit Yes Certificates Certification FCC, CE, RoHS Despite our best efforts we cannot guarantee that the published specifications and images do not contain errors or mistakes that cannot however constitute the basis for claims.
