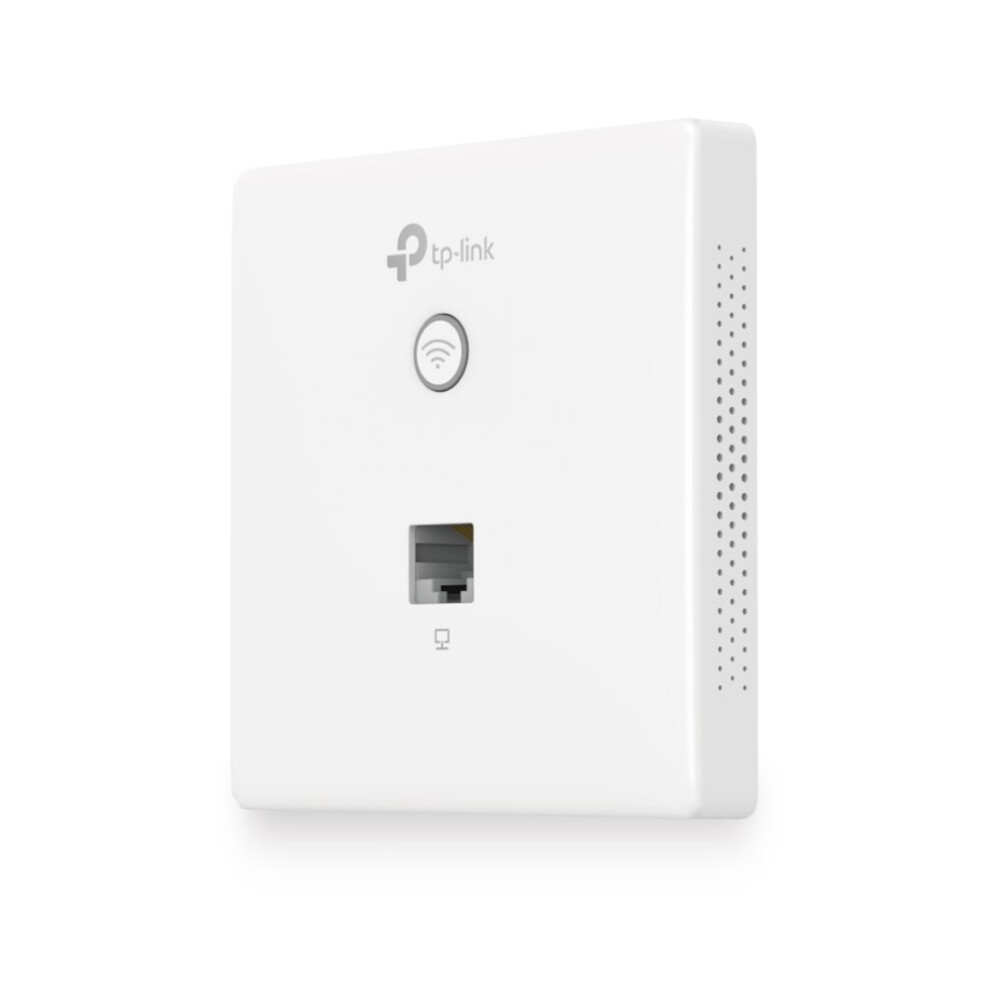

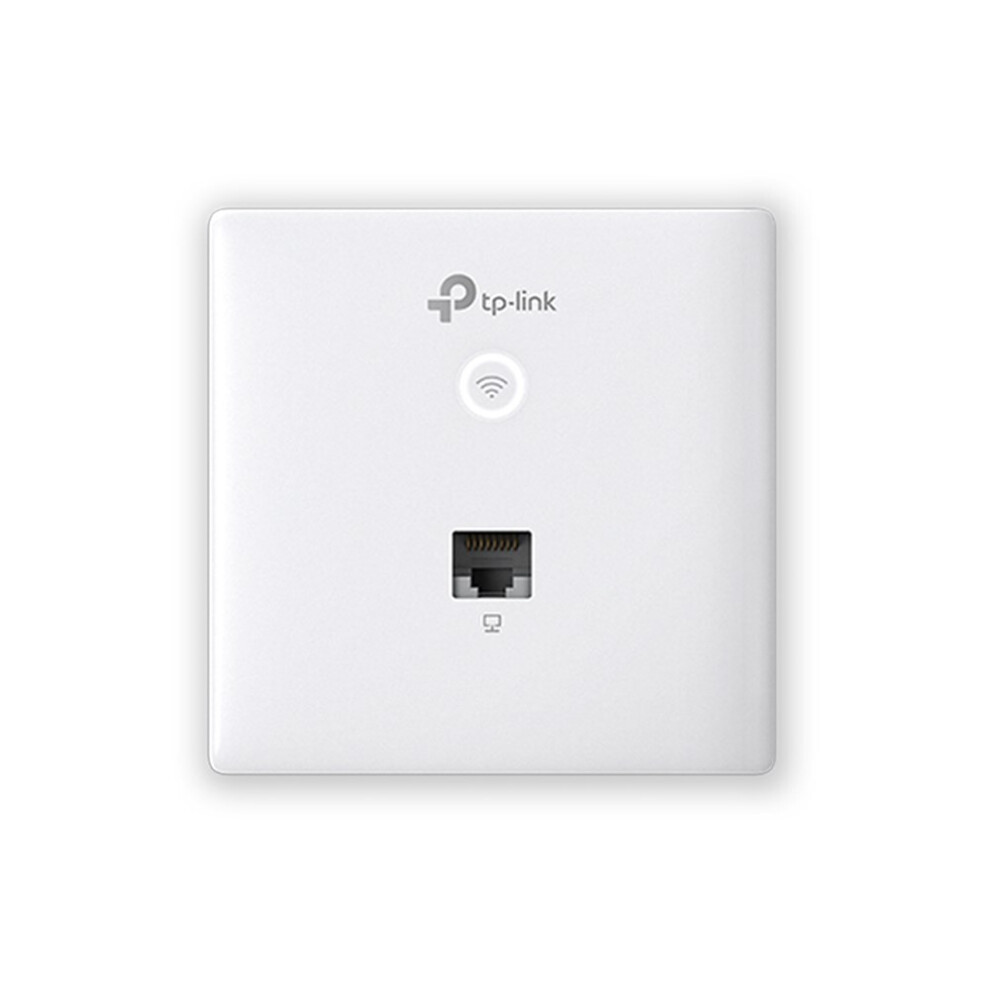

TP-Link Omada AC1200 Wireless MU-MIMO Gigabit Wall-Plate Access Point

TP-Link Omada AC1200 Wireless MU-MIMO Gigabit Wall-Plate Access Point Beskrivelse

Description Features 2.4 GHz Yes 5 GHz Yes 6 GHz No Maximum data transfer rate 1167 Mbit/s Maximum data transfer rate (2.4 GHz) 300 Mbit/s Maximum data transfer rate (5 GHz) 867 Mbit/s Ethernet LAN data rates 10100 Mbit/s1000 Mbit/s Frequency band 2.4 - 5 GHz Networking standards IEEE 802.11acIEEE 802.11bIEEE 802.11gIEEE 802.11nIEEE 802.3afIEEE 802.3atExpandFold Cabling technology 10/100/1000Base-T(X) Automatic channel selection Yes Automatic channel scanning Yes MIMO Yes MIMO type Multi User MIMO Wi-Fi Multimedia (WMM)/(WME) Yes VLAN support Yes Virtual LAN features Port-based VLANVLAN mapping Rate limiting Yes Band steering Yes Quality of Service (QoS) support Yes BeamForming Yes Transmitting power (CE) 20 - 23 dBm Security Security algorithms 128-bit WEP152-bit WEP64-bit WEPSNMPSNMPv2WPAWPA2-EnterpriseWPA2-PSKWPA-PSKExpandFold MAC address filtering Yes Service Set Identifier (SSID) features Multiple SSIDs Number of SSID supported 16 Access Control List (ACL) Yes Management features Web-based management Yes Syslog Yes Ports & interfaces Ethernet LAN (RJ-45) ports 1 WAN connection Ethernet (RJ-45) Power Power over Ethernet (PoE) Yes Power consumption (typical) 9 W Power consumption (max) 25.5 W Design Placement Wall Product colour White Reset button Yes LED indicators Operation Antenna Antenna type Internal Antenna features Integrated antenna Antennas quantity 2 Antenna gain level (max) 3.6 dBi Performance Compatible operating systems Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10 Weight & dimensions Width 86.8 mm Depth 86.8 mm Height 30.2 mm Packaging content Mounting kit Yes Quick start guide Yes Operational conditions Operating relative humidity (H-H) 10 - 90% Operating temperature (T-T) 0 - 40 C Storage temperature (T-T) -40 - 70 C Storage relative humidity (H-H) 5 - 90% Sustainability Sustainability compliance Yes Despite our best efforts we cannot guarantee that the published specifications and images do not contain errors or mistakes that cannot however constitute the basis for claims.
