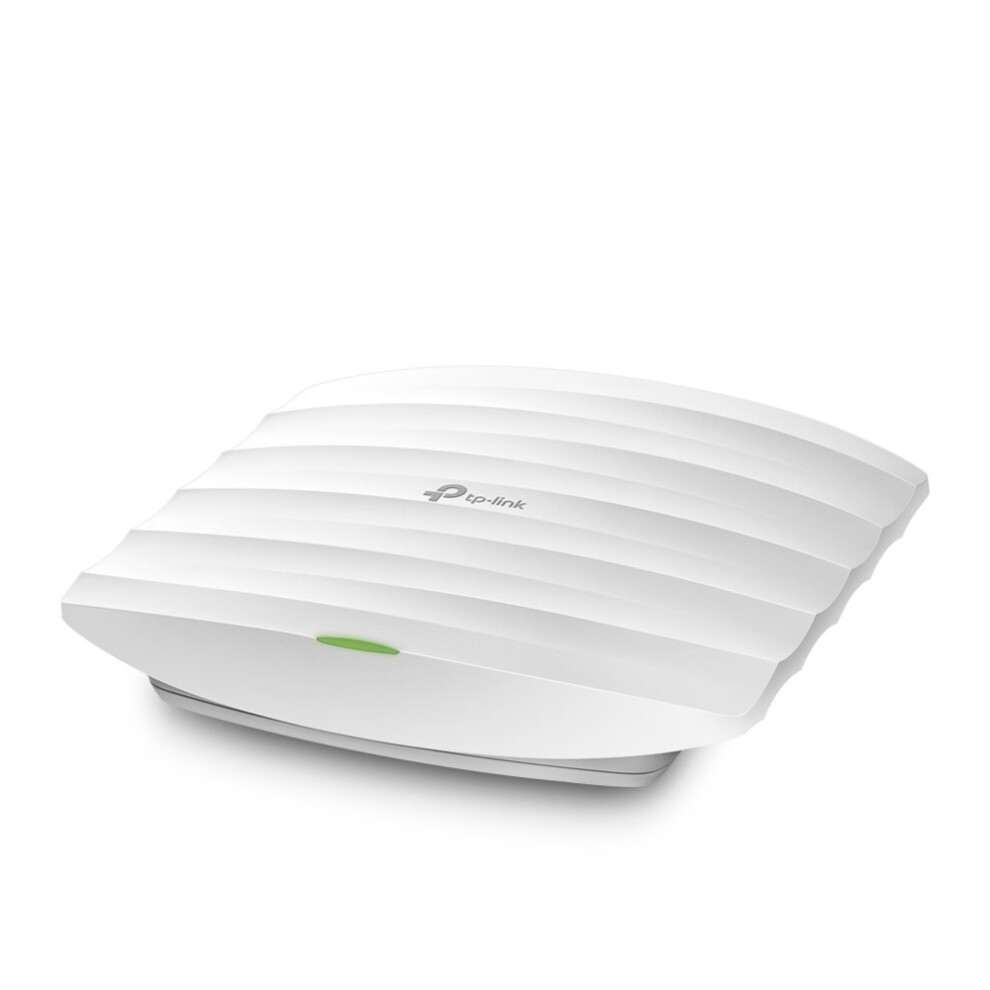

TP-Link Omada EAP225 wireless access point 1350 Mbit/s White Power over Ethernet (PoE)

TP-Link Omada EAP225 wireless access point 1350 Mbit/s White Power over Ethernet (PoE) Beskrivelse

Description Features 2.4 GHz Yes 5 GHz Yes 6 GHz No Maximum data transfer rate 1350 Mbit/s Maximum data transfer rate (2.4 GHz) 450 Mbit/s Maximum data transfer rate (5 GHz) 867 Mbit/s Ethernet LAN data rates 10100 Mbit/s1000 Mbit/s Networking standards IEEE 802.11aIEEE 802.11acIEEE 802.11bIEEE 802.11gIEEE 802.11nIEEE 802.3afExpandFold Cabling technology 10/100/1000Base-T(X) MIMO Yes MIMO type Multi User MIMO Wi-Fi Multimedia (WMM)/(WME) Yes VLAN support Yes Virtual LAN features VLAN mapping Rate limiting Yes Band steering Yes Airtime Fairness (ATF) Yes Quality of Service (QoS) support Yes BeamForming Yes Transmitting power (CE) 23 dBm Transmitting power (FCC) 24 dBm Security Security algorithms 128-bit WEP152-bit WEP64-bit WEPSSIDWPAWPA2WPA2-PSKWPA-PSKExpandFold MAC address filtering Yes Service Set Identifier (SSID) features Multiple SSIDs Number of SSID supported 16 Access Control List (ACL) Yes Management features Web-based management Yes Syslog Yes Ports & interfaces Ethernet LAN (RJ-45) ports 1 DC-in jack Yes Power Power over Ethernet (PoE) Yes Power over Ethernet (PoE) type supported Passive PoE Output voltage 12 V Output current 1.5 A Power consumption (typical) 10.15 W Design Placement Ceiling, Wall Product colour White Cable lock slot Yes Cable lock slot type Kensington On/off switch Yes Reset button Yes LED indicators PowerWLAN Antenna Antenna type Internal Antenna direction type Omni-directional Antenna features Integrated antenna Antennas quantity 5 Antenna gain level (max) 5 dBi Performance Compatible operating systems Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Linux Mobile network SIM card slot No Weight & dimensions Width 205.5 mm Depth 181.5 mm Height 37.1 mm Packaging data Package type Box Packaging content AC adapter included Yes PoE adapter included Yes Mounting kit Yes Quick start guide Yes Operational conditions Operating relative humidity (H-H) 10 - 90% Operating temperature (T-T) 0 - 40 C Storage temperature (T-T) -40 - 70 C Storage relative humidity (H-H) 5 - 90% Sustainability Sustainability compliance Yes Despite our best efforts we cannot guarantee that the published specifications and images do not contain errors or mistakes that cannot however constitute the basis for claims.
