TRRS 3.5mm Jack Breakout Board with Night Vision Camera Module for Raspberry Pi 4, Video OV5647 Sensor Webcam Kit

TRRS 3.5mm Jack Breakout Board with Night Vision Camera Module for Raspberry Pi 4, Video OV5647 Sensor Webcam Kit Beskrivelse

2 Set Electronic Accessories: 1 set x Camera module & 1 x Breakout board
for Raspberry Pi camera module kit,compatible with Raspberry Pi model B/B+/A+/4/3/2/1(Not compatible with Raspberry Pi Zero).
3MP Lens with 5 megapixel OV5647 sensor, for better and clearer image!
Embedded removable IR-CUT filter,avoid color distortion in the daylight.
Comes with infrared LED, has a better night vision.

Color: Black + White + +red
Material: PCB + ABS+PC + metal

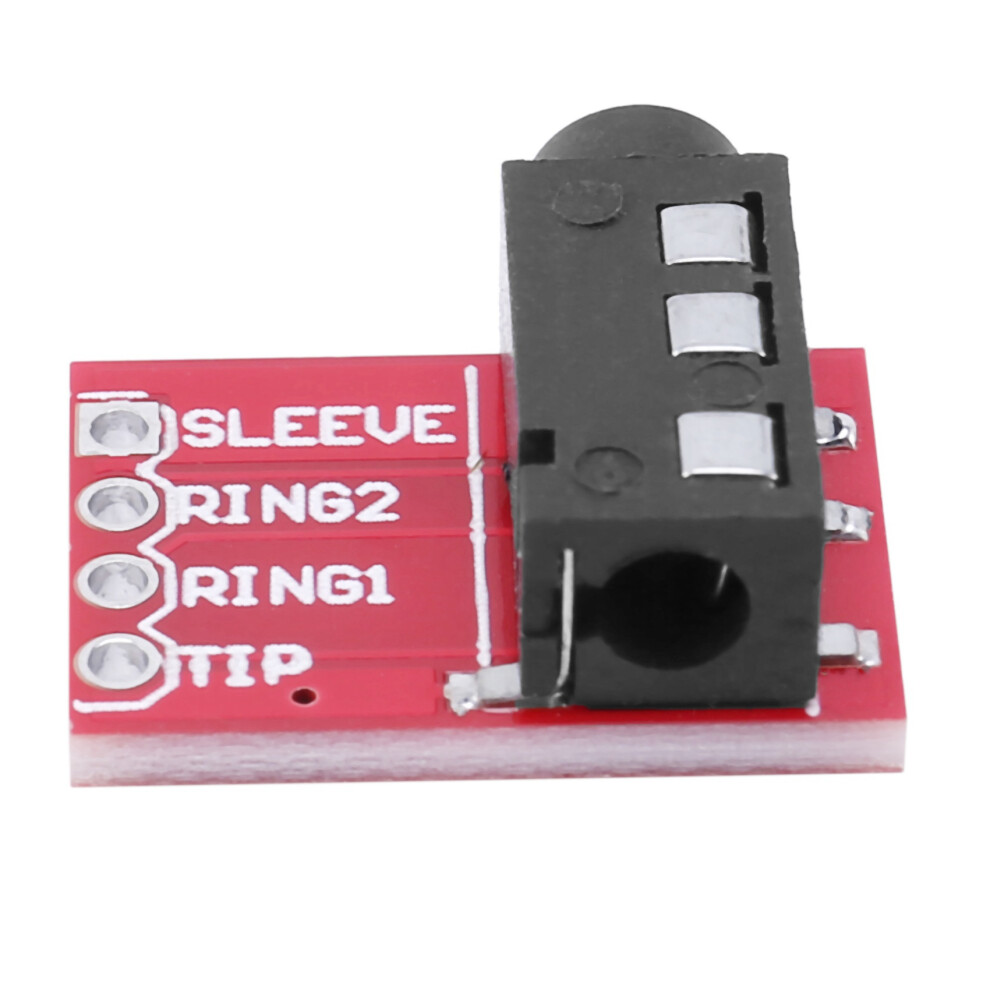

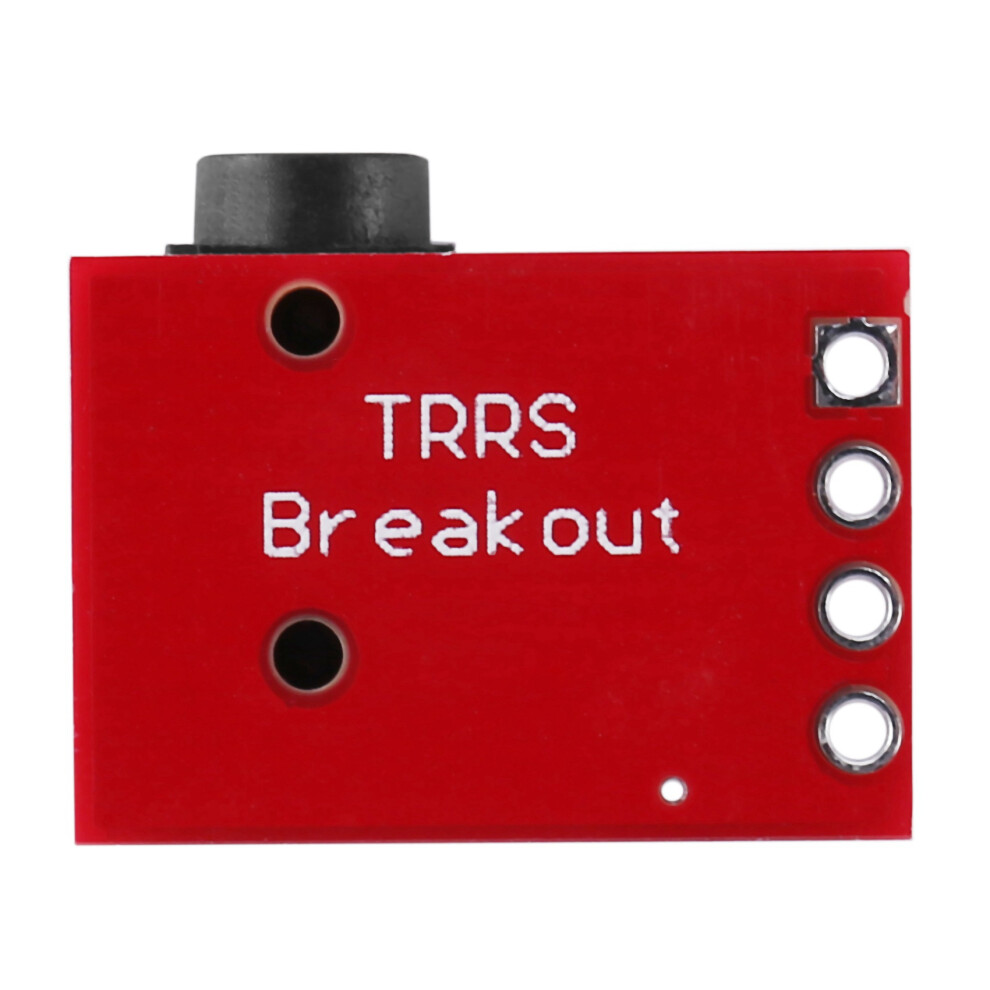

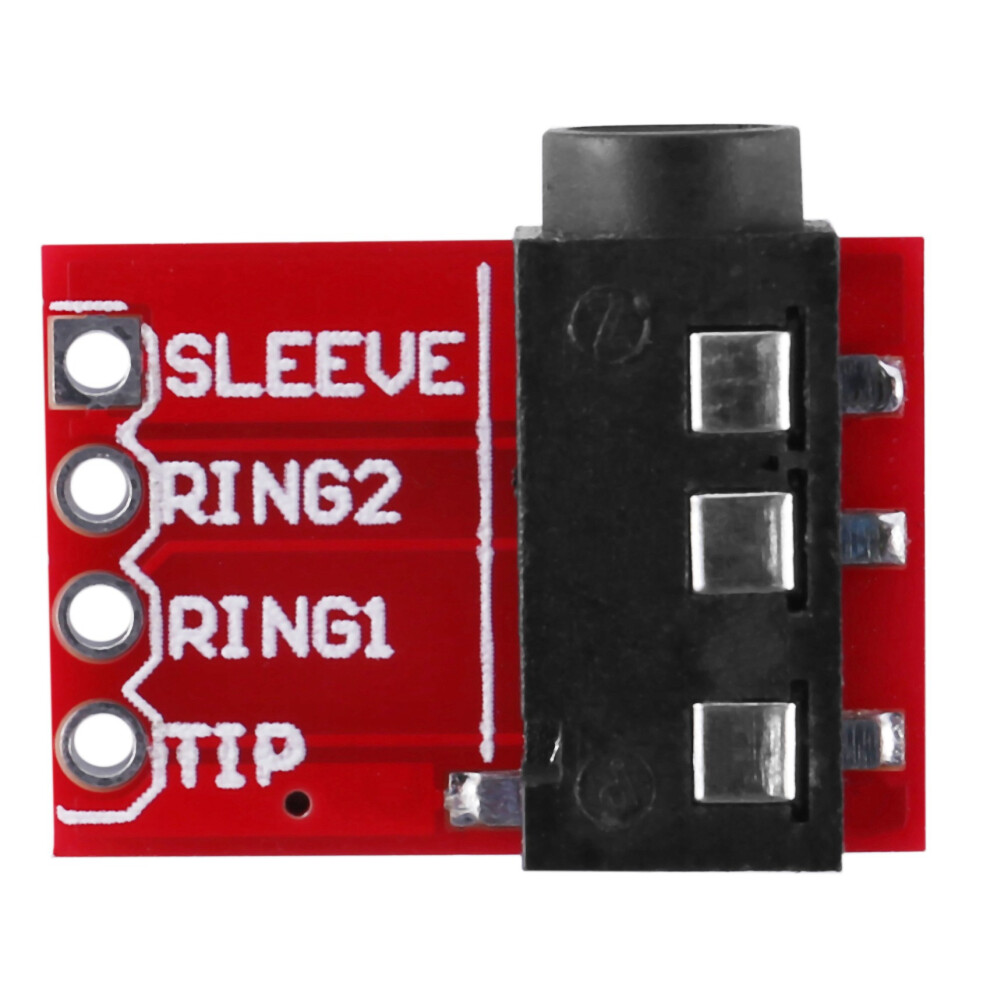

Breakout board:
connectors are the audio-style connectors that you see some phones, MP3 players and development boards. stands for "Tip, Ring, Ring, Sleeve," which reflects the fact that, unlike a standard stereo connector, this actually has three conductors and a ground.
Some devices use the extra conductor for a microphone (like hands-free headsets) or to carry a video signal (like in some MP3/MP4 players).
This breakout board makes it easy to add a jack to your prototype or project by breaking out each conductor to a standard 0.1inch spaced header.

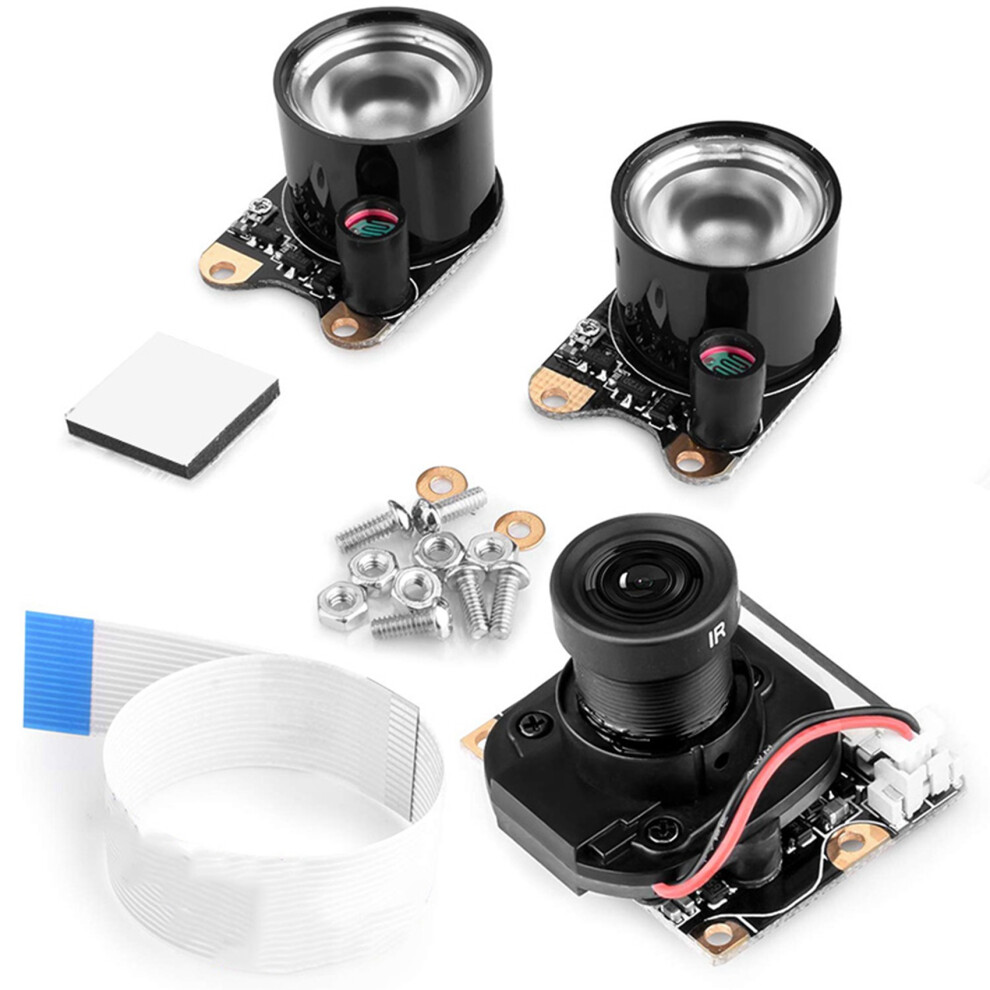

Camera module:
Add heat sinks to the back of the IR LEDs or loosen the screw when not in use for better heat dissipation performance.
CCD size: 1/4 inch
Aperture(F): 1.8
Length: 3.6 mm (adjustable)
Field of View: 75.7 degrees
Preferred Sensor Resolution: 1080p
Dimension: 31mm x 32mm
4 screw holes which are used for a fixed position.
Support 3.3V power output.
Supports connecting infrared LED or flash LED.

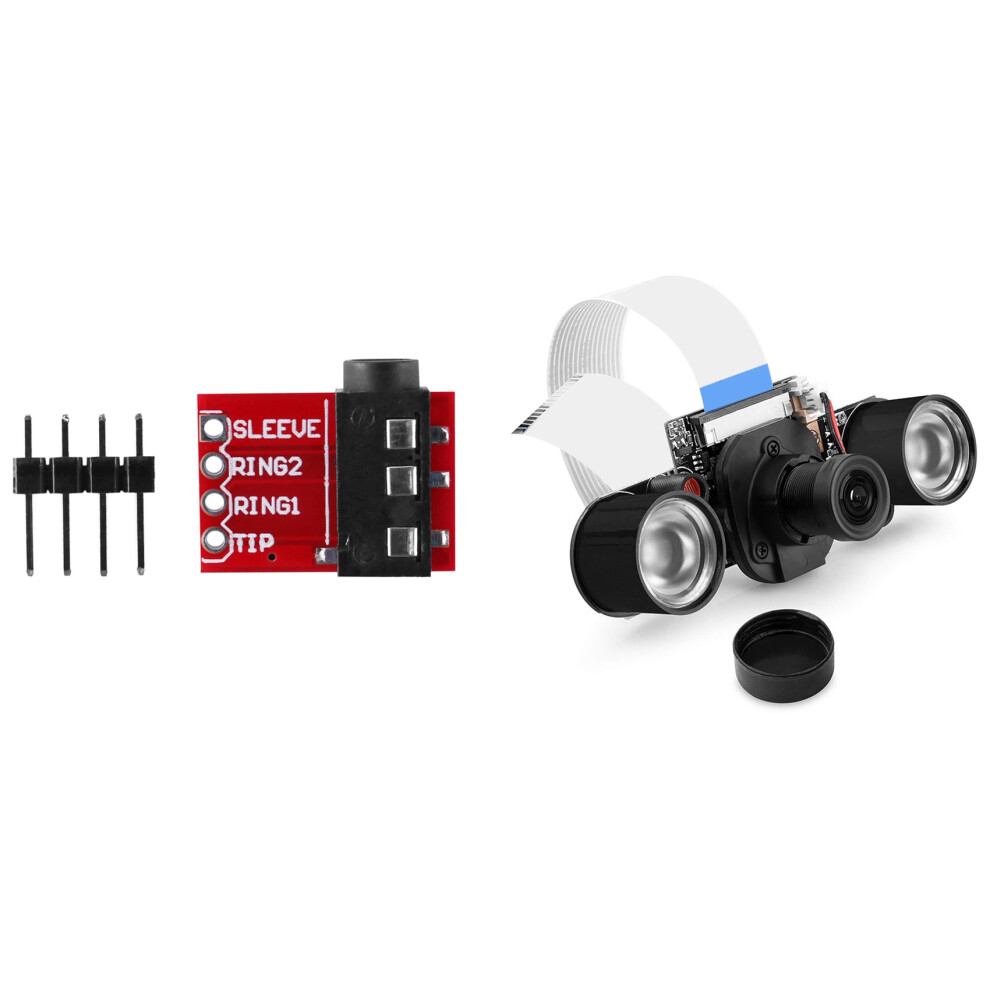

Package Contents:
1 x Camera module
2 x Infrared LED Board
1 x 15cm FFC cable
1 x Breakout board
