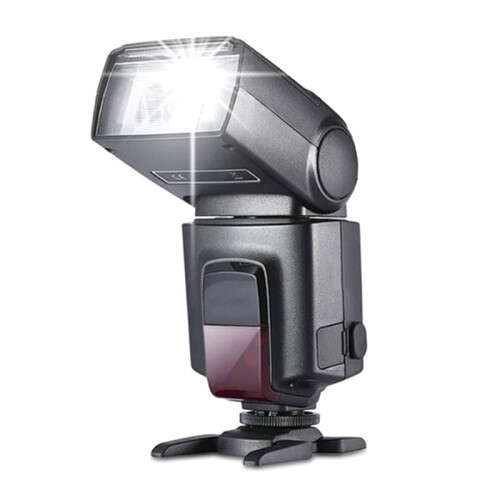

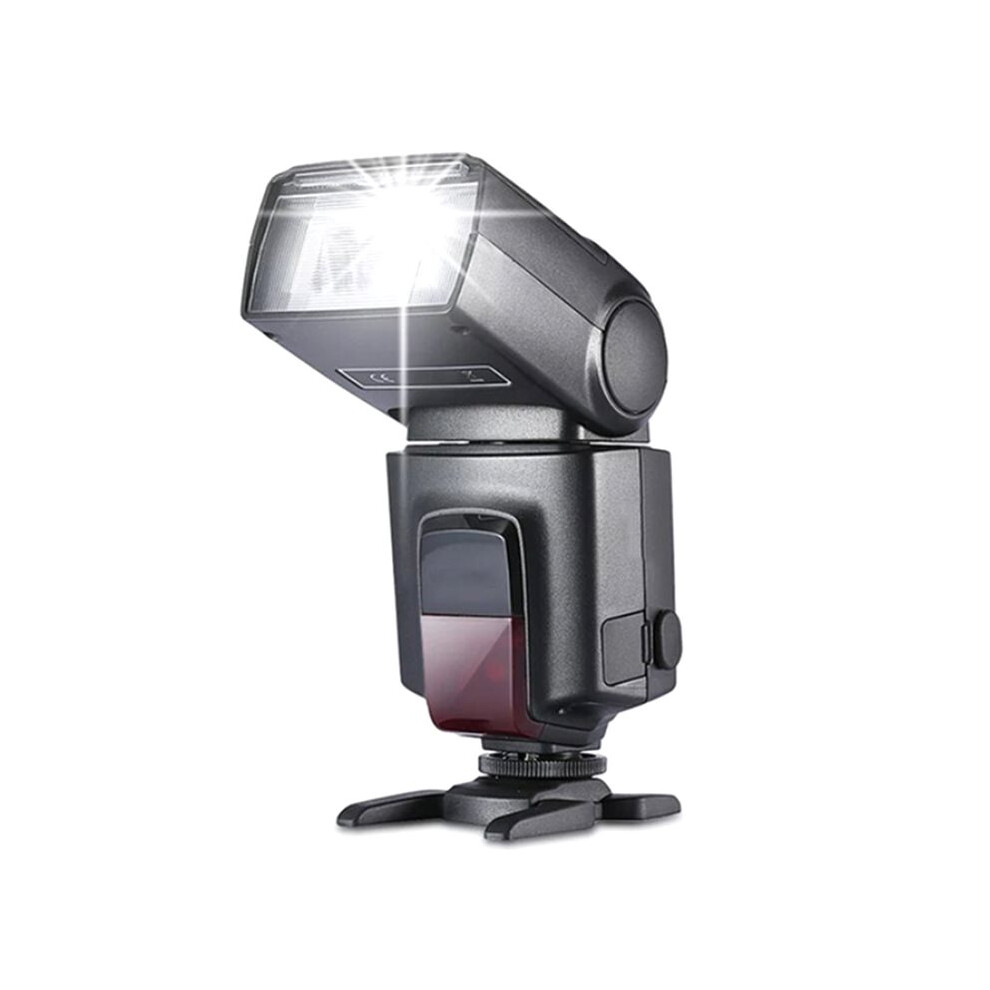

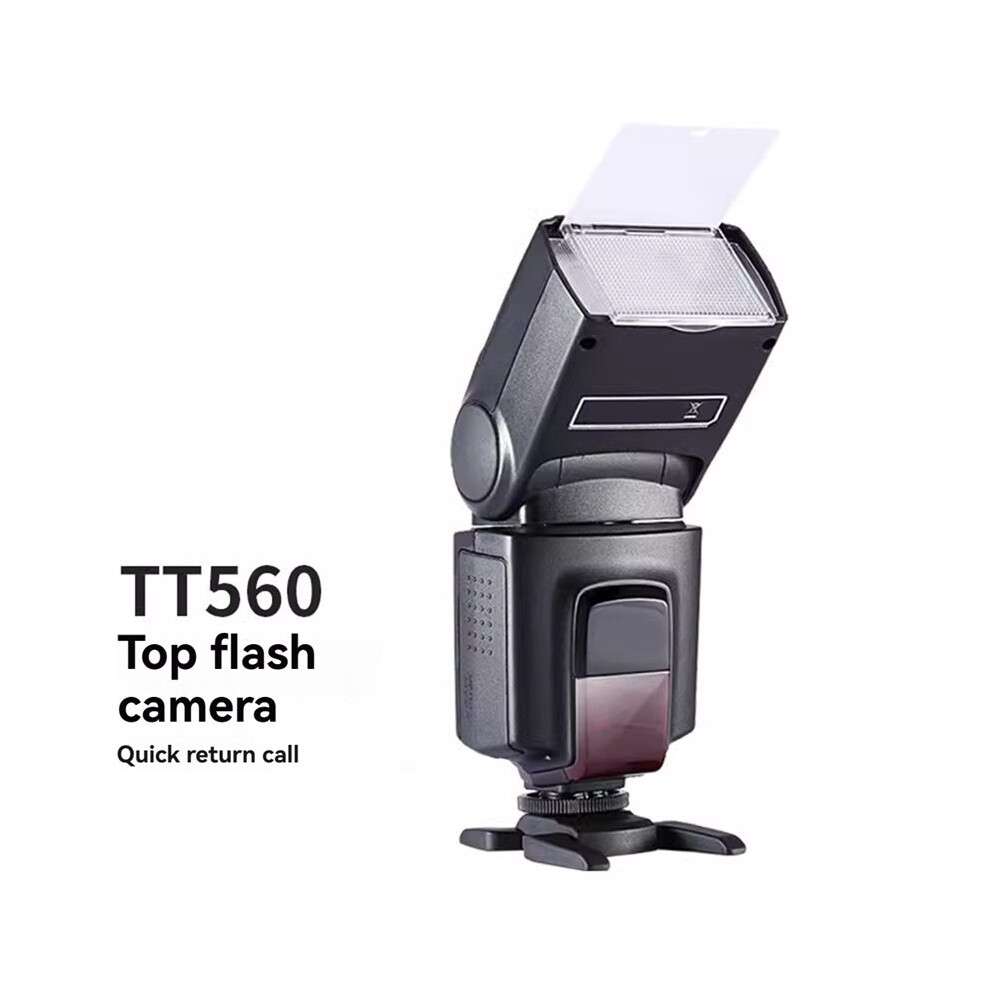

TT560 Flash Speedlite Digital Camera Speedlight for DSLR Cameras Speedlight

TT560 Flash Speedlite Digital Camera Speedlight for DSLR Cameras Speedlight Beskrivelse

The flash unit has 8 steps of power output control which indicated by 8 pieces of LED

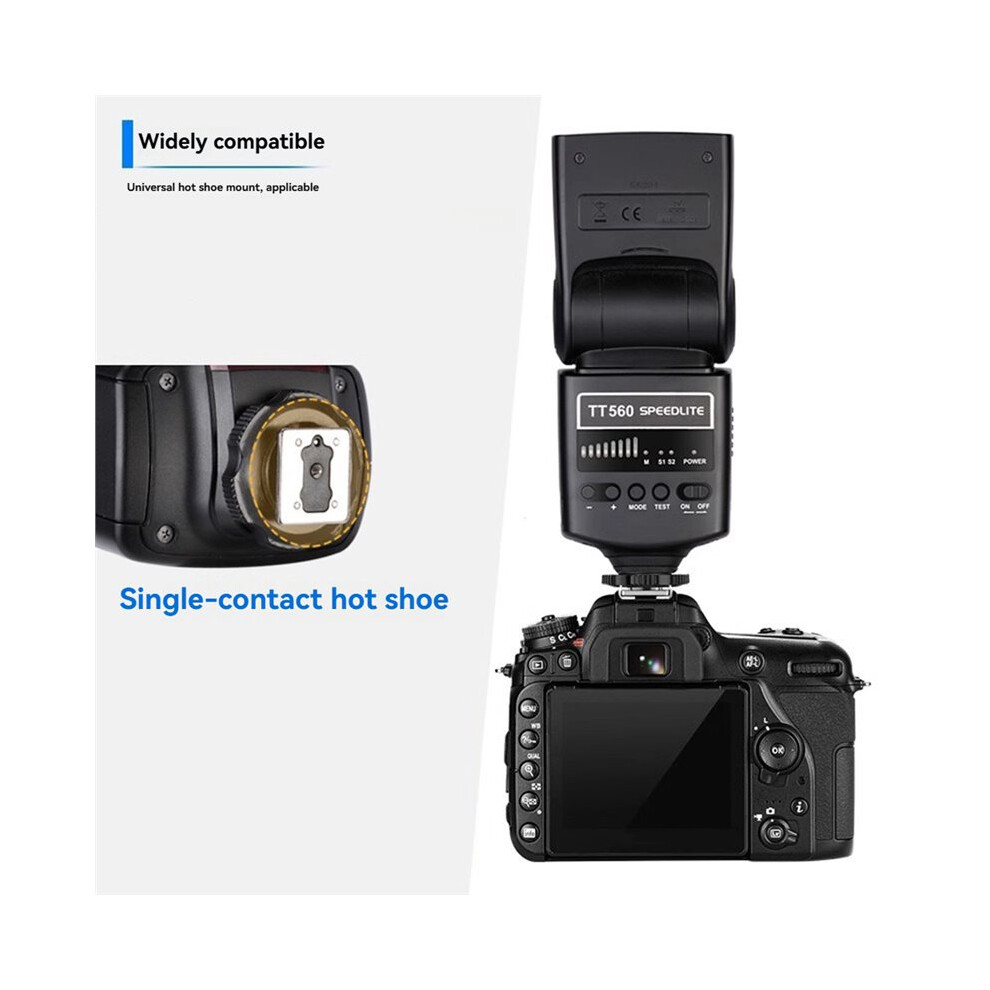

Press the MODE key to M Mode. In this mode, you can set TT560 to your camera hot shoe or speedlite trigger hot shoe to trigger the flash unit. When shooting, adjust the flash power and press the camera shutter, the flash light will flash under the camera synchronous signal
Press the MODE key to S1 Mode. The Mode is applicable for slave flash in order to create many lighting effects. It is respectively applicable for manual flash environment
Press the MODE key to S2 Mode. The mode is applicable for slave flash in order to create many lighting effects. It is respectively applicable for TTL flash environment. The flash unit won't flash synchronously with the first flash but the second flash from the master flash
To prevent the flash from getting too hot and damage, please do not flash over 20 times when in power lever 1/2,1/1. Please cool down the flash unit for at least 10 minutes. The over-temperature protection function will be activated if you continue to flash after 20 times. In this state the charging will turn to 10-25s

Power Management
(1) to the , the flash will start charging (the charging indicator is dim). After several seconds, the charging indicator turns red and TT560 is ready to shoot.
(2) For a test flash, press the test button. After use, press the /OFF to OFF to power off.
(3) If the red charging indicator lamp flickers in every 1s, it indicates low battery. In such
case, the power will turn off automatically and you need to replace the batteries.
Guide Number:38 (m ISO 100 )
(The product printed words may vary depending the batch, but this does not affect use)
Flash Mode: M, S1, S2
Vertical Rotation Angle: 0~90 degrees
Horizontal Rotation Angle: 0~270 degrees
