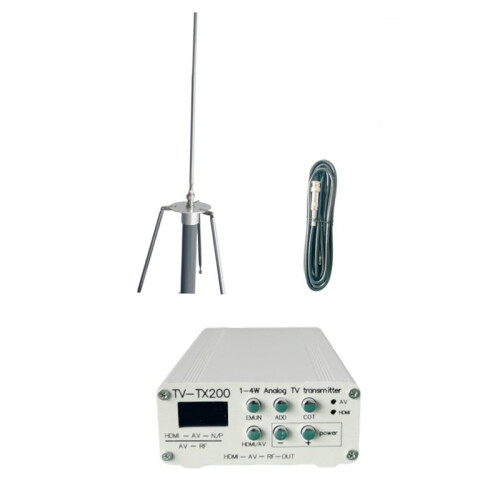

TV-TX200 VHF/UHF Analog TV Transmitter Support HD/AV Input Analog Signal Transmitter with GP Antenna US Plug

TV-TX200 VHF/UHF Analog TV Transmitter Support HD/AV Input Analog Signal Transmitter with GP Antenna US Plug Beskrivelse

TV200 analog TV transmitter is a household analog TV transmitter with adjustable power and frequency
The transmission power is adjustable from 0.5W to 2W, and it can output HD high-definition 1080 signals or input CVBS analog signals
The maximum distance can reach several hundred meters without obstacles and with the transmission antenna matching the transmission frequency
Support VHF 85.25MHZ-216.25MHz setting
Support UHF 471.25MHZ-839.25MHz setting Sound frequency setting of 4.5MHZ-6.5MHZ

FM transmission frequency:
Firstly, set the transmitter to 85.25MHz VHF, with a sound frequency of 6.5MHz. The TV frequency the sound frequency will result in Equivalent to the receiving frequency of the radio,
85.25+6.5=91.75
85.25+6.0=91.25
85.25+5.5=90.75
85.25+4.5=89.75
(The product printed words may vary depending the batch, but this does not affect use)
Plug Type:US Plug, it applies to Canada, India, Mexico, Thailand, the United States, the Philippines and so .
Voltage:AC110V
Color:As Shown
Material:Aluminum Alloy

Package Contents:
1 * analog video TV transmitter with antenna
1 * adapter

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
