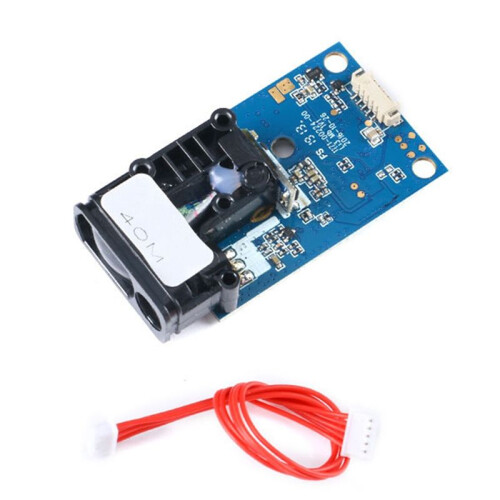

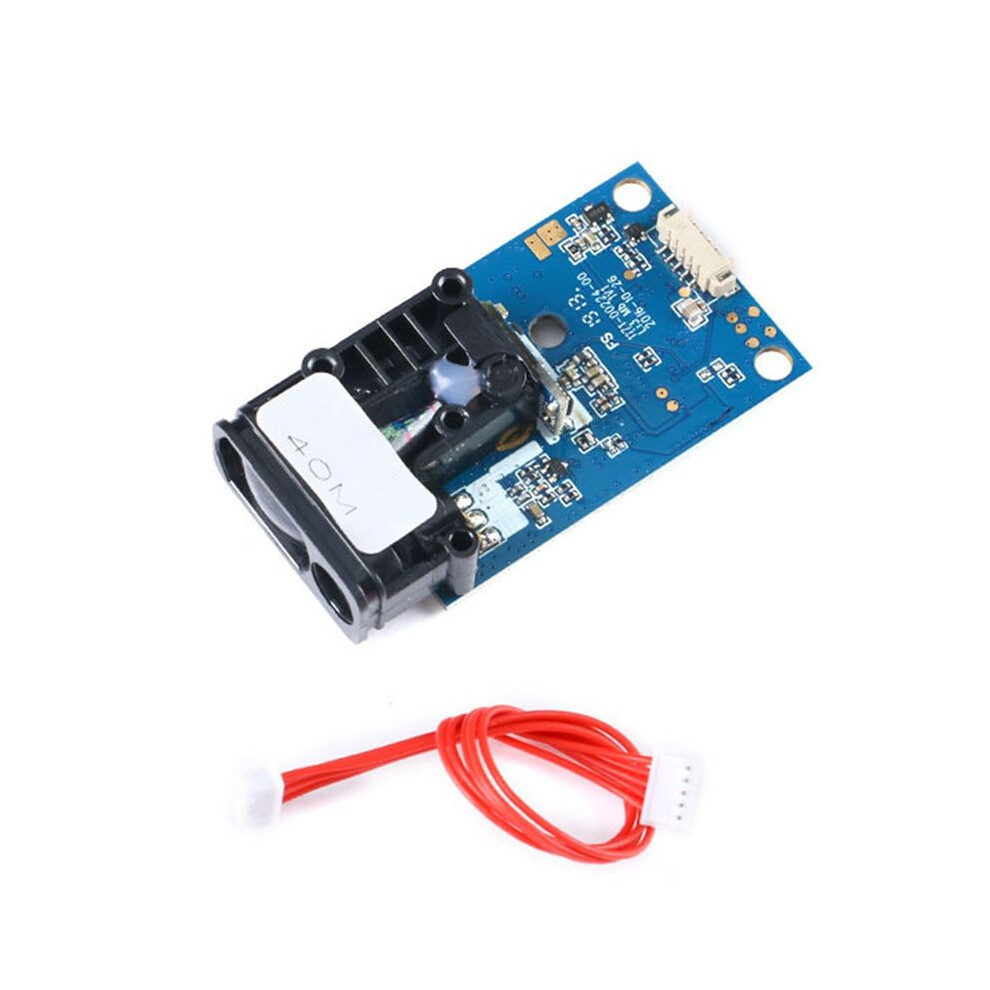

TW10S-UART Laser Measure Distance Sensor High Precision for Infrared Ranging Range Finder Module

TW10S-UART Laser Measure Distance Sensor High Precision for Infrared Ranging Range Finder Module Beskrivelse

Measuring range: 0.05~40m
Resolution: 1nn
Measurement accuracy: (1.5mm+d*50,000ths)
Data output rate: Normal mode: 1~10Hz (usually 5Hz) Fast mode: about 10Hz/20Hz/30Hz
Laser type: 630-670nm, Class II, Less than 1mW

Indicator light: red laser
Operation mode: single data/continuous data/external trigger
Connector: dual-row 2.54-row jack
Data interface: UART (3.3V TTL) two-wire serial interface (master mode reports measurement information)
Communication protocol: serial port protocol
Power supply: +5V
Power consumption: Less than 1W
Storage temperature range: -20 ~60
Operating temperature range: -15 ~ 50
Storage humidity: RH85%
(1) Longer distances can be measured with a strong reflector. The range value can be set by downlink command, and the maximum setting is 80 meters.
(2) In harsh environments, such as outdoor sunlight, the performance will be affected. It can be used with a target reflector to improve performance.
(3) In fast mode, the return light is less than 50mV, and the error will become larger. There are certain requirements for the measurement target and distance. It is not suitable for outdoor daytime applications.
Color: As Shown
Material: PCB

Package Contents:
1 * Laser rangefinder
