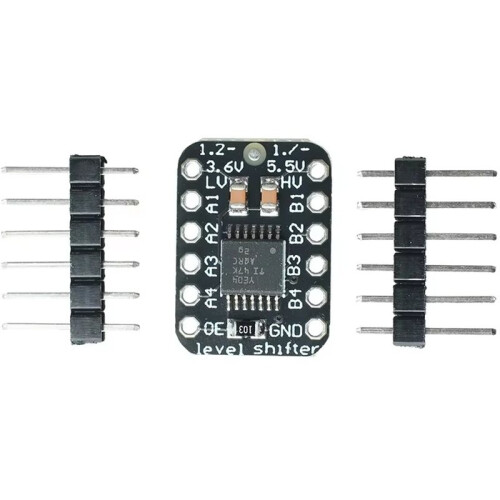

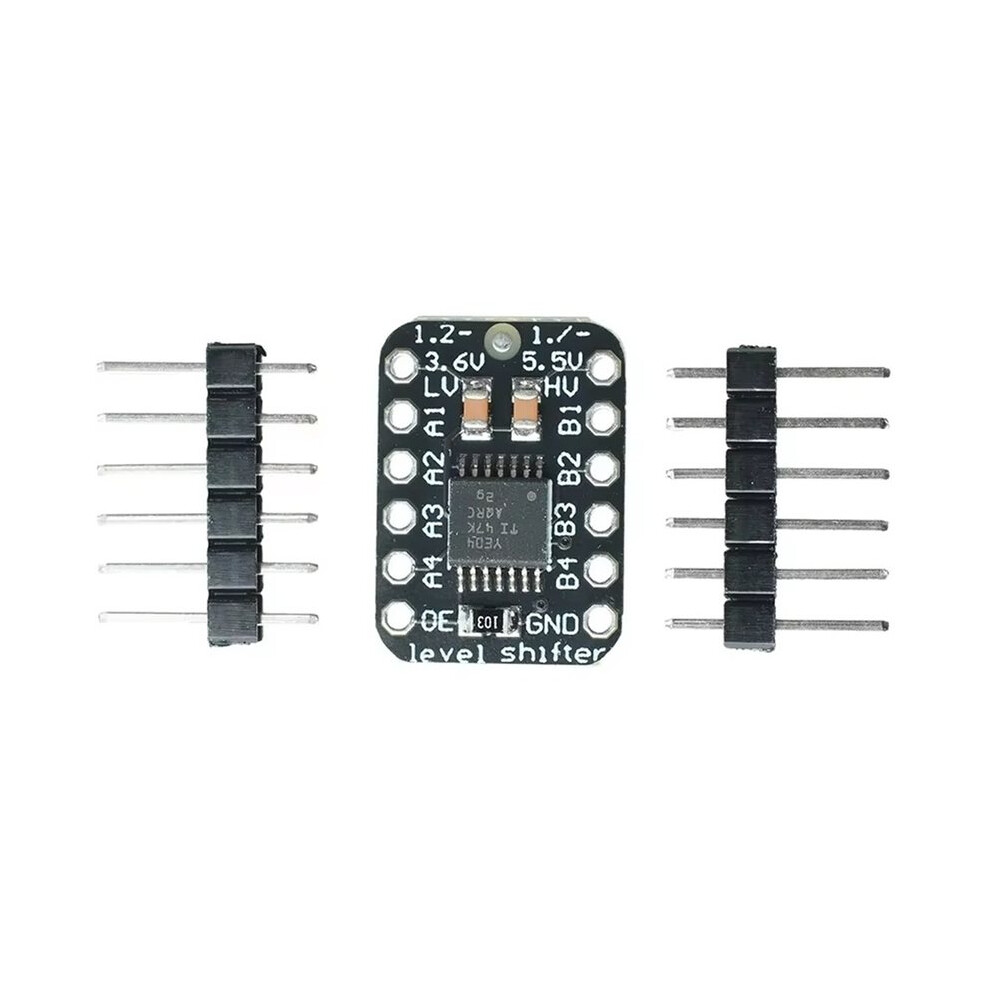

TXB0104 4-Channel Bidirectional Logic Level Shifter Module Auto Direction Sensing 3.3v/5v Logic Converter
På lager
Derfor vil du elske at handle hos OnBuy:
- Tjen Cashback på hvert køb – brug det med det samme på din næste ordre
- Gratis levering – på millioner af varer på siden
- Kunder elsker os – 132,000 anmeldelser med vurderingen “Fremragende”
Priserne for varer, der sælges af OnBuy, inkluderer moms.
Rentefrie betalingsmuligheder
Se fuld produktbeskrivelse og detaljer
Levering: Standard (33,00 kr.) | tor. 27. - lør. 29. aug.
Solgt af: Dopipoo
Returnering: 30 dage
180 dages betalingsbeskyttelse
Du kan også lide
Oversigt
- 1.TXB0104 chip automatically performs bidirectional level conversion without pin adjustment, with simple wiring and strong compatibility
- 2. The chip transmission has no resistance voltage division interference, high-speed signals are not distorted, and debugging faults are reduced
- 3. Compatible with pull-up resistors above 50K Ω and compatible with most conventional control circuits
- 4. Pre soldering of peripheral components is completed, saving development time
- 5. Compact and compact design, suitable for project development, electronic DIY circuit design and debugging, and other scenarios
TXB0104 4-Channel Bidirectional Logic Level Shifter Module Auto Direction Sensing 3.3v/5v Logic Converter Beskrivelse
1.TXB0104 chip automatically performs bidirectional level conversion without pin adjustment, with simple wiring and strong compatibility
2. The chip transmission has no resistance voltage division interference, high-speed signals are not distorted, and debugging faults are reduced
3. Compatible with pull- resistors above 50K Ω and compatible with most conventional control circuits
4. Pre soldering of peripheral components is completed, saving development
5. Compact and compact design, suitable for project development, electronic DIY circuit design and debugging, and other scenarios
Product Parameters
Product model: TXB0104 bidirectional level conversion module
Conversion method: Fully automatic bidirectional voltage conversion, supporting any voltage mutual conversion
Applicable voltage: 5V 3.3V, Compatible with mainstream microcontrollers and module voltages
Supporting components: double-sided 0.1uF filtering capacity, output enable 10K pull- resistor
Suitable pull- resistor: 50K Ω
Product size: 18mm x 13mm x 2mm
Core advantages: welding free, plug and , no need for directional adjustment, stable high-speed signal
Applicable scenarios: project development, electronic DIY circuit design, IoT module debugging
Usage note: Not applicable to standard I2C interface and large capacity control
Color: As Shown
Material: Plastic+Metal
Package Contents:
1*module
Detaljer
| OPC | PXW5XKD |
|---|---|
| Koder | 4712730742469 (EAN) |
| Produkt- og sikkerhedsoplysninger |
Produktdata
| Height | 3cm |
|---|---|
| Width | 10cm |
| Length | 10cm |
| Weight | 0.01kg |
| Colour | As Shown |
| Material | Plastic+Metal |
