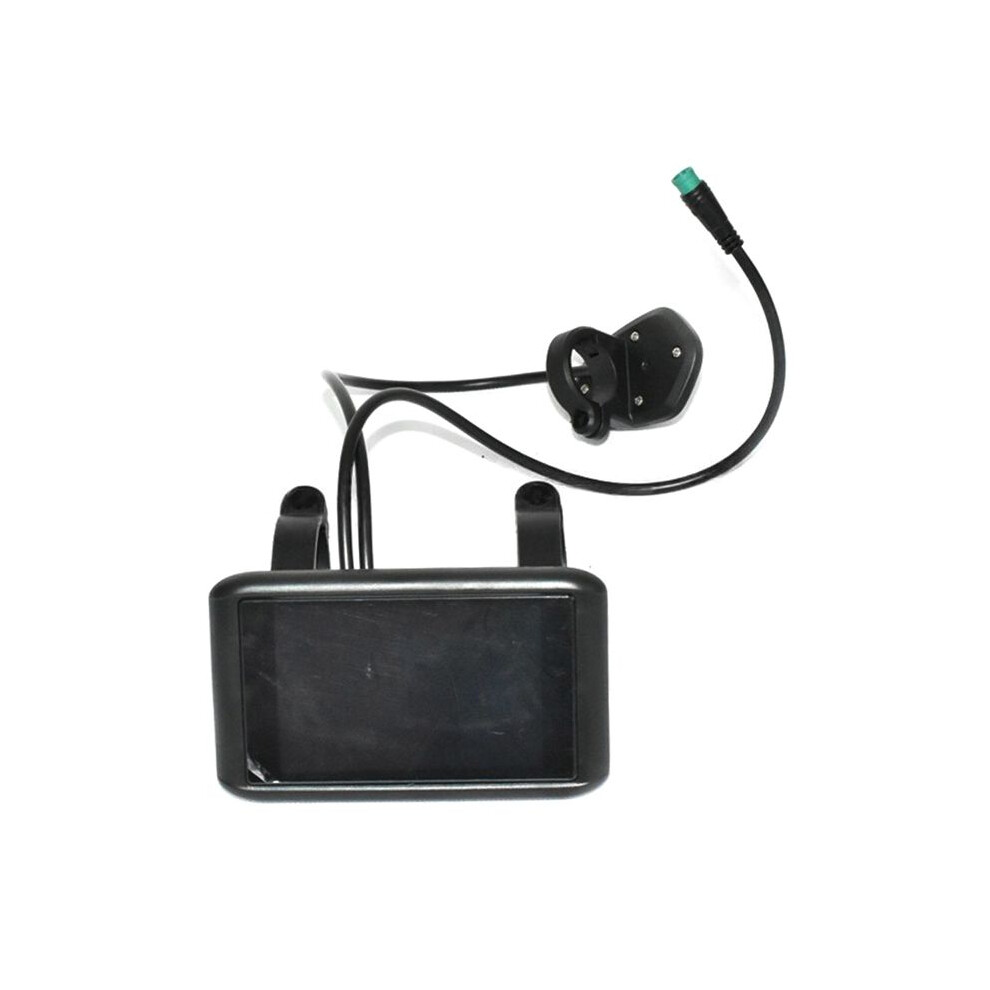

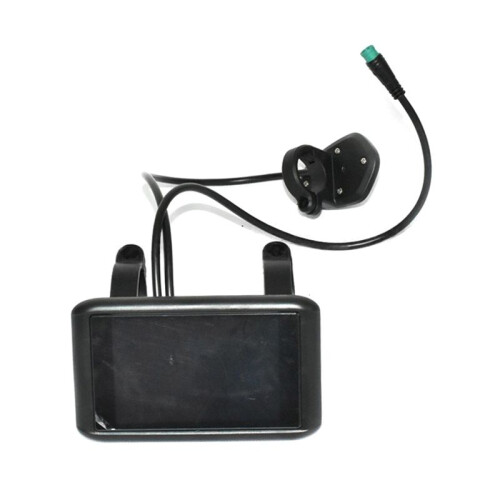

UKC1 24/36/48/52/60/72V Universal Colorful Electric Bicycle LCD Display with USB Charging Function A

UKC1 24/36/48/52/60/72V Universal Colorful Electric Bicycle LCD Display with USB Charging Function A Beskrivelse

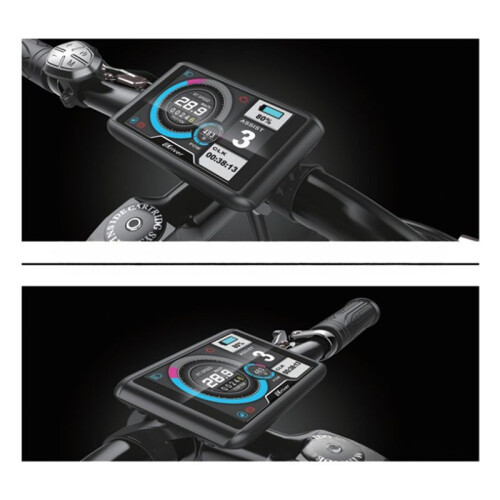

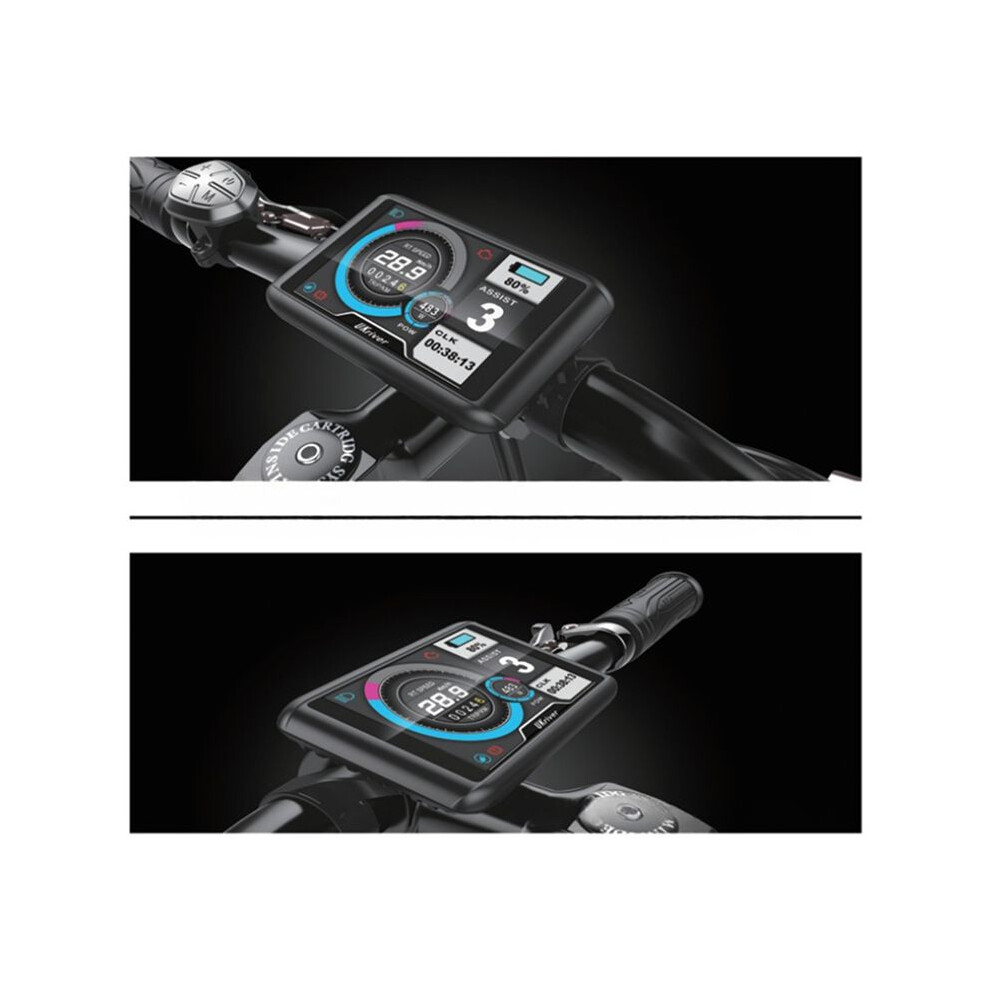

High-contrast 3.5inch IPS colorful matrix screen.

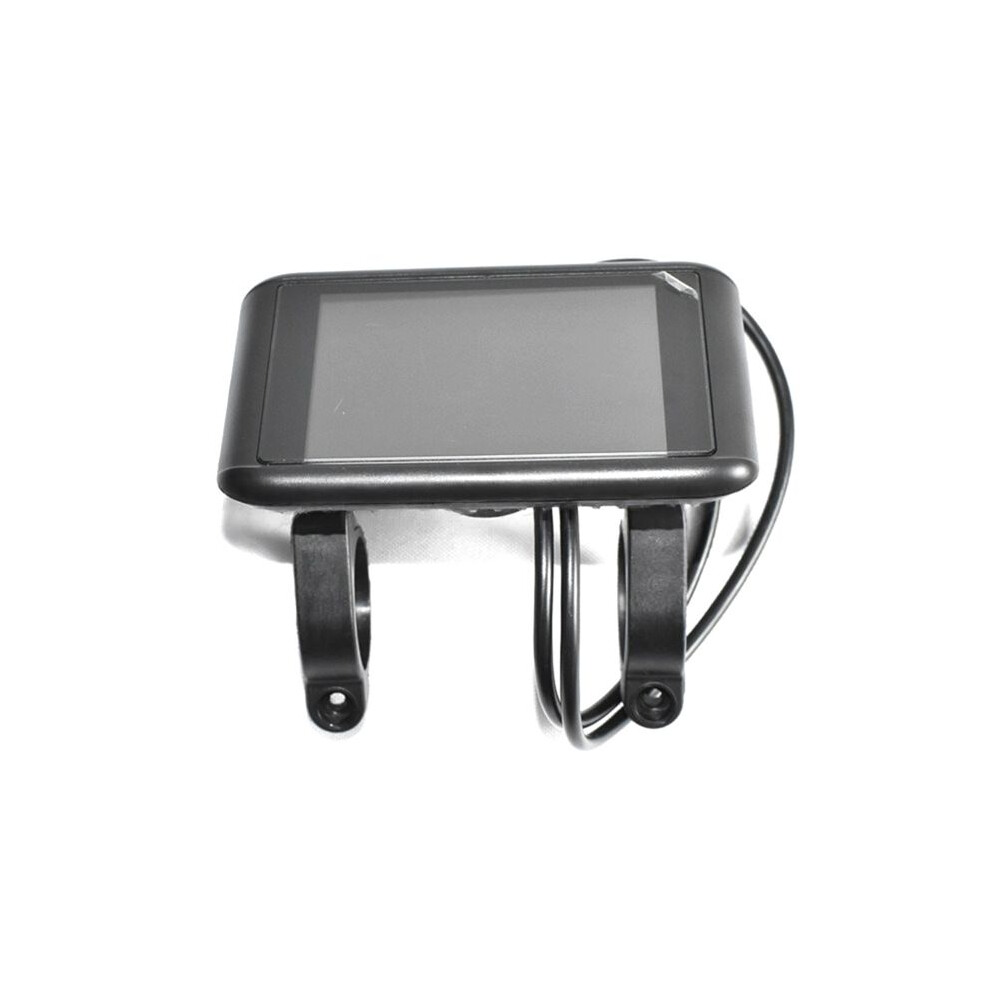

The rotatable screen can be freely switched horizontally and vertically.
Intelligent power indicator contains below: It can Provide a stable power indication through the optimization algorithm. The power is not affected by the start-stop fluctuation of the motor. If the system supports battery communication, the accurate percentage of power will be displayed.
Adjusting 5 levels backlight brightness 1st level is the darkest, 5th is the lightest
9-level Assist: 3-level/5-level/6-level/9-level is optional

Powered by 24V/36V/48V/52V/60V/72V power supplies
Rated power: 1W
Maximum power: 5W
USB charging: 5V, 500mA
Power-off leakage current: Less than 1uA
Operating current supplied to the controller: 100mA, value not to exceed 300mA
Operating temperature: -20 to 70
Storage temperature: -30 to 80
Five-core waterproof cable: red, , black, green, and yellow. Wire order:
1. Red: Positive (battery power 24V/36V/48V);
2. : Controller lock wire;
3. Black: GND;
4. Green: RXD: Instrument input signal, the instrument receives signals from the controller;
5. Yellow: TXD: Instrument output signal, the instrument sends signals to the controller.
This display is 2# protocol as defult, please check whether it is the same with your controller before purchasing.
Specification:A:Waterproof style
Color:As Shown
Material:Lcd+Abs

Package Contents:
1 * Bicycle LCD Display kits
