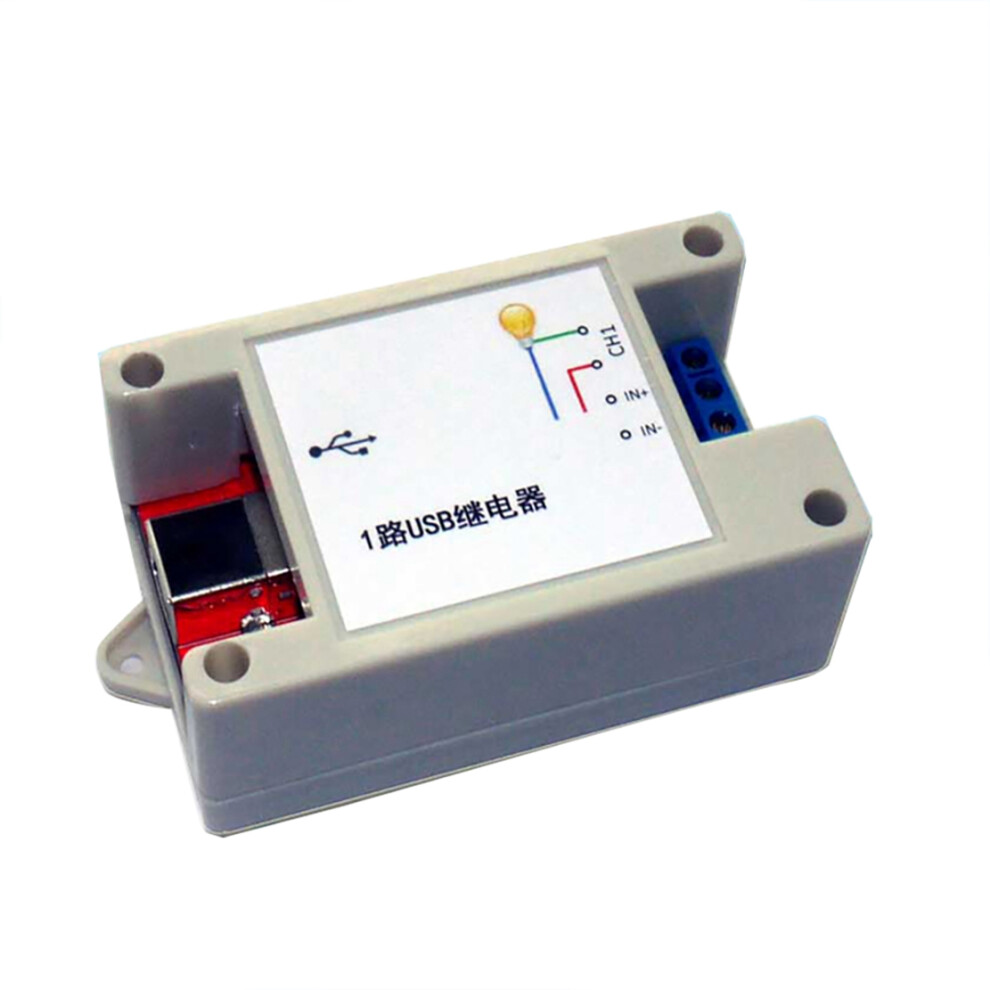

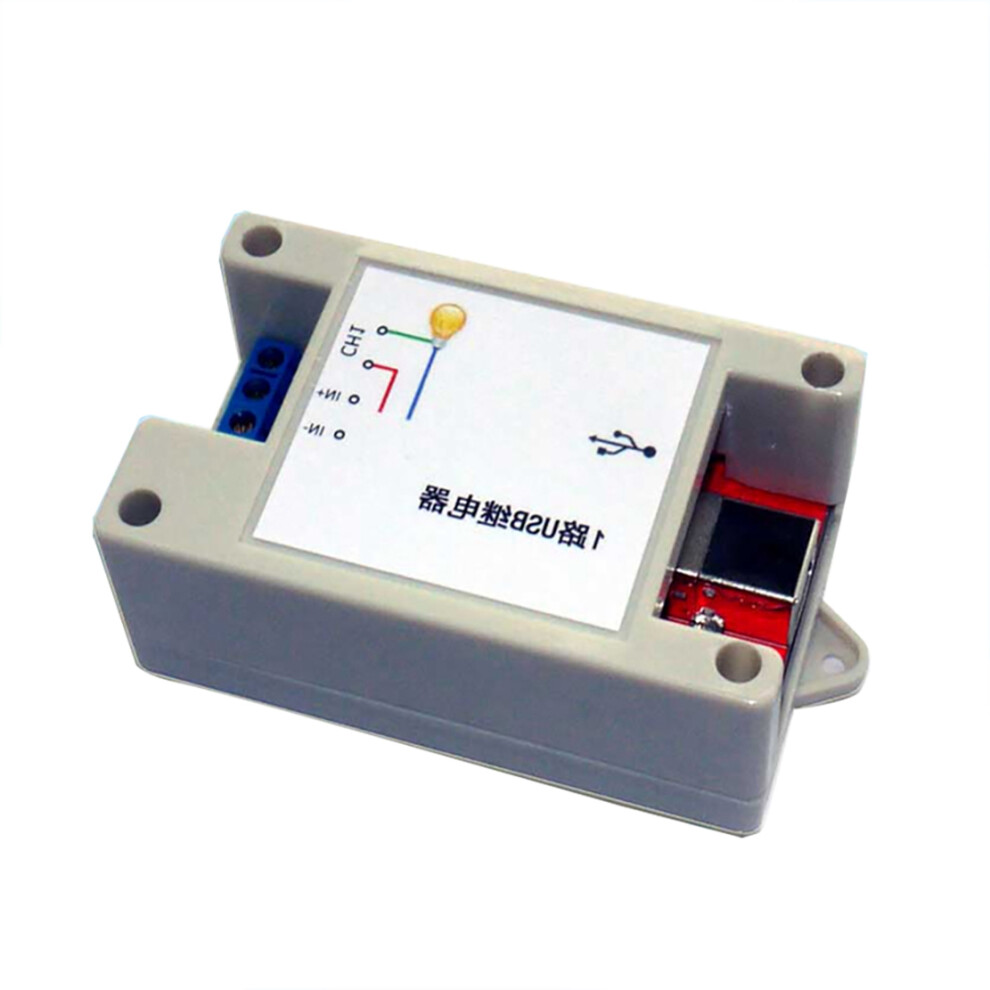

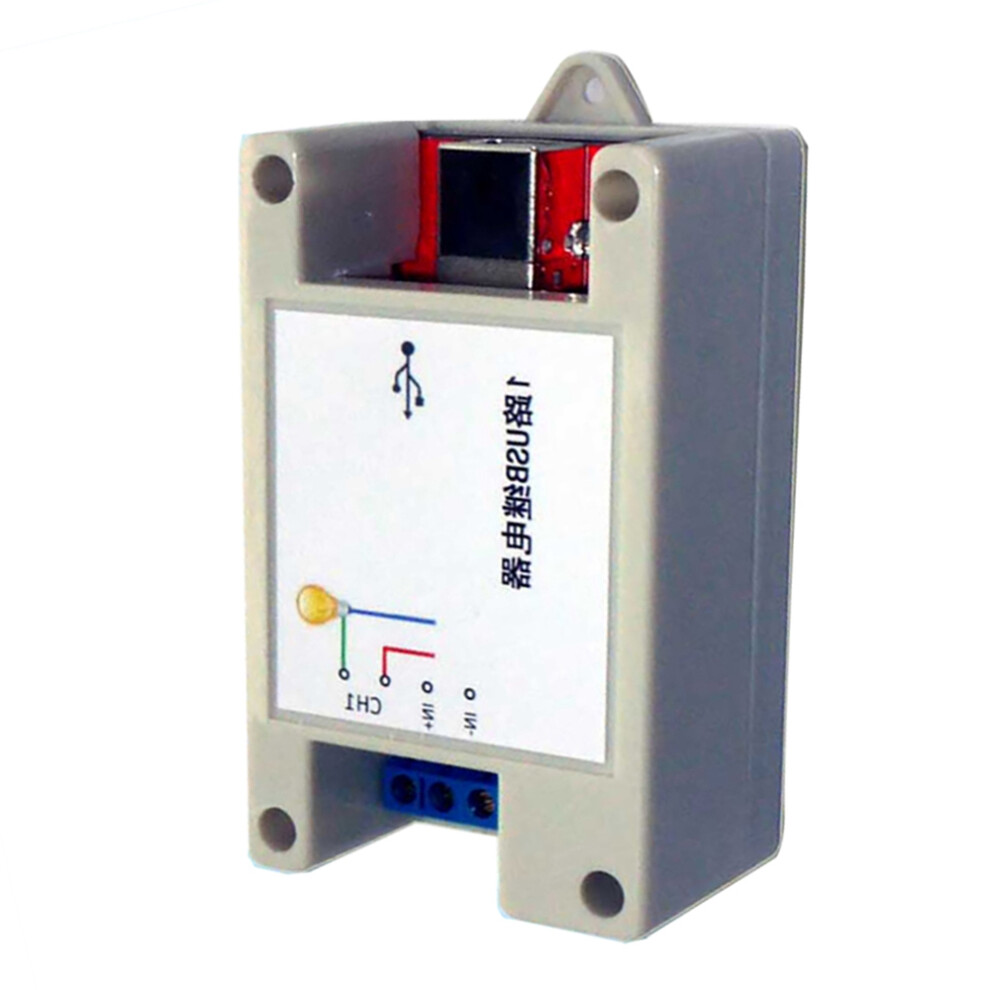

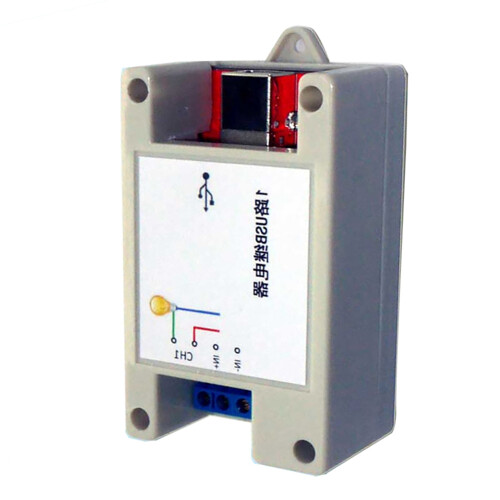

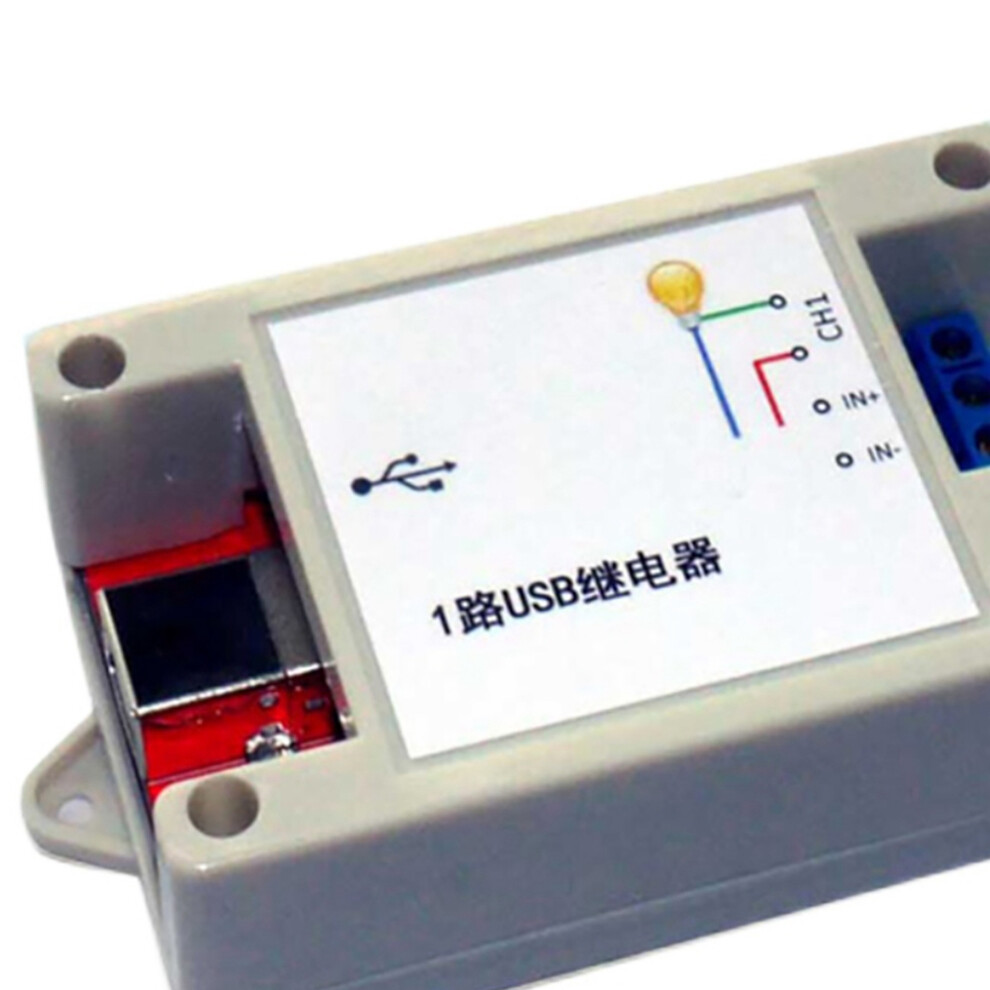

USB Relay Module with 1 Channel Digital Acquisition CH340 Delay Relay

USB Relay Module with 1 Channel Digital Acquisition CH340 Delay Relay Beskrivelse

Adopt CH340G chip USB-TTL solution. Control the pull-in and release of 1-way relay through USB serial port command, and the command controls the delay of 1 ~ 255 seconds.
With 1 isolated digital input, it can match the 5-24V input level, and the module will actively notify the computer when the level changes.
The module is easy to operate, and most of the serial port commands only need 1 byte to realize the function. Provide VB host computer program and source code, which makes it easier to realize computer remote control.
After each command is accepted, the module returns the status of all relays. In addition, the module can also respond to the relay status query from the host computer program. The upper computer program can judge whether each operation is successful through these feedbacks from the module, and improve the accuracy of control.

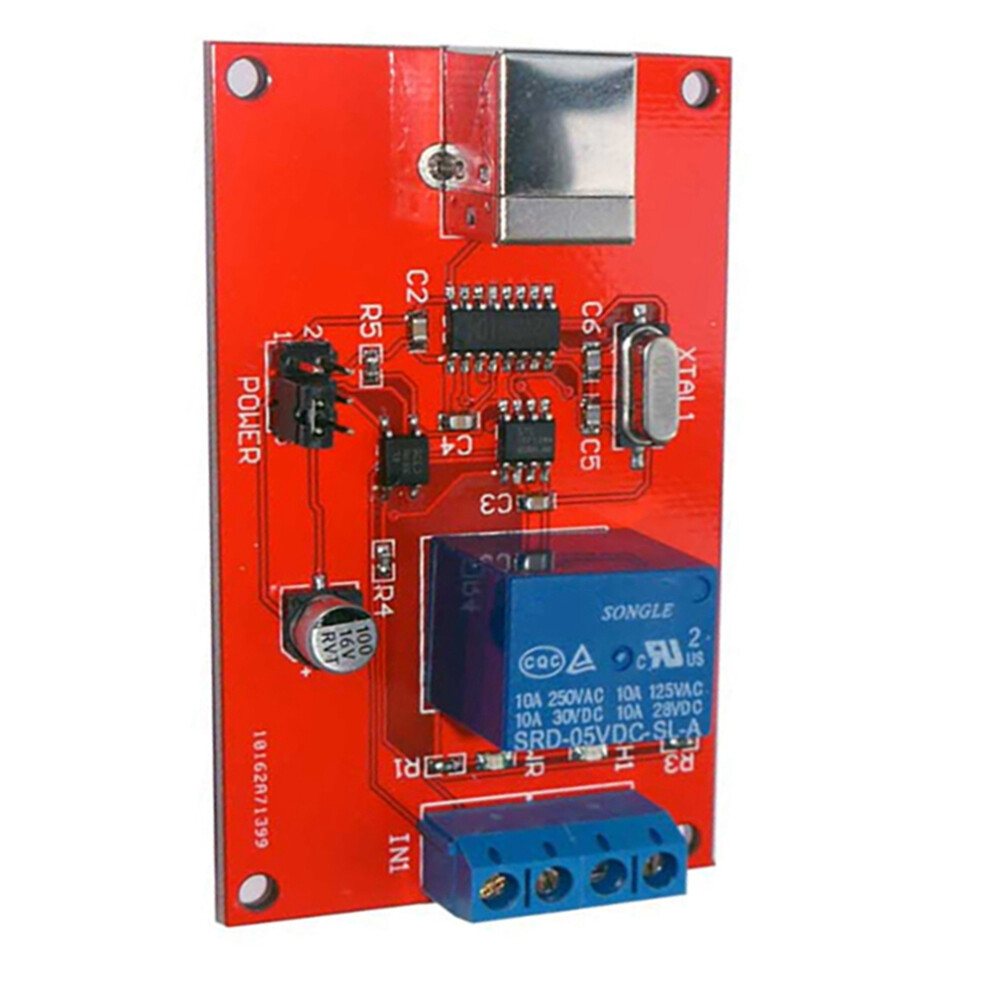

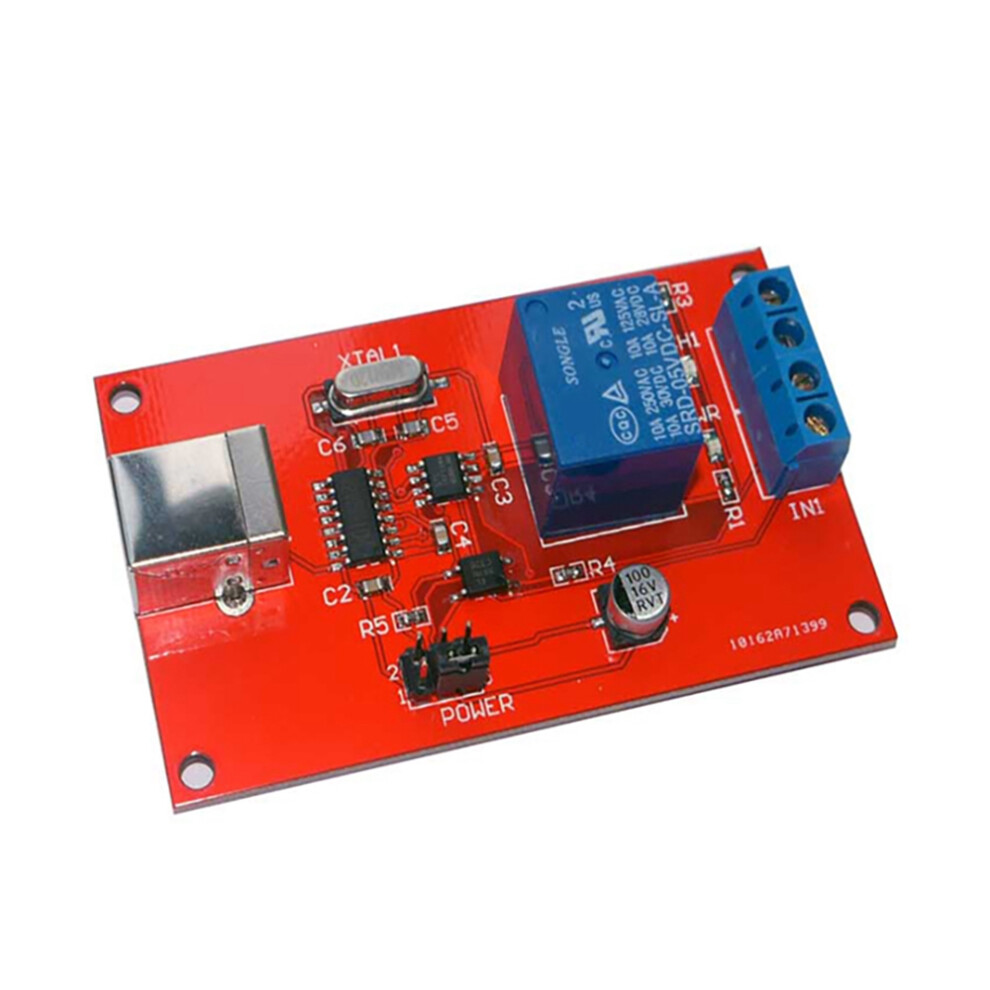

STC15F104W as the main control chip

Command control 1 ~ 255 seconds delay
Simple operation, most serial port commands are single-byte commands
Improved job stability
Colour:As shown
Material:ABS
Size: 82mmX50mmX32mm

Package Contents:
1set x delay relay
