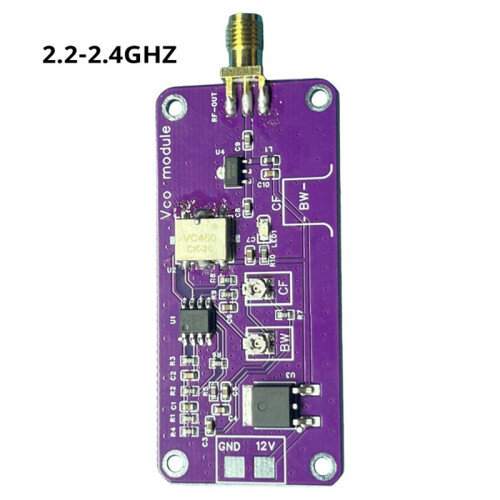

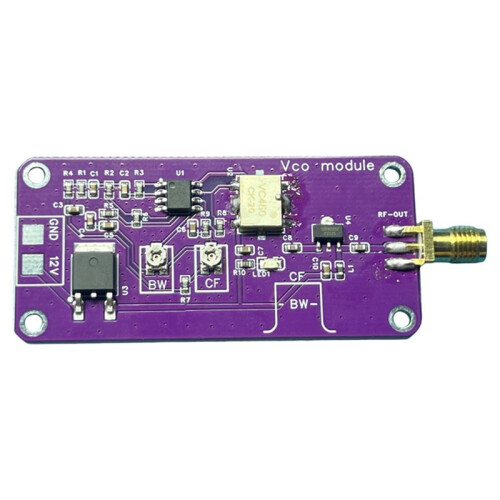

VCO Voltage-Controlled Oscillator Sweep Signal Source Broadband Oscillator RF Suppression Signal Source 2.2-2.4GHZ
New
417,26 kr.
Lignende produkter, vi tror du vil kunne lide
Would you like us to let you know when it's back?
Beskrivelse og detaljer
Oversigt
- Power Supply: 9-12V (Low-noise linear power supply recommended)
- VCO Signal Source
- VCO Voltage-controlled Oscillator
- VCO Signal Source Module
- VCO RF Signal Source
VCO Voltage-Controlled Oscillator Sweep Signal Source Broadband Oscillator RF Suppression Signal Source 2.2-2.4GHZ Beskrivelse
Power Supply: 9-12V (Low-noise linear power supply recommended)
Operating Current: 45mA;
Output Frequency Range: 850-960MHz; 2.2-2.4GHz (Two frequencies, please order correctly)
Output Power: +19dBm;

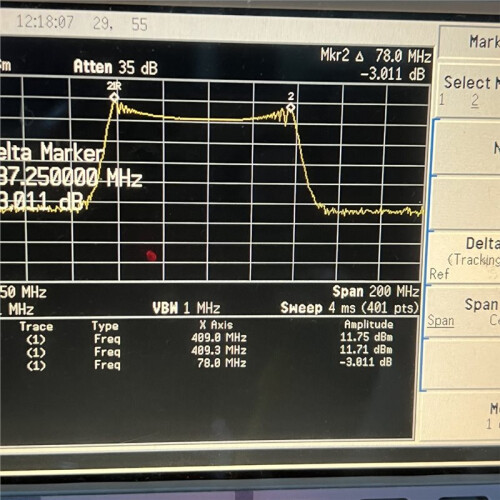

Sweep Bandwidth: 80MHz
Output Waveform: Non-sine wave (a low-pass filter is required for sinusoidal waveform)
Second Harmonic Suppression: 24dBc;
Output Impedance: 50Ω;
Input/Output Interface: SMA external thread internal hole
Module Dimensions: 60*29mm (excluding SMA connector)
Color:
Material: PCB
Specification: 2.2-2.4GHZ
Package Contents:
1*VCO Module
Detaljer
| OPC | PWMD5MG |
|---|---|
| Koder | 6033594536567 (EAN) |
| Produkt- og sikkerhedsoplysninger |
Produktdata
| Height | 2cm |
|---|---|
| Width | 3cm |
| Length | 7cm |
| Weight | 0.12kg |
| Colour | Purple |
| Size | 2.2-2.4GHZ |
| Material | PCB |
