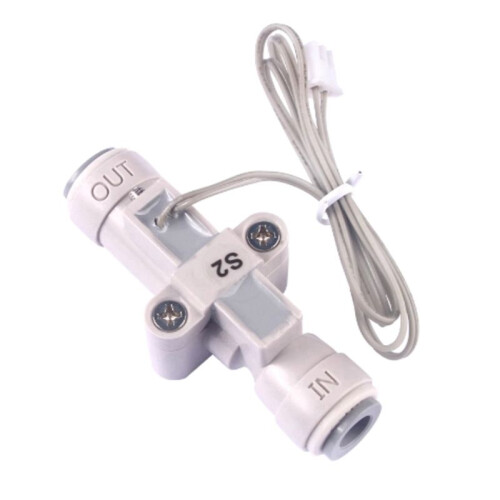

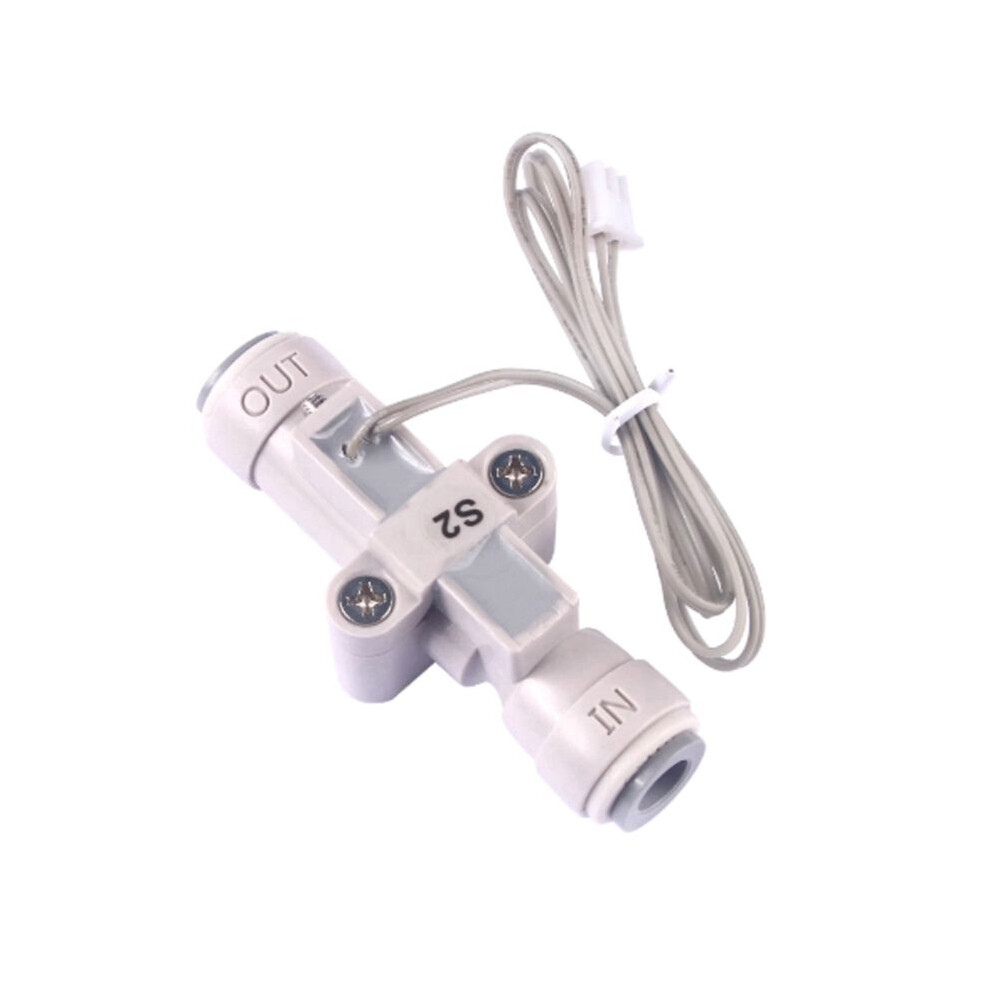

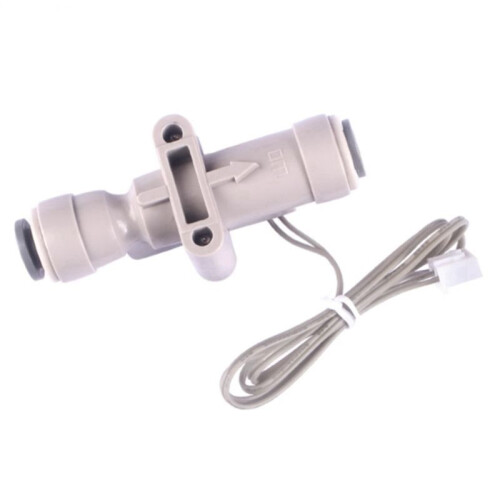

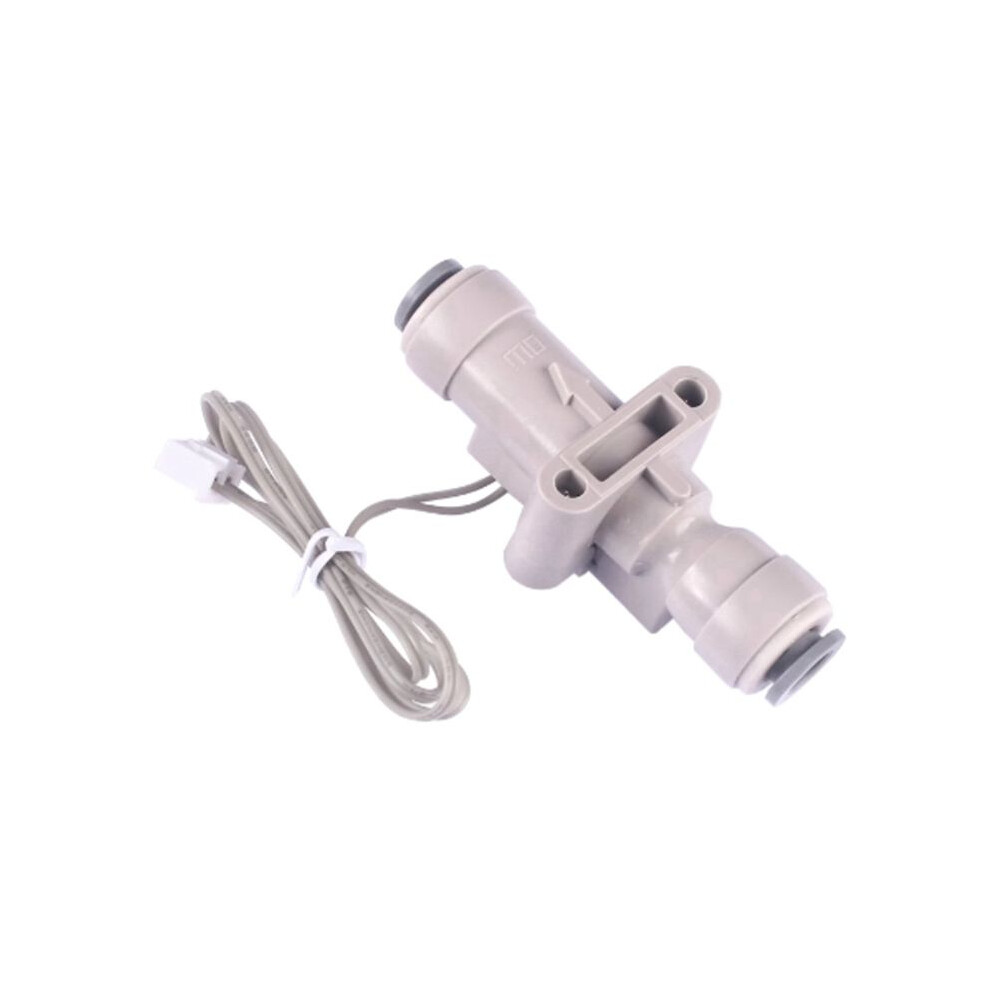

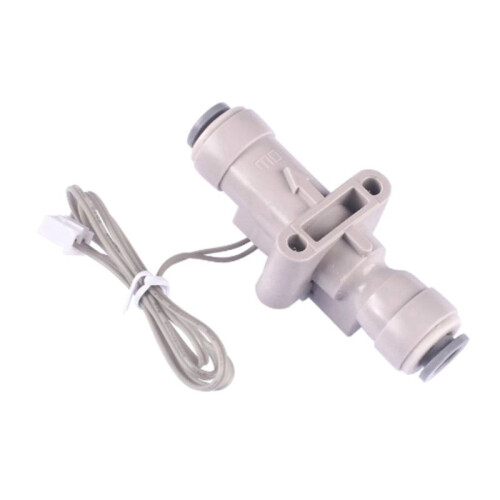

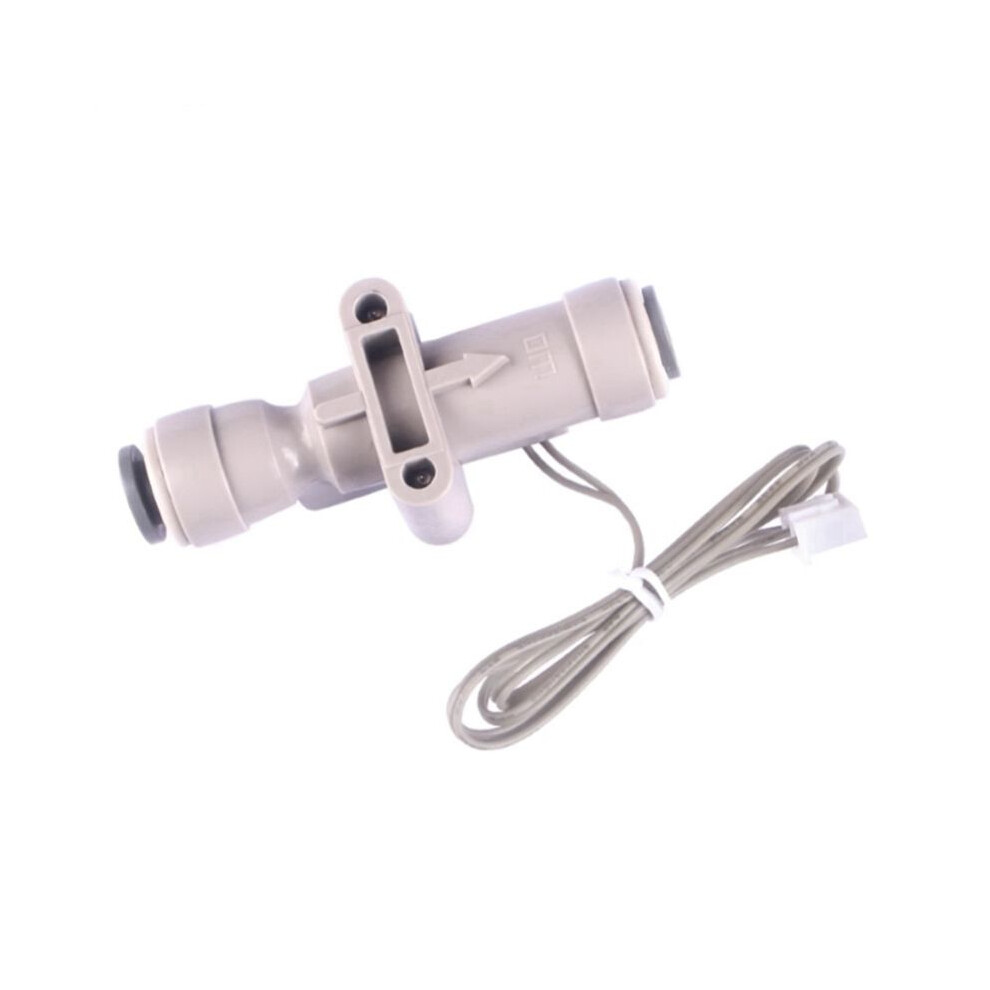

Water Dispenser Water Purifier Accessories 2 Minute Quick Connect Water Flow Low Flow Start Normally Open Type

Water Dispenser Water Purifier Accessories 2 Minute Quick Connect Water Flow Low Flow Start Normally Open Type Beskrivelse

Wire connection strength (body outlet end): 20N.10S tension applied axially along the terminal 20N-10S tension applied vertically along the terminal (no damage to the connection)
Water pressure resistance: hydrostatic pressure at 1.05MPa open for 5 minutes (no leakage and breakage)
Drop performance: from a height of 50cm in any direction to the concrete once (after the test action is normal, no damage)

Model: MW-WS-S2
Interface size: 2 points quick connect
Starting flow: S2 type:Less than 300ml/min(other flow can be customised)
Response :Less than 1S
type: normally (broken) open
Wire length: 50cm
Segment type: XH-2
Voltage range: 0-110VDC
Maximum closing current: 0.5A
Support power:Less than 5W
-resistance: 0.12Q
Disconnect resistance: 1012Q
Connecting capacity: 0.2PF
Applicable environment:
Applicable water quality: turbidity Less than 1; Fe+Co+Ni Less than 0.3Mg/L
Applicable water pressure:Less than 0.8MPa
Applicable water temperature: 5-50
Ambient humidity:Less than 85 per cent
Storage temperature: -20-50
Due to different batches, there may be differences in product appearance and printed text, which will not affect use.
Colour:As Shown
Material:Plastic

Package Contents:
1 * quick-connect water flow
