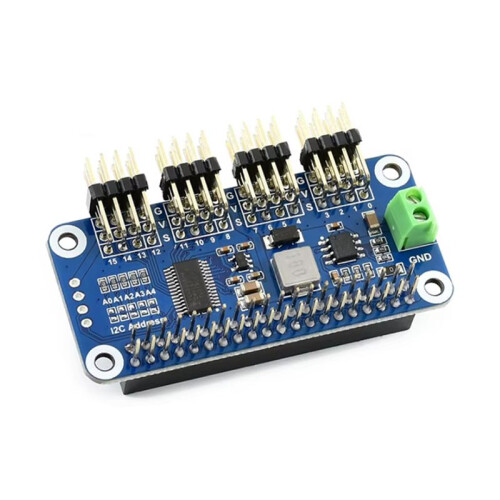

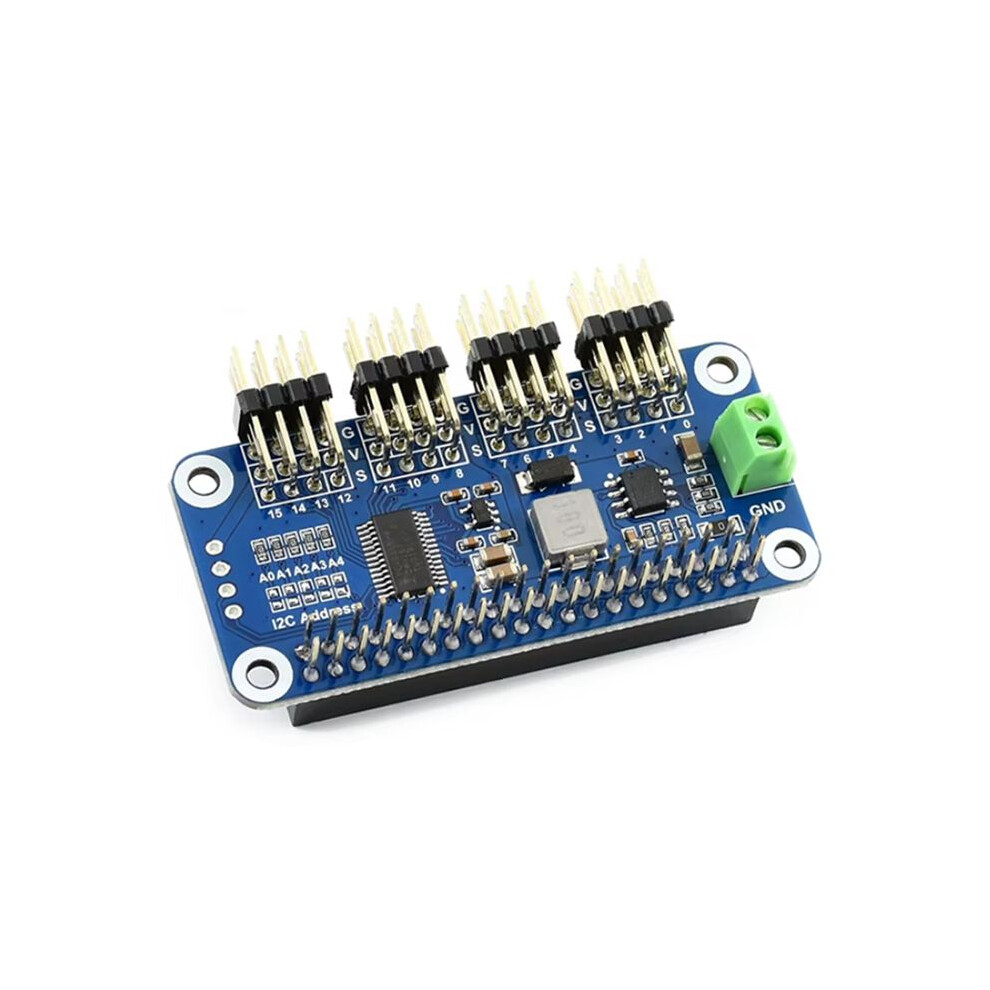

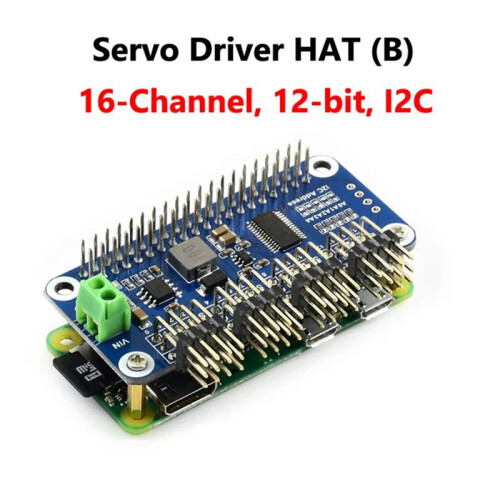

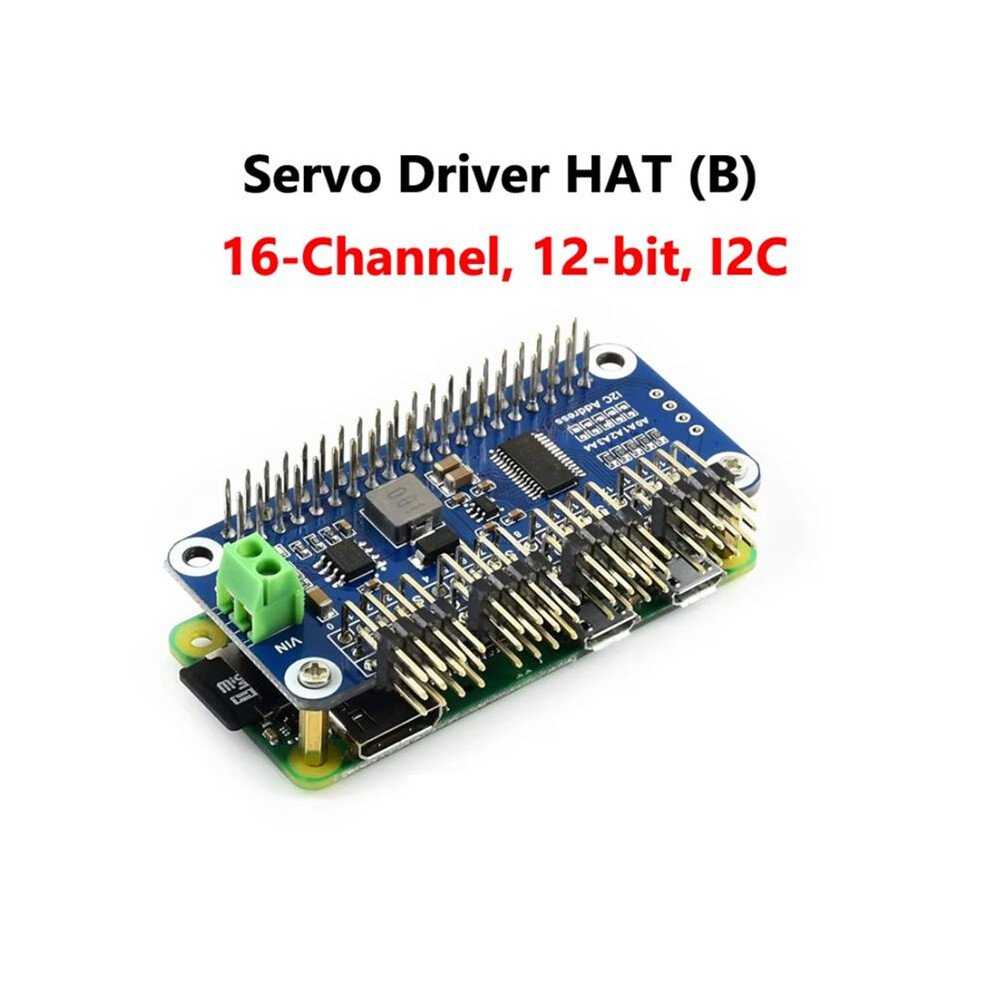

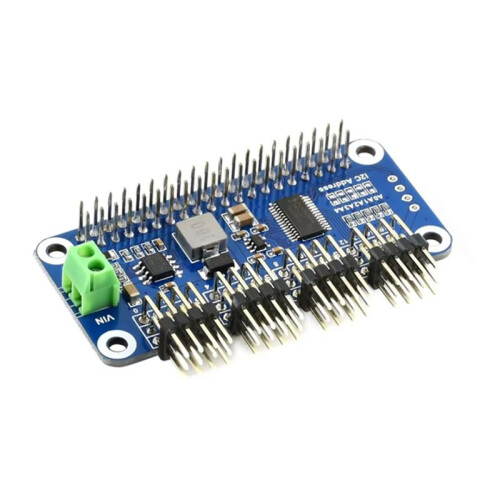

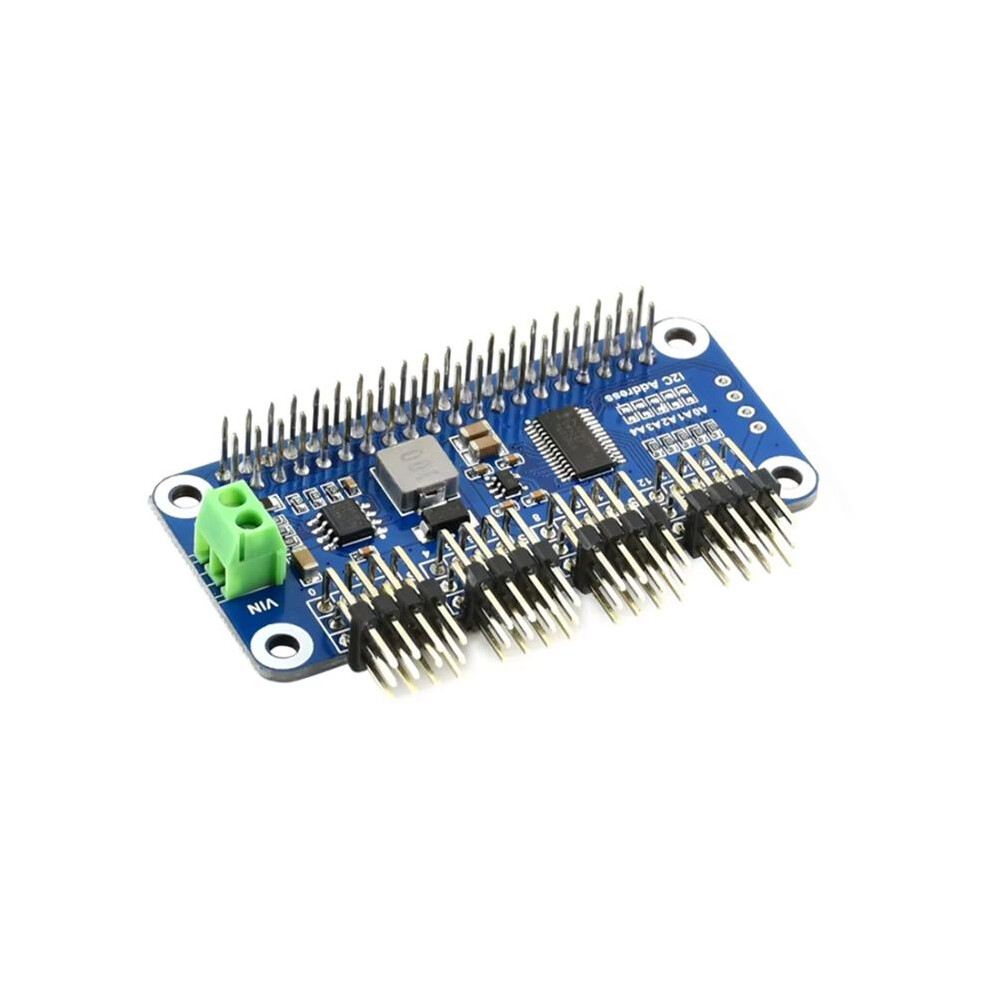

Waveshare 16-Channel 12-Bit Servo Driver HAT (B) for Raspberry Pi, Jetson I2C Interface, Integrated 5V Regulator
Ny
På lager
Derfor vil du elske at handle hos OnBuy:
- Tjen Cashback på hvert køb – brug det med det samme på din næste ordre
- Gratis levering – på millioner af varer på siden
- Kunder elsker os – 128,000 anmeldelser med vurderingen “Fremragende”
302,02 kr.
+42,95 kr. levering
1%
Tjen 3,02 kr. med det samme
Læs mere
Priserne for varer, der sælges af OnBuy, inkluderer moms.
Rentefrie betalingsmuligheder
Se fuld produktbeskrivelse og detaljer
Levering: Standard (42,95 kr.) | man. 20. - lør. 25. jul.
Returnering: 30 dage
180 dages betalingsbeskyttelse
Mest populære i Forbindelser til printkort
Beskrivelse og detaljer
Oversigt

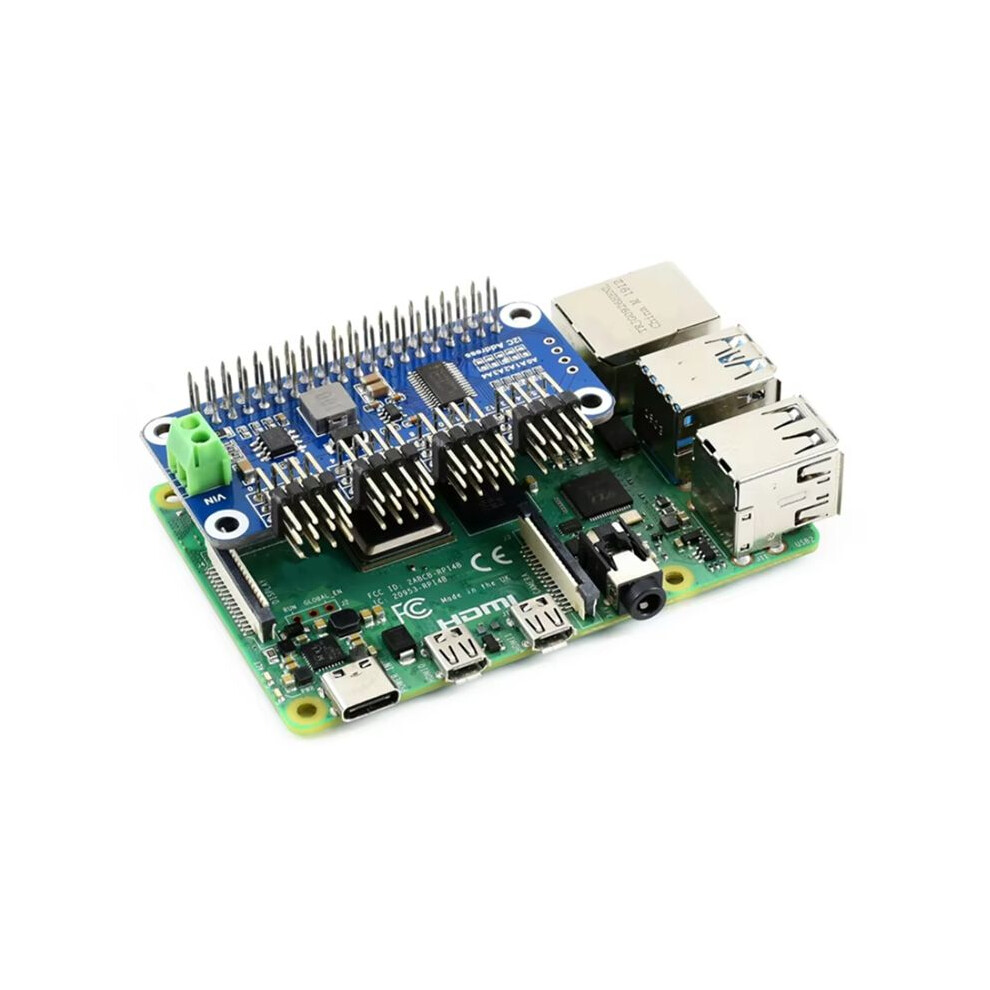

- Based on the For Raspberry Pi 40PIN GPIO interface design, suitable for Raspberry Pi series motherboards and Jetson Nano
- I2C interface control, only 2 signal lines are needed to achieve servo drive
- Support up to 16 servos or PWM outputs, 12-bit resolution (4096 levels) per channel
- Onboard 5V voltage regulator chip, output up to 3A current, can be connected to the battery through the VIN terminal
- Onboard standard servo interface, can be connected to SG90, MG90S, MG996R and other common servos
Waveshare 16-Channel 12-Bit Servo Driver HAT (B) for Raspberry Pi, Jetson I2C Interface, Integrated 5V Regulator Beskrivelse
Based the For Raspberry Pi 40PIN GPIO interface design, suitable for Raspberry Pi series motherboards and Jetson
I2C interface control, only 2 signal lines are needed to achieve servo drive
Support to 16 servos or PWM outputs, 12-bit resolution (4096 levels) per channel
Onboard 5V voltage regulator chip, output to 3A current, can be connected to the battery through the VIN terminal
Onboard standard servo interface, can be connected to SG90, MG90S, MG996R and other common servos
Reserved I2C control interface for easy access to other main control boards
Power supply voltage: 5V (Raspberry Pi interface) or 6V-12V (VIN terminal)
Servo voltage: 5V
Logic voltage: 3.3V
Driver chip: PCA9685
Control interface: I2C
Product size: 65mm x 30mm
Via diameter: 3.0mm
Compatible and can be directly connected to the following products: SG90 Servo, MG90S Servo, MG996R Servo
Due to different batches, there may be differences in product appearance, color, and printed text, which will not affect the use.
Color: As Shown
Material: PCB
Package Contents:
1 * Servo drive board
Detaljer
| OPC | PWG72R2 |
|---|---|
| Koder | 6031844027537 (EAN) |
| Produkt- og sikkerhedsoplysninger |
Produktdata
| Height | 2cm |
|---|---|
| Width | 5cm |
| Length | 7cm |
| Weight | 0.029kg |
| Colour | As Shown |
| Material | PCB |
