Waveshare 2.13Inch E-Ink Display HAT, Black,White Two-Color 250X122 Pixel E-Paper Screen LCD for Raspberry Pi 4B/3B+/3B/2B/Zero
Brand Torribaly
Ny
På lager
Derfor vil du elske at handle hos OnBuy:
- Tjen Cashback på hvert køb – brug det med det samme på din næste ordre
- Gratis levering – på millioner af varer på siden
- Kunder elsker os – 126,000 anmeldelser med vurderingen “Fremragende”
202,36 kr.
252,95 kr.
Spar 20%!
Gratis levering
1%
Tjen 2,02 kr. med det samme
Læs mere
Priserne for varer, der sælges af OnBuy, inkluderer moms.
Rentefrie betalingsmuligheder
Se fuld produktbeskrivelse og detaljer
Levering: Standard (Gratis) | fre. 19. - ons. 24. jun.
Returnering: 30 dage
180 dages betalingsbeskyttelse
Mest populære i Reservedele til bærbare computere
Populær
Populær
Beskrivelse og detaljer
Oversigt

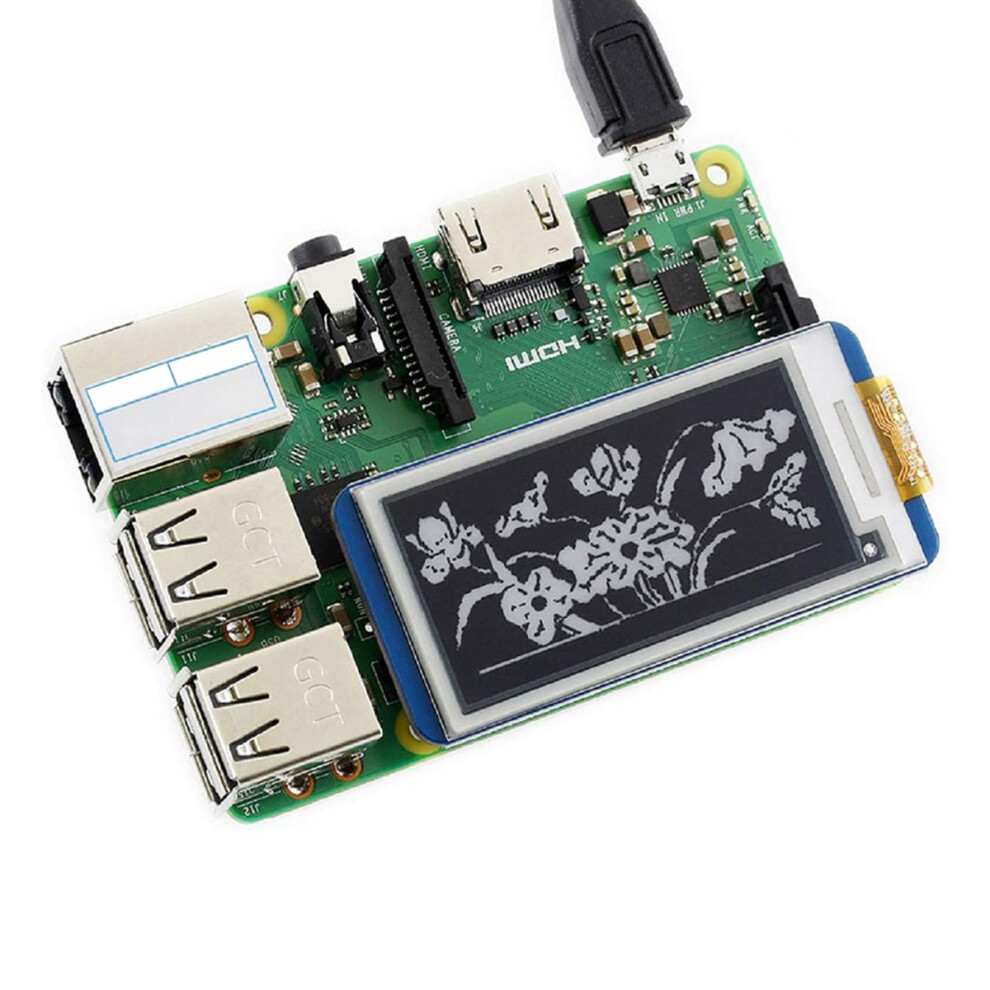

- This is 2.13inch E-Ink display HAT for Raspberry Pi,250x122 resolution, with embedded controller, communicating via SPI interface, supports partial refresh. Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is a perfect choice for applications such as shelf label, industrial instrument, and so on.

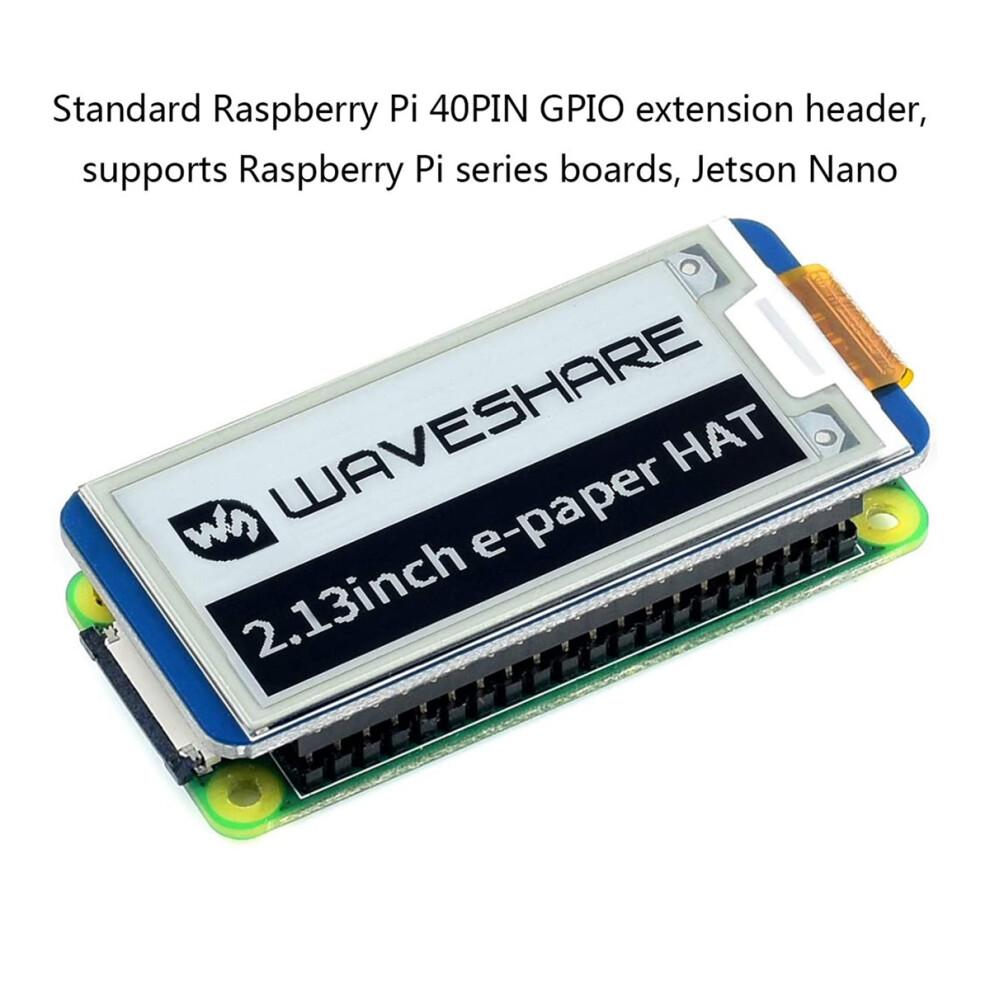

- No backlight, keeps displaying last content for a long time even when power down Ultra low power consumption, basically power is only required for refreshing Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano.
- Preserved solder pads for SPI interface, for connecting with other controller boards like Arduino/Nucleo, etc.Onboard voltage translator, compatible with 3.3V/5V MCUs
- Operating voltage: 3.3V/5V. Interface: SPI. Outline dimension: 65mm x 30.2mm. Display size: 23.71mm x 48.55mm. Dot pitch: 0.194 x 0.194. Resolution: 250 x 122. Display color: black, white. Grey level: 2. Partial refresh time: 0.3s. Full refresh time: 2s. Refresh power: 26.4mW(typ.). Standby power: 170°.
- 250x122 Pixel E-Paper Screen LCD
Waveshare 2.13Inch E-Ink Display HAT, Black,White Two-Color 250X122 Pixel E-Paper Screen LCD for Raspberry Pi 4B/3B+/3B/2B/Zero Beskrivelse
This is 2.13inch E-Ink display HAT for Raspberry Pi,250x122 resolution, with embedded controller, communicating via SPI interface, supports partial refresh. Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is a perfect choice for applications such as shelf label, industrial instrument, and so .
No backlight, keeps displaying last content for a long even when power down Ultra low power consumption, basically power is only required for refreshing Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson .
Preserved solder pads for SPI interface, for connecting with other controller boards like /Nucleo, etc.Onboard voltage translator, compatible with 3.3V/5V MCUs
Operating voltage: 3.3V/5V. Interface: SPI. Outline dimension: 65mm x 30.2mm. Display size: 23.71mm x 48.55mm. Dot pitch: 0.194 x 0.194. Resolution: 250 x 122. Display color: black, white. Grey level: 2. Partial refresh : 0.3s. Full refresh : 2s. Refresh power: 26.4mW(typ.). Standby power: 170.
color:
Material:PCB
Package Contents:
1 x 2.13inch e-Paper HAT
1 x RPi screws pack
1 x 20cm 8Pin Cable
Detaljer
| OPC | PRHHYGC |
|---|---|
| Mærke | Torribaly |
| Koder | 6031863585933 (EAN) |
Produktdata
| Height | 2cm |
|---|---|
| Width | 5cm |
| Length | 7cm |
| Weight | 0.028kg |
| Colour | Blue |
| Material | PCB |
