Waveshare Industrial 8-Channel Ethernet Relay Module Digital I/O Module Modbus Protocol PoE Power Supply
På lager
Derfor vil du elske at handle hos OnBuy:
- Tjen Cashback på hvert køb – brug det med det samme på din næste ordre
- Gratis levering – på millioner af varer på siden
- Kunder elsker os – 135,000 anmeldelser med vurderingen “Fremragende”
Priserne for varer, der sælges af OnBuy, inkluderer moms.
Rentefrie betalingsmuligheder
Se fuld produktbeskrivelse og detaljer
Levering: Standard (33,00 kr.) | lør. 10. - tir. 13. okt.
Solgt af: Dopipoo
Returnering: 30 dage
180 dages betalingsbeskyttelse
Du kan også lide
Oversigt
- · Features an onboard voltage regulator chip, supporting a wide input voltage range of 7V-36V as well as Power over Ethernet (PoE).

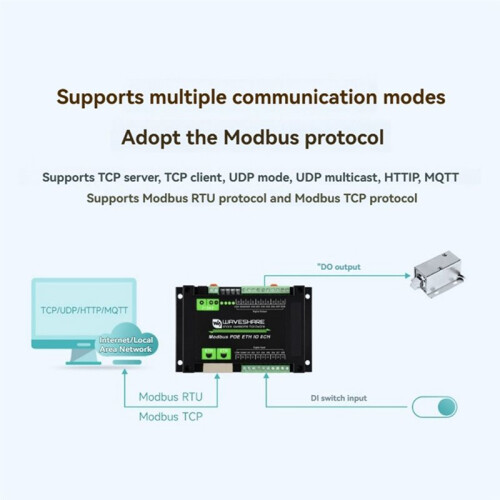

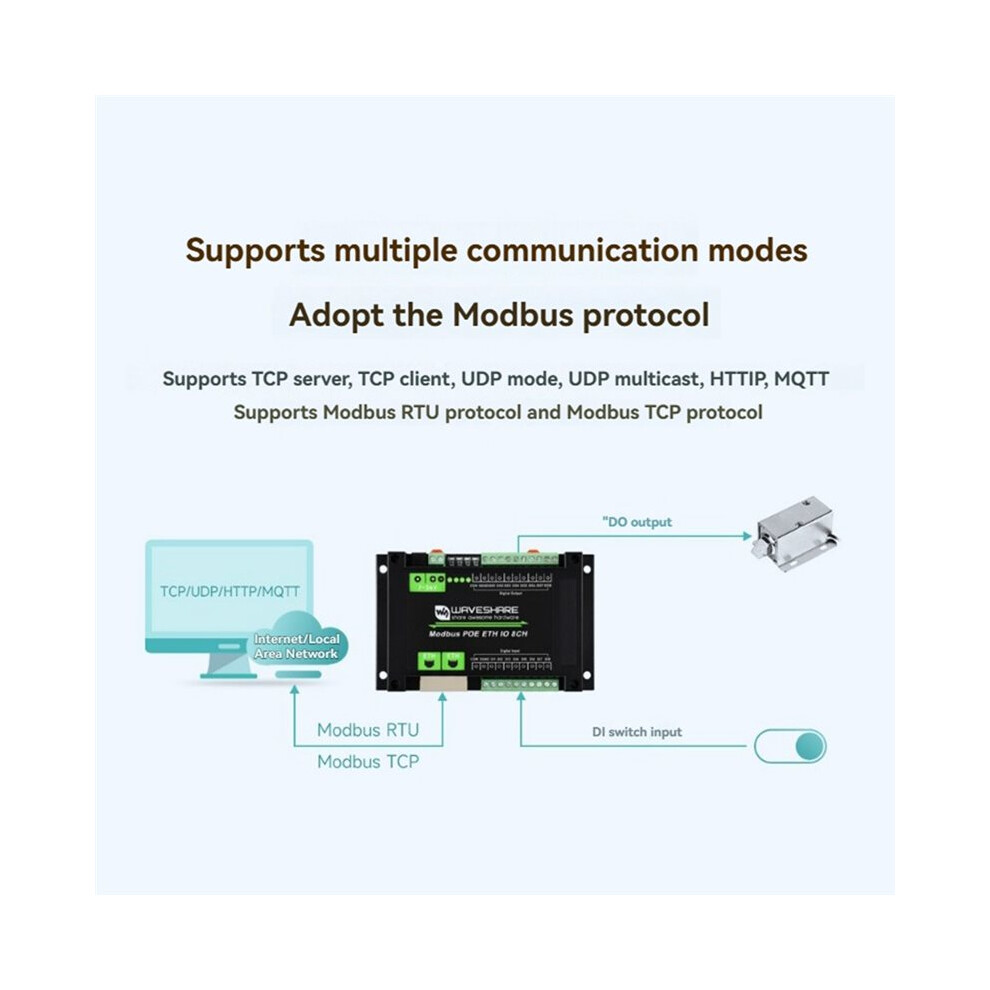

- · Supports control via the MQTT protocol; includes sample application routines for Alibaba Cloud MQTT.
- · Integrates onboard power isolation, providing a stable isolated voltage supply without the need for an external power source at the isolated end.
- · Inputs feature bidirectional optocoupler isolation, supporting both passive and active digital switch inputs; includes a built-in debouncing algorithm. The relay supports control via either a switch-input linkage mode or a toggle mode.
- · Outputs utilize Darlington transistors with optocoupler isolation, offering enhanced driving capability with a sink current of up to 500mA, and feature built-in flyback diode protection.
Waveshare Industrial 8-Channel Ethernet Relay Module Digital I/O Module Modbus Protocol PoE Power Supply Beskrivelse
· Features an onboard voltage regulator chip, supporting a wide input voltage range of 7V-36V as well as Power over Ethernet (PoE).
· Supports control via the MQTT protocol; includes sample application routines for Alibaba Cloud MQTT.
· Integrates onboard power isolation, providing a stable isolated voltage supply without the need for an external power source at the isolated end.
· Inputs feature bidirectional optocoupler isolation, supporting both passive and active digital inputs; includes a built-in debouncing algorithm. The relay supports control via either a -input linkage mode or a toggle mode.
· Outputs utilize Darlington transistors with optocoupler isolation, offering enhanced driving capability with a sink current of to 500mA, and feature built-in flyback diode protection.
Color: Black
Material: plastic
Package Contents:
1*Ethernet Relay Module
Detaljer
| OPC | PY69QCS |
|---|---|
| Koder | 6033639821801 (EAN) |
| Produkt- og sikkerhedsoplysninger |
Produktdata
| Height | 5cm |
|---|---|
| Width | 11cm |
| Length | 16cm |
| Weight | 0.263kg |
| Colour | Black |
| Material | Plastic |
