Wireless Remote Control RF 433Mhz Relay Receiver 3.6V 6V 12V 1CH Module for LED Lamp Light DIY

Wireless Remote Control RF 433Mhz Relay Receiver 3.6V 6V 12V 1CH Module for LED Lamp Light DIY Beskrivelse

Wireless control LED lamp string, Christmas tree light string, light control
Long range working voltage. Ultra low power,High sensitive response.
Operating Voltage: 3.6V-24V; Encoding : EV1527 Learning code
Note: We would suggest you to purchase our remote control for the better working performance.

Application environment: Remote control ,motorcycles, automobile anti-theft products, home security products, electric doors, shutter doors, windows, remote control socket, remote control LED, remote audio remote control electric doors, garage door remote control.
Remote control retractable doors, remote volume gate, pan doors, remote control door opener, door closing device control system, remote control curtains, alarm host, alarm, remote control motorcycle remote control electric cars, remote control MP3.
Specification:
Working voltage: 3.6V~12V
Maximum load: 1A
Static current: Less than 5 mA
Working frequency: 433MHz
Reception sensitivity: Less than -108dBm
size support coding format 1527 learning code
Modulation mode:ASK (superheterodyne)
Number of stored remote controls: 10

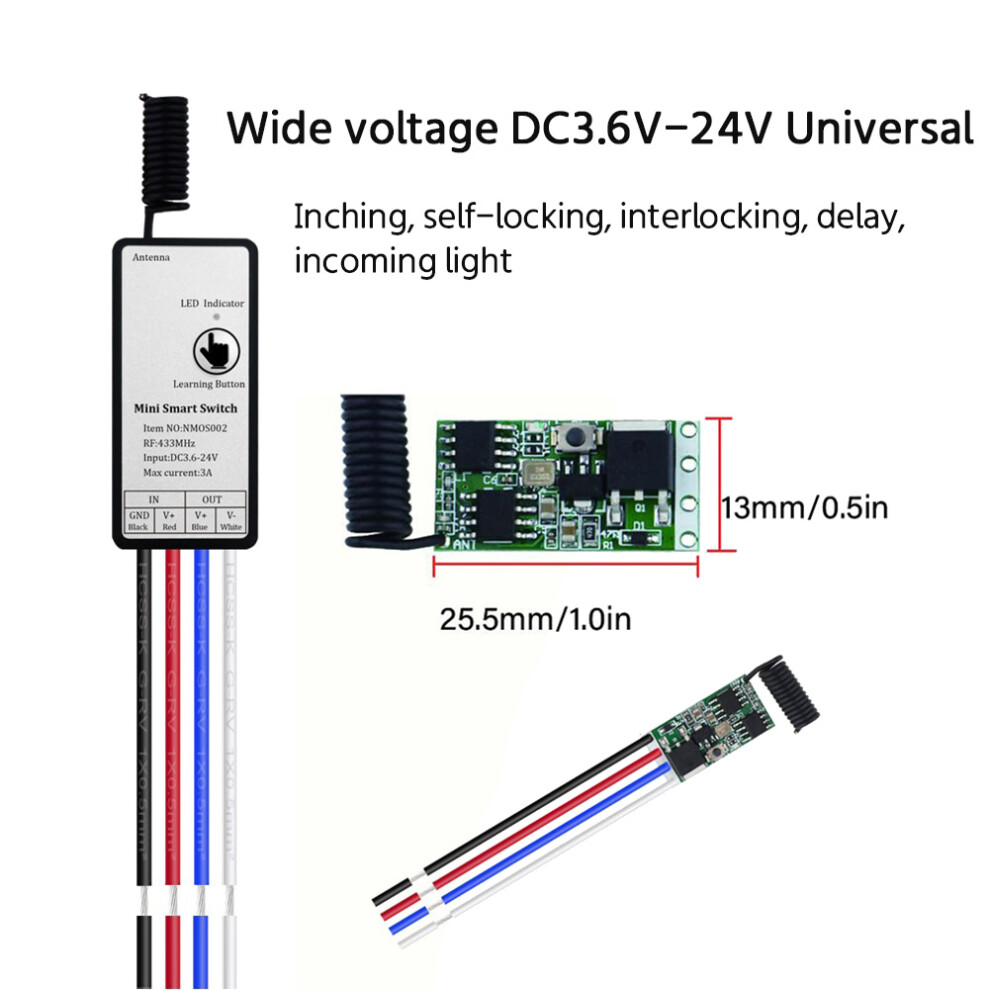

Working mode: Momentary, Toggle, Latching delay (5s ,10s ,15s,20s ),Automatic pull-in when power
Learning style: Learning Button
Working temperature: -20 degrees 80 degrees.

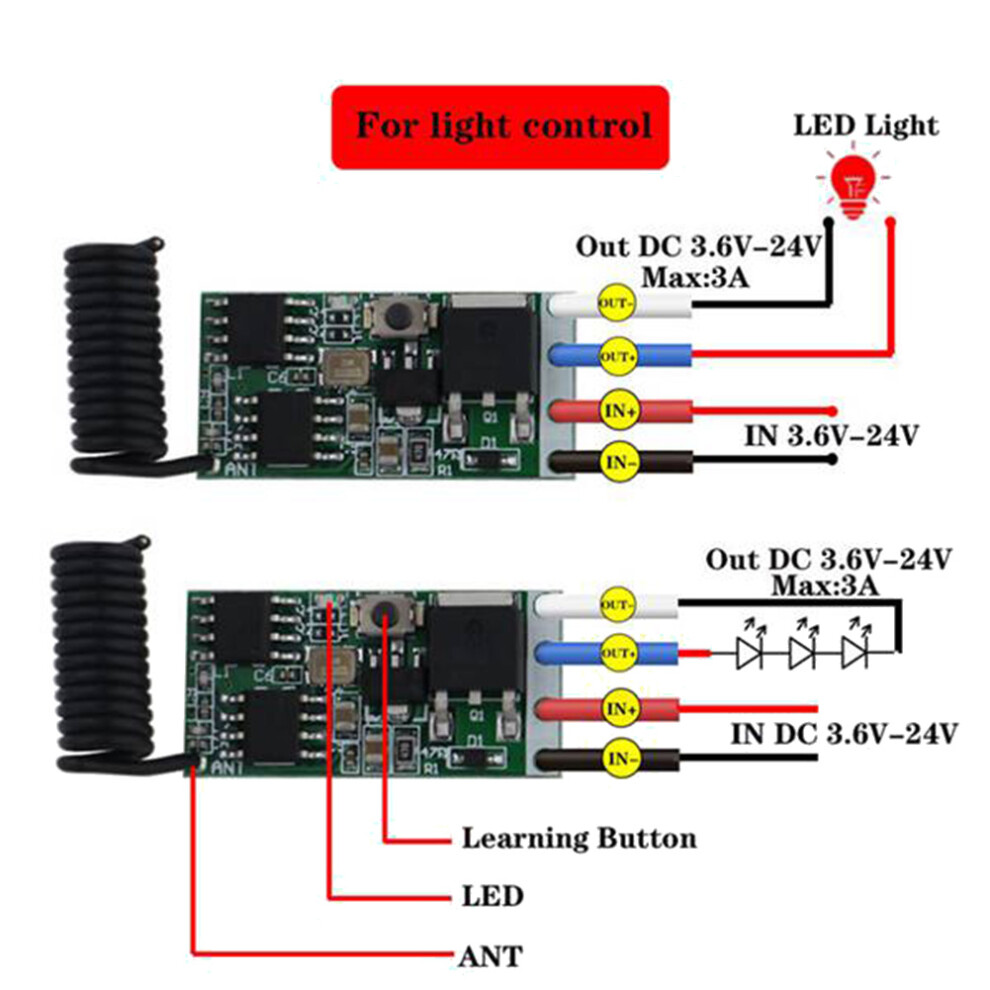

Wiring diagram 1:
-IN+ : DC3.6V-12V input+ ;
-IN- : DC3.6-12V input- ;
NO: Output , normal open;
COM:Output , common ;
NC: Output , normal close

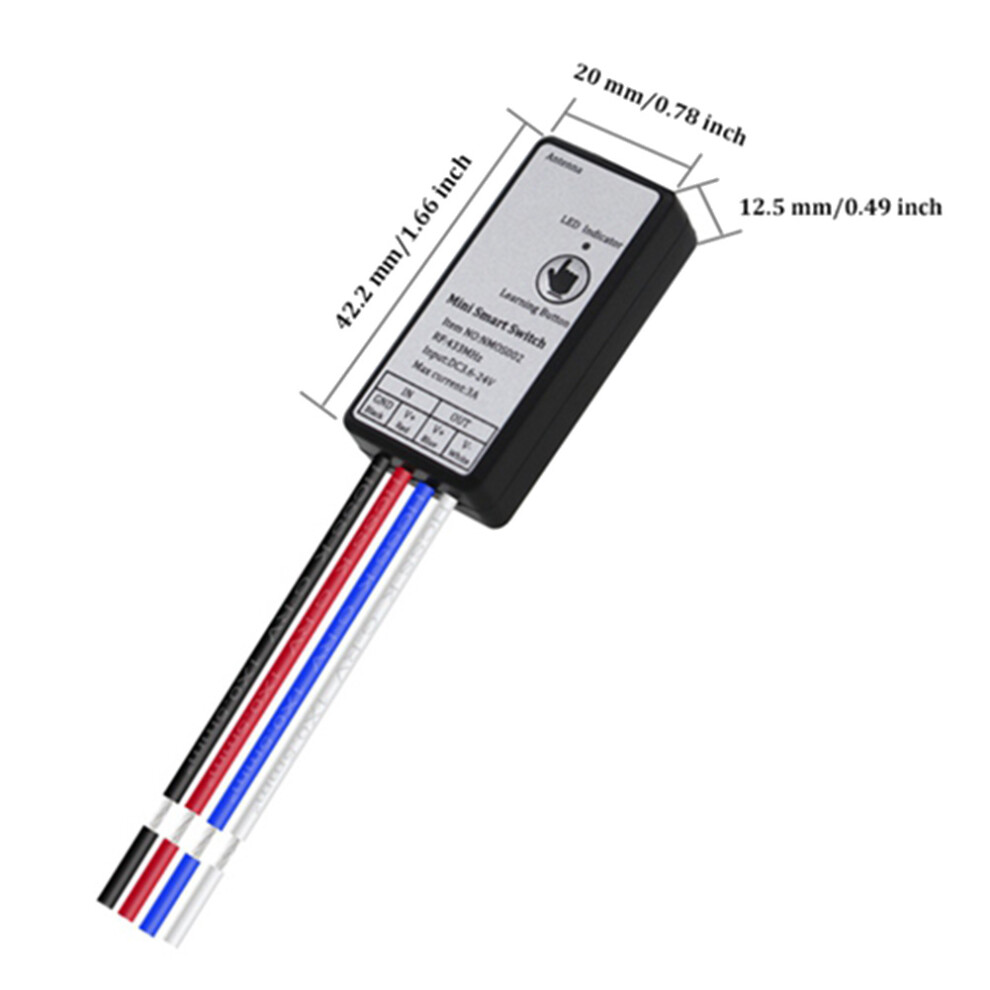

Size: 42.2 x 20 x 12.5mm (length x width x high)
Material: plastic
colour: As shown

Package Contents:
1 x Remote Control
