WP-500 Highprecision 3D Finder CNC Milling Machine Automatic Centering 3 Coordinate Tool Setter

WP-500 Highprecision 3D Finder CNC Milling Machine Automatic Centering 3 Coordinate Tool Setter Beskrivelse

New.
Protection level: IP56 (sprayable)
Trigger force: 1N
Indicator light: normally closed: (lights when triggered)
Signal allowable current:Less than 50ma

Be sure to read the wiring carefully:
Red wire connects to COM- or GND, Black wire connects to the input port.
If the connection is reversed, the probe will not send a signal.

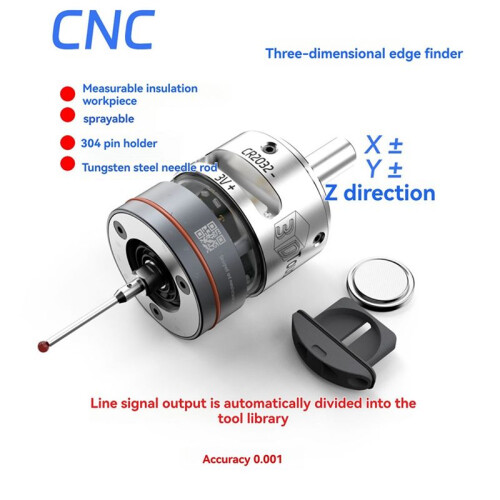

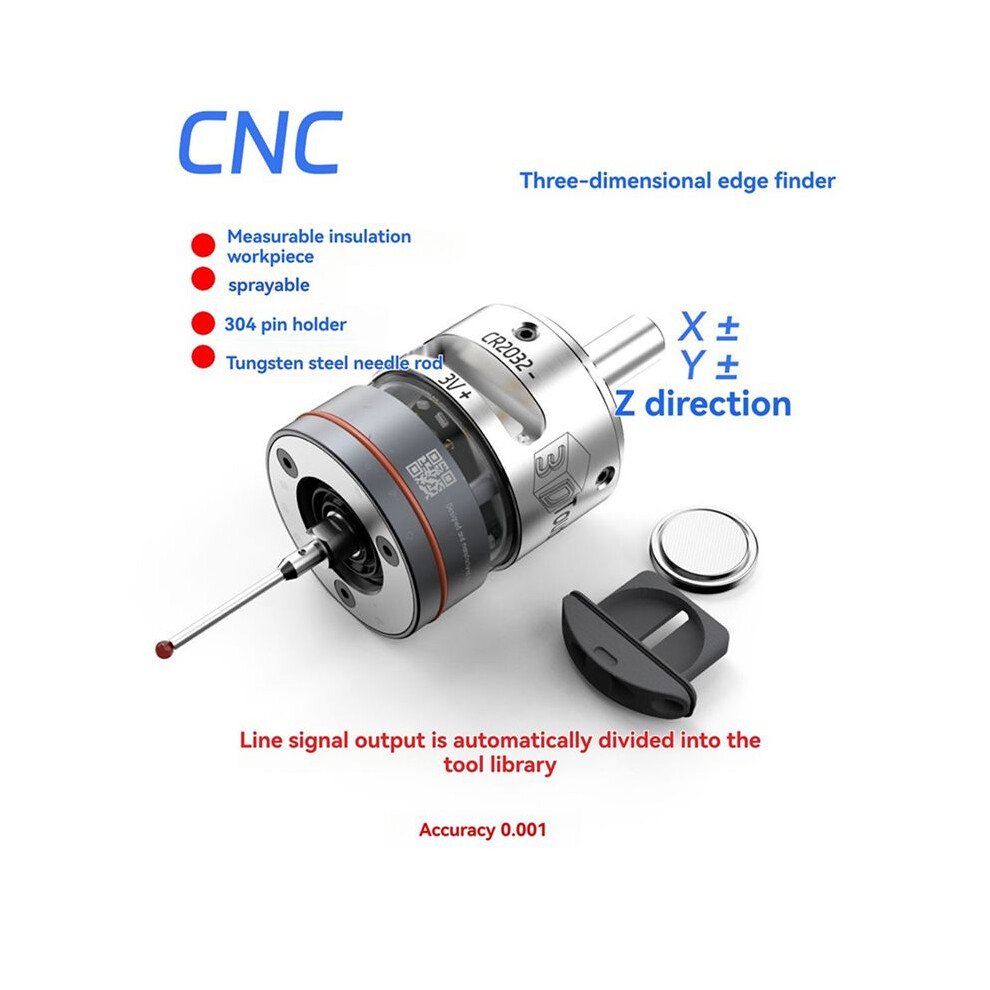

The finder body is made of stainless steel, and the needle is made of 304 stainless steel, which has high strength and more stable measurement.

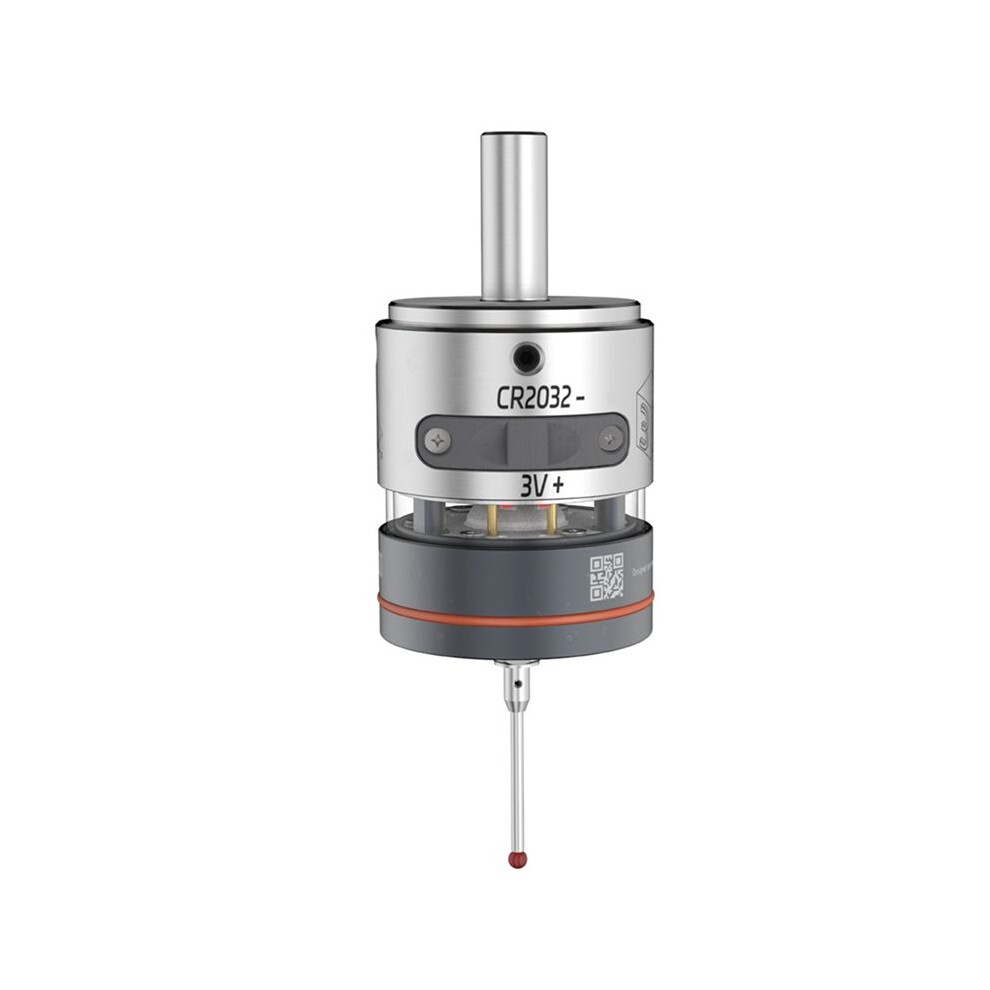

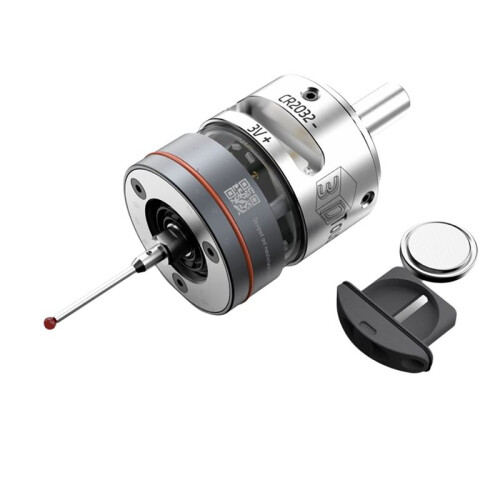

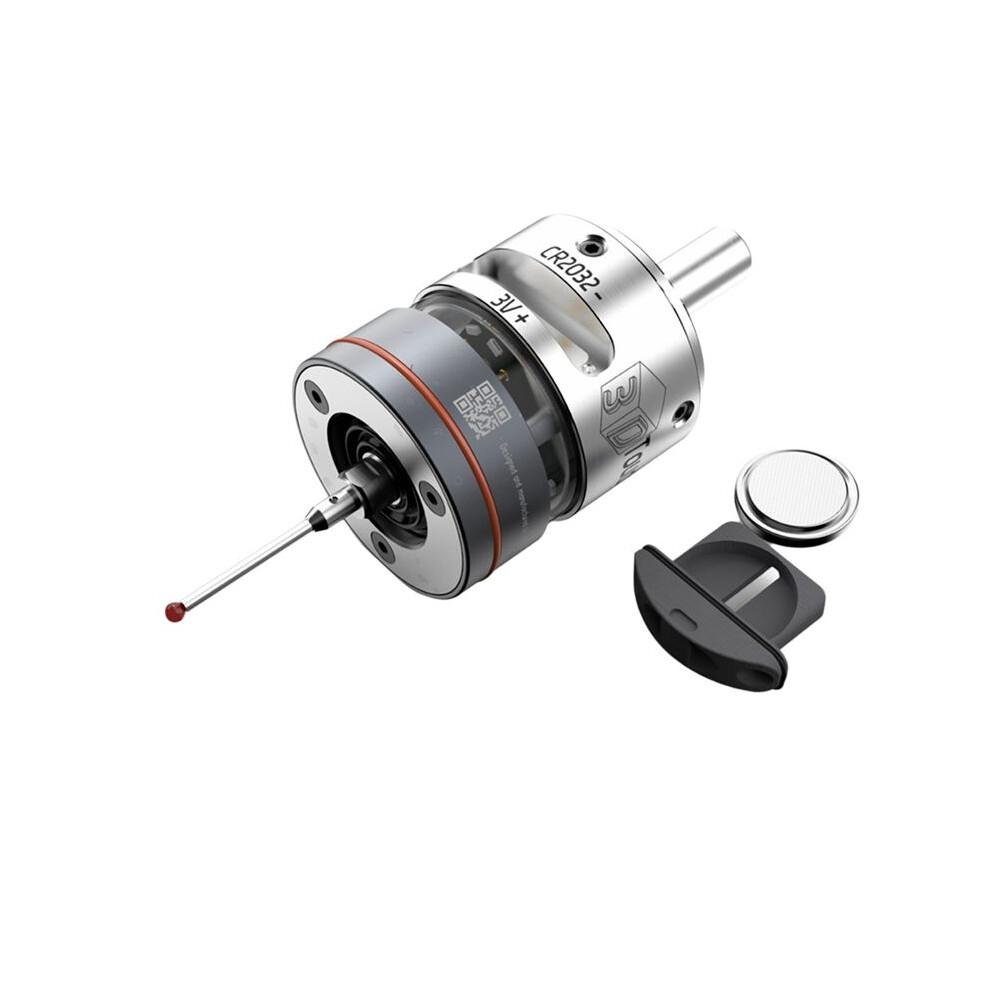

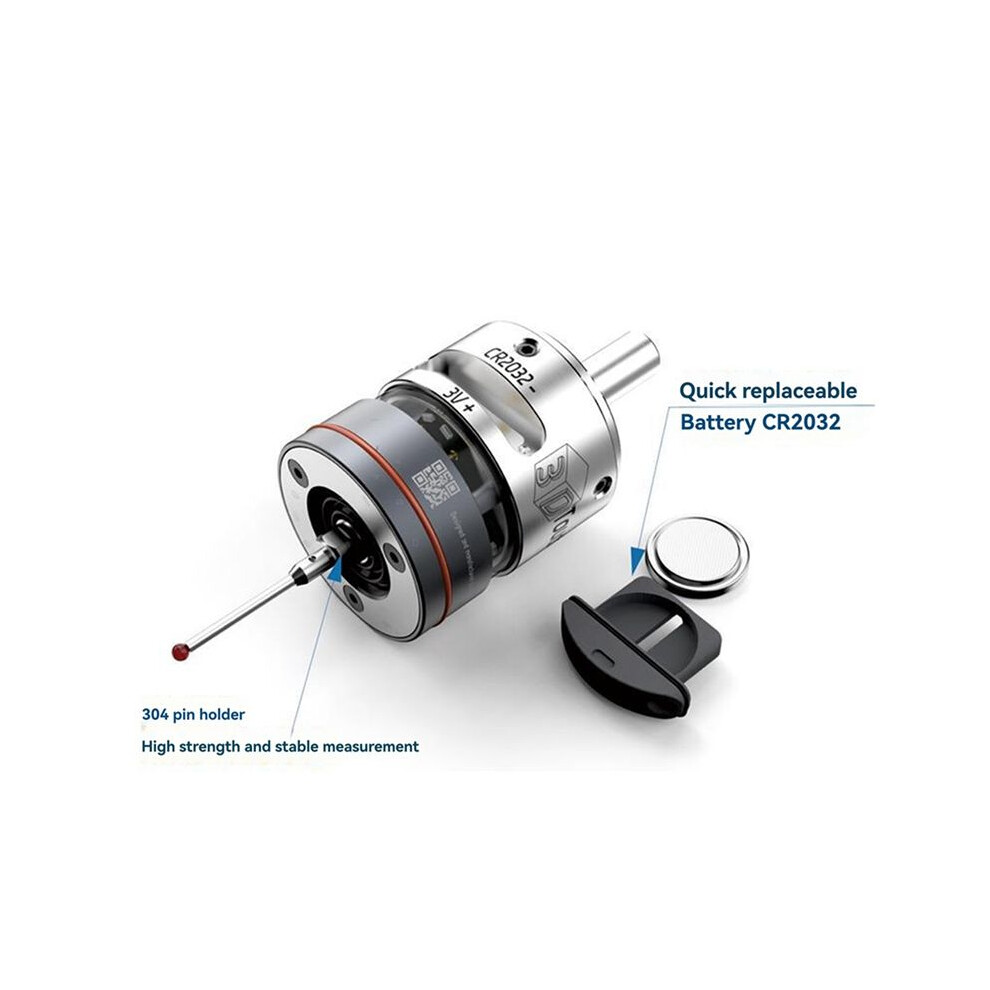

The probe has a built-in battery, which is not rechargeable. It can be measured visually without wiring, or it can be connected to a controller for automatic measurement.

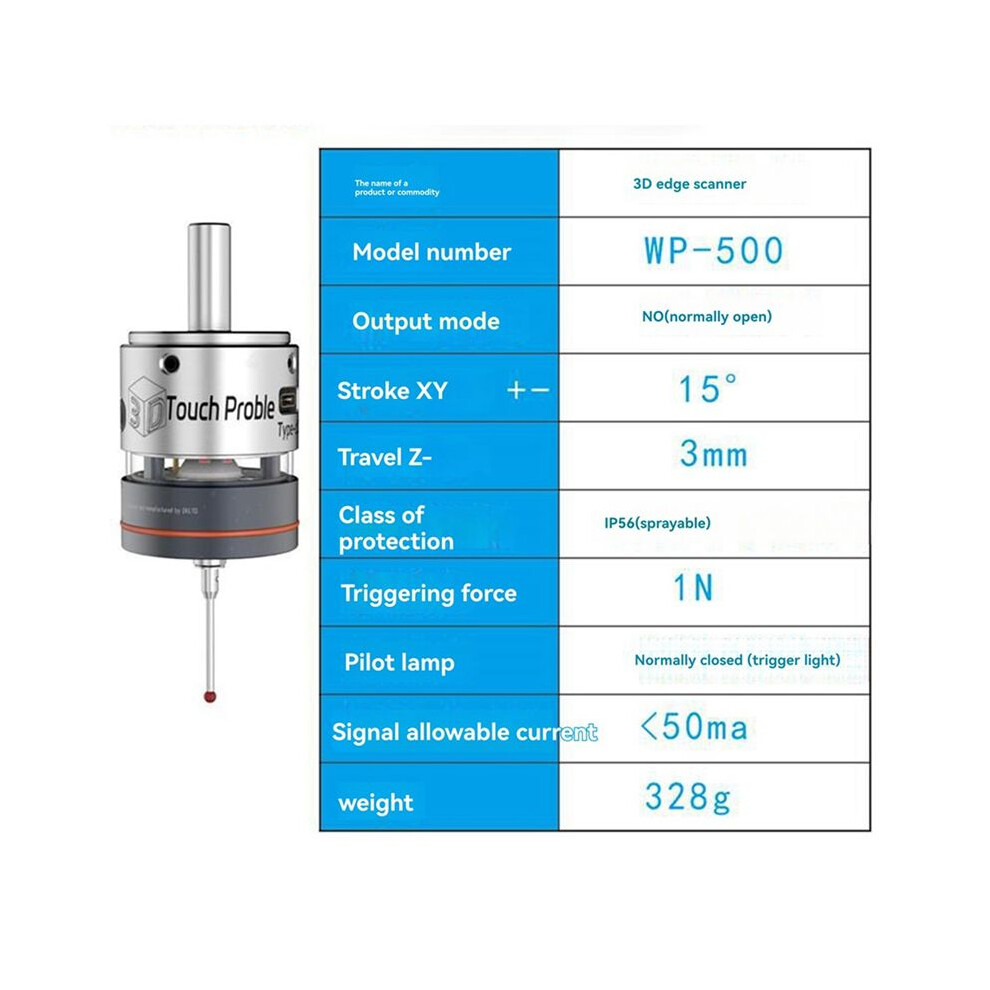

Type:3D Finder
Model:WP-500
Output mode:N0 (normally open)
Travel XY+-: 15
Travel Z -: 3mm
Colour:As Shown
Material:Metal

Package Contents:
1 x WP-500 Finder
1 x M3 probe 3mm

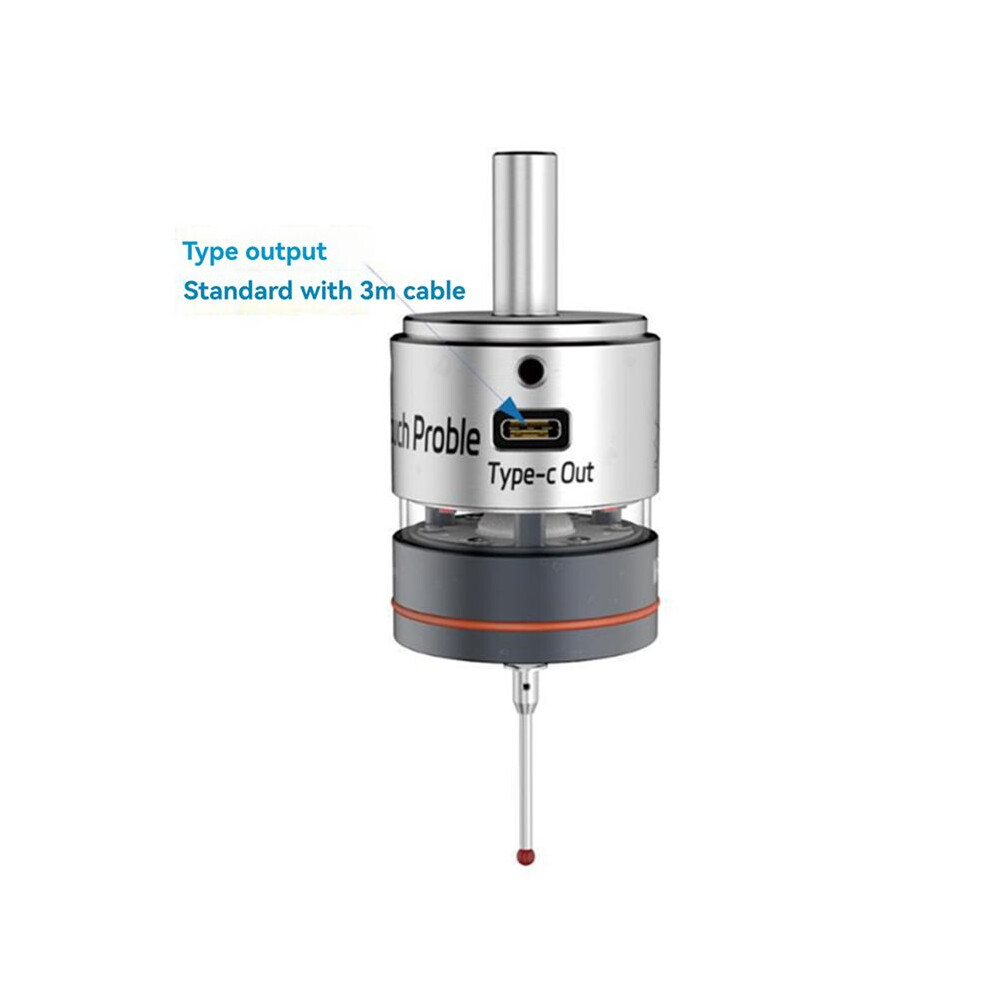

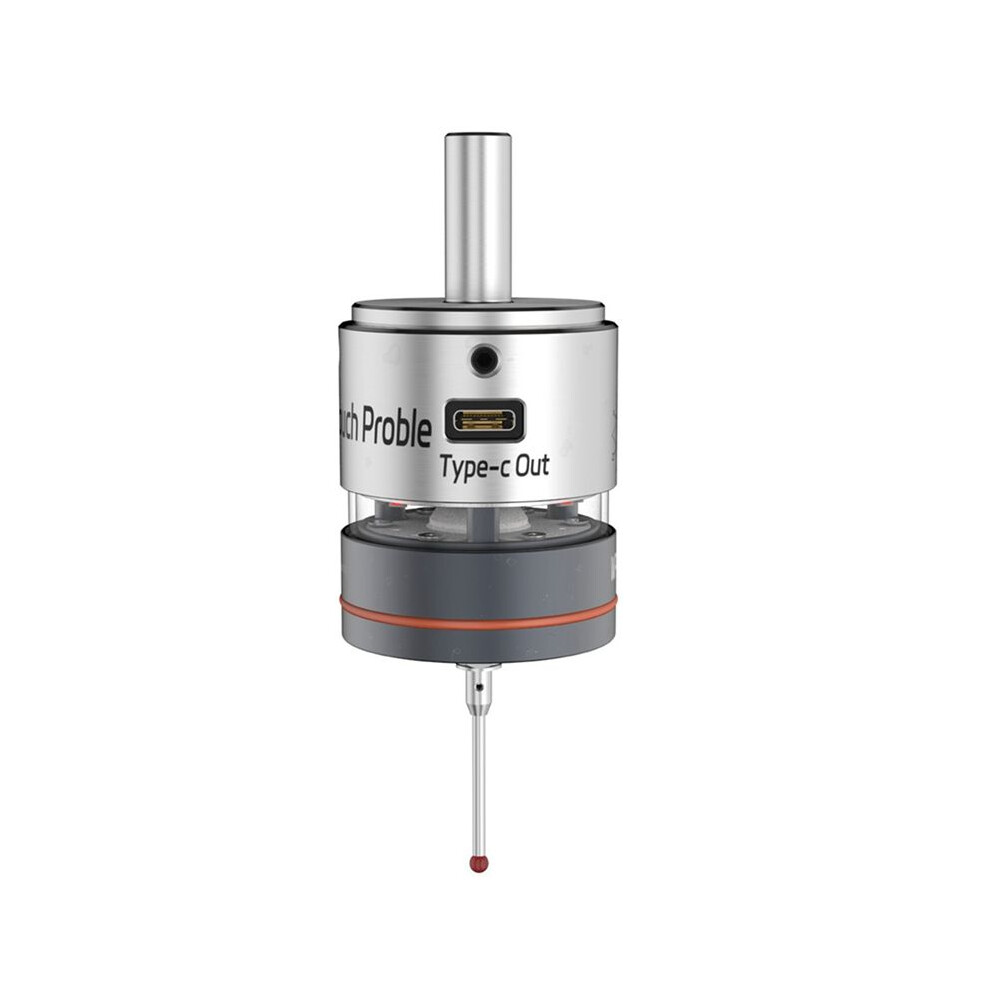

1 x 3 meter Type C Cable
