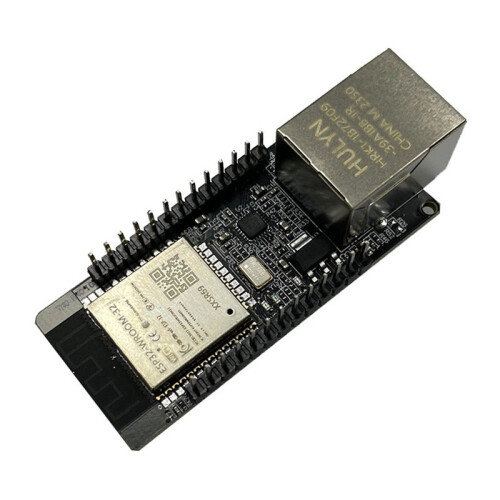

WT32-ETH01 ESP32 Wireless Module Serial Port Networking + WiFi Combo Gateway Module WT32 ETH01
Brand ISTOVO
Ny
På lager
Derfor vil du elske at handle hos OnBuy:
- Tjen Cashback på hvert køb – brug det med det samme på din næste ordre
- Gratis levering – på millioner af varer på siden
- Kunder elsker os – 128,000 anmeldelser med vurderingen “Fremragende”
114,43 kr.
198,79 kr.
Spar 42%!
+31,63 kr. levering
1%
Tjen 1,14 kr. med det samme
Læs mere
Priserne for varer, der sælges af OnBuy, inkluderer moms.
Rentefrie betalingsmuligheder
Se fuld produktbeskrivelse og detaljer
Levering: Standard (31,63 kr.) | fre. 17. - ons. 22. jul.
Returnering: 30 dage
180 dages betalingsbeskyttelse
Mest populære i Adgangspunkter til trådløse netværk
Populær
Populær
Beskrivelse og detaljer
Oversigt
- ESP32-ETHO1 is an embedded serial-to-Ethernet module based on the ESP32 series.
- The module integrates an optimized TCP/IP protocol stack, which makes it easy for users to complete the networking function of embedded devices, greatly reducing the development time cost.
- It has ultra-high RF performance, stability, versatility and reliability, as well as ultra-low power consumption.
- The module board width is a universal width. The module can be directly welded on the board, the connector can be welded, and it can also be used on the breadboard, which is convenient for users to use in different scenarios.
- Serial to Ethernet Module
WT32-ETH01 ESP32 Wireless Module Serial Port Networking + WiFi Combo Gateway Module WT32 ETH01 Beskrivelse
ESP32-ETHO1 is an embedded serial-to-Ethernet module based the ESP32 series.
The module integrates an optimized TCP/IP protocol stack, which makes it easy for users to complete the networking function of embedded devices, greatly reducing the development cost.
It has ultra-high RF performance, stability, versatility and reliability, as well as ultra-low power consumption.
The module board width is a universal width. The module can be directly welded the board, the connector can be welded, and it can also be used the breadboard, which is convenient for users to use in different scenarios.
WIFI frequency range: 2.4-2.5 GHz
Network port specifications: RJ45, 10/100Mbps, -connection and direct connection adaptive
Serial port baud rate: 80-5000000
Onboard Flash: 32Mbit
Operating voltage: 5V or 3.3V power supply (choose one)
Operating current: average: 80mA
Power supply current: minimum: 500mA
The product appearance and printed words may vary depending the batch, but this does not affect use.
Colour:Black
Material:PCB
Package Contents:
1 * Wireless Module
Detaljer
| OPC | PQSF5MK |
|---|---|
| Mærke | ISTOVO |
| Koder | 6033435347895 (EAN) |
| Produkt- og sikkerhedsoplysninger |
Produktdata
| Height | 2cm |
|---|---|
| Width | 6cm |
| Length | 8cm |
| Weight | 0.015kg |
| Colour | Black |
| Material | PCB |
