X1006 PCIe to 2.5Inch SSD/HDD+M.2 2280 SSD Shield for Raspberry Pi 5 NOT Support Boot From SSD

X1006 PCIe to 2.5Inch SSD/HDD+M.2 2280 SSD Shield for Raspberry Pi 5 NOT Support Boot From SSD Beskrivelse

Compatible with for Raspberry Pi 5B and supports expansion of other HATs of for Raspberry Pi; Supports simultaneous connection of 2.5-inch hard disk and M.2 2280 SSD.
Compliant with Serial ATA 3.0 specification, backward compatible with 2.0 and 1.0; Supports HAT+ STANDBY power state, automatically shuts down devices when Pi5 is powered off.
Supports communication rates of 5.0 Gbit/s, 3.0 Gbit/s and 1.5 Gbit/s; Compatible with 6G, 3G, 1.5G hard disks.
Support dual hard drives - can connect SATA2.5-inch hard drives and M.2 KEY-B 2280 solid-state drives at the same , not compatible with M.2 NVMe SSDs, M.2 PCle AHCl SSDs or other M.2 non- devices, and does not support booting from HDD/SSD using existing firmware.
Based PI5's PCle interface design, connected to PI5 via FFC cable, powered from for Raspberry Pi5 via pogo pins.

Notes:
X1006 is designed for data storage purposes and does not currently support booting from HDD/SSD using existing firmware.
Not compatible with M.2 NVMe SSDs, M.2 PCle AHCl SSDs, or other M.2 non- devices.
New hard drives do not have partitions and need to be partitioned and formatted when used for the first before they can be accessed in Explorer.
Product Introduction:

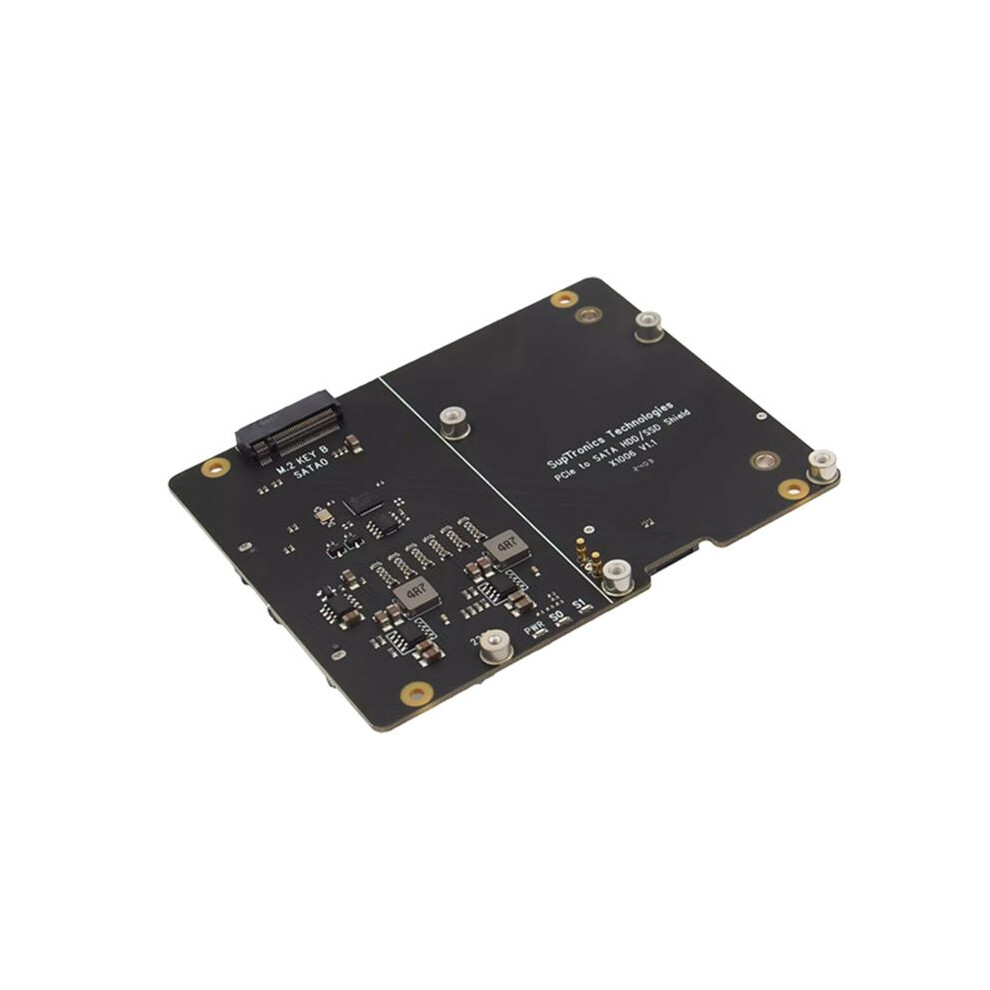

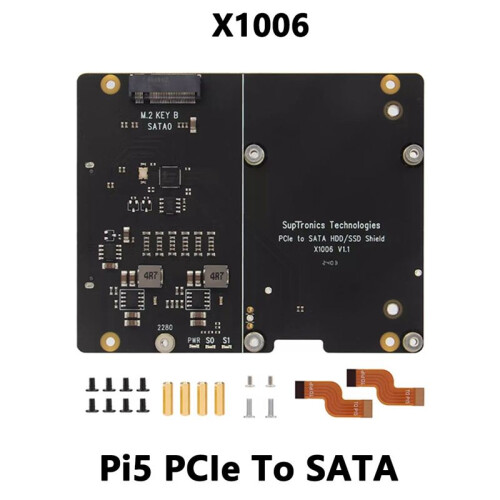

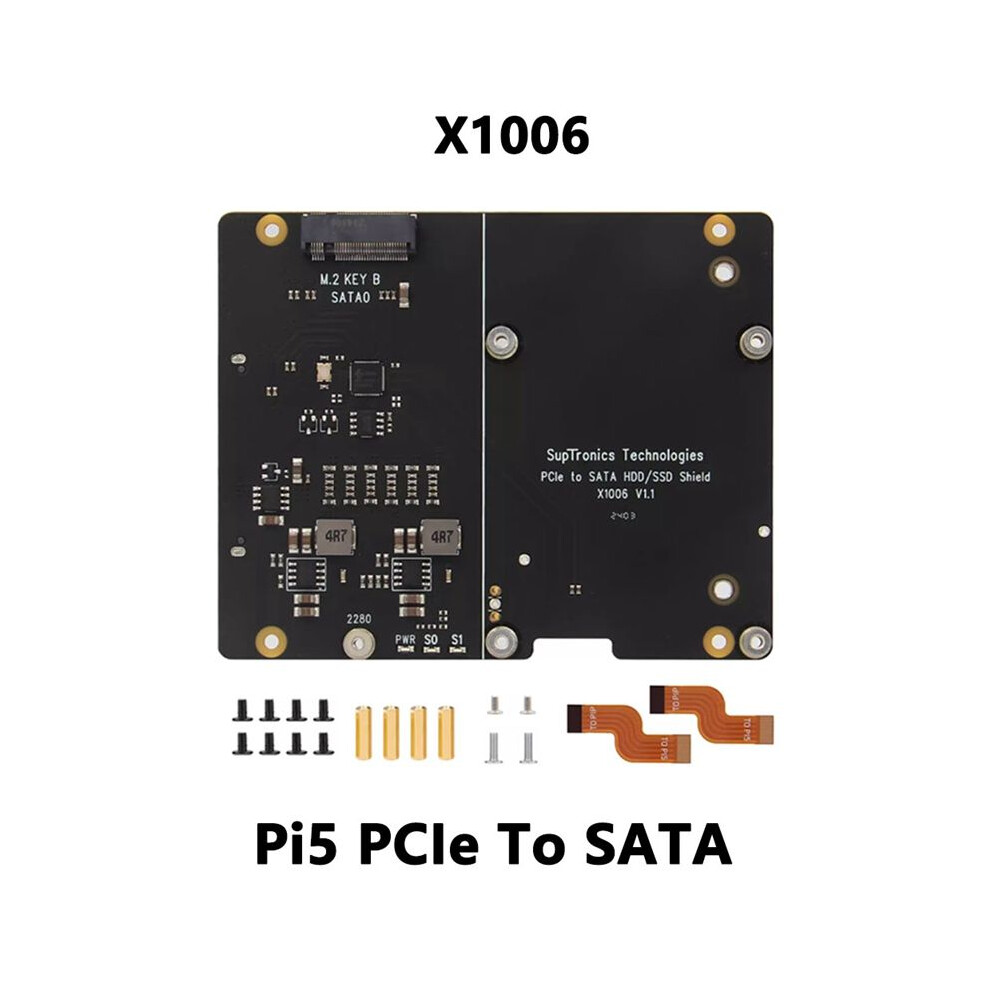

X1006 is a PCIe to HDD/SSD expansion board designed for Raspberry Pi 5. It supports 2.5-inch hard disks and M.2 KEY-B 2280 solid-state drives, providing large-capacity storage and high-speed storage solutions for Raspberry Pi 5, giving full to its storage capacity. The 3.0 interface speed can reach to 5Gbps.
X1006 is installed at the bottom of the for Raspberry Pi 5 and will not affect the use of GPIO. It is convenient to expand other HATs. In addition, X1006 and the hard disk are powered by the for Raspberry Pi 5 through the 4 pins the b
