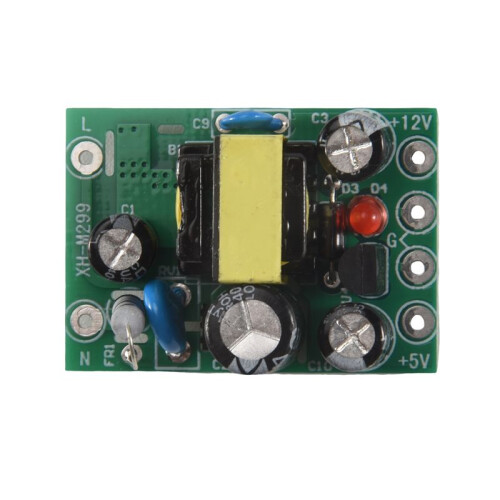

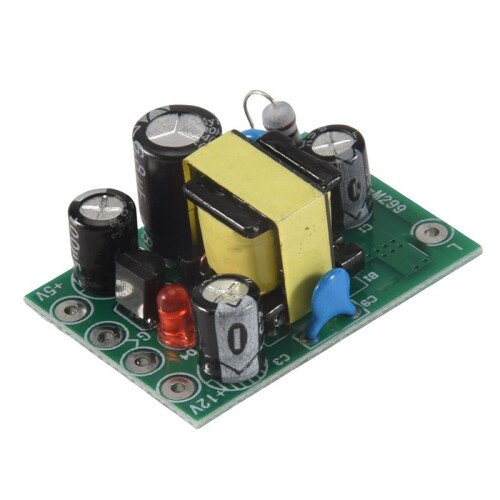

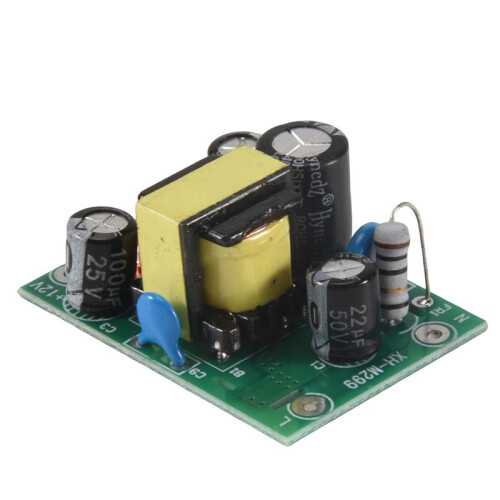

Xh-M299 Switching Power Supply Module Ac- Isolated Pcb Board Input 110-220V Output 12V0.5a + 5V
Ny
På lager
Derfor vil du elske at handle hos OnBuy:
- Tjen Cashback på hvert køb – brug det med det samme på din næste ordre
- Gratis levering – på millioner af varer på siden
- Kunder elsker os – 132,000 anmeldelser med vurderingen “Fremragende”
71,86 kr.
230,15 kr.
Spar 69%!
+30,00 kr. levering
1%
Tjen 0,72 kr. med det samme
Læs mere
Priserne for varer, der sælges af OnBuy, inkluderer moms.
Rentefrie betalingsmuligheder
Se fuld produktbeskrivelse og detaljer
Levering: Standard (30,00 kr.) | man. 31. aug. - ons. 2. sep.
Solgt af: YPDblue
Returnering: 30 dage
180 dages betalingsbeskyttelse
Du kan også lide
Beskrivelse og detaljer
Oversigt
- XH-M299 is an AC to DC power module with isolated power, dual output, strong anti-interference and other characteristics;
- The input voltage is AC110-220VV, the dual outputs are DC5V and DC12V, and the maximum output current is
- 100mA / 500mA, the maximum power is 0.5W and 6W; the input and output can be used directly by pad connection, and can also be used with pin headers and other circuit board soldering.
- Switching Supply Module
- Switching Power Supply Module
Xh-M299 Switching Power Supply Module Ac- Isolated Pcb Board Input 110-220V Output 12V0.5a + 5V Beskrivelse
XH-M299 is an AC to power module with isolated power, dual output, strong anti-interference and other characteristics;
The input voltage is AC110-220VV, the dual outputs are DC5V and DC12V, and the maximum output current is
100mA / 500mA, the maximum power is 0.5W and 6W; the input and output can be used directly by pad connection, and can also be used with pin headers and other circuit board soldering.
Description:
Product name: AC- power module
Product model: XH-M299
Input voltage: AC110-240V
Output voltage: DC5V DC12V
Output current: 100mA / 500mA
Output power: 0.5W / 6W
Pad pitch: Input 15.24 output 5.08 (mm)
Type: Voltage Regulator
Application: Computer
Supply Voltage: 110-220V Output 12V0.5A + 5V
Explanation:
1. Connect AC110-220V power at the power input.
2.Dual output, 5V and 12V respectively, can be connected to the load matching the output voltage at the same , note the difference between the positive and negative poles of the power supply. (As shown below)
colour:Green
Material:plastic
Size: 35 x 25 x 15m
Package Contents:
1 x Power Supply Module
Detaljer
| OPC | PT9JWN6 |
|---|---|
| Koder | 4711304951559 (EAN) |
| Produkt- og sikkerhedsoplysninger |
Produktdata
| Height | 2cm |
|---|---|
| Width | 6cm |
| Length | 8cm |
| Weight | 0.012kg |
| Colour | Green |
| Material | plastic |
