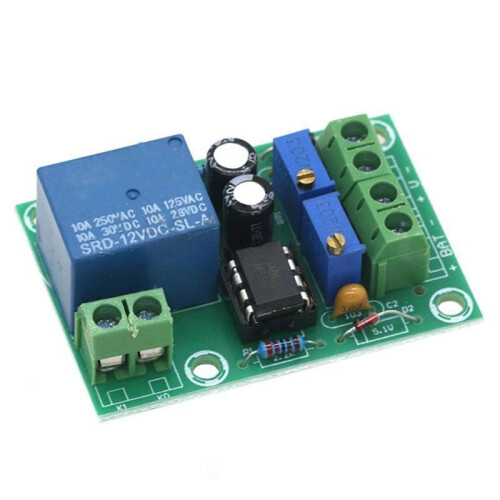

XH-M601 Battery Charging Control Module Intelligent Charger Power Control Panel for DIY Battery Charger Projects

XH-M601 Battery Charging Control Module Intelligent Charger Power Control Panel for DIY Battery Charger Projects Beskrivelse

Intelligent 12V Charging Control.The XH-M601 intelligent charger power control panel is designed for 12V lead-acid batteries, providing automatic charging and power management. It accurately detects battery voltage and controls the charging process to maintain stable performance and extend battery life.
Automatic Charging & Cut-Off.This control board supports automatic start and stop of charging according to preset voltage thresholds. When the battery voltage is lower than the set value, the module automatically turns the charger; when the battery reaches the upper limit, it cuts off power to prevent overcharge and improve safety.
DIY-Friendly Control Board.Compact PCB layout and clearly marked terminals make this charging control board ideal for DIY kits, student projects, and hobby electronics. It can be integrated into custom power systems, solar charging setups, small UPS units, and battery maintenance devices.
Wide Application Scenarios.Suitable for 12V lead-acid batteries used in motorcycles, cars, emergency lighting, backup power, solar systems, and various power projects. It helps automate battery maintenance, reduce manual operation, and improve overall reliability.
Easy Wiring & Installation.The board provides separate input and output terminals for power supply and battery connection. Standard screw terminals or pin headers (depending batch) allow secure and firm wiring. Simple connection steps enable quick installation even for beginners with basic electronic knowledge.

Due to different batches, there may be differences in product appearance and printed text, which will not affect use
Color: As Shown
Material: PCB

Package Contents:

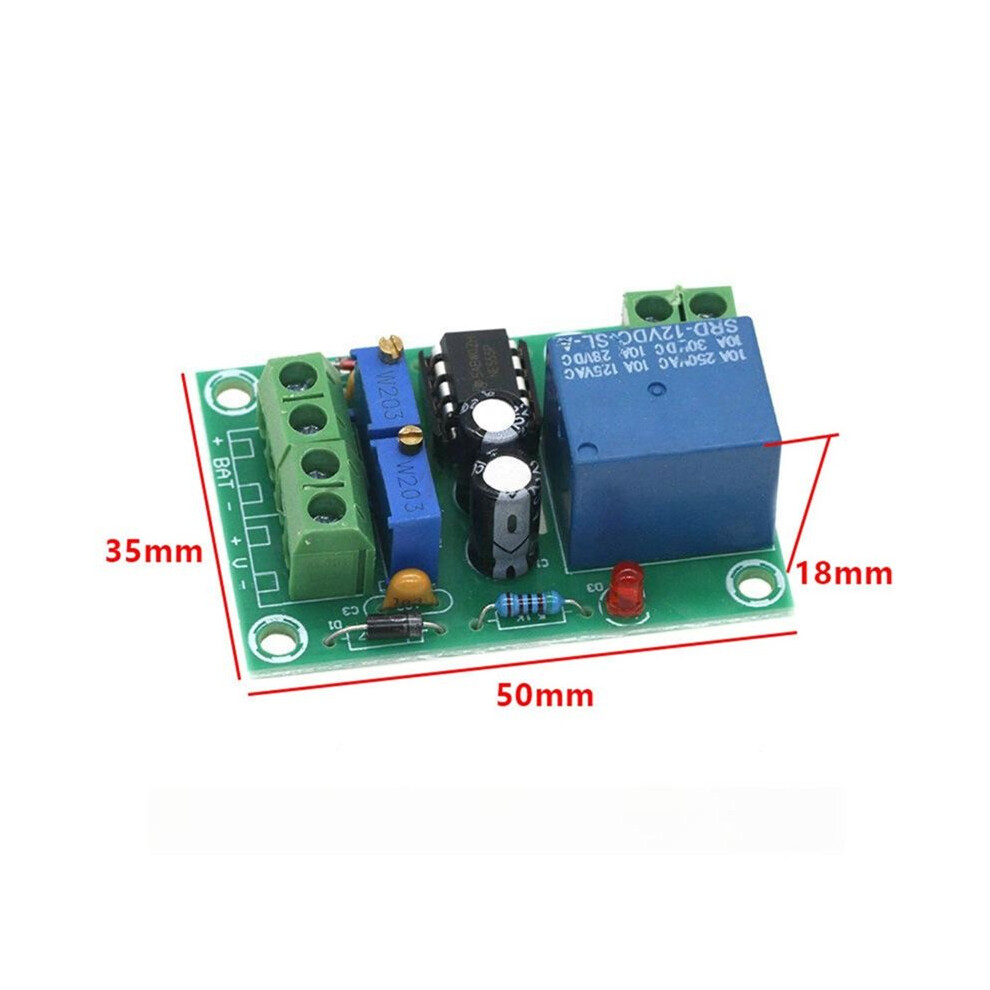

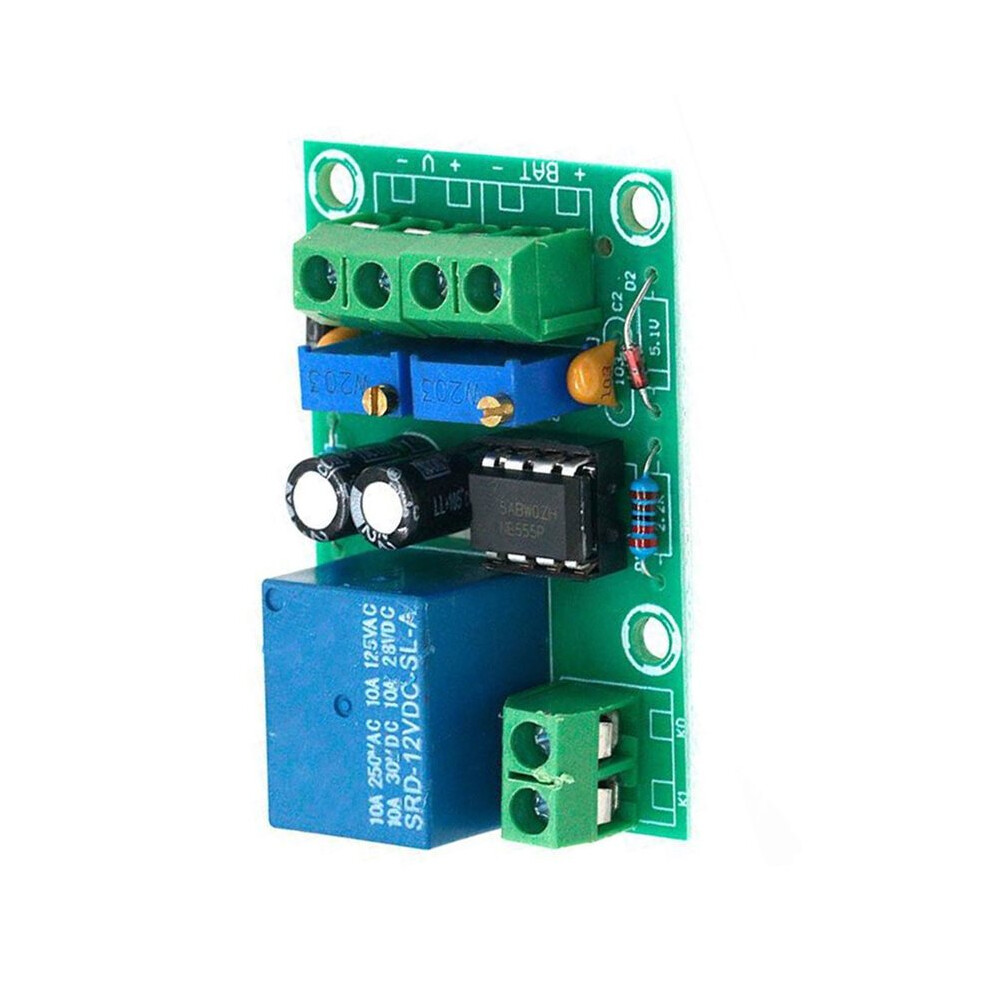

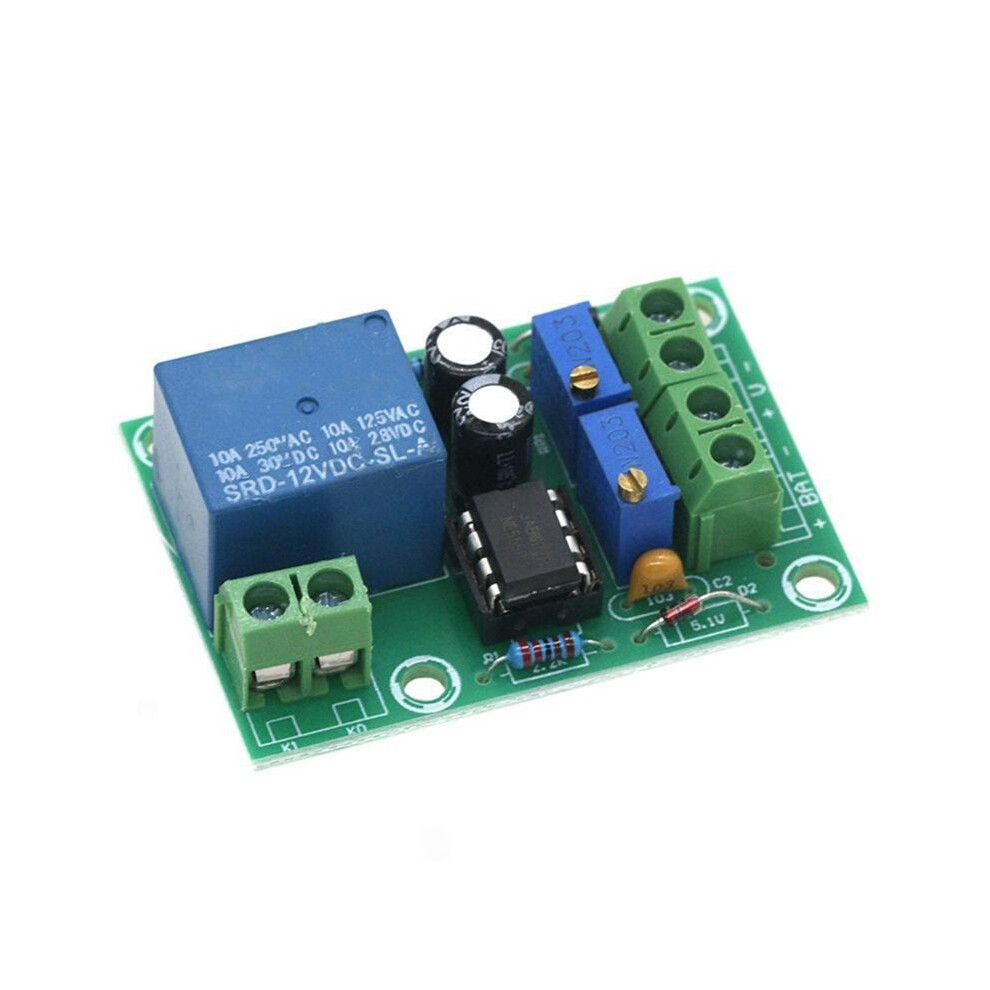

1x XH-M601 Battery Charging Control Module
