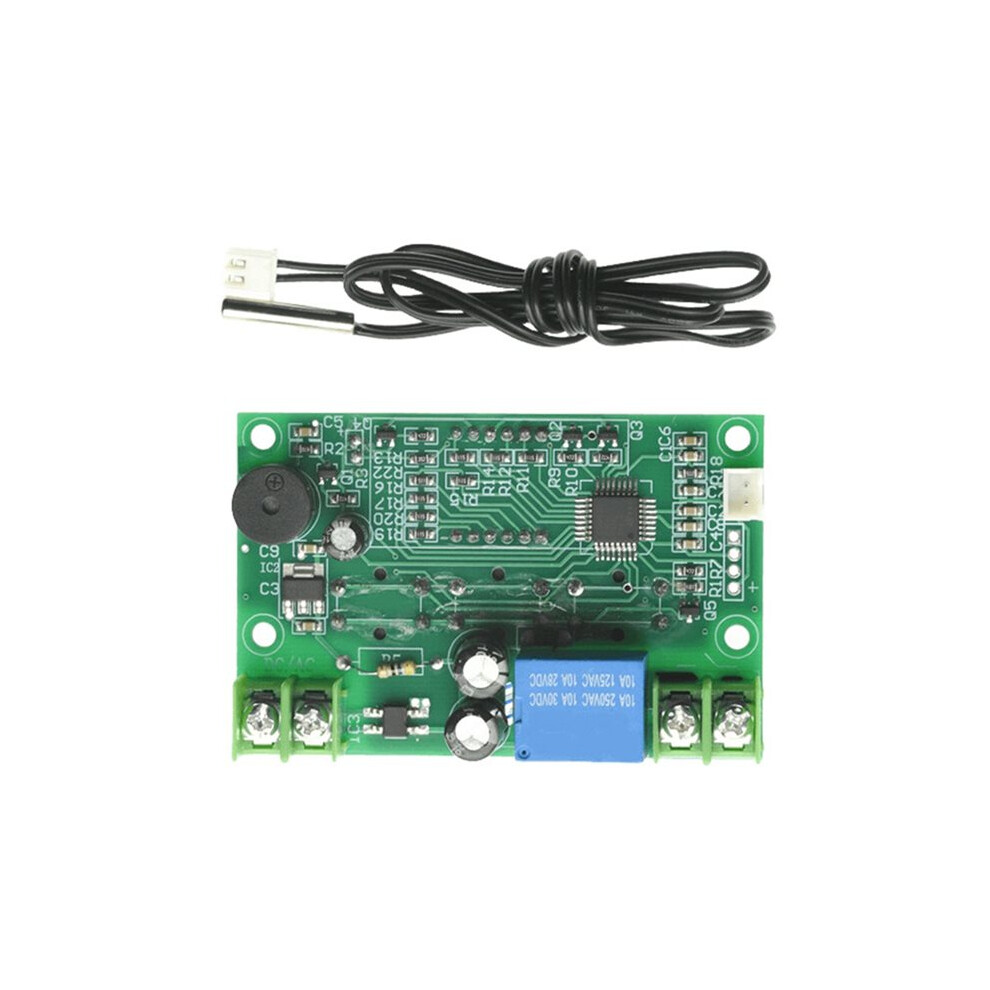

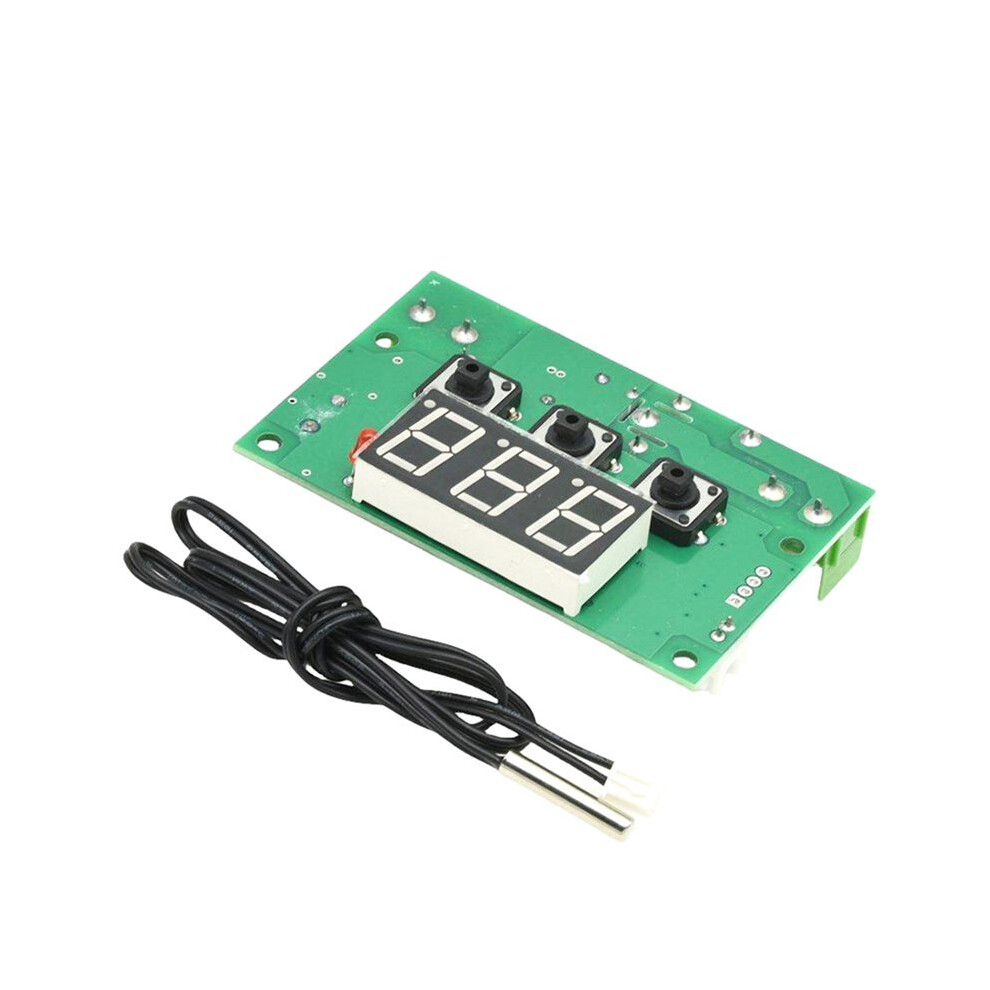

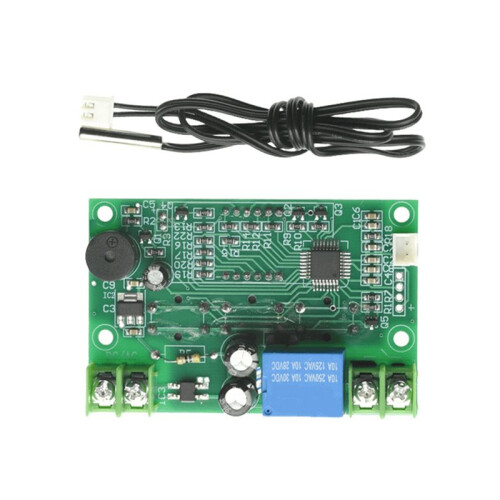

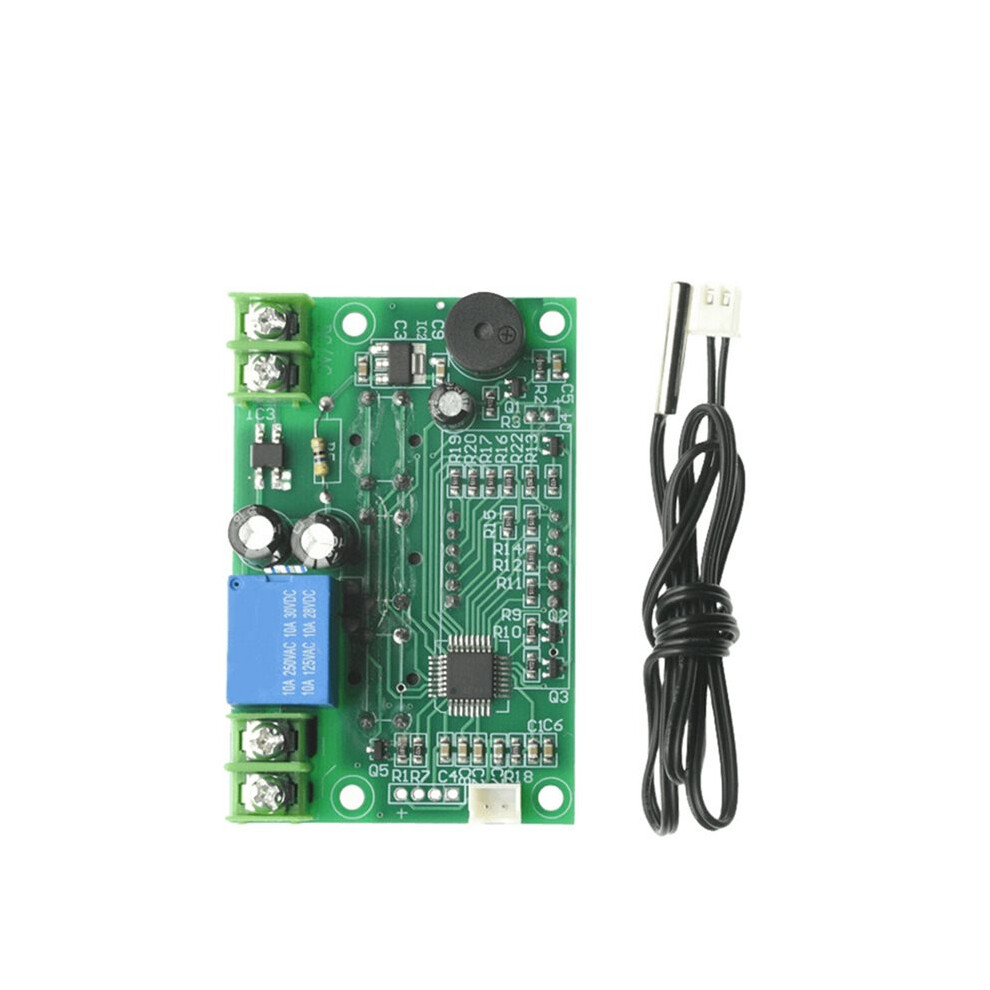

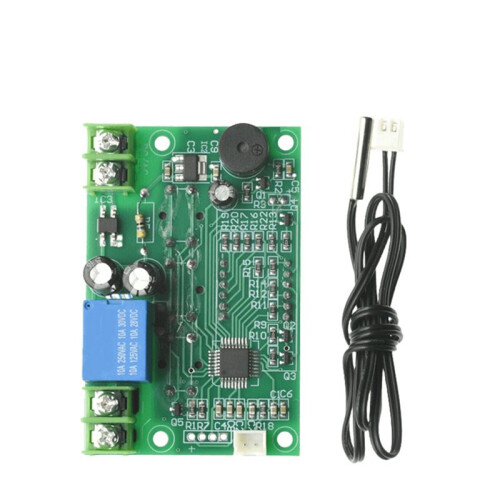

XH-W1301 LED Digital Temperature Controller Control Thermostat Relay Sensor Module 12V

XH-W1301 LED Digital Temperature Controller Control Thermostat Relay Sensor Module 12V Beskrivelse

1. SMT technology, higher performance, lower power consumption!
2. Front and back component design suitable for embedded panel installation
3. High speed flash RAM processing chip
4. Power off setting automatic memory
5. Control accuracy of 0.1 degrees Celsius

Button buzzer (can be turned off)
High temperature buzzer alarm (freely set from 0-110 degrees)
Set with a deviation of 0.5 or more, adjustable for decimals (0.5-15.0)
TECHNICAL SPECIFICATIONS:
Temperature control range: -50 - +110
Resolution: 0.1 at -9.9 - 99.9, 1 at other temperature ranges
Temperature measurement accuracy: 0.1
Control accuracy: 0.1
Return precision: 0.1
Refresh rate: 0.5s
Input power supply: /AC 12V
Measurement input: NTC(10K 0.5%) waterproof sensor
Output: 1 relay output, capacity=10A
Environmental requirements:-10 - +60, humidity 20% - 85%
Power consumption of the whole machine: Static current: Less than 35MA, suction current: Less than 65MA
Color:As Shown
Material:Plastic+Metal

Package Contents:
1 * Module
