Oversigt
- IIC Communication: JP1 is the IIC communication port. For IIC communication, short-circuit VDD and Z on JP2 and pull them high.
- ABZ Communication: JP2 is the ABZ communication port, with default values of AB = 256 and Z = 4. (Note: JP1's MODE pin must be short-circuited to GND.)
- PWM Output: JP3 is the PWM output port, with the default PWM frequency set to 994.4. Short-circuit JP1's MODE pin to GND and pull it low.
- SSI Communication: JP2 supports SSI communication. Wiring is as follows: Z connects to CSN, B connects to CLK, A connects to DO, and MODE shorts to VDD.
- Stepper Motor Magnetic encoder

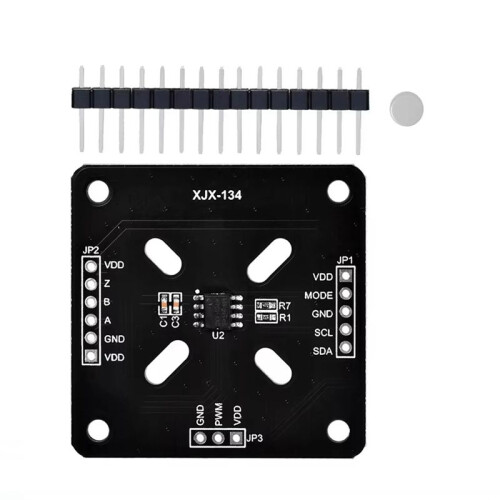

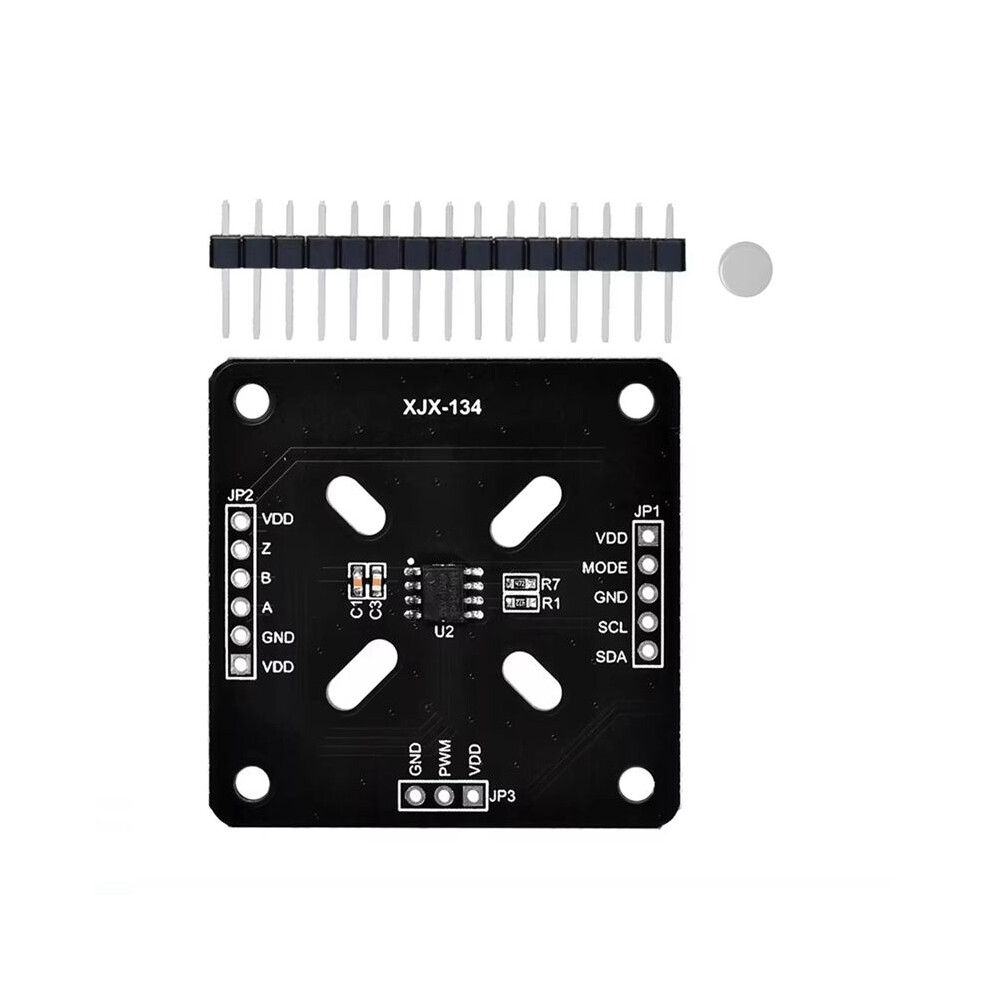

XJX-134 MT6701 MT6701CT Magnetic Encoder Evaluation Kit 42-Stepper Motor PWM Control Module Beskrivelse
IIC Communication: JP1 is the IIC communication port. For IIC communication, short-circuit VDD and Z JP2 and pull them high.
ABZ Communication: JP2 is the ABZ communication port, with default values of AB = 256 and Z = 4. (Note: JP1's MODE pin must be short-circuited to GND.)
PWM Output: JP3 is the PWM output port, with the default PWM frequency set to 994.4. Short-circuit JP1's MODE pin to GND and pull it low.
SSI Communication: JP2 supports SSI communication. Wiring is as follows: Z connects to CSN, B connects to CLK, A connects to DO, and MODE shorts to VDD.
Model:XJX-134
Chip Model: MT6701
JP1: IIC
JP2: ABZ Output (AB: 256, Z: 4)
JP3: PWM: 971.1Hz
Color:Black
Material:PCB
Package Contents:
1 * Magnetic encoder
1 * Magnet
1 * pin
Detaljer
| OPC | PWFYVPP |
|---|---|
| Koder | 6032550390120 (EAN) |
| Produkt- og sikkerhedsoplysninger |
Produktdata
| Height | 1cm |
|---|---|
| Width | 6cm |
| Length | 8cm |
| Weight | 0.0065kg |
| Colour | Black |
| Material | PCB |
