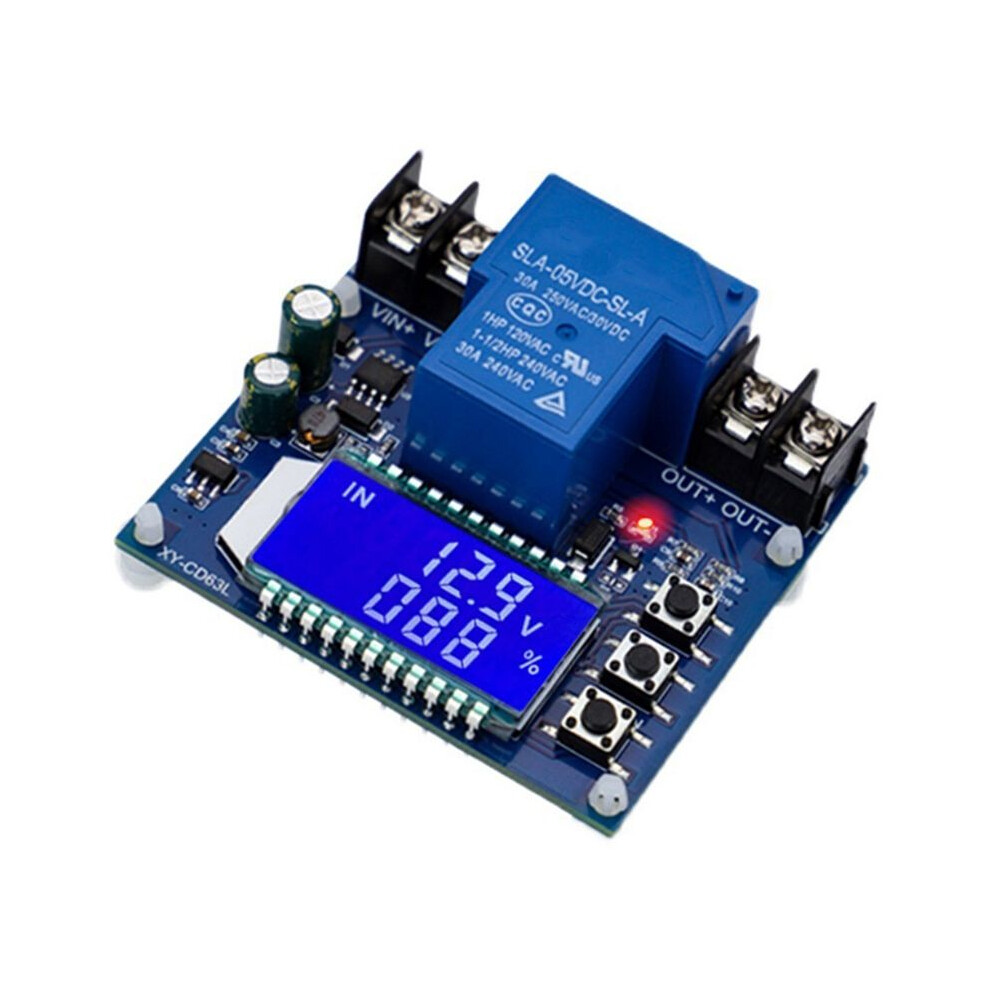

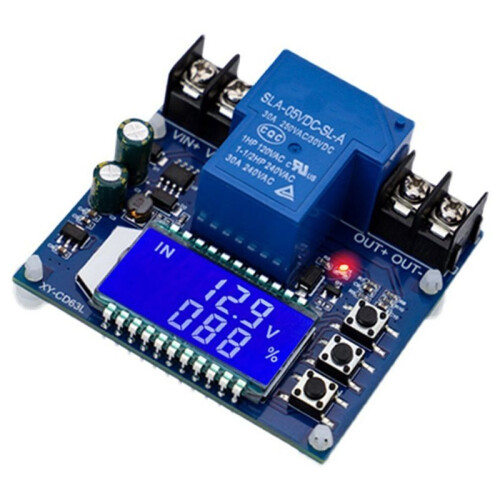

XY-CD63L 30A Battery Charge Discharge Controller Low Voltage Cut Off Undervoltage Overvoltage Protection Display

XY-CD63L 30A Battery Charge Discharge Controller Low Voltage Cut Off Undervoltage Overvoltage Protection Display Beskrivelse

This product is a voltage controller, which turns and off the output through a relay, which only acts as a and cannot change the voltage.
Charging mode IN: By setting the upper limit voltage and the lower limit voltage dn; when the battery voltage less than or equal to the lower limit voltage dn, the relay is turned , and the charger starts to charge the battery; when the battery voltage greater or equal to the upper limit voltage , the relay is disconnected to complete an automatic charging; the relay is turned , IN flashes, indicating that it is charging.
Discharge mode OUT: By setting the upper limit voltage and the lower limit voltage dn; when the battery voltage greater or equal to the upper limit voltage , the relay is turned and starts to discharge; when the battery voltage less than or equal to the lower limit voltage dn, the relay is disconnected to complete an automatic discharge function; the relay is turned and OUT flashes, Indicates that it is discharging.
Note: This product is a simple voltage controller, which uses a relay to turn and off the output. It only functions as a and cannot be transformed.

Function:
Calculation of voltage percentage: battery voltage/(upper limit voltage-lower limit voltage)
Button:
button: Short press to to display percentage and , long press for 5 seconds to modes, charging mode: IN, discharging mode: OUT
SET button: Short press to view the currently set parameters; long press the SET button to set the parameter
DOWN button: Short press to turn off/ the relay (emergency stop function), after the LCD display is OFF, the relay is disconnected
type: Battery protector
color:
Material:PCB+electronic components
size:62 x 57 x 22mm

Package Contents:
1 x Battery protector
