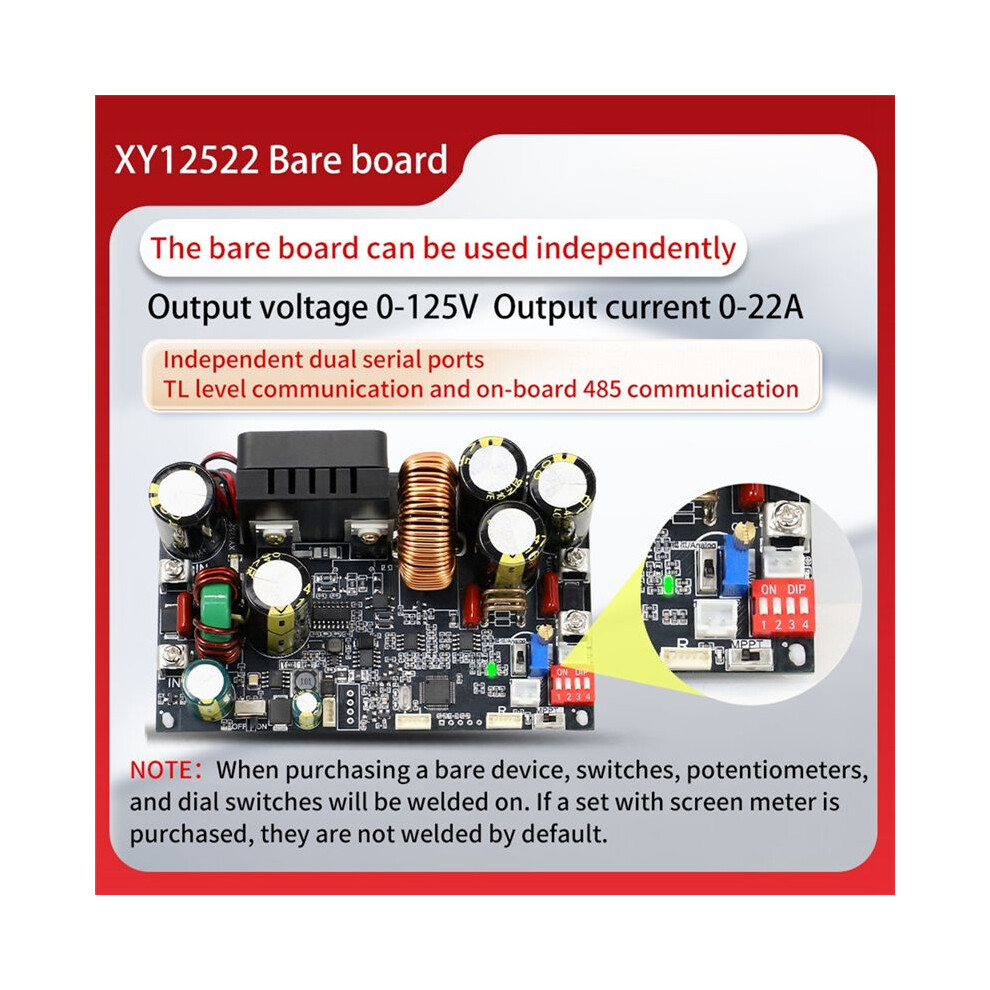

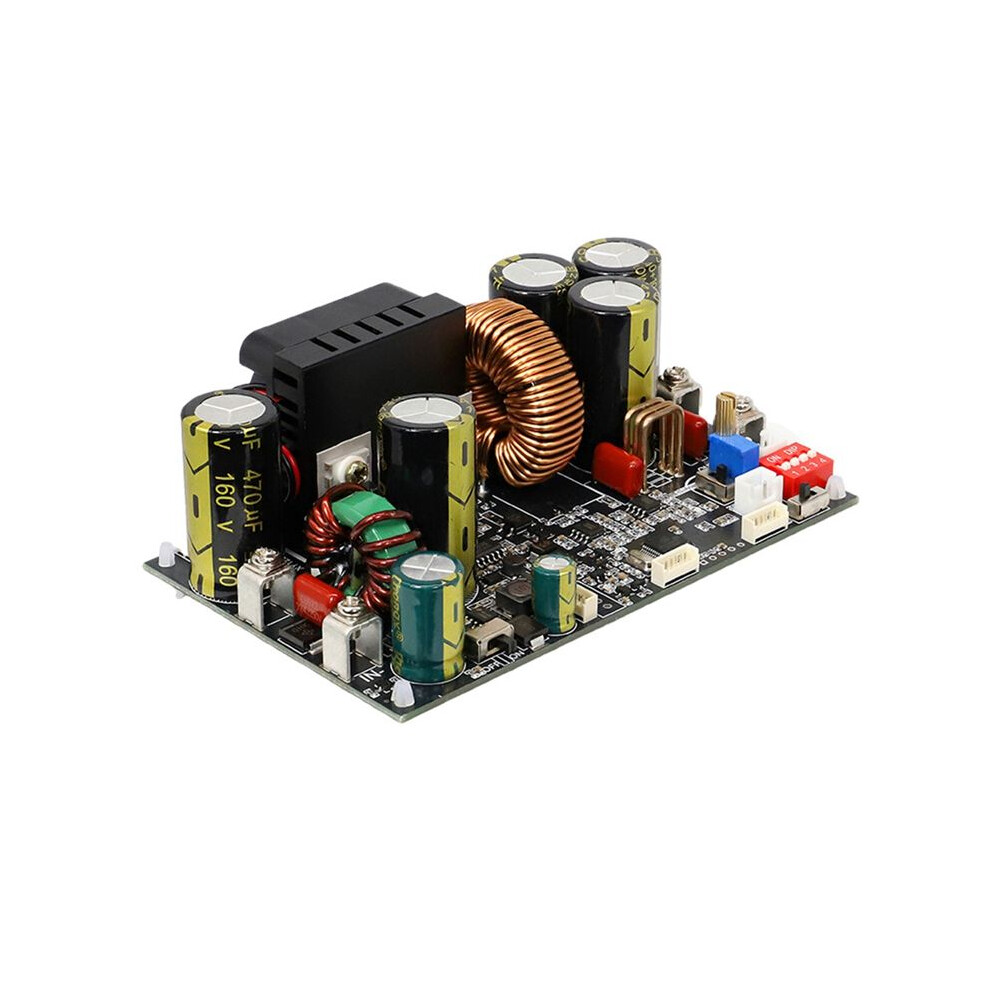

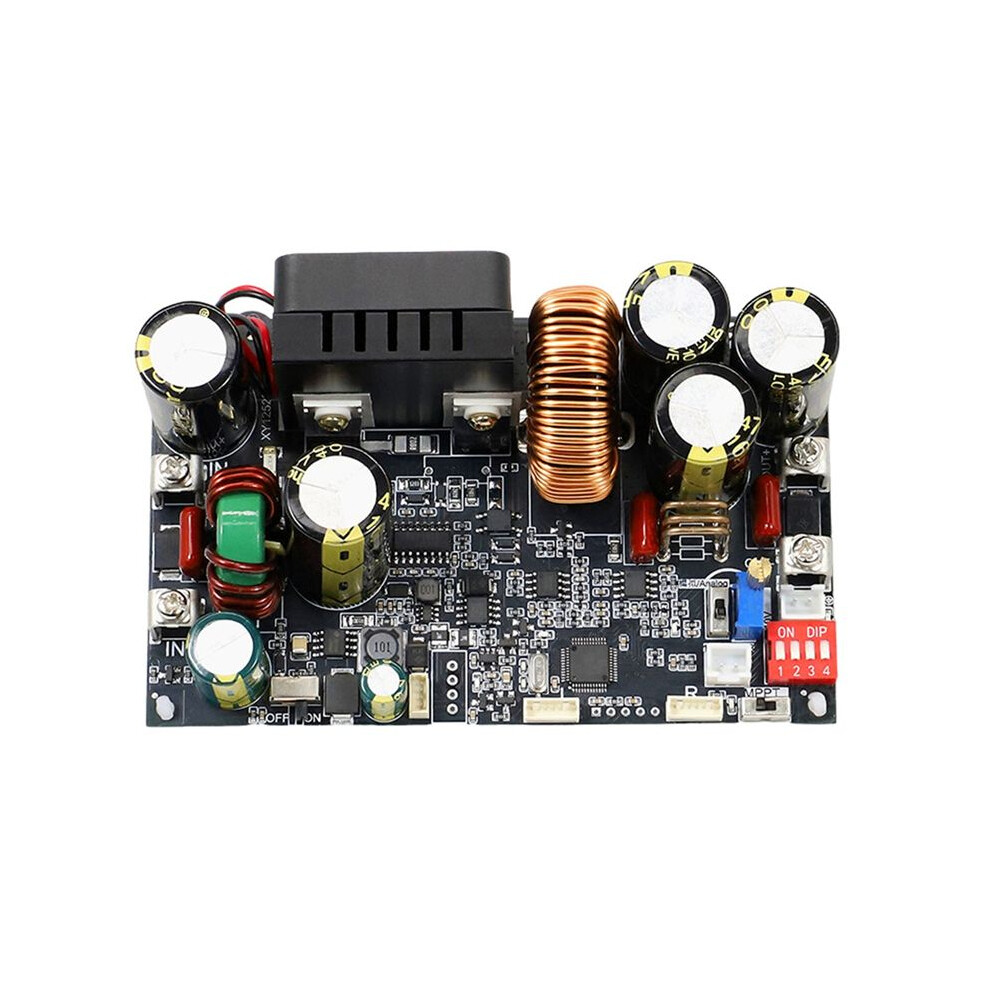

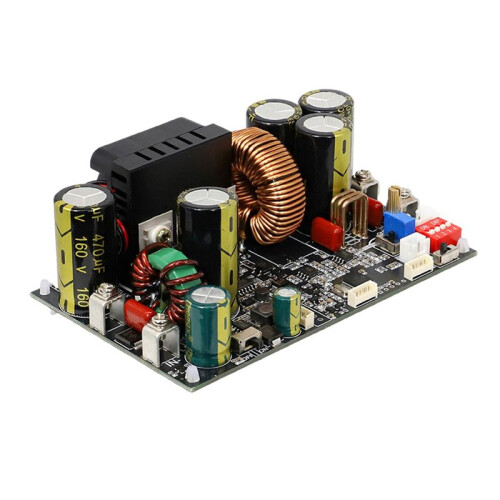

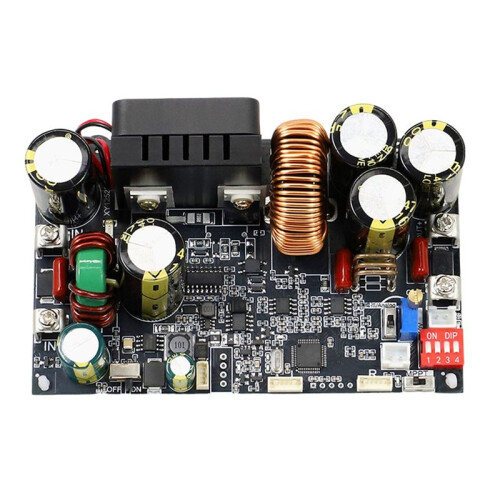

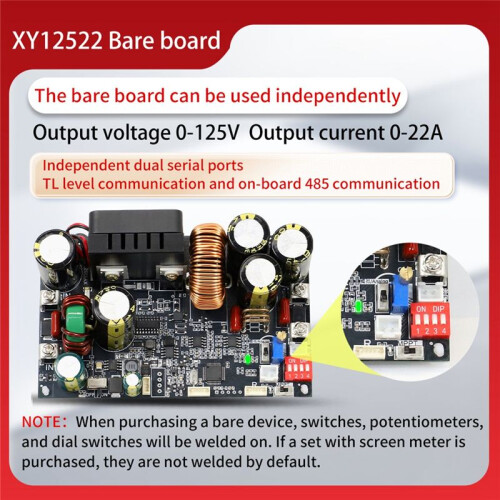

XY12522 CNC Adjustable Stabilized Power Supply Constant Voltage and Current Module 125V/2000W

XY12522 CNC Adjustable Stabilized Power Supply Constant Voltage and Current Module 125V/2000W Beskrivelse

1. Support firmware upgrade. Support MPPT solar charging.

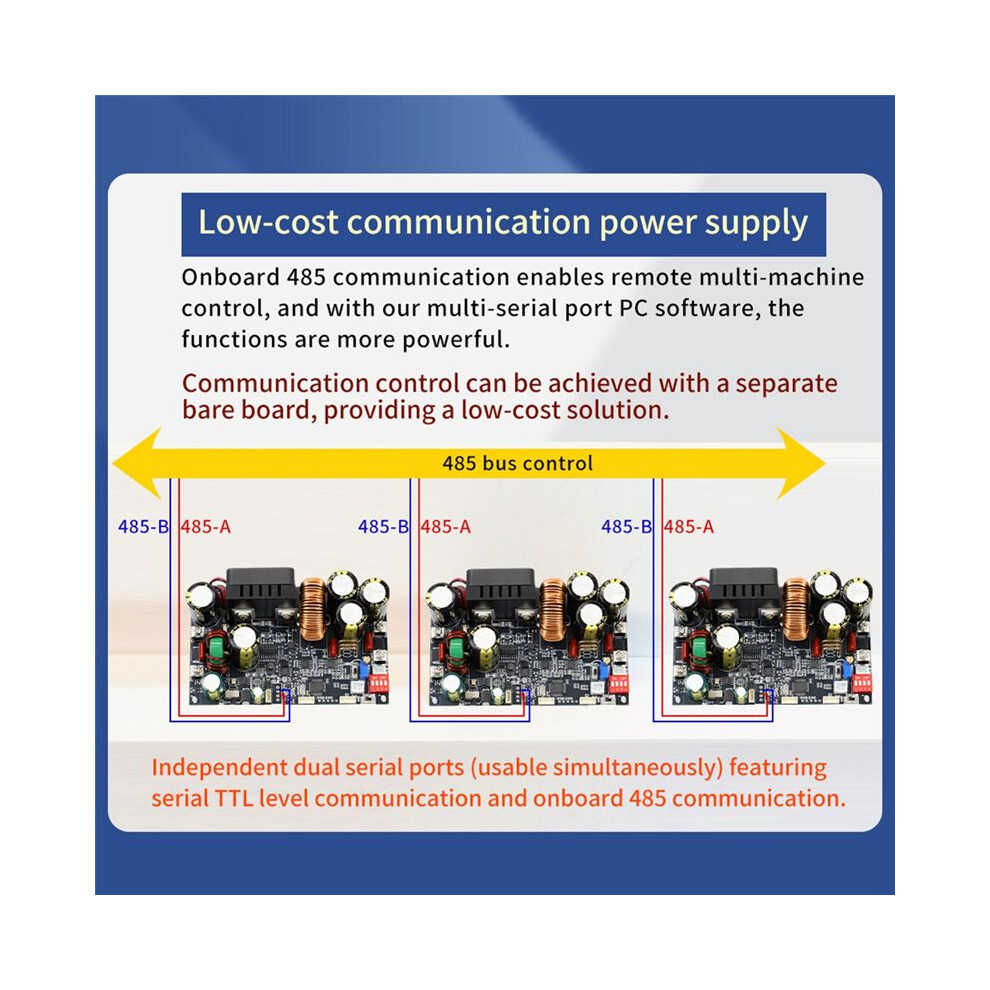

2. Support serial communication, standard MODBUS protocol. Independent dual serial , serial TTL and onboard 485 communication.
3. Onboard buzzer: key prompts, alarm prompts, everything has an echo.
4. High-precision external clock crystal oscillator to ensure the accuracy of , more accurate capacity/ statistics, 48-pin powerful MCU controller, 64M frequency, faster operation speed.

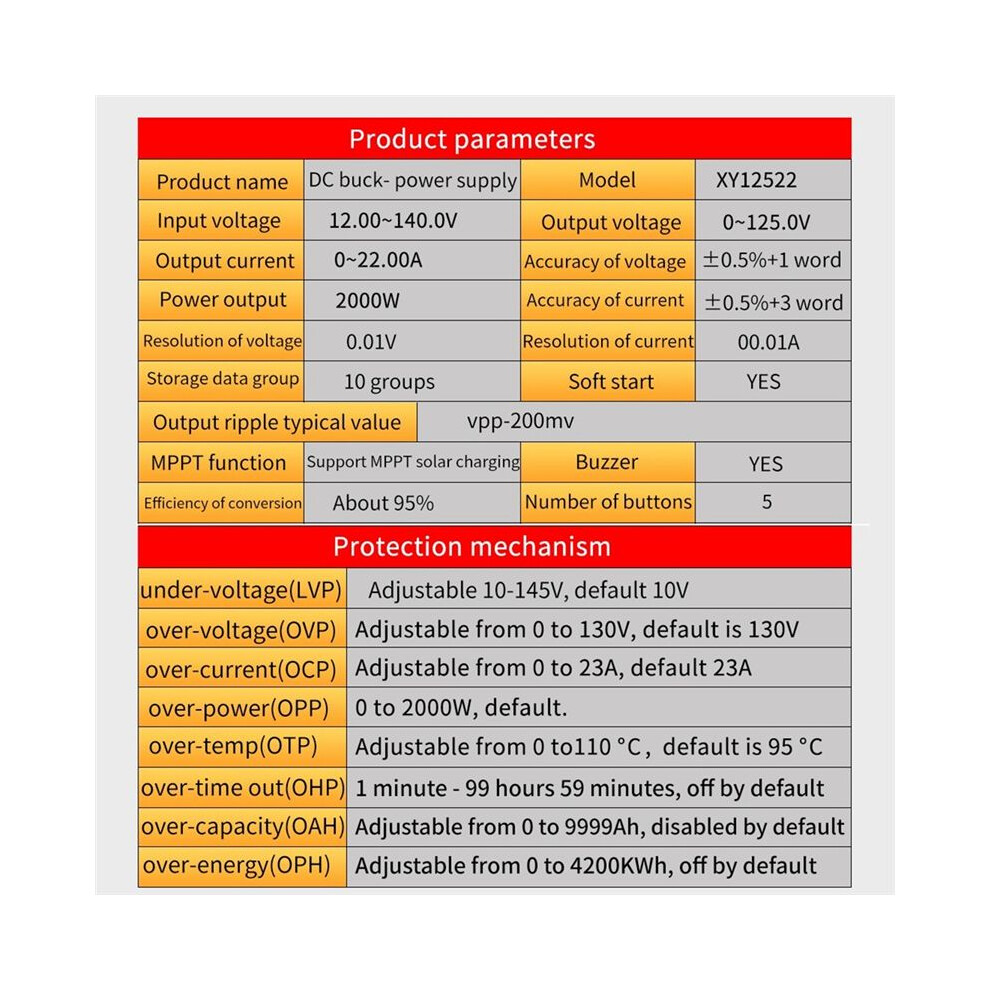

Product name: CNC step-down power supply
Input voltage: 12.0-140V
Output voltage: 0.0-125V
Output current: 0-22.00A
Output ripple typical value: 200mv VPP
Output power: 2000W
Voltage resolution: 0.01V
Storage data group: 10 groups

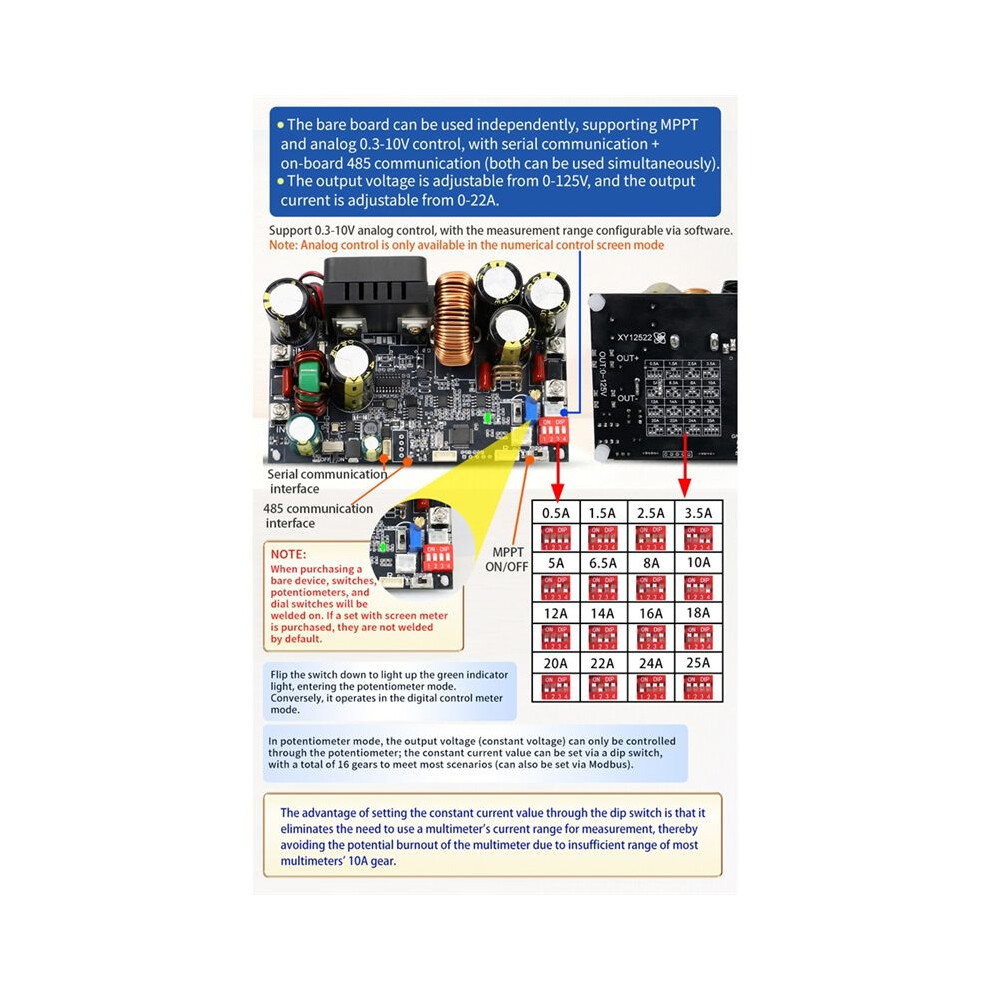

MPPT function: supports MPPT solar charging
Voltage accuracy: 0.5%+1 character
Current accuracy: 0.5%+3 characters
Current resolution: 00.01A
Protection mechanism:
Input undervoltage protection (LVP): 10-145V adjustable, default 10V
Output overvoltage protection (OVP): 0-130V adjustable, default 130V
Output overcurrent protection (OCP): 0-23A adjustable, default 23A
Output overpower protection (OPP): 0 -2200W Default
Over-temperature protection (OTP): 0-110 adjustable, default 95
Over- protection (OHP): 1 minute-99 hours and 59 minutes, default off
Over-capacity protection (OAP): 0-9999Ah adjustable, default off
Over- protection (OPH): 0-4200KWh adjustable, default off

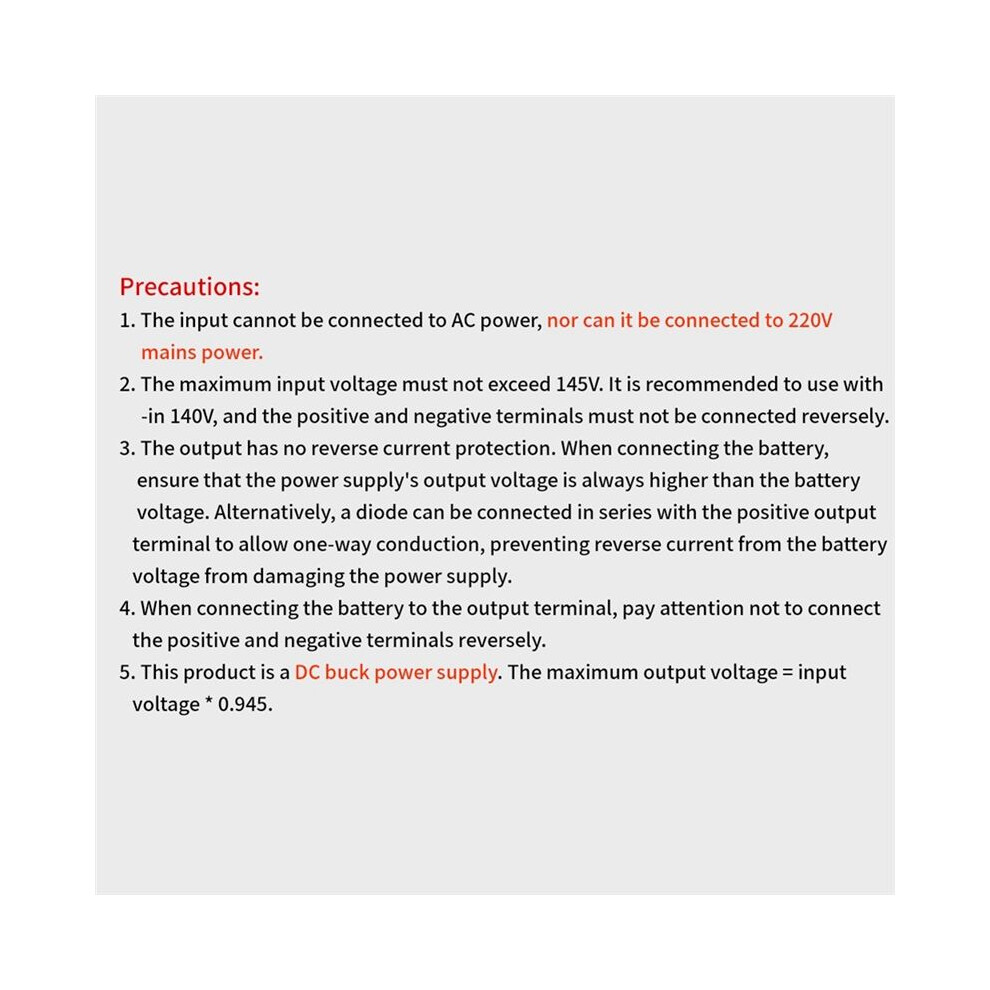

Precautions:
1. The input cannot be connected to AC power, let alone 220V AC power
2. The maximum input voltage cannot exceed 145V. It is recommended to use it within 140V, and the positive and negative poles cannot be connected in reverse.
Colour:Black
Material:PCB+electronic components

Package Contents:
1 x Adjustable Constant Voltage and Consta
