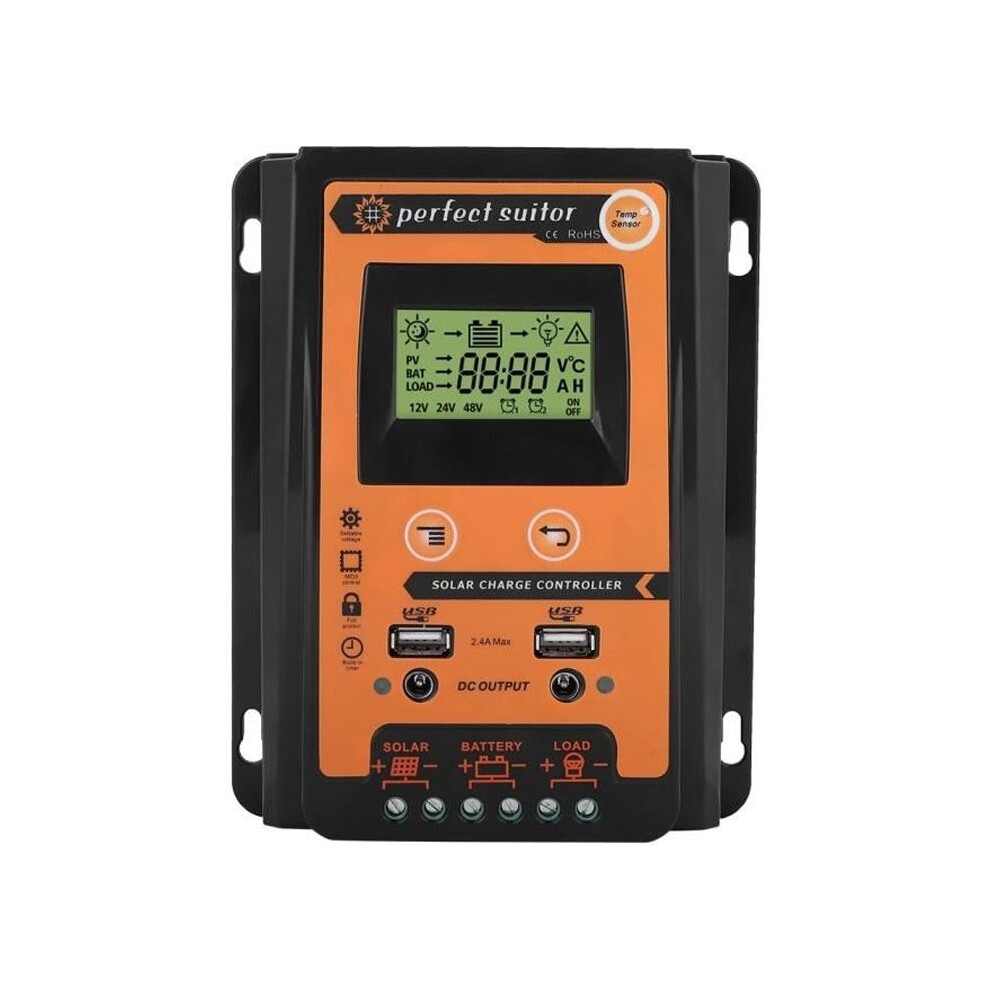

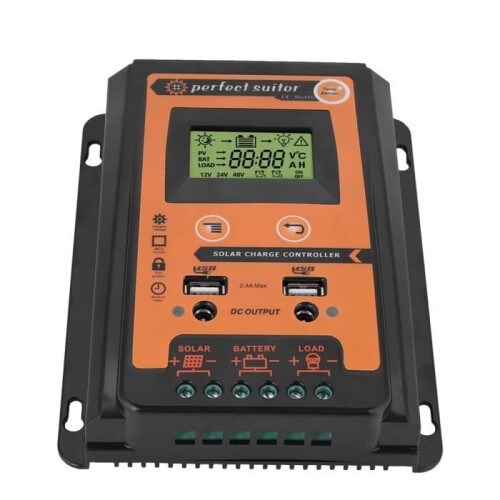

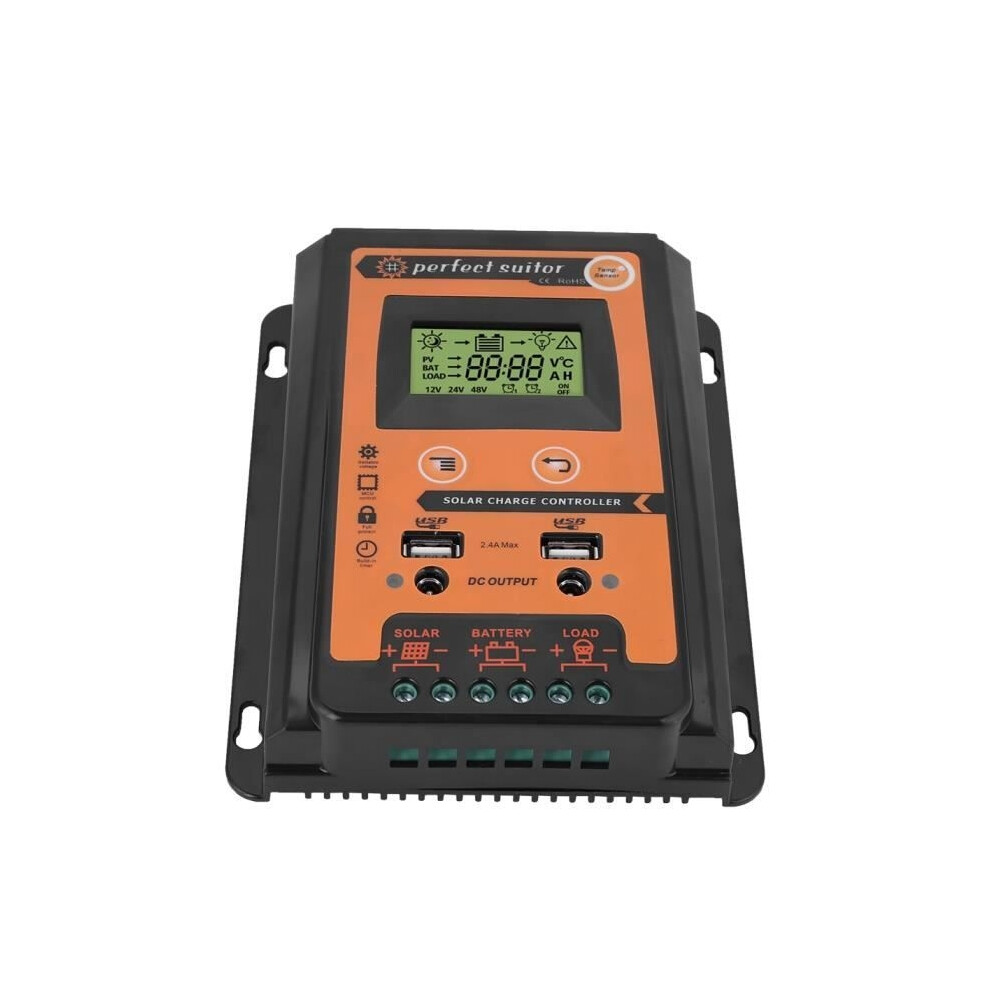

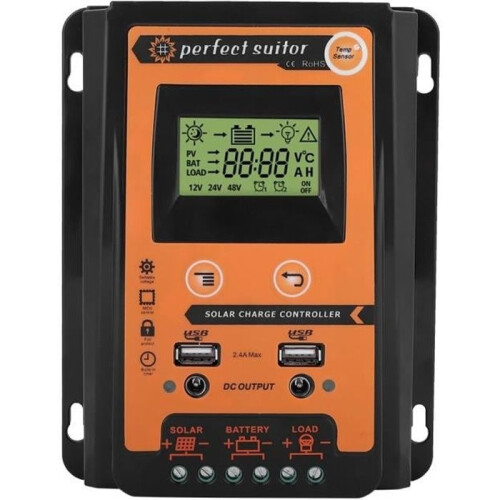

12V/24V 30A MPPT Solar Charge Controller Solar Panel Battery Regulator Dual USB LCD Display -TAM

Descripción de 12V/24V 30A MPPT Solar Charge Controller Solar Panel Battery Regulator Dual USB LCD Display -TAM

Features:Automatic identification system voltage, 12/24V automatic recognition.Humanized LCD display and double-button operation of human-machine interface.Completed technical data for installation and modification.High-efficiency 3-stage MPPT intelligent charging mode.The load control mode can be selected, the timer function can be reset for street lighting at night.Discharge capacity control.Ampere-hour discharge meter.Working storage function: record the total system running time, record the error timers during running time, record the times of the battery fully charged.Reliable overvoltage protection, short circuit protection, overload protection, overcharge protection, overdischarge protection.Accurate temperature compensation, automatically correcting the charging and discharging voltage. discharge, improving battery life.Round reverse connection protection.Solar panels, battery, solar charge controller positive poles are all connected together, adopting negative MOSFET in series control circuit.Specifications:Current: 30ARated voltage: 12/24VUSB output: 2.4A*2Overcharge current (V): 13.7V/*2 24VOver discharge current (V): 10.5-11V/*2 24VTemperature compensation: -3mv//cellEmpty charge waste: 45ma>200mvDisplay: LCD displayCharge type: MPPTWaterproof grade: IP32Material: PlasticColor: Black + OrangeSize: 17.5 * 14 * 4cm / 6.9 * 5.5 * 1.6in (30A)Package Weight: 480g-1284gPackage List:1 * Solar Charge Controller1 * User ManualNotes:1. The function of the controller is to protect the voltage overshoot and overshoot.2. When the battery voltage is too low, the controller will stop output; after the solar panel is charged, the cell will recover to 12.6V.3. 12.6V is the recovery discharge voltage.4. The normal voltage of the controller is 10.7V-13.7V. These two voltage fluctuations can be adjusted manually. If you have any problems in use, please try to adjust the float voltage to 13.7V: First, you need to press the MCU control button for about 3-4 seconds, then there will be a management interface on the screen. Second, you need to press the ADD button on the screen until the voltage reaches 13.7V. Finally, you need to press the MCU control button again, which will save the controller record data when the display does not flicker. >
