5 piezas IP67 conector de 4 pines E7 0.34mm2 20AWG 2A
New
20,33 €
Productos similares que creemos que te gustarán
Would you like us to let you know when it's back?
Descripción y detalles
Resumen
- STANDARD AND TEMPERATURE RANGE: Industrial waterproof connector cable specifications are 0.34mm²/20AWG, cable diameter range from 3.5MM‑6.8MM. Support 50000 times plug and unplug, temperature class ‑45℃‑105℃, the assembly method is welded
- TECHNICAL SPECIFICATIONS: Waterproof wire cable connector rated current is 2A, working voltage(AC.v.MS) is 60V, resistance voltage(AC.V) is 1 minute 1500V, contact resistance ≤5MΩ, insulation resistance ≥100MΩ

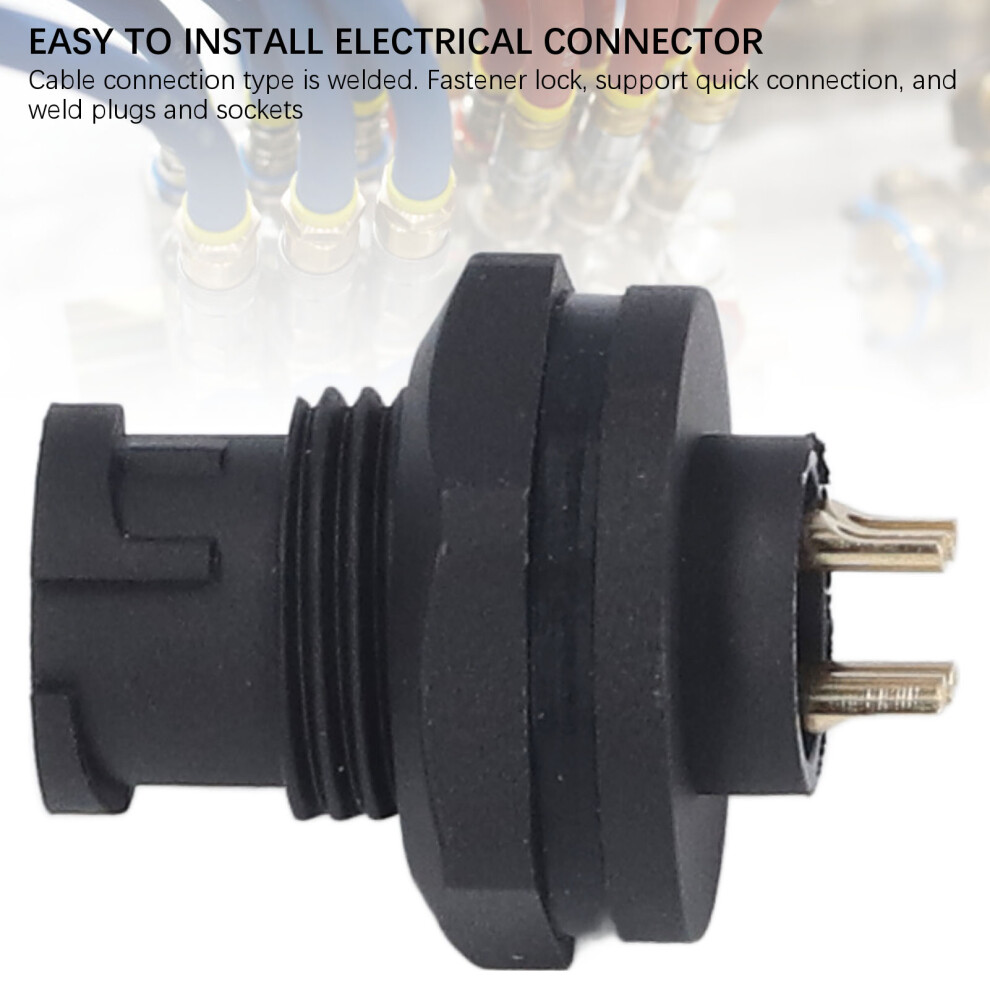

- EASY TO INSTALL ELECTRICAL CONNECTOR: Cable connection type is welded. Fastener lock, support quick connection, and weld plugs and sockets
- STRONG WATER RESISTANCE: The waterproof connector up to IP67 water resistance rating when connected. Can still maintain good waterproof performance even in bad outdoor weather conditions. Excellent quality ensure that your industrial equipment work well without being affected
- WIDE APPLICATION: Aviation connectors are ideal for any equipment used in watertight, indoor or outdoor applications, such as outdoor power tools or appliances, medical equipment, communications, marine or automation equipment, underwater equipment, outdoor LED lighting, outdoor LED panels, solar energy systems, outdoor security cameras, transformer, control boxes, machine equipment, packaging m
Descripción de 5 piezas IP67 conector de 4 pines E7 0.34mm2 20AWG 2A

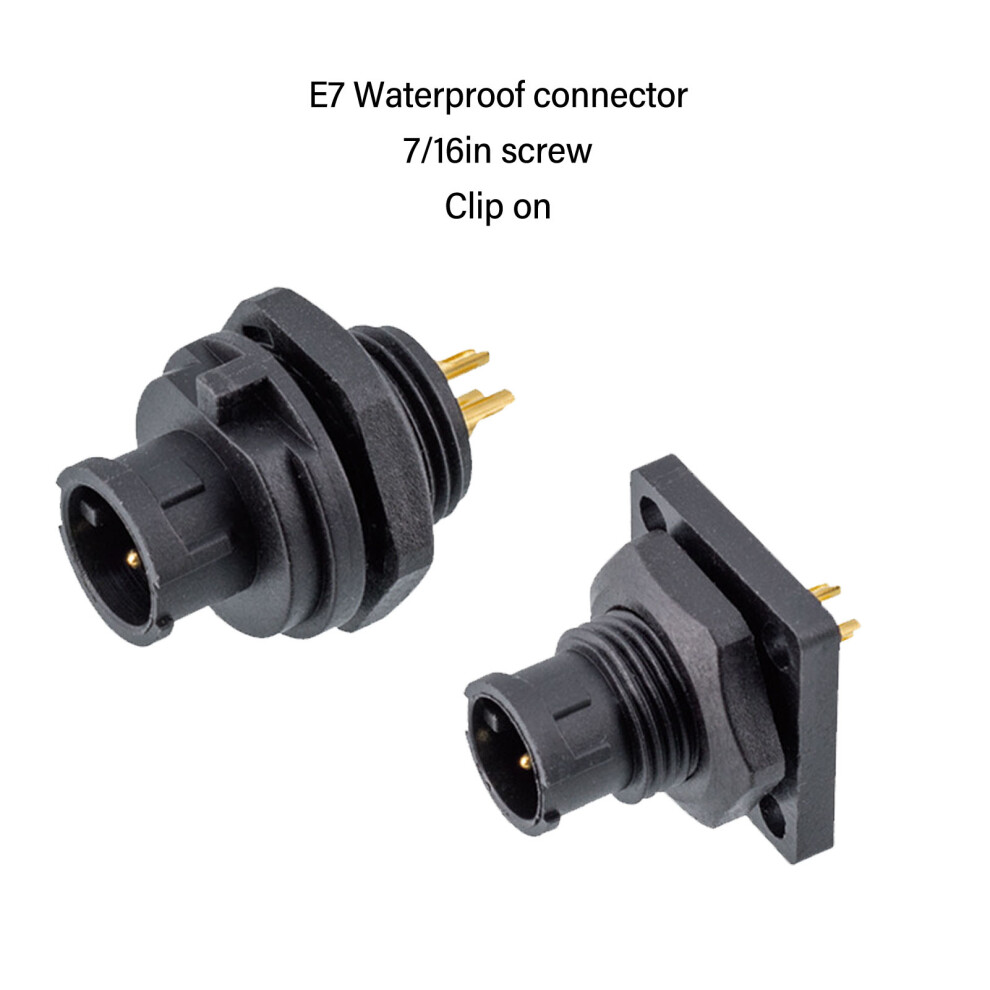

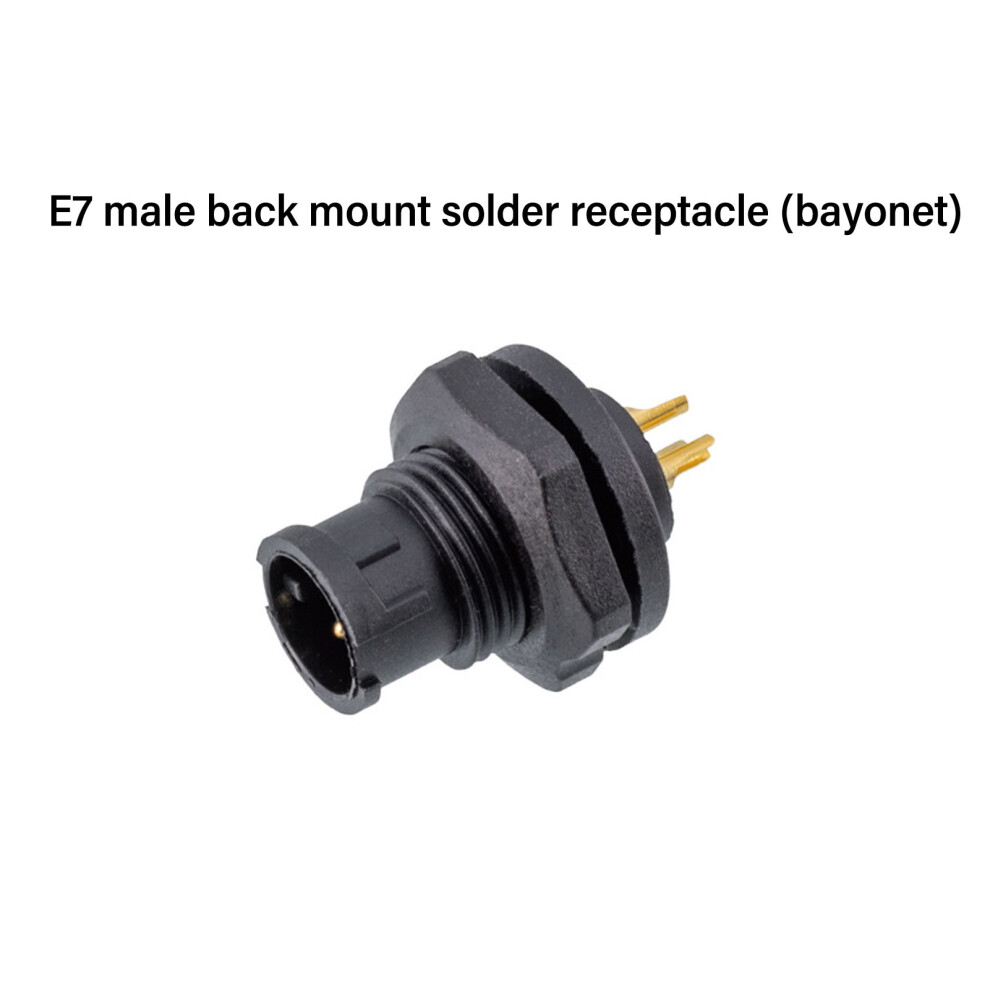

Conector impermeable industrial IP67 de 5 piezas, 4 pines, hebilla E7, montaje trasero, cable aeronáutico eléctrico, enchufe rápido
Tipo de artículo: Conector impermeable industrial
Especificación del producto: Calibre de tornillo estándar 7/16in-28UNS
Rosca: 7/16in
Número de núcleos: 4 pines
Material de la carcasa: Termoplástico PA66, grado retardante de llama: V-0
Material de los pines: Latón, recubierto de oro; cobre fosforado
Modo de conexión: cierre por encaje
Modo de conexión: Soldadura
Ciclos de inserción y retirada: 50000 veces
Impedancia de contacto: 5 MΩ
Resistencia de aislamiento: 100 MΩ
Temperatura aplicable: -45~105
Sección del conductor: 0.34mm² (20 AWG)
Tipo de pin: Diámetro 0.8mm
Diámetro del cable: Aproximadamente 3.5 - 6.8mm / 0.14 - 0.27in
Grado de impermeabilidad: IP67
Corriente nominal: 2A
