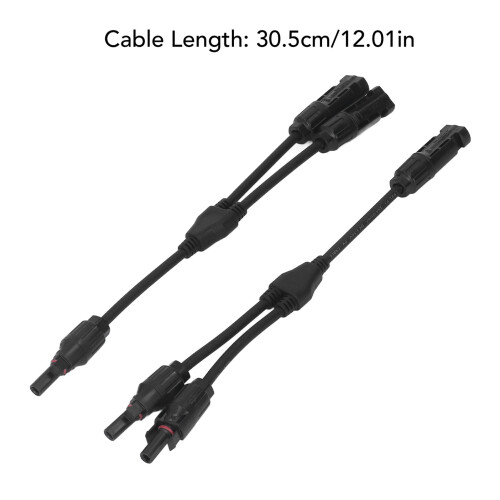

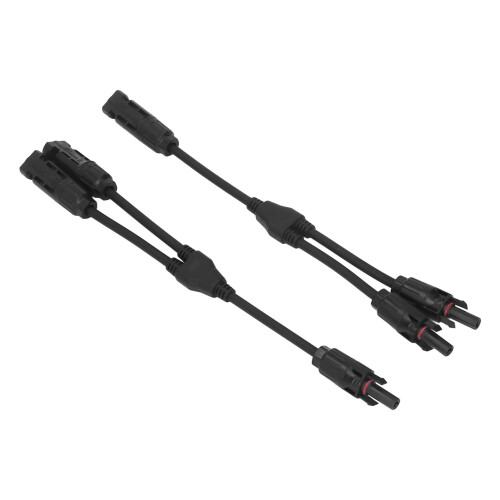

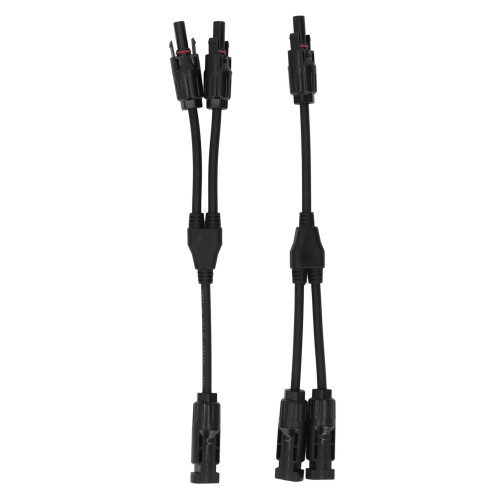

Conector en Y para paneles solares DC-1000V, 30 A, 30,5 cm, negro
New
36,69 €
Productos similares que creemos que te gustarán
Would you like us to let you know when it's back?
Descripción y detalles
Resumen
- Strong Pulling Power: Solar connector's male and female connectors are connected by crimping, easy to connect and disconnect, not easy to fall off.
- Waterproof and Dustproof: The waterproof ring in the male connector is designed to be waterproof and dustproof, and the waterproof rating of the plug in box statu is IP68.
- Insulated Shell: The shell is made of PPO insulation and flame retardant material, which is heat resistant and corrosion proof, anti oxidation, UV proof and high and low temperature proof, thus it can be used in harsh environments.
- Copper Tinned Core: The inner core is made of copper tinned material with high electrical conductivity and is compatible with PV cables of different insulation diameters.
- High Current Voltage Load Capacity: Rated voltage is 1000V DC. Rated current is 30A. Quick and easy installation and removal of the plug without any additional instruments. The connector can connect 2 solar panels in parallel and is suitable for various solar power generation equipment
Descripción de Conector en Y para paneles solares DC-1000V, 30 A, 30,5 cm, negro
1 par de conector solar DC 1000 V, derivación en Y paralela, adaptador para cable de panel solar
Tipo de artículo: Conector solar
Material: PPO; cobre estañado
Peso: Aprox. 124 g / 4.37 oz
Corriente nominal: 30 A
Voltaje nominal: 1000 VDC
Resistencia de contacto: 0,2 mΩ
Nivel de impermeabilidad: IP68 (estado de la caja insertada)
Clasificación de inflamabilidad: UL94 V-0
Nivel de seguridad: II
Fuerza de extracción: 50 N
Fuerza de inserción: 50 N
Sistema de conexión: conexión por crimpado
Rango de temperatura: -40 a +90
Longitud del cable: 30.5 cm / 12.01 in
Detalles
| OPC | PJBF2TP |
|---|---|
| Códigos | 9391332526575 (EAN) |
