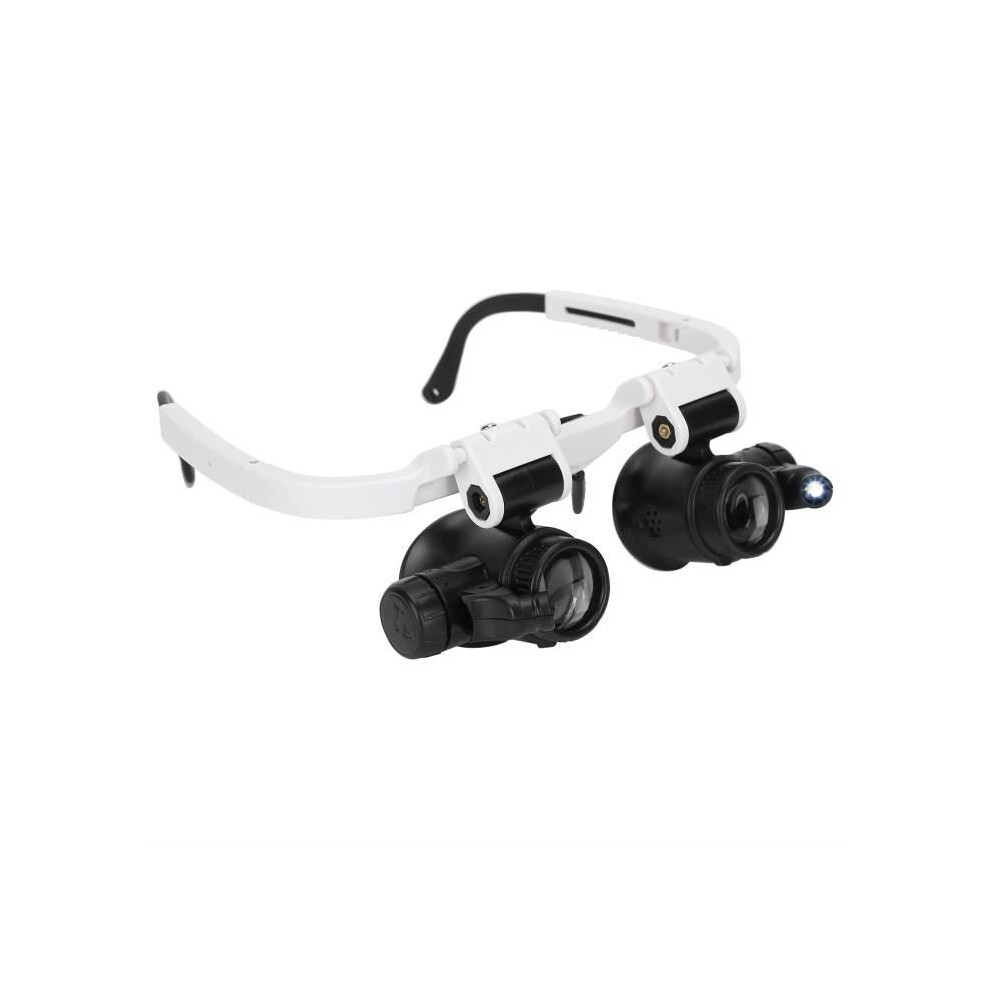

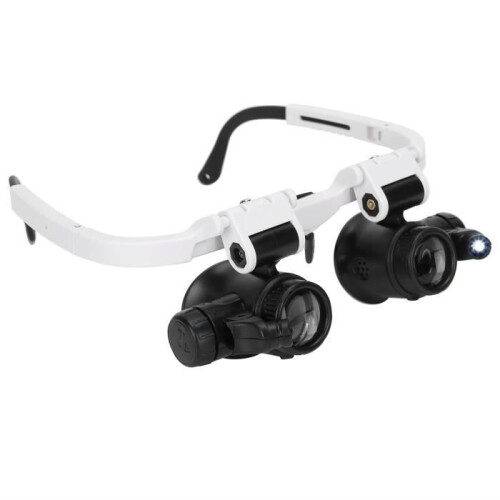

Fdit Head-Mounted Magnifying Glass with LED Light for Reading and Repair

Descripción de Fdit Head-Mounted Magnifying Glass with LED Light for Reading and Repair

Features:

1. 8X main lens; the 15X extension lens can be mounted for magnification up to 23X. Using two lenses alternately can relieve eye strain and improve work efficiency. When not in use, the lens barrel can be raised; there is no need to remove the glasses.

2. Two-speed LED light: soft and bright light to suit different conditions.

3. The glasses temple and nose bridge support can be adjusted for comfortable wear.

4. The lens barrel position can be adjusted, moving 5 mm / 0.2 inches horizontally on the mount according to face width and inter-eye distance.

5. The magnifying glass can be rotated 180 degrees up and down on the stand; there is no need to remove the entire magnifying glass when not in use, which is convenient for reuse.

Specifications:

Condition: 100% Brand New

Item Type: Magnifying Glasses

Material: ABS, Optical Resin Lens

Color: Black + White

Magnification Focal Length

Main Lens 8X Main Lens 62 mm / 2.4 inches

Extension Lens 15X Extension Lens 33 mm / 1.3 inches

Maximum Magnification 23X Combined Magnification 21 mm / 0.8 inches Battery: 6 LR1130 button cell batteries (not included)

Light Source: 2 LED lights

Unfolded Size: Approx. 175 x 155 x 55 mm / 6.9 x 6.1 x 2.2 inches

Folded size: approx. 85 x 155 x 55 mm / 3.3 x 6.1 x 2.2 inches

Suitable for:

1. Reading newspapers, documents, maps

2. Repairing electronic parts, jewelry, clocks, mobile phones

3. Beauty treatments

4. Identifying antiques and other operations

Operating method:

1. Light source switch:

A. There are three scale markings above the battery compartment, which are respectively "Off Light Source," "Soft Light," and "High Light." The arrows on the battery cover can be rotated and aligned to the point where no scale marking is used to change the light source.

B. Move the LED cap towards the lens barrel; the closer the lamp cap is to the lens, the greater the illumination effect.

2. Installing and removing lenses:

A. When magnification is needed, extension lenses can be installed. Place the lens mounting slot, aligned with the lens barrel, into the extension lens and tighten it clockwise.

B. When the extension lens needs to be removed, unscrew it counterclockwise and remove it.

3. Adjusting the mount:

There is a convex point inside the eyepiece stem. The eyepiece stem is pulled or pushed towards the scale slot under the inside of the mount to adjust the length.

4. Adjusting the lens barrel: Adjustment screws are installed at the connection between the lens barrel and the lens frame. By slightly loosening the adjustment screw, the lens barrel can be adjusted horizontally on the mount. After adjusting it to the correct position, tighten the adjustment screw.

5. Replace the battery:

A. Set the battery indicator on the battery cover to the "Off" position, then press down on the battery cover and continue turning it backward until you reach the "Battery Open" sign to open the battery compartment;

B. Remove the old batteries and replace them with the 3 new LR1130 button cell batteries. When the indicator arrows on the battery cover are aligned with the "Battery Tray Open" markings and the battery cover is pressed down, battery cover "A" must be aligned with battery tray "A" and battery cover "B" must be aligned with battery tray "B". Battery replacement should be performed by turning forward until the "Power Off" gear interface is engaged. Package List: 1 x Magnifying Glasses 1 x Manual Note: 1. Do not expose the magnifier to direct sunlight to avoid fire. 2. Do not use the magnifier to observe the sun to avoid burning your eyes. 3. Do not use alcohol, gasoline, or other chemical liquids to wipe the lens and housing.
