Placa de control CNC para grabado de 3 ejes GRBL 1.1F V3.4
New
44,35 €
Productos similares que creemos que te gustarán
Would you like us to let you know when it's back?
Descripción y detalles
Resumen

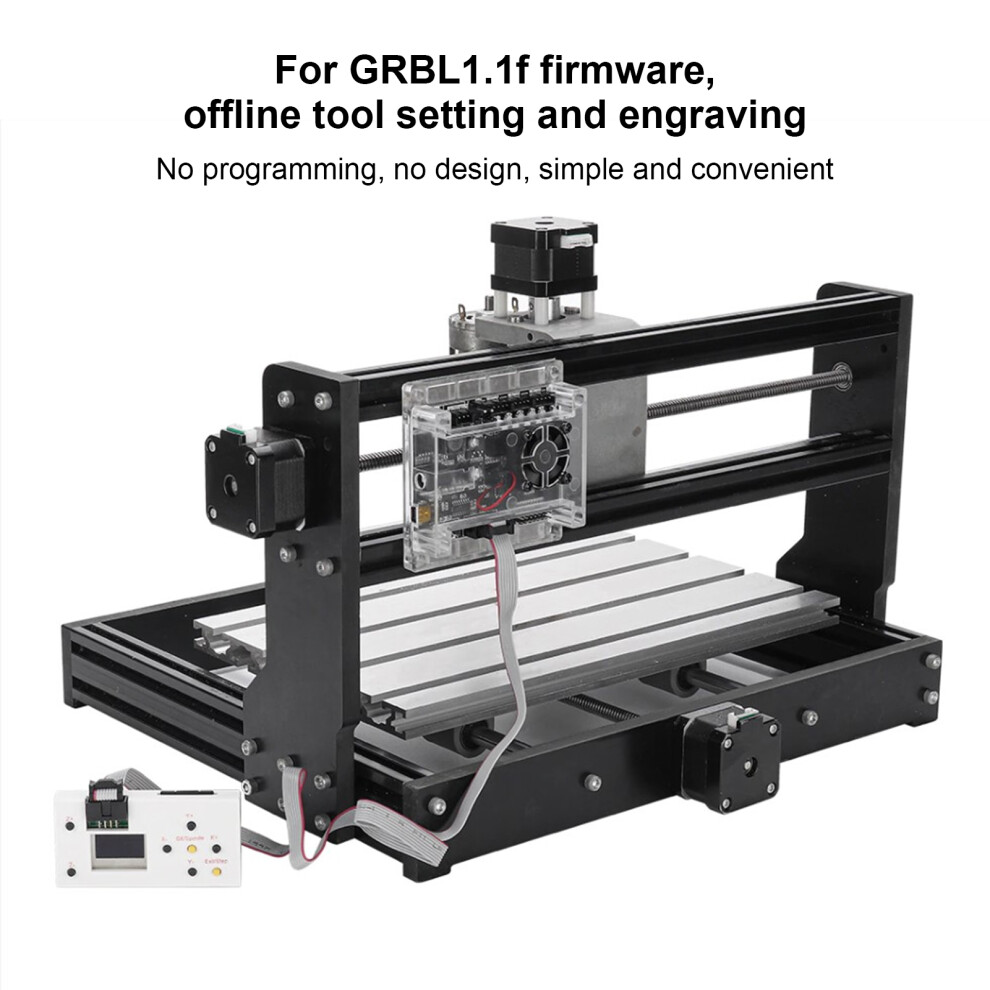

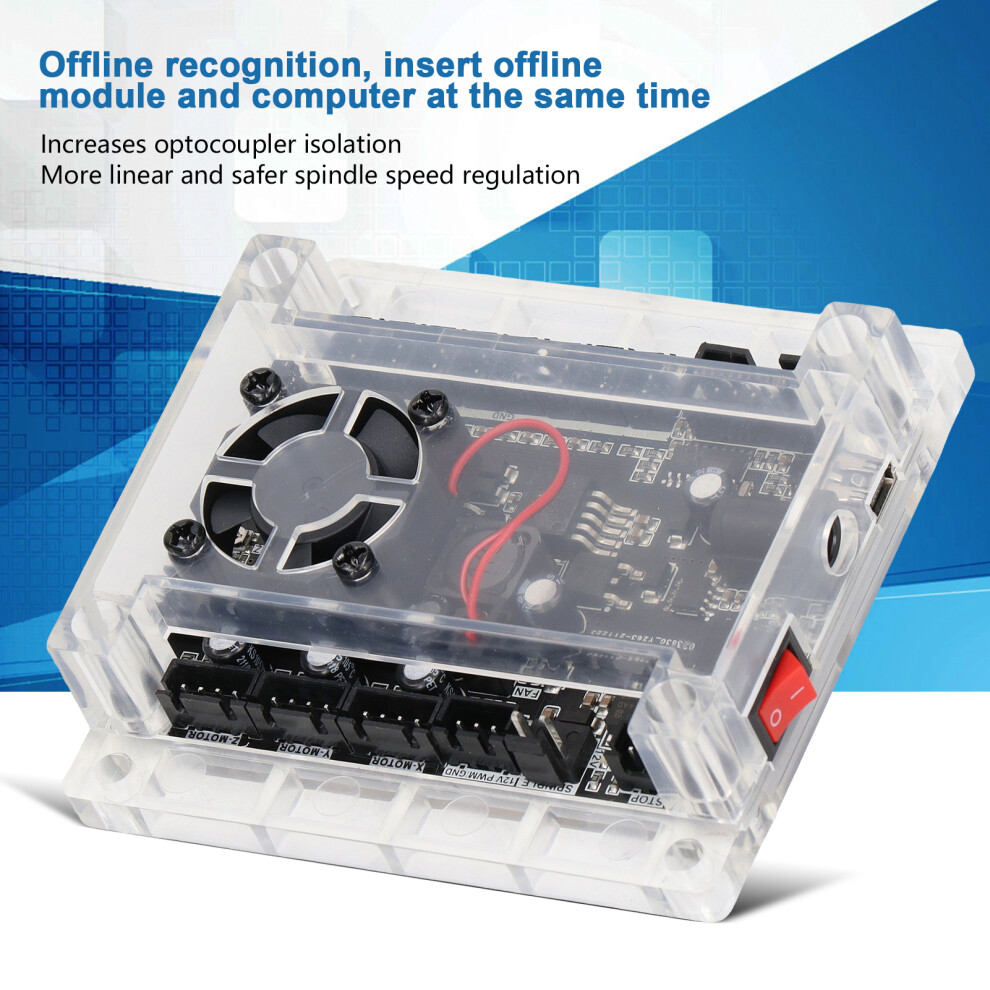

- OFFLINE LASER ENGRAVING: Adopt for GRBL1.1f firmware, possess stable performance. With optional offline module, realize offline tool setting and engraving. Laser directly into the picture for engraving, no programming, no design, simple and convenient
- ADJUSTABLE POWER: The laser supports PWM or TTL signal control, and the power is adjustable from 0-100%. Spindle supports PWM power 0-100% adjustable. Enhanced spindle drive can support 20000rpm spindle

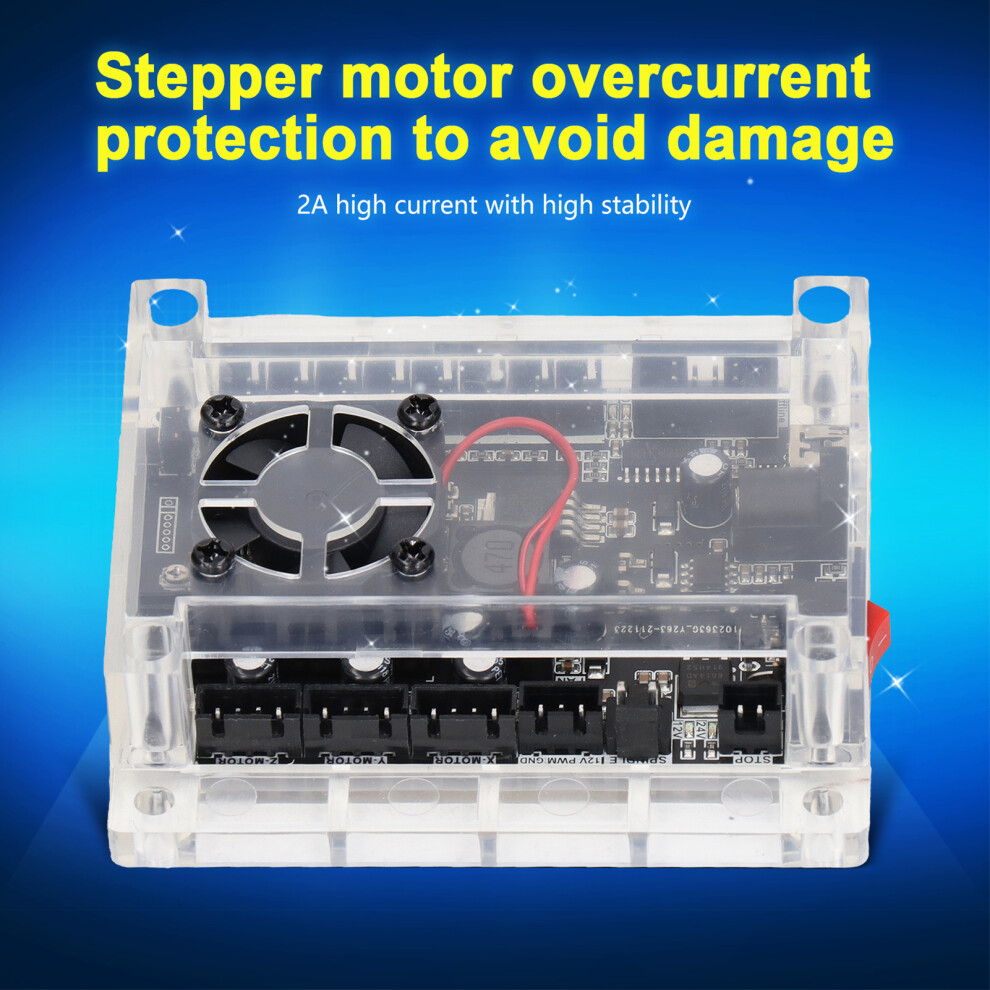

- STABLE OVERCURRENT PROTECTION: Provide stepper motor overcurrent protection to avoid damage, upgrade integrated stepper motor drive, 2A high current with high stability. Added power button switch

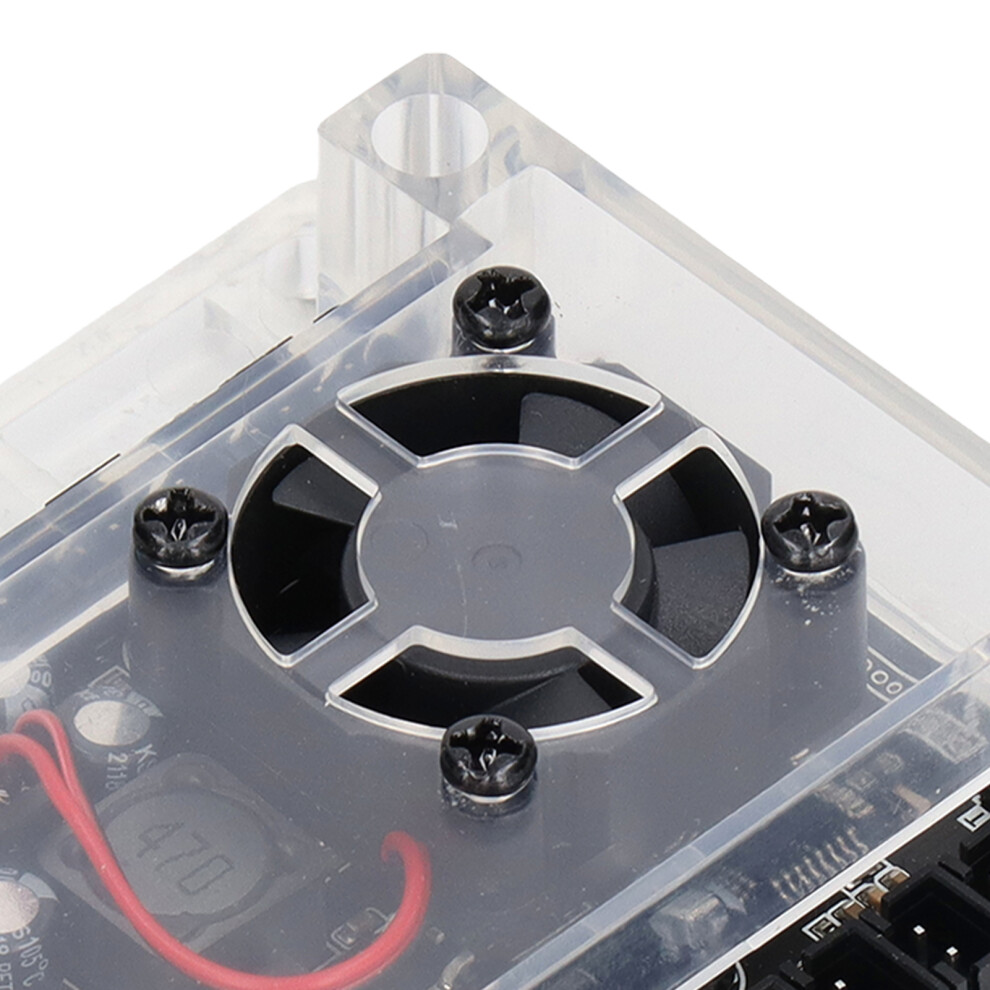

- GOOD HEAT DISSIPATION: Professional shell protection, the fan actively dissipates heat, and does not heat up for a long time. Increase the fan port for forced heat dissipation, increase the shell to protect the control board during transportation, and avoid short circuit problems during use
- SHORT CIRCUIT PROTECTION FUNCTION: Cancel the drive module, use an integrated imported stepping motor drive, with short circuit protection, integrated heat dissipation aluminum alloy
Descripción de Placa de control CNC para grabado de 3 ejes GRBL 1.1F V3.4

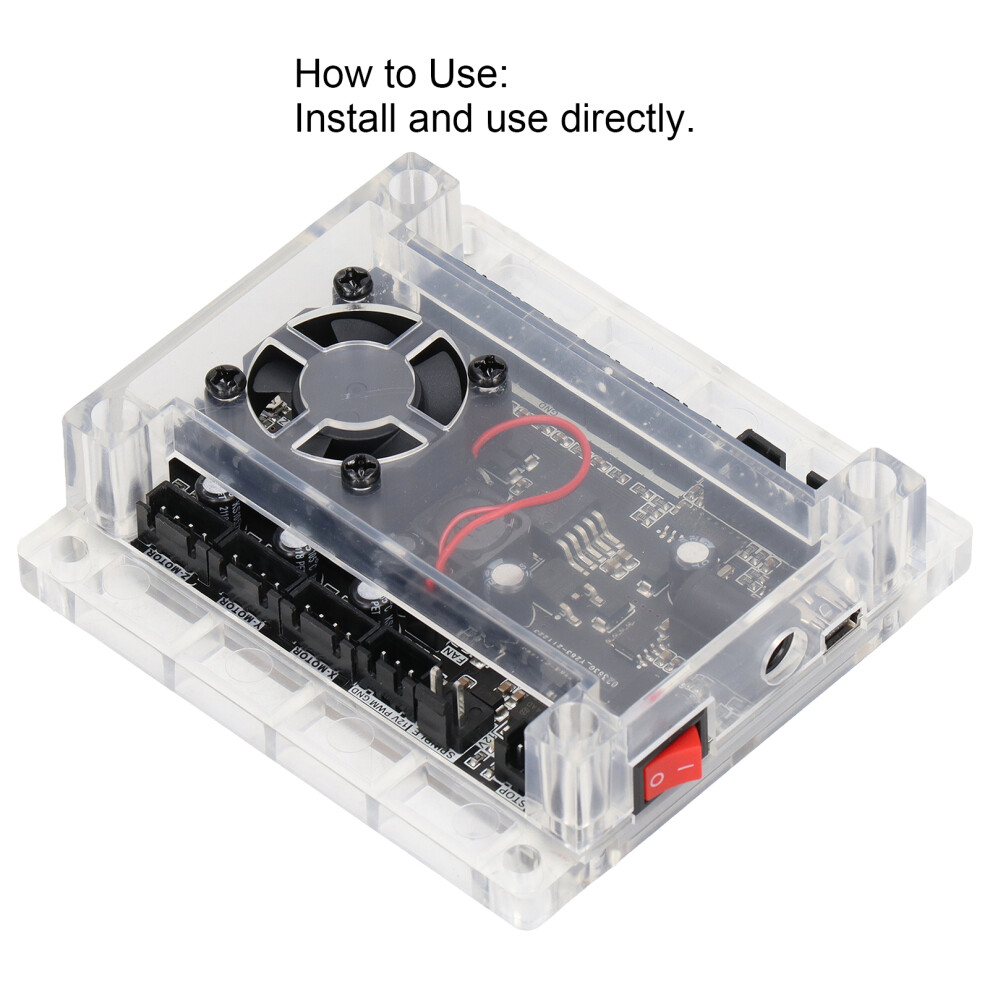

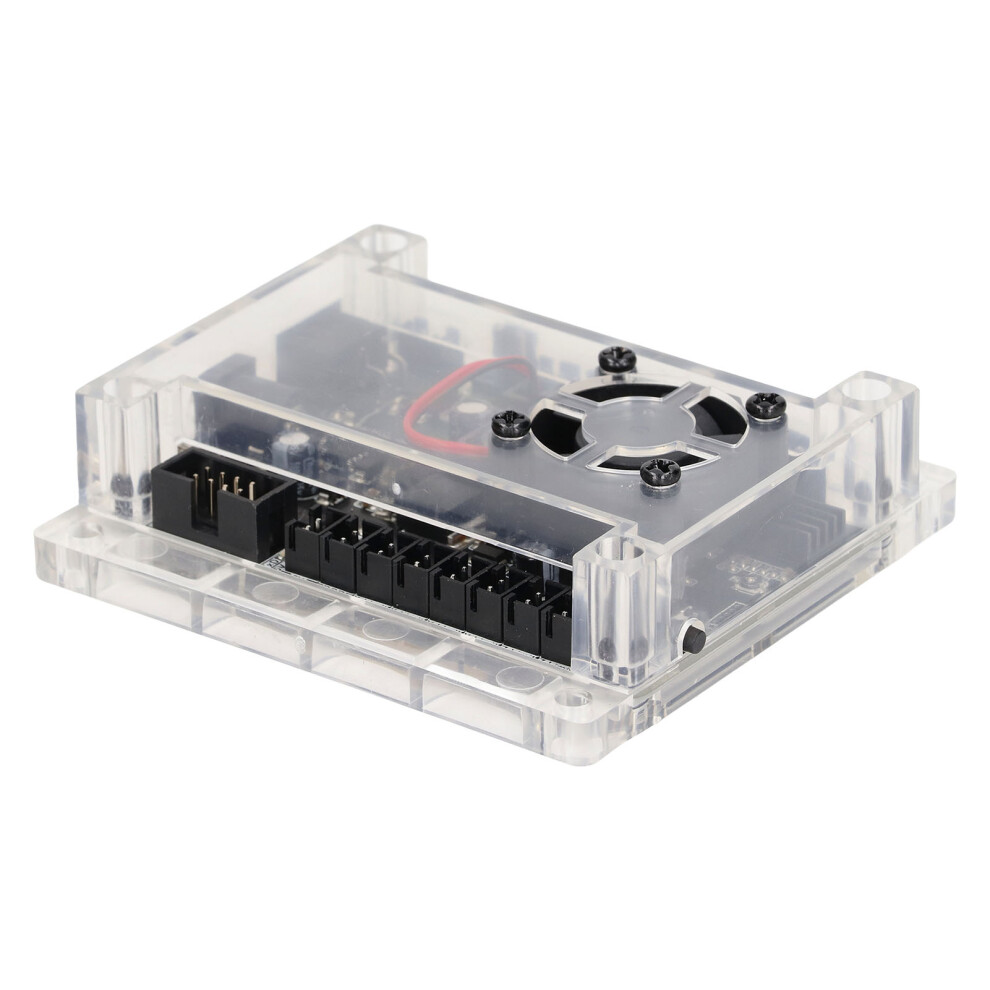

Placa de control para máquina de grabado CNC de 3 ejes para GRBL 1.1F V3.4 USB, controlador de grabadora DIY pequeña
Tipo de artículo: Placa de control para máquina de grabado CNC

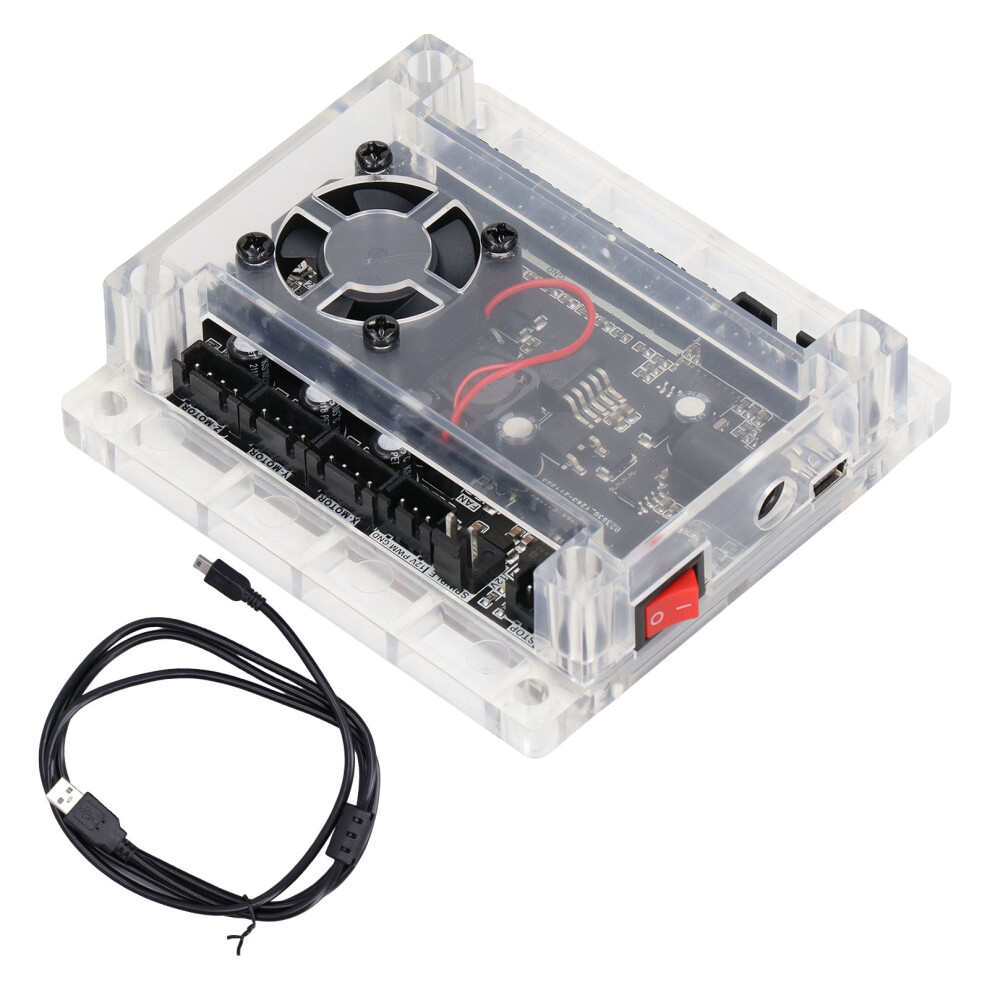

Conexión: USB (USB CH340)
Software: Para GRBL Controller, para UniversalGcodeSender
Chip de control principal: Para Atmel 328P
Chip de accionamiento del husillo: Para MOSFET (recomendado 24V, corriente dentro de 10A)
Regulación de velocidad PWM del husillo: Soporta
Soporte para motor paso a paso: 12V, dentro de 1.5A, se recomienda que la corriente máxima sea inferior a 2A, y calentamiento. (cualquier motor paso a paso 42, 57)
Grabado láser: Soporta
Interfaz de alimentación: DC de 5,5 2,5 mm

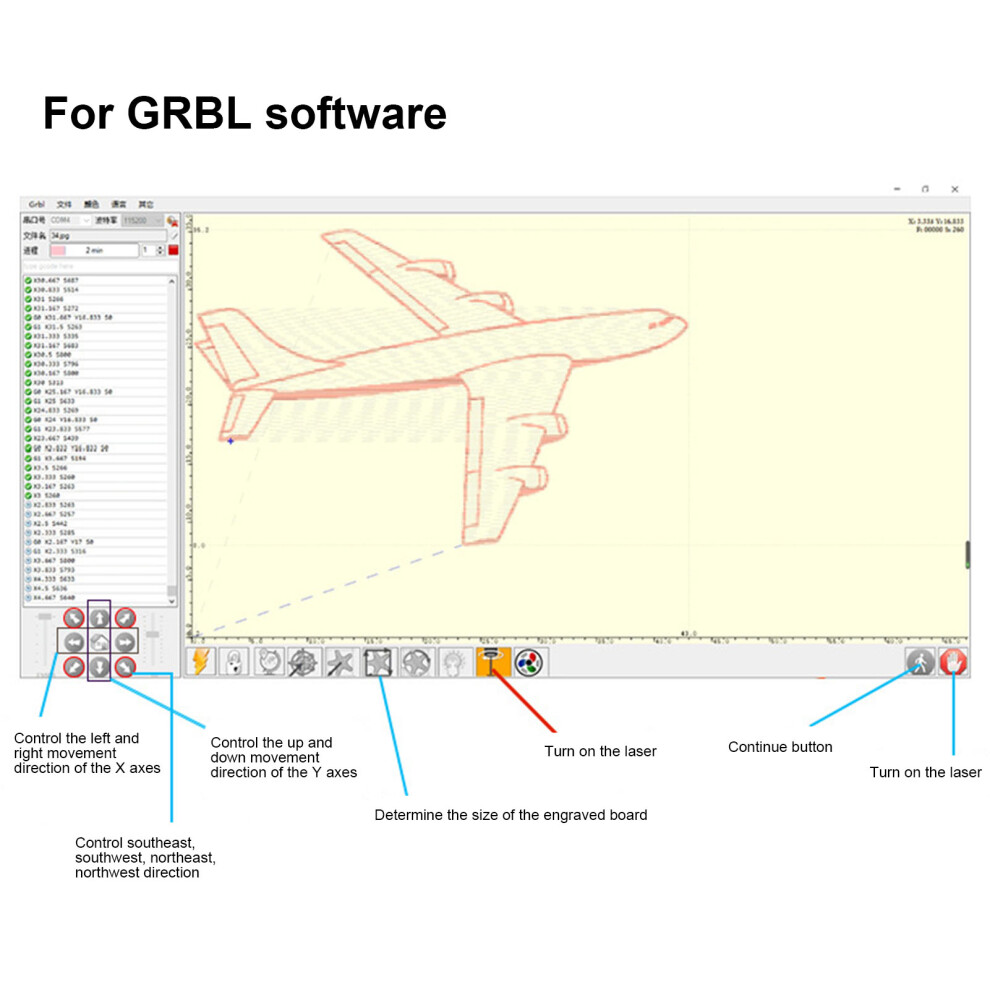

Soporta: GRBL Control o Candle (3 ejes); Láser para Grbl
Sistema compatible: Windows XP, 7, 8, 10
Láser compatible: 12V 5A máximo
Interfaz del motor del husillo: Soporte máximo de motor de husillo DC de 400W
Soporta control de los tres ejes XYZ, husillo, cabeza láser
