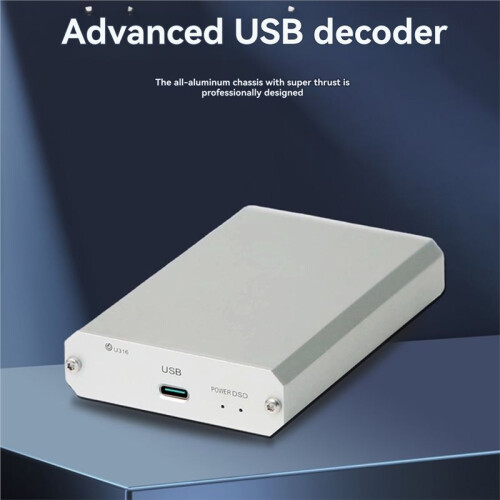

Portable Full Balanced DAC Headphone Amplifier ES9039Q2M DAC USB XMOS316 DSD64-512 AMP Audio Decoder

Descripción de Portable Full Balanced DAC Headphone Amplifier ES9039Q2M DAC USB XMOS316 DSD64-512 AMP Audio Decoder

First, the USB cable used to connect the U316 must be a Type-C data cable or a Type-C OTG cable; a charging cable cannot be used
Second, the U316 does not require additional software installation to connect to a mobile phone or computer. Connecting to a computer requires for Windows 10 or later. Playing DSD files a computer requires the ASIO driver, which can be obtained from customer service. Playing DSD files a mobile phone requires Hiby Player

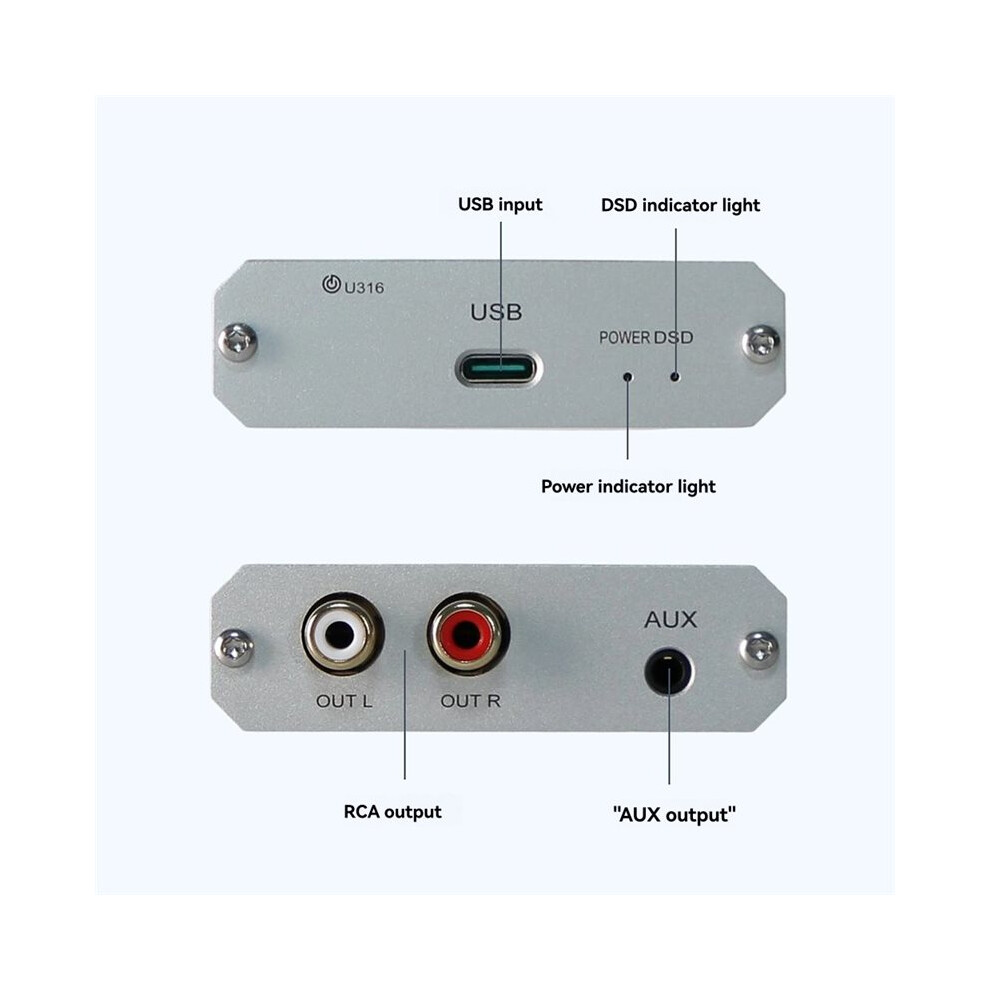

Third, the AUX output port is for convenient use with a 3.5AUX cable, but it is not suitable for directly driving headphones

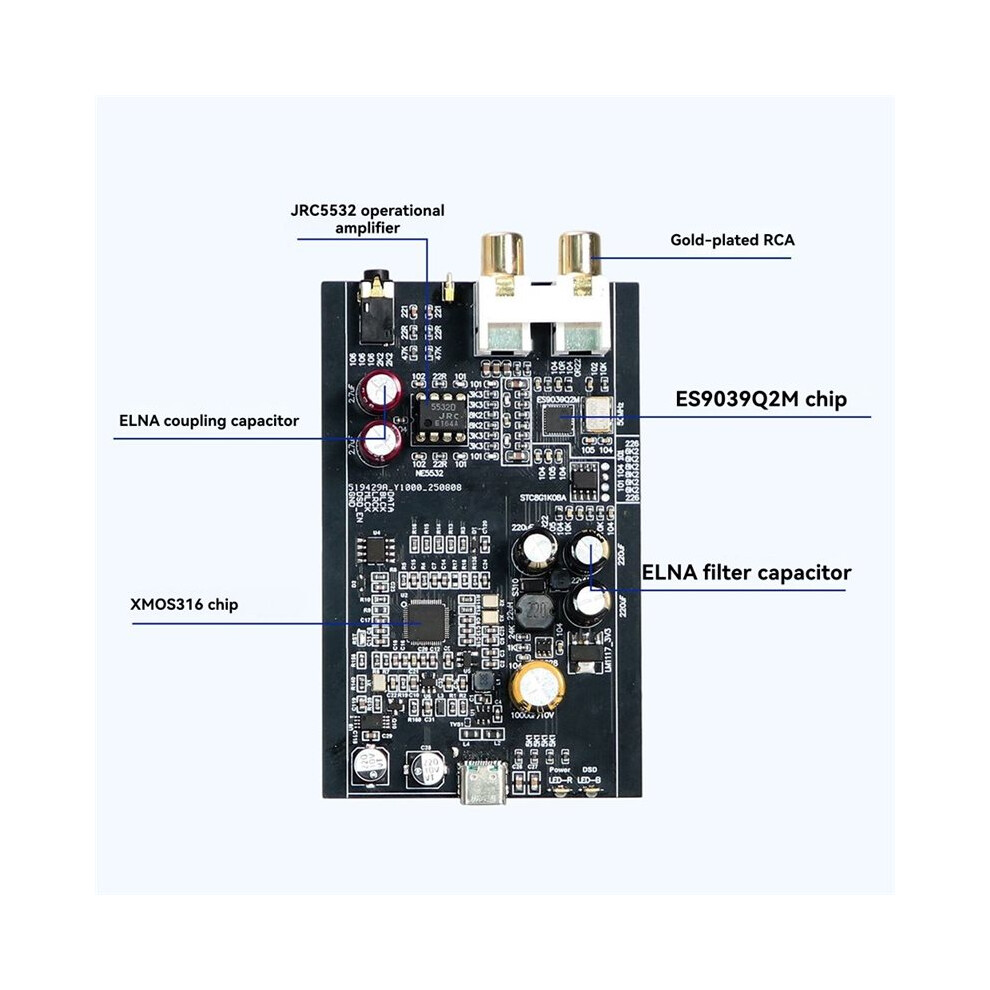

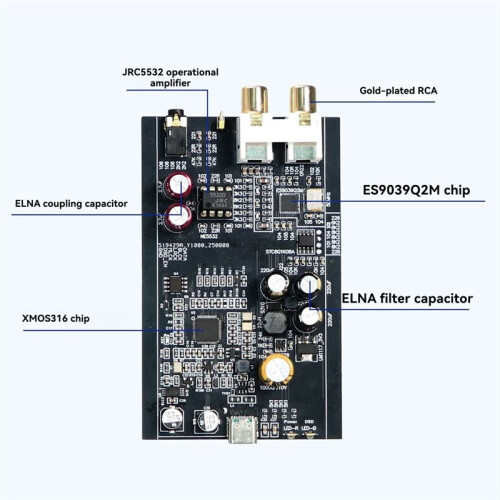

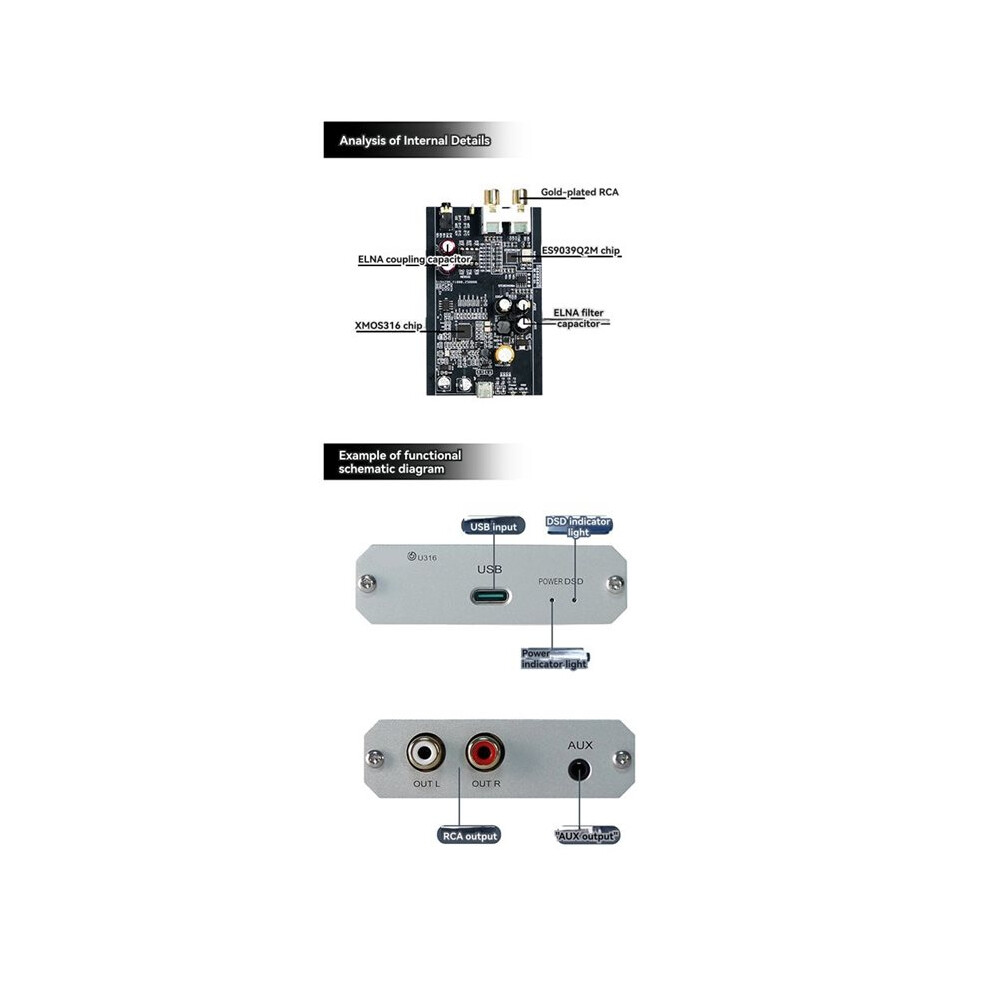

The coupling capacitors are ELNA's high-end BP non-polar capacitors, full of character. The filters are also high-end ELNA capacitors, ensuring low ripple and a clean sound. The LPF circuit uses through-hole JRC5532 op-amps, facilitating future upgrades to higher-end op-amps.

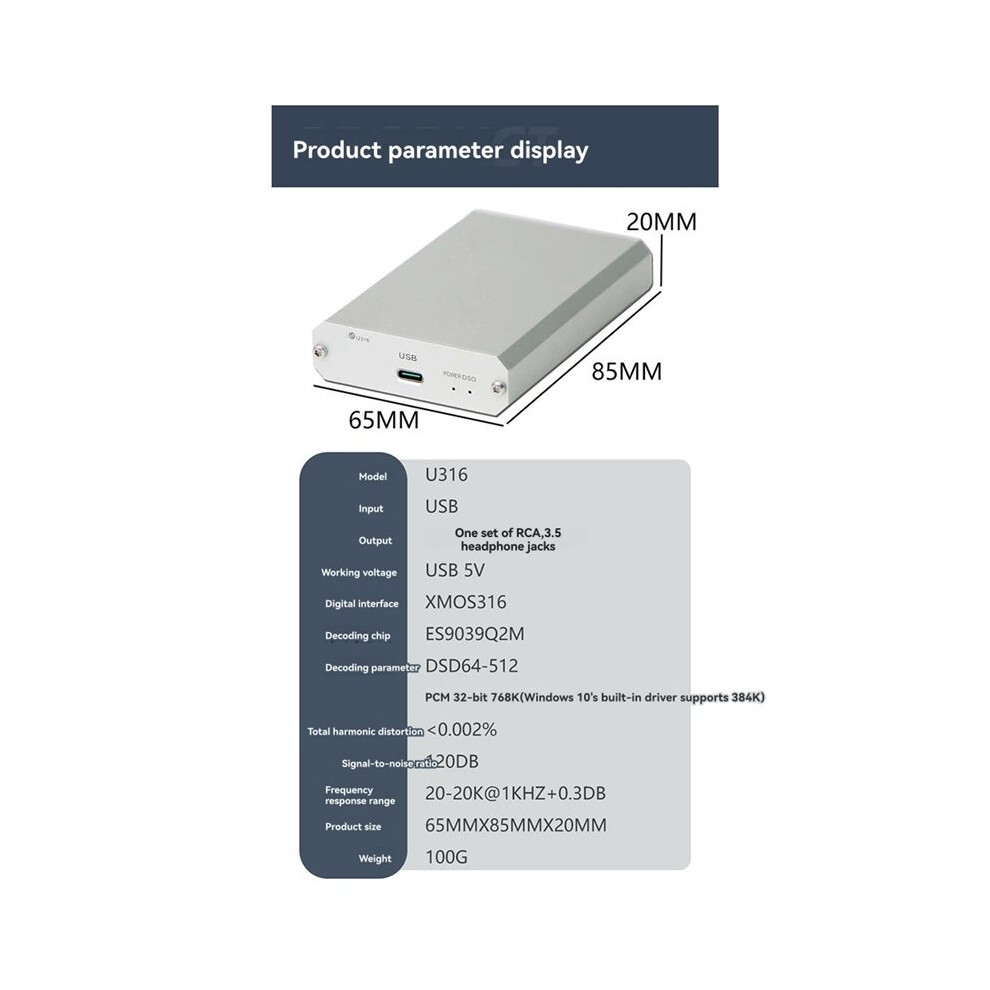

Model:U316
Input:USB
Outputs:include one RCA cable and a 3.5mm headphone jack.
Working voltage:USB 5V
digital interface:XMOS316
Decoding chip:ES9039Q2M
Decoding parameters:DSD64-512,PCM 32-bit 768K (WIN10 built-in driver supports 384K)
total harmonic distortion: Less than 0.002%
signal-to-noise ratio:120DB
Frequency response range:20-20K@1KHZ+0.3DB
(The product printed words may vary depending the batch, but this does not affect use)
Color: As Shown
Material: plastic

Package Contents:
1 * DAC Headphone Amplifier
