RP2350 Dual-Core Double-Frame Industrial Control Board 8-Channel Network Relay Supports Digital Input with Isolation A

Descripción de RP2350 Dual-Core Double-Frame Industrial Control Board 8-Channel Network Relay Supports Digital Input with Isolation A

Based ESP32-S3 microcontroller with Xtensa 32-bit LX7 dual-core processor, capable of running at 240 MHz
Integrated 2.4GHz Wi-Fi and LE dual-mode wireless communication, with superior RF performance
High quality relay, contact rating: 10A 250V AC / 30V
Supports passive and active digital input, with bi-directional optocoupler isolation. The relay supports digital input linkage control
Onboard isolated CAN interface, for connecting to various CAN devices

Onboard pin header, allowing access to other devices
Onboard USB Type-C port for power supply, firmware downloading and debugging
Onboard power supply screw terminal, supports 7-36V wide voltage input, suitable for industrial applications
Onboard RTC chip, supports scheduled tasks
Onboard W5500 Ethernet chip for extending 10/100Mbps network port through SPI interface

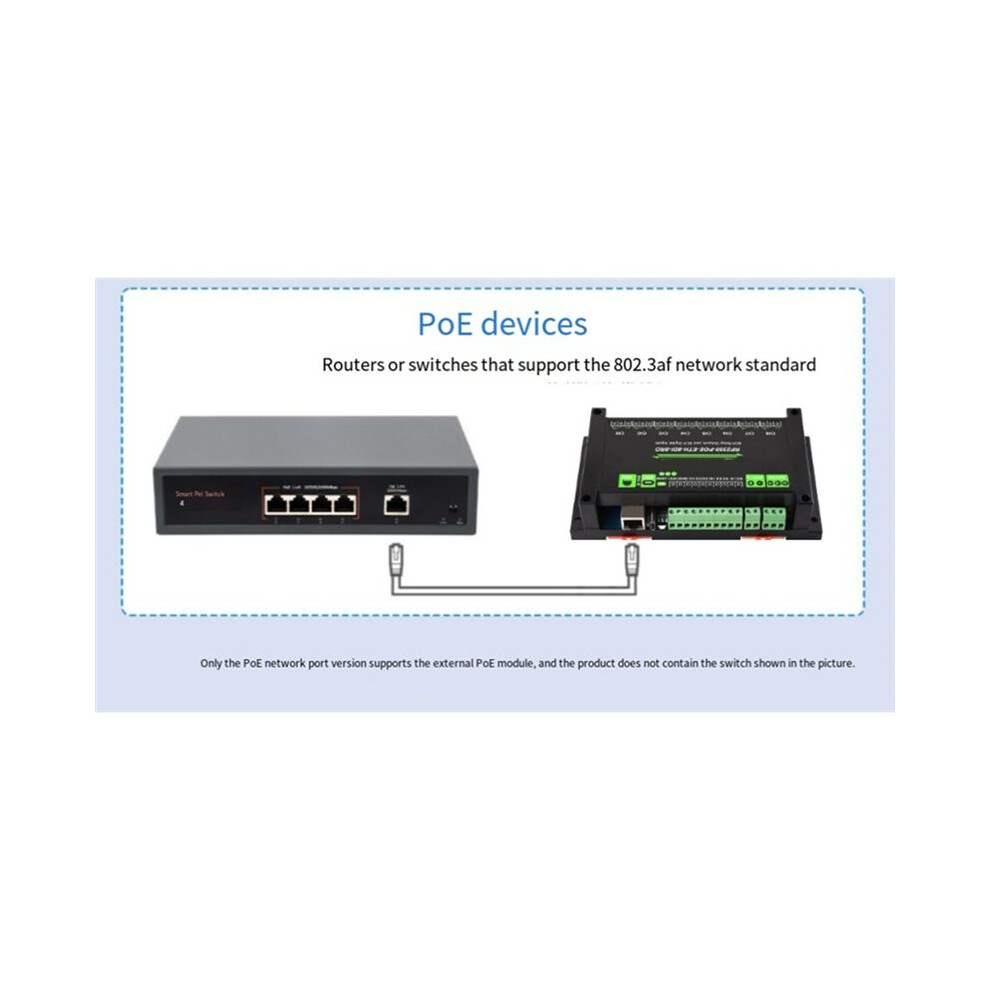

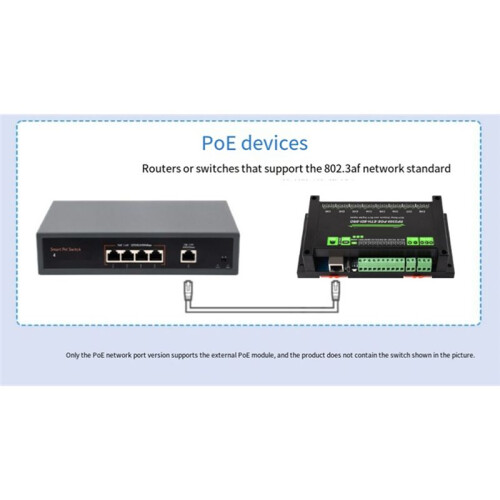

Optional for PoE network port version, with built-in PoE module for PoE capability (compliant with IEEE 802.3af standard)
Onboard optocoupler isolation to prevent interference from external high-voltage circuit connected to the relay
Onboard digital isolation to prevent interference from external signal
Onboard unibody power supply isolation, providing stable isolated voltage, no extra power supply required for the isolated terminal
Onboard TF card slot for external TF card storage of images and files
Built-in buzzer, RGB LED, power supply and CAN TX/RX indicators for monitoring the operating status of the devices
Rail-mounted Plastic case, easy to install, safe to use
Specification:A:RP2350-POE-ETH-8DI-8RO
Color: Black
Material: Plastic+Metal

Package Contents:
1 x 8-way network relay Module
