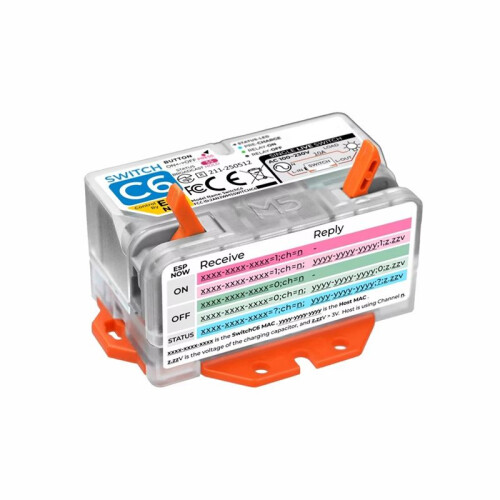

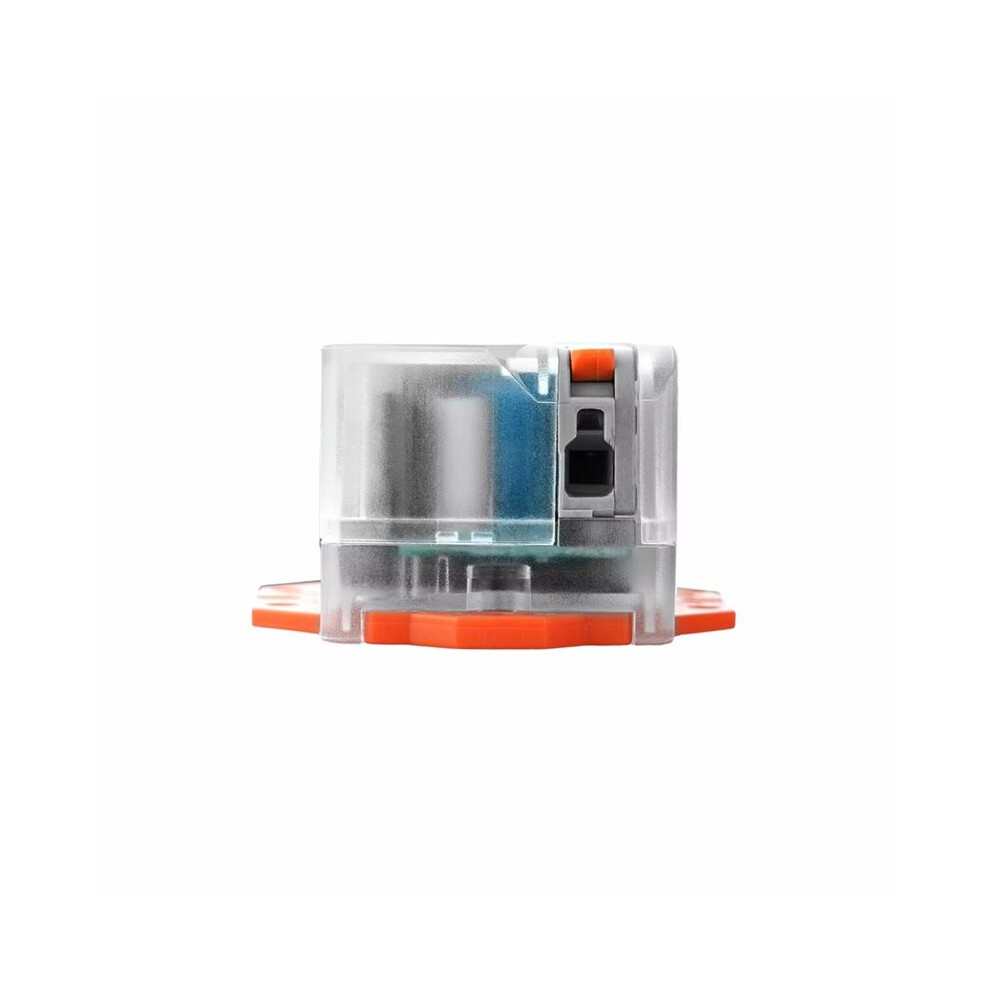

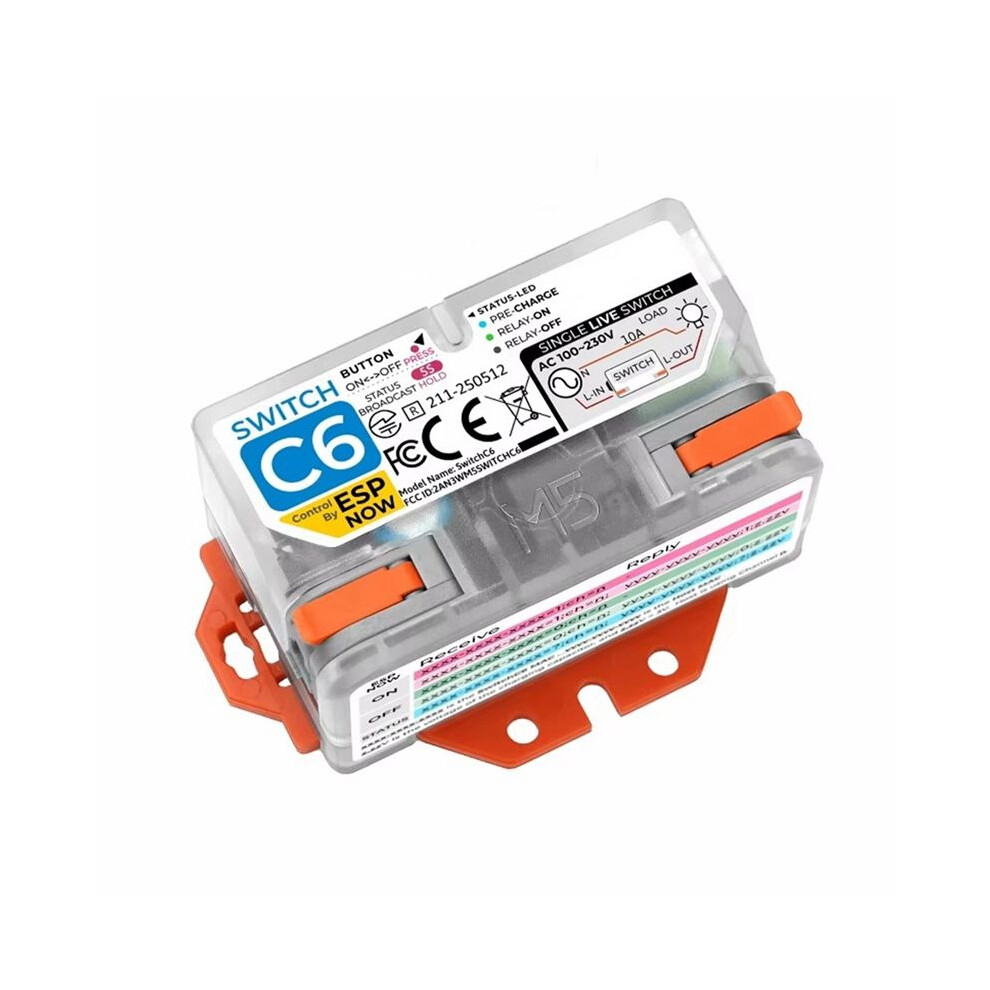

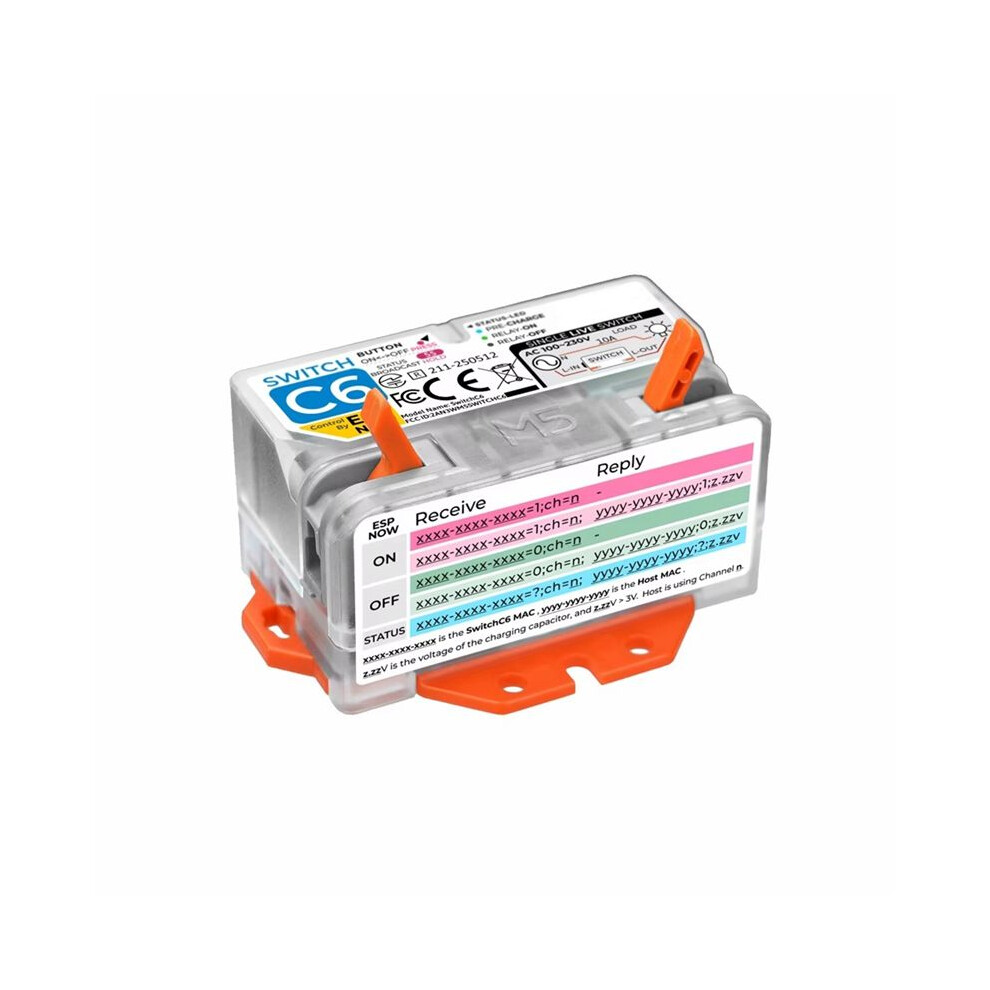

SwitchC6 IOT Single Live Wire Wi-Fi ESP32-C6 Latching Relay AC100-230V Input ESP-NOW Communication

Descripción de SwitchC6 IOT Single Live Wire Wi-Fi ESP32-C6 Latching Relay AC100-230V Input ESP-NOW Communication

Featuring an innovative single-live-wire design, it is compatible with a wide AC100-230V input voltage, eliminating the need for a separate neutral wire. It can directly replace traditional mechanical switches, supporting loads to 10A/2200W, and is suitable for tungsten filament bulbs and thyristor-dimmable lamps.
Integrated ESP32-C6: Utilizes the ESP32-C6--1 controller, featuring the -efficient RISC-V architecture. Equipped with Wi-Fi 6 technology (2.4GHz band), it offers faster and more stable connections.
ESP-NOW communication: Supports the ESP-NOW communication protocol for low-latency direct control between devices. An open SDK supports communication with other ESP32 devices, allowing you to build home control systems.
Magnetic latching relay: Zero power consumption when static, -saving and environmentally friendly. No mechanical contact wear, ensuring an extremely long service life. Power-off state memory function automatically restores after an abnormal power outage.
Industrial-grade design: Standard DIN rail mounting design adapts to various distribution boxes. Compact size saves installation space. Supports wire diameters from 0.5 to 4 mm², making wiring simple and reliable. A built-in status indicator provides a clear indication of operating status.

SoC: ESP32-C6--1, RISC-V 32-bit single-core processor, supporting clock frequencies to 160 MHz
Wi-Fi: 2.4 GHz Wi-Fi 6
Wireless Standards: IEEE 802.11 b/g/n/ax
Maximum Load: AC220V@10A (2200W) / AC110V@10A (1100W), Maximum Current Limit: 10A
Supported Voltage Input: AC100-230V, 50/60Hz
Power Supply: FireWire only
Hard-Wire Terminal Wiring: 0.5mm²-4mm²
Flexible-Wire Terminal Wiring: 0.5mm²-2.5mm²
Power /Off: Power-off state memory
Operating Temperature: -10-60
Color:As Shown
Material:plastic
