Imágenes del producto
Sorry, this item is temporarily out of stock.
Verde RV5.5-6 Terminal de anilla 48A 29,5x12x13 mm
New
21,12 €
Would you like us to let you know when it's back?
Descripción y detalles
Resumen

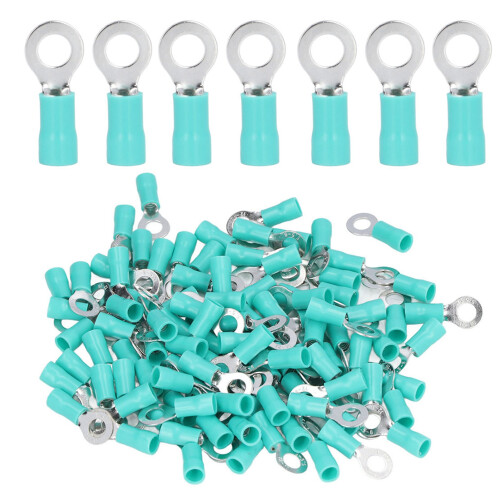

- [100PCS IN 1 SET] Including 100pcs insulated wire terminals, with ring design, easy to connect and not easy to leak.
- [EASY CRIMPING] Durable insulated crimping terminal, very suitable for solid core wire or stranded wire that is difficult to crimp.
- [COPPER AND PVC] These terminals are made of copper and PVC materials, which have good insulation and conductivity.
- [APPLICABLE WIRES] The maximum current is 48A, suitable for crimping 4‑6mm² (AWG 12‑10) electrical wires.
- [WIDE APPLICATIONS] Widely used in electronics, machinery, transportation, lighting, home appliances and other equipment.
Descripción de Verde RV5.5-6 Terminal de anilla 48A 29,5x12x13 mm

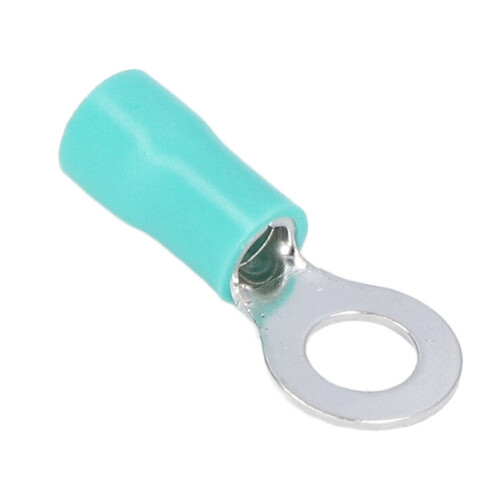

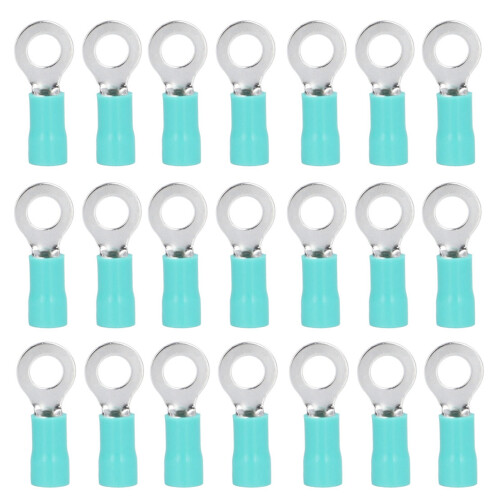

100 piezas de terminales de anillo de cobre aislados para crimpado, para cable eléctrico AWG12-10 RV5.5-6
Tipo de artículo: Terminal de cable aislado
Modelo: RV5.5-6
Material: Cobre + PVC
Color: Verde
Cable aplicable: 4-6 mm² (AWG 12-10)
Corriente máxima: 48 A
Herramienta de crimpado aplicable: HX-30J AN-30J AP-30J FSB-054YJ
Diámetro del tornillo: Aproximadamente 6 mm / 0.24 pulg
Tornillo americano: 1/4 pulg
d2: 6.5 mm / 0.26 pulg
W: 12.0 mm / 0.47 pulg
F: 10.5 mm / 0.41 pulg
L: 29.5 mm / 1.16 pulg
H: 13.0 mm / 0.51 pulg
d1: 3.5 mm / 0.14 pulg
D: 6.5 mm / 0.26 pulg
T: 1.0 mm / 0.04 pulg
Detalles
| OPC | PJK9D2S |
|---|---|
| Códigos | 4371340237989 (EAN) |
