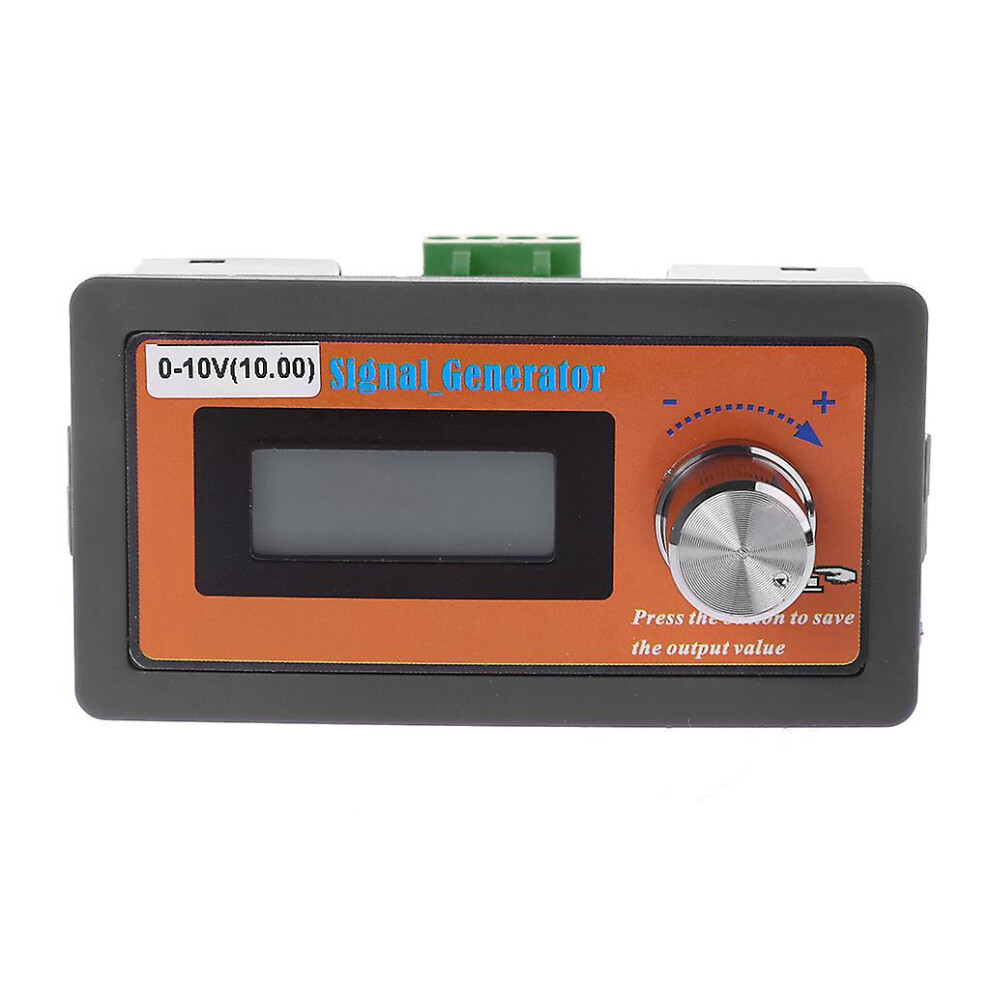

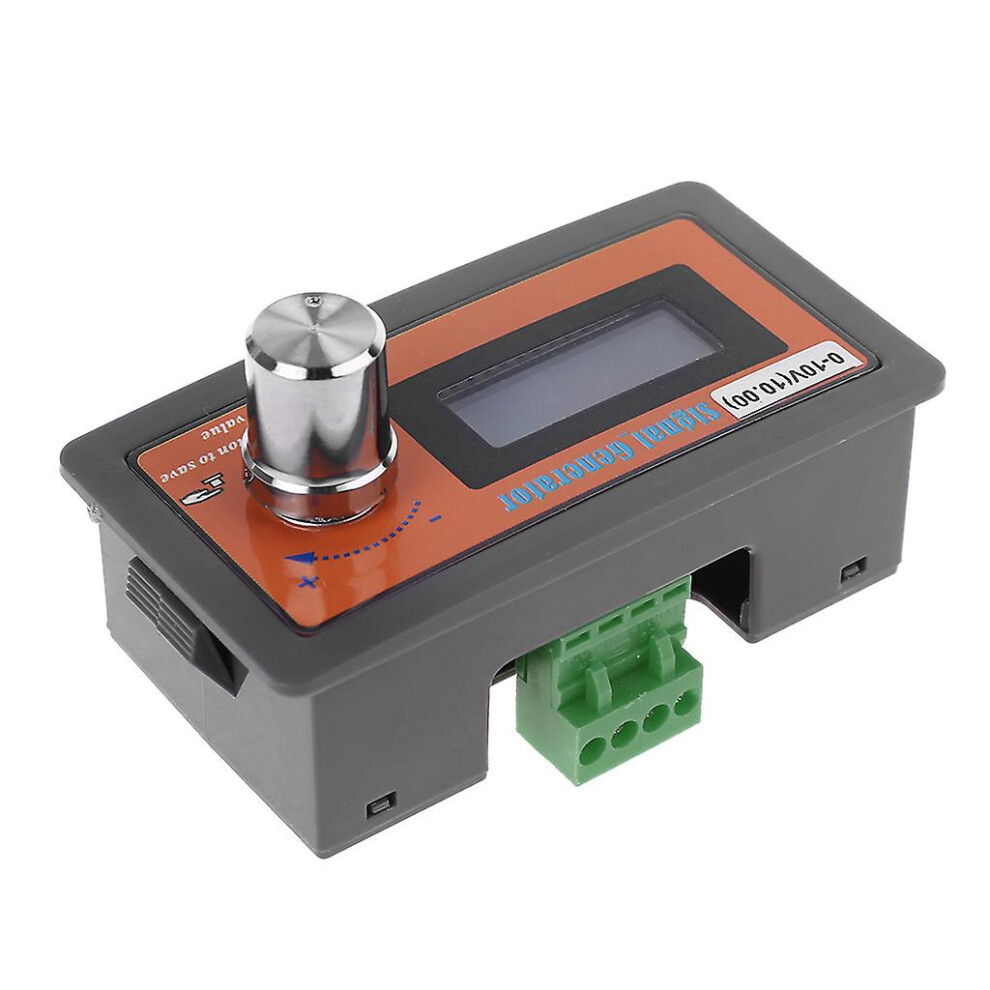

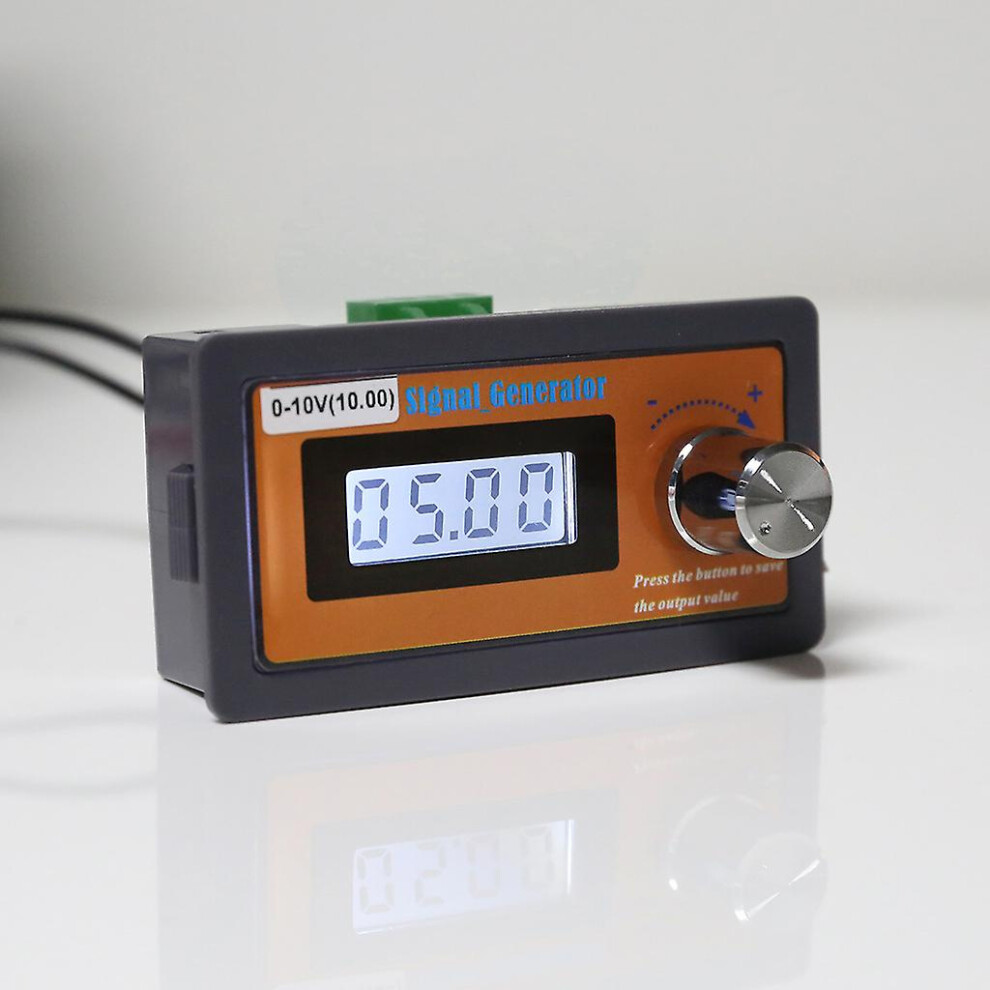

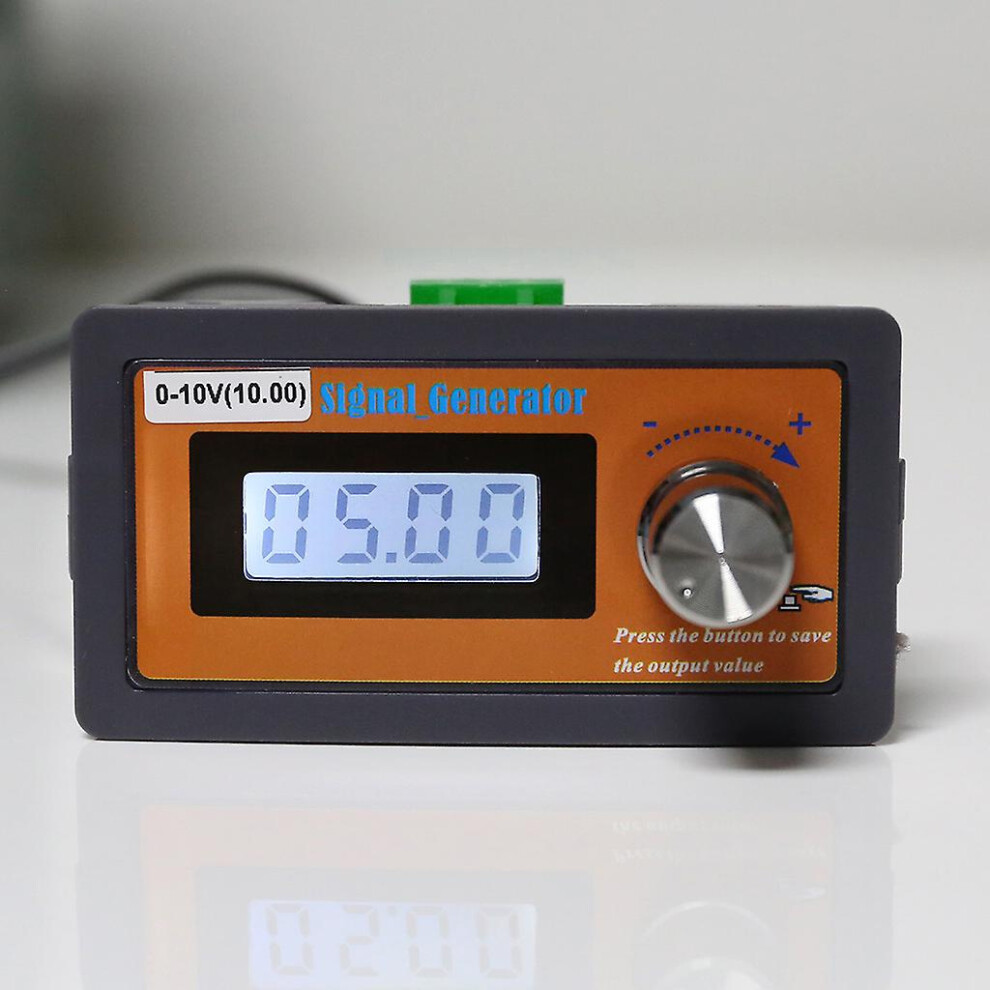

0-10V Signal Generator Voltage Generator High Precision 0-10V Adjustable

0-10V Signal Generator Voltage Generator High Precision 0-10V Adjustable Kuvaus

Main Features

- Adjustable analog 0-10V adjustable output

- Voltage value display

- Display accuracy (Adjustment): 0.1 (Fine adjustment) or 1.0 (Rough adjustment).

- Have power supply reverse polarity and output short-circuit for protection.

- Encoder adjustment, can be manual adjustment or automatic programmable output: dynamic output continuous curve.

-The power supply has reverse connection for protection and the output is short-circuit protected;

-4-digit, liquid crystal display (with backlight);

Technical indicators

Mounting panel \/ chassis opening size: 77 * 40mm;

Power supply: DC7V---28V (power supply must be 2V larger than the output, for example, 0-10V output, more than 12V power supply);

Display adjustment accuracy: according to the displayed value, the lowest 1 (5V accuracy 0.005V);

The actual accuracy is 0.02V (compared to the multimeter error);

Output maximum current 200mA;

Note:Provide a detailed PDF version of the English manual. Please contact us if you need.

Package include:

1pc Digital 0-10V Signal Generator
