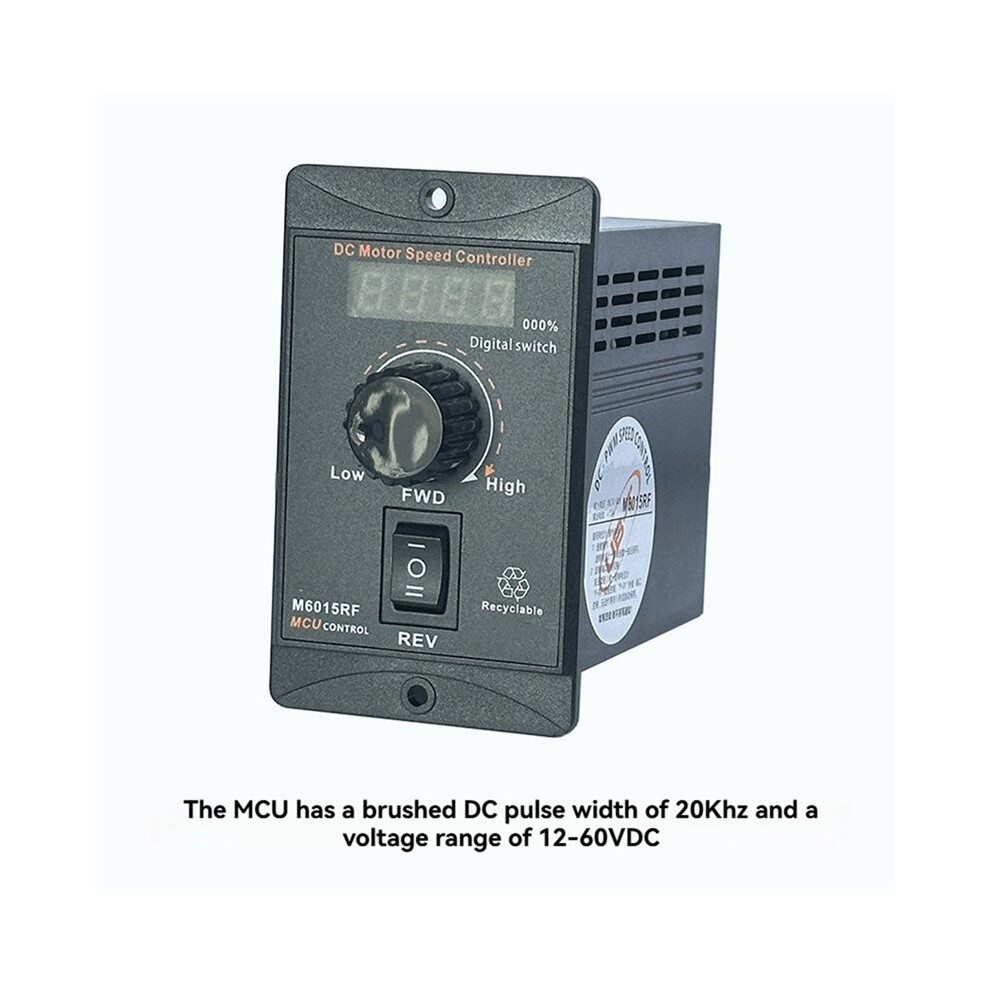

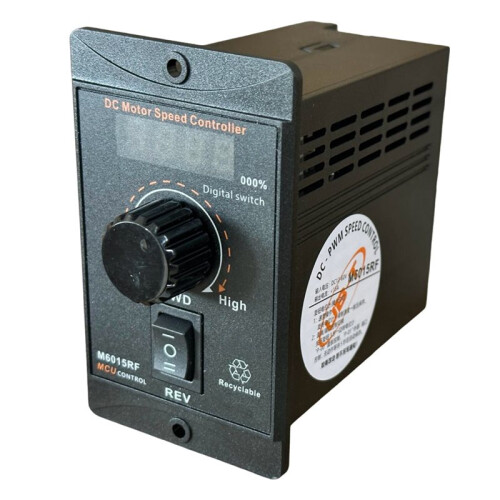

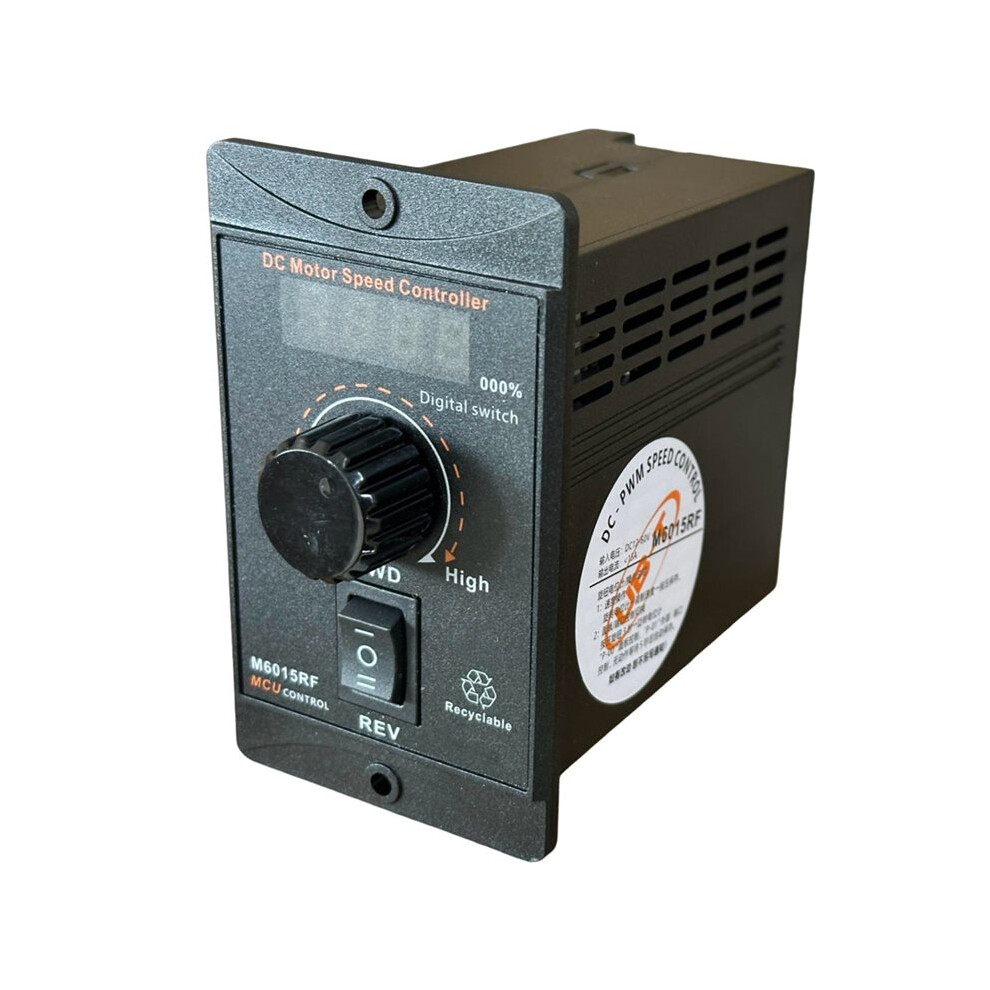

12-60V 15A PWM Motor Speed Controller Multifunctional Motor Speed Regulator Controller Display Speed Percentage

12-60V 15A PWM Motor Speed Controller Multifunctional Motor Speed Regulator Controller Display Speed Percentage Kuvaus

1. Wide input voltage range of 12-60V, suitable for various industrial power supply scenarios
2. Supports a continuous current of 15A, providing stable drive for high-power motors
3. High-definition digital display showing real- speed percentage (0-)
4. Supports bidirectional control (forward/reverse), with one-button direction switching
5. Professional-grade PWM speed control, featuring fast response, stepless smooth operation, and low heat generation

Parameter:
Input Voltage: 12-60V (compatible with batteries and switching power supplies)
Output Current: 15A
Operating Frequency: 20kHz
Output Voltage: 0-Input Voltage
Speed Control Method: Digital potentiometer control
Speed Display: LED display showing real- speed percentage (0-)
Control Functions: Forward, Reverse, and Stop the control panel
Three-Position Control: Forward, Reverse, and Stop via port control
Save Function: Press the digital potentiometer to save the current speed
Operating Temperature: -10C to 60C
Storage Temperature: -20C to 80C

Introduction:
Featuring a high-performance microcontroller as the core control unit and incorporating pulse width modulation (PWM) technology, this device enables precise speed control and versatile operation of motors. The operating frequency is stabilized at 20 kHz. It supports 12-60 V battery or switching power supply as the input power source, with an output voltage range of 0 to the input voltage, meeting the drive requirements of various motors. Equipped with digital potentiometer speed control, real- LED display, panel control, and port control functions, it is widely applicable in industrial automation, electric equipment, and experimental setups.
Color: Black
Material: ABS

Package Contents:
1 * Motor
