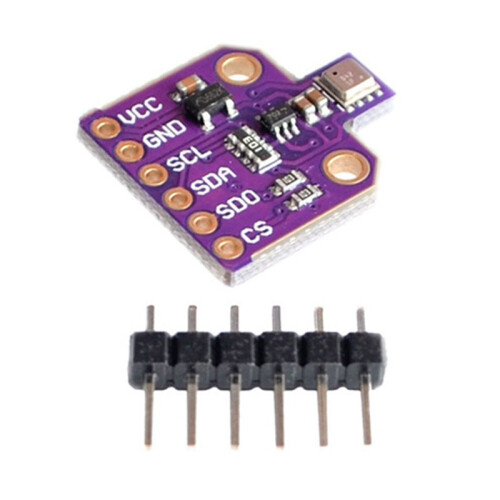

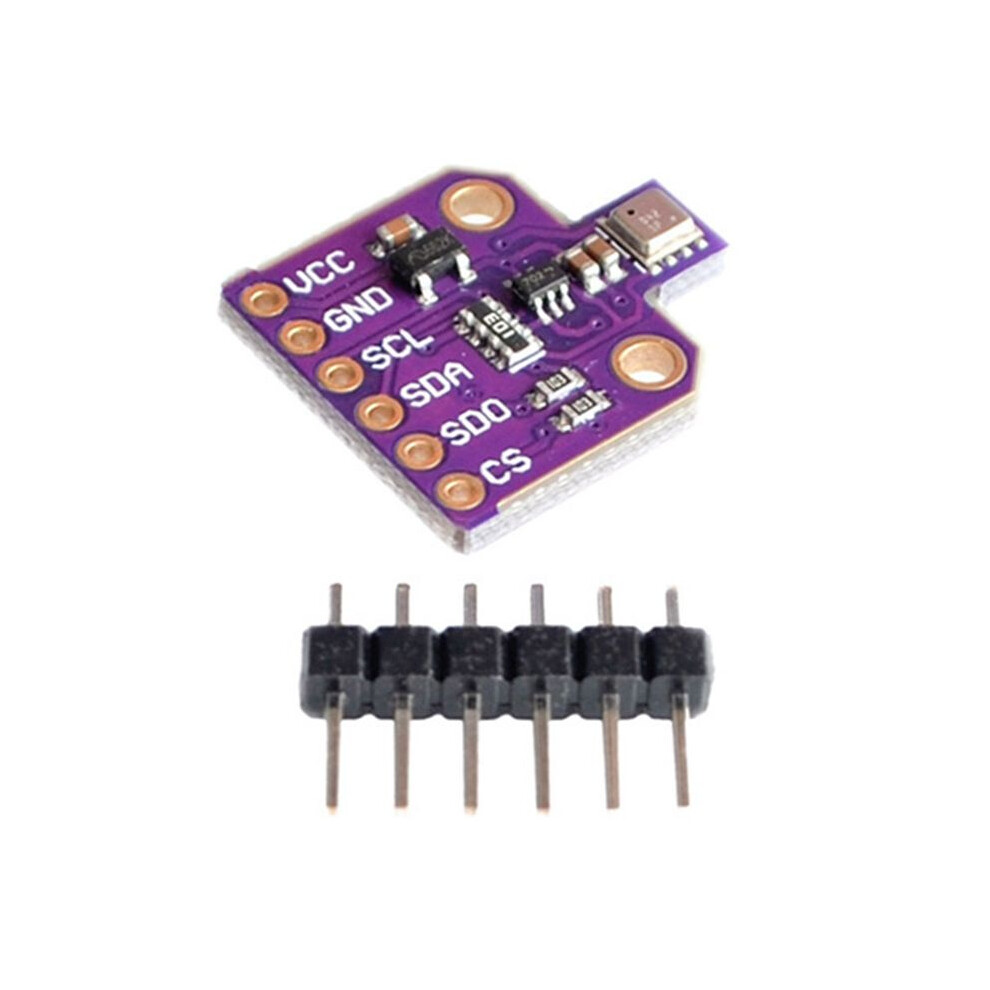

2X BME680 Digital Temperature Humidity Pressure Sensor CJMCU-680 High Altitude Sensor Module Development Board BME680

2X BME680 Digital Temperature Humidity Pressure Sensor CJMCU-680 High Altitude Sensor Module Development Board BME680 Kuvaus

Working voltage: 1.7V3.6V
Working temperature: -40 ~ + 85
Communication interface: 12C ( to 3.4 MHz) and SPI (3 and 4 wires, to 10 MHz)
Humidity, pressure and gas sensors can be enabled / disabled individually
The current consumption at 1 Hz humidity and temperature is 2.1 LA, the current consumption at 1 Hz pressure and temperature is 3.1 LA, and the current consumption at 1 Hz humidity, pressure and temperature is 3.7 LA

Gas sensor parameters: response (33-63%) Less than 1s (for new sensors) power consumption in ultra-low power mode Less than 0.1 mA output data processing direct indoor air quality (IAQ) index output humidity sensor parameters: response (0 -83%) ~ 8s
Accuracy tolerance 396r ..
Hysteresis 1.5% r.h.

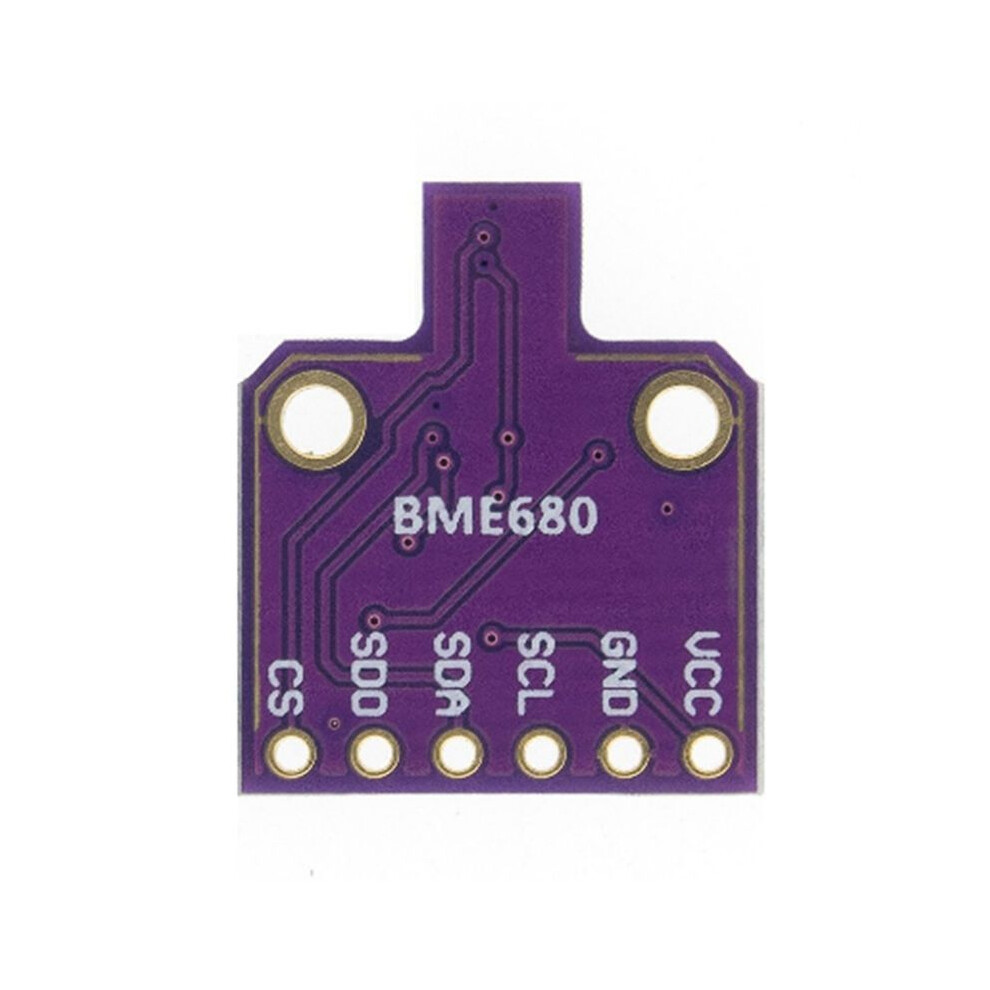

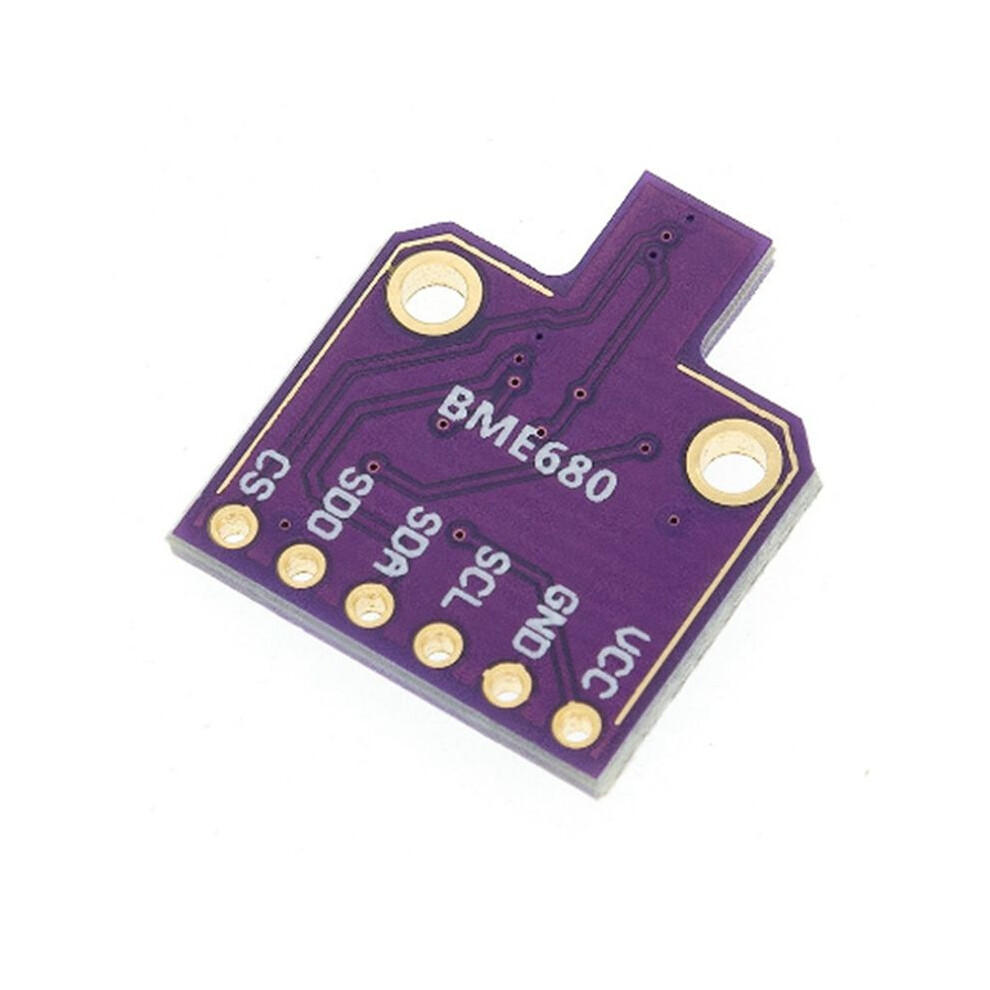

Pin definition
vCC: Power supply is positive
GND: ground
SCL: 12C / SP1 clock
SDA: 12C / SP! Data cable
sDO: SPI data cable
CS: SPI1 slave enable
Colour:As shown
Material:PC+Metal

Package Contents:
2 x Sensor
