2X New 3 Phase Sequence Rotation Tester Indicator Detector Meter LED Buzzer with Portable Pouch TD-LED02

2X New 3 Phase Sequence Rotation Tester Indicator Detector Meter LED Buzzer with Portable Pouch TD-LED02 Kuvaus

DIY Supplies: Electrical
Accuracy Class: 0.1
Designed to check the phase sequence.
With LEDs to show if the phase is open or not, Supports Buzzer indication.
Highly reliable, can check a large of 60V to 600V AC three-phase.

With Alligator Clips, easily involve the terminals of the control panel, guaranteeing reliability and safety.
Small, light and portable, convenient for using.
Operation Voltage: 60V~600V AC, three phase
Limit Support Voltage: 2000V/minute (Impulse voltage 4000V)
Operation Frequency Range: 20Hz~400Hz
Limit for Continuous Use:
60 minutes maximum at 200V AC
4 minutes maximum at 600V AC
Phase Sequence Indicator LED:
Green for correct phase sequence, Intermittent Beep
Red for reverse phase sequence, Continuous Beep
Test Leads:
Double insulation, Approx. 80cm cable length
Yellow for U phase (L1. R)
Green for V Phase (L2. S)
Red for W phase (. T)
Net Weight: 136g
colour: Photo Color
Material: plastic
Size: 8 x 6 x 2.4cm

Package Contents:

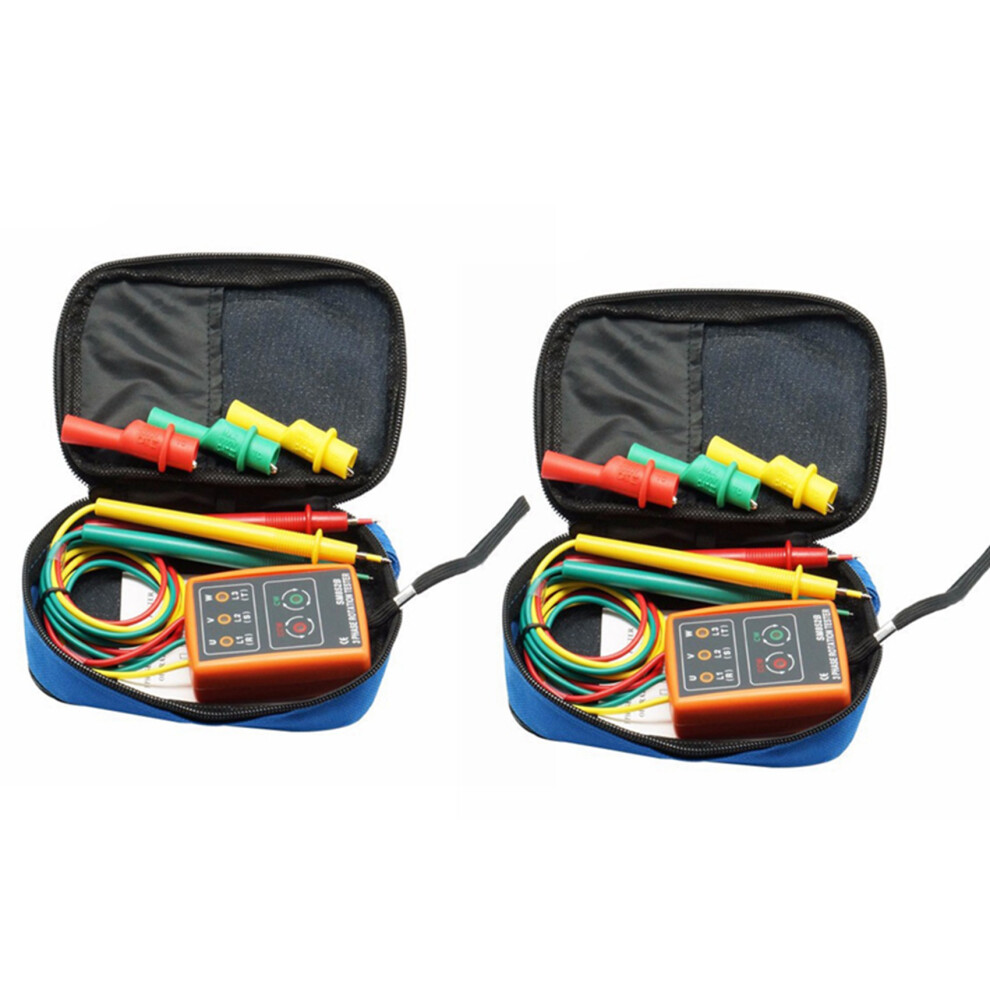

2 x 3 Phase Sequence Tester
6 x Alligator Clips
2 x Pouch
2 x User Manual
