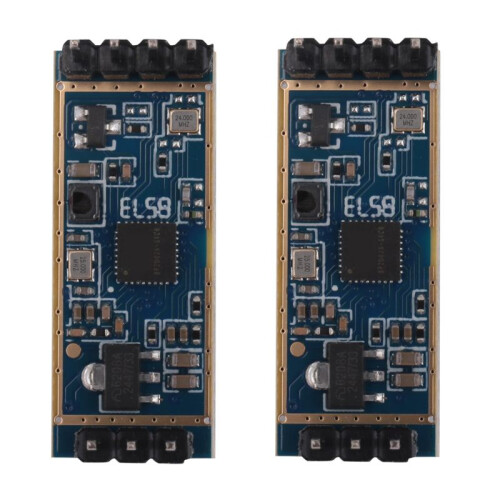

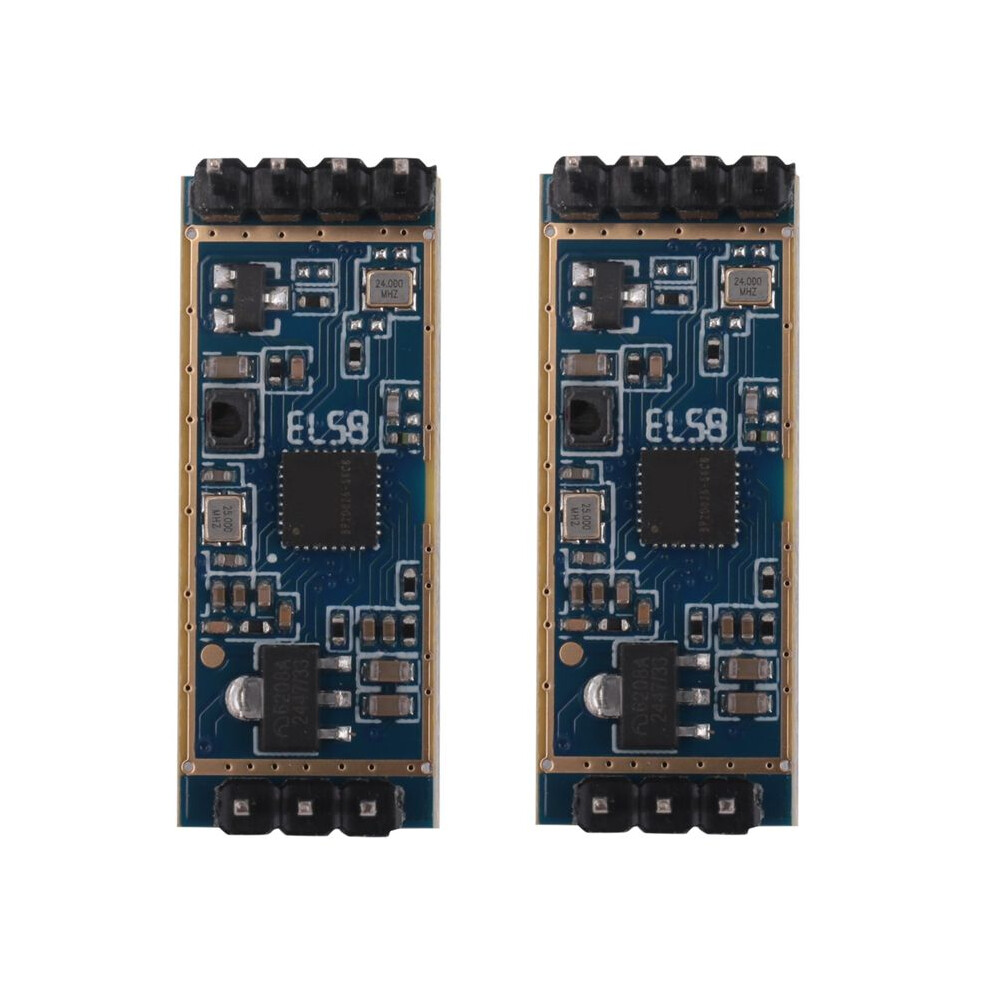

2X Sensor Detection Module 24G Human Presence Sensing Module LD2412 Millimeter Wave Wide Angle

2X Sensor Detection Module 24G Human Presence Sensing Module LD2412 Millimeter Wave Wide Angle Kuvaus

1.LD2412 Is A Wide-Angle + Long-Distance Human Presence Detection Millimeter Wave Sensor.
2. Its Working Principle Is To Use Fmcw Frequency Modulated Continuous Wave To Detect Human Targets In A Set Space. It Combines Signal Processing And Accurate Human Body Sensing Algorithms To Achieve High-Sensitivity Human Body Presence Status Sensing.
3. It Can Identify Human Bodies In Motion And At Rest, And Calculate Auxiliary Information Such As The Distance To The Target.
4. Mainly Used In Indoor Scenes, Sensing Whether There Is Movement Or Micro-Moving Human Bodies In The Area, And Outputting Detection Results In Real . The Longest Sensing Distance Is To 9 Meters, And The Distance Resolution Is 0.75m.
5. Provides A Visual Configuration Tool To Easily Configure The Sensing Distance Range, Sensing Sensitivity In Different Intervals And Unattended Delay To Adapt To Different Specific Application Needs. Supports Gpio And Uart Interfaces, Plug-And-, And Can Be Flexibly Applied To Different Scenarios And Terminal Products.

Description:
1. Frequency: 24G-24.25Ghz
2. Modulation Method: FMCW
3. Distance Resolution 0.75m, 0.75~9m (Adjustable)
4.Detection Distance:
5. Detection Angle: 75
6. Power Supply: 3.3V Or 5V (Power Supply Capacity more than the 200ma)
7. Current: ~90mA (Typ.)
8. Output Serial Port Level: 3.3V
9. Sweep Bandwidth: 250Mhz
10. Ambient Temperature: -40~+85
Material: PCB
colour: As shown

Package Contents:
2 x Sensor Detection Module
2 x Pin
