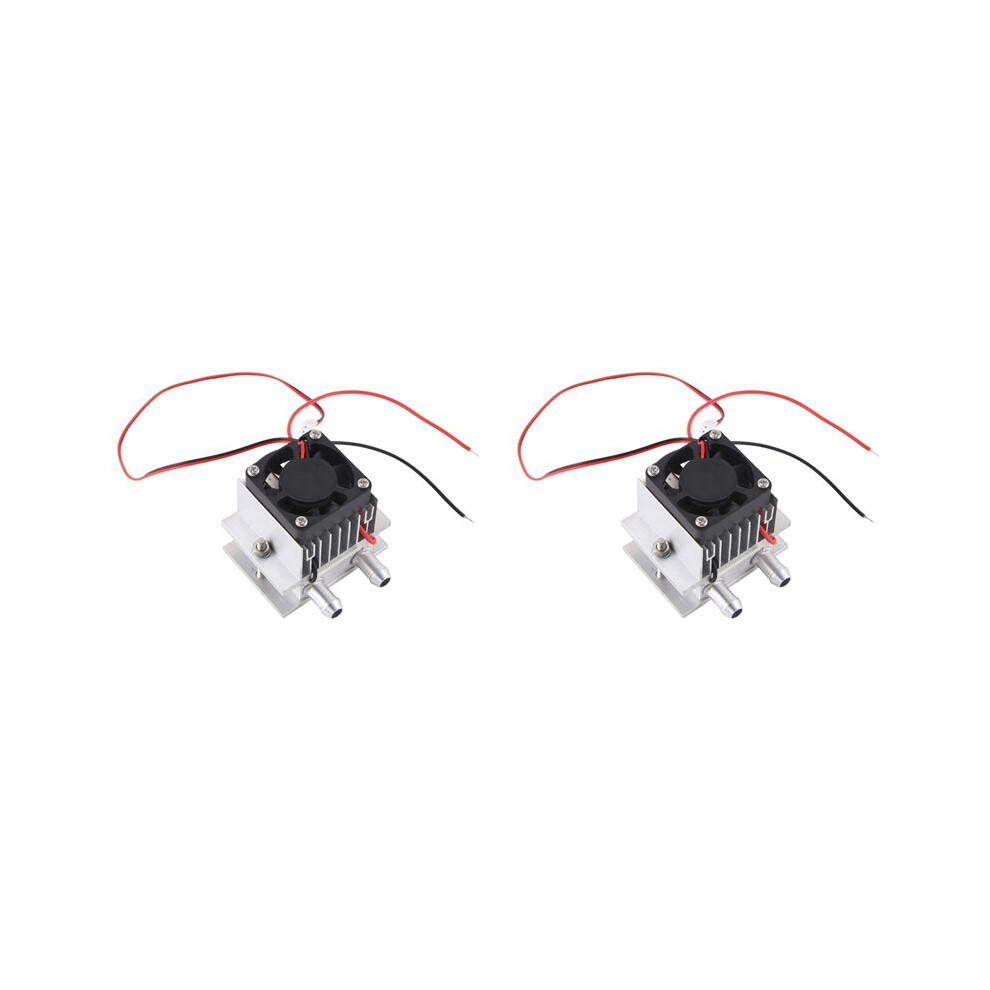

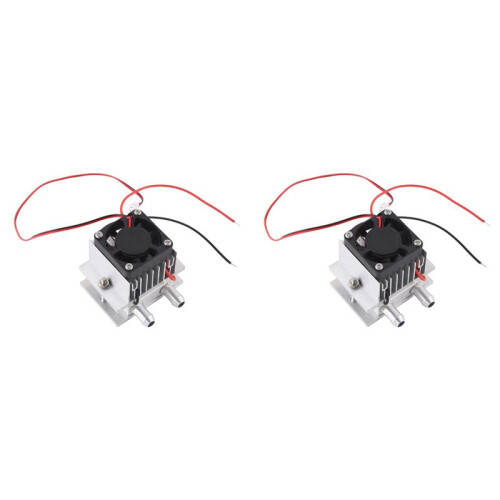

2X TEC1-12706 Thermoelectric Peltier Module Water Cooling System 60W Small-Scale DIY Kit

2X TEC1-12706 Thermoelectric Peltier Module Water Cooling System 60W Small-Scale DIY Kit Kuvaus

Adopt TEC1-12706 semiconductor chilling plate, good quality for use.
Complete sealed structure, isolating the moisture in the air.
Higher reliability than others.
and in size, easy to install.
Great DIY kit for electronic enthusiasts in semiconductor cooling applications.

new and high quality.
Name:Thermoelectric Peltier Module Kit
Condition: New
Semiconductor Chilling Plate: TEC1-12706
Size: 40 x 40 x 3.75mm
Internal Resistance: 2.1~2.4 ohm
Max. Temperature Difference: 67C Above
Rated Voltage: 12V(Vmax. 15V, Starting Current 5.8A)
Working Current: Imax.=4~4.6A(Rated 12V)
Refrigeration Power: Max. 50~60W
Working Environment: -55~83C
Sealing Process: Standard 704 silicon rubber sealing all sides
Fan: 12V
Conduction Module Size: 60 x 45 x 21mm
Water Block Size: 40 x 40 x 12mm
Fan Size: 40 x 40 x 10mm
Notes:
The conduction cool module can frost when the temperature is under -25C.
TEC1-12706: one side with words is the refrigeration side, the other side is heat dissipation side.
Must install heat sink or water-cooled radiator the heat dissipation side; otherwise will burn the Peltier.
The power is not included in this kit, please prepare it by yourself.
Colour:As Shown
Material:plastic+Metal

Package Contents:
2 x Conduction Module
2 x Water Block
2 x TEC1-12706
2 x Thermal Grease
2 x Fan
2 x Base Board
2 Pack x Screws
