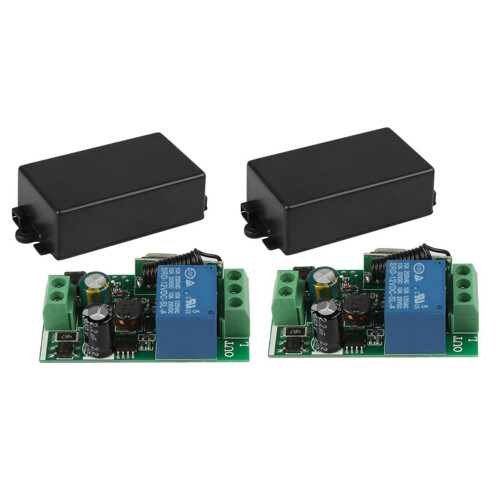

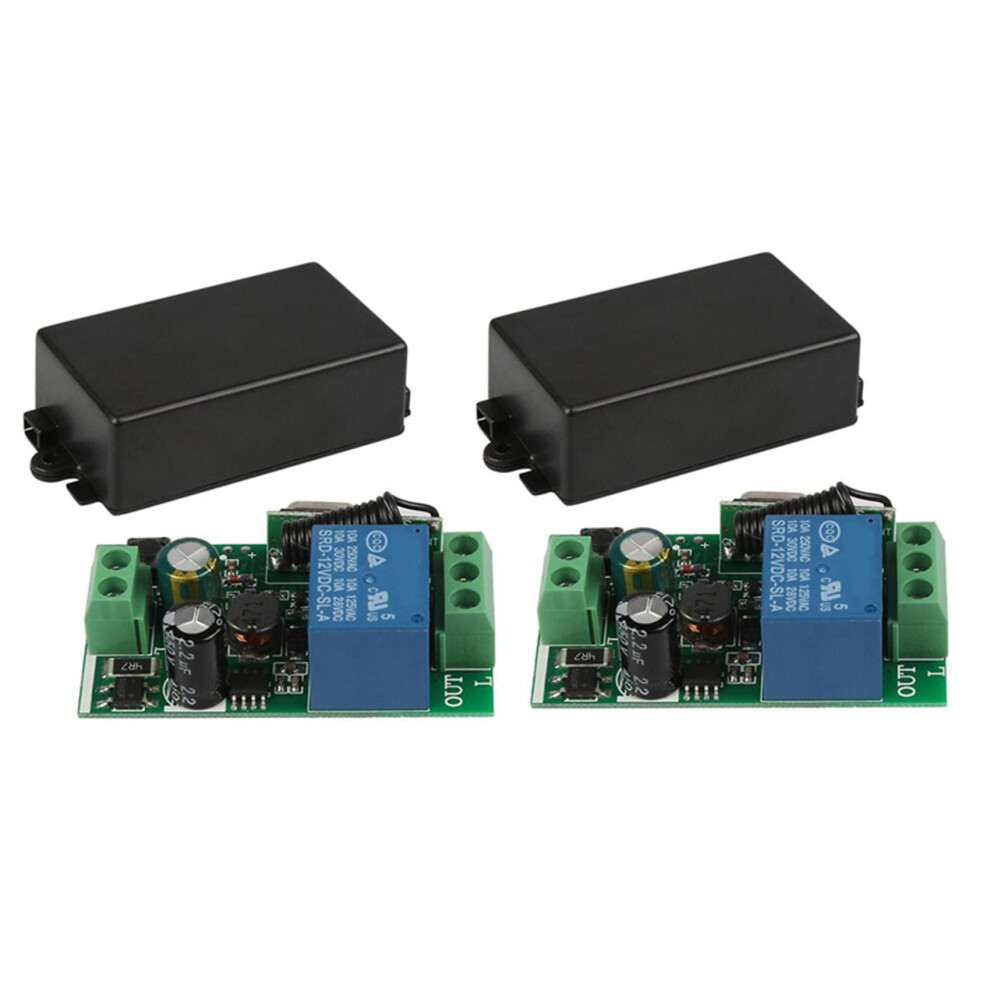

2X Universal 433 MHz AC 220V 1 Channel Remote Control Wireless Relay Receiver Module

2X Universal 433 MHz AC 220V 1 Channel Remote Control Wireless Relay Receiver Module Kuvaus

Support Multiple Working Mode: Momentary, Toggle and Latching Mode.
Support the type of remote control(Support Code): Learning Code(1527), Fixed Code(2262).
Support storing the quantity of remote control: 25 Pcs(NOTE: The system can store for 25 pcs of remotes, if the remote get more than 25 pcs, the initial remote control will be lost).
RF Working Mode: Superheterodyne Reception (Modulation Mode:ASK).Perfect suitable for remote control of electric lamp, electrically operated gate, electrically operated window, roller shutter door, garage door and other telecommand equipments.

Model: KR2201-4
Product Type: Single Channel Remote Control
Encoding Type: Intelligent Learning Code
RF Working Mode: Superheterodyne Reception
Modulation Mode:ASK
RF Frequency: 433MHz
Working Mode:Momentary, Toggle and Latching
Input Voltage: AC 85V 110V 220V
Quiescent Current: 5mA
Receiving Sensitivity: Greater than 97dbm
Remote Control Range: Greater than 50m (Free Space)
Wired Connection Way: Fixed Wiring Pillar
Output Terminal: NO,COM,NC
NO: Normal Open(Output).
COM:Common(Output).
NC: Normal Close(Output).
Color: Green(PCB Board), Black (Outside Shell)
Circuit Board Size: 6.5 x 3.2 x 1.6cm/ 2.5 x 1.25 x 0.62in
color: as the picture
Material: Plastic
Package Contents:
2 x KR2201-4 Single Channel Remote Control
2 x Shell
