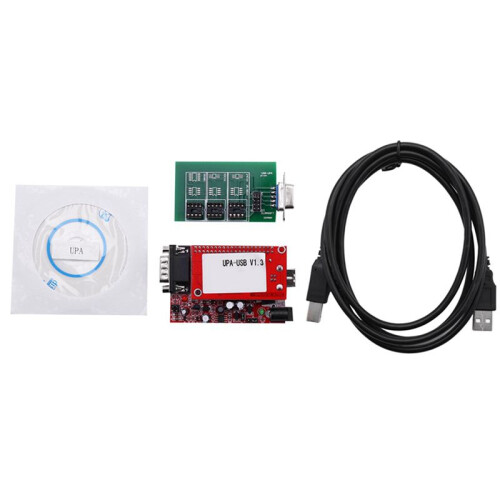

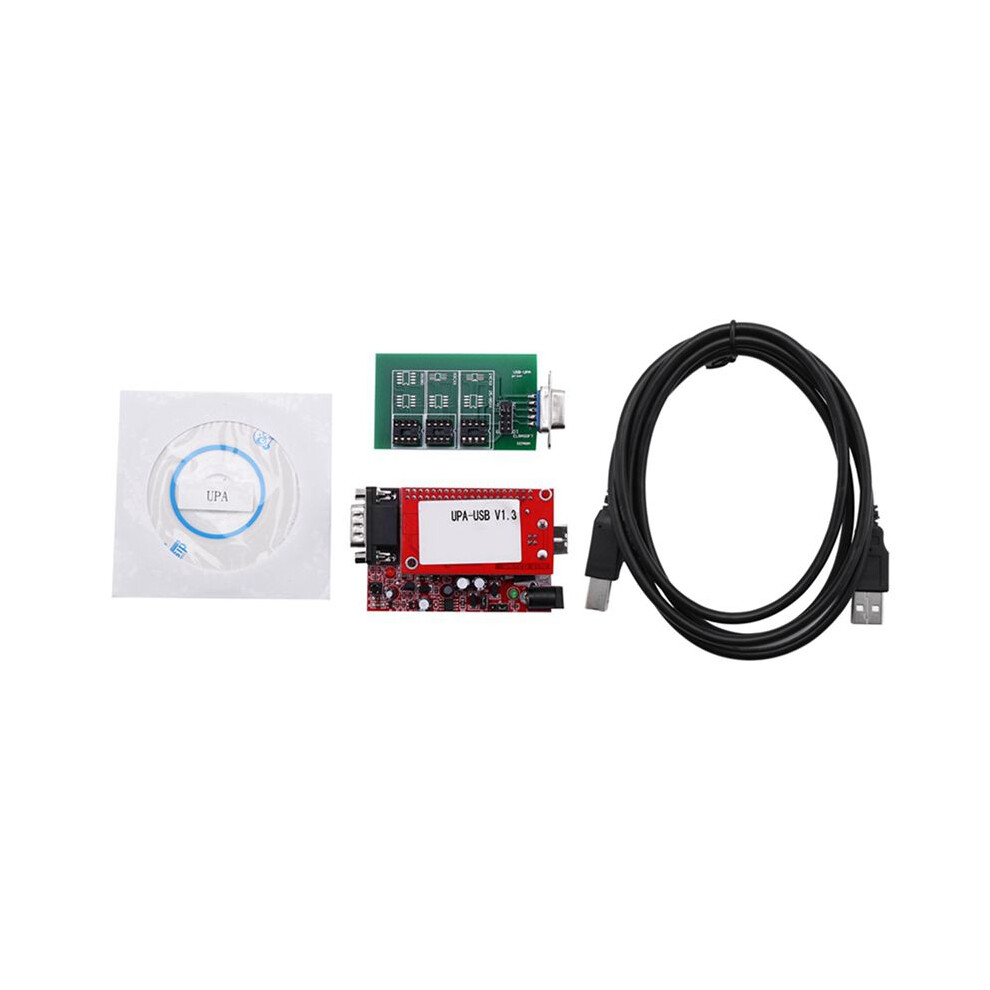

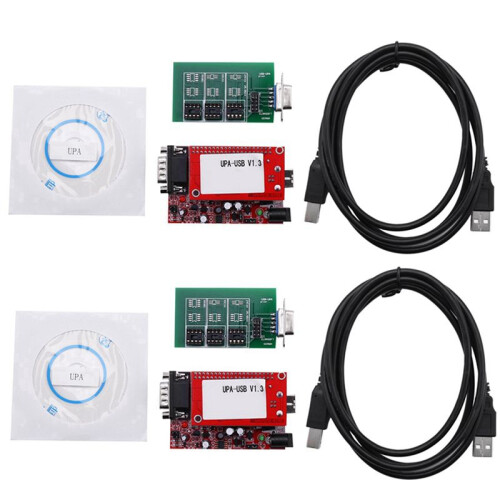

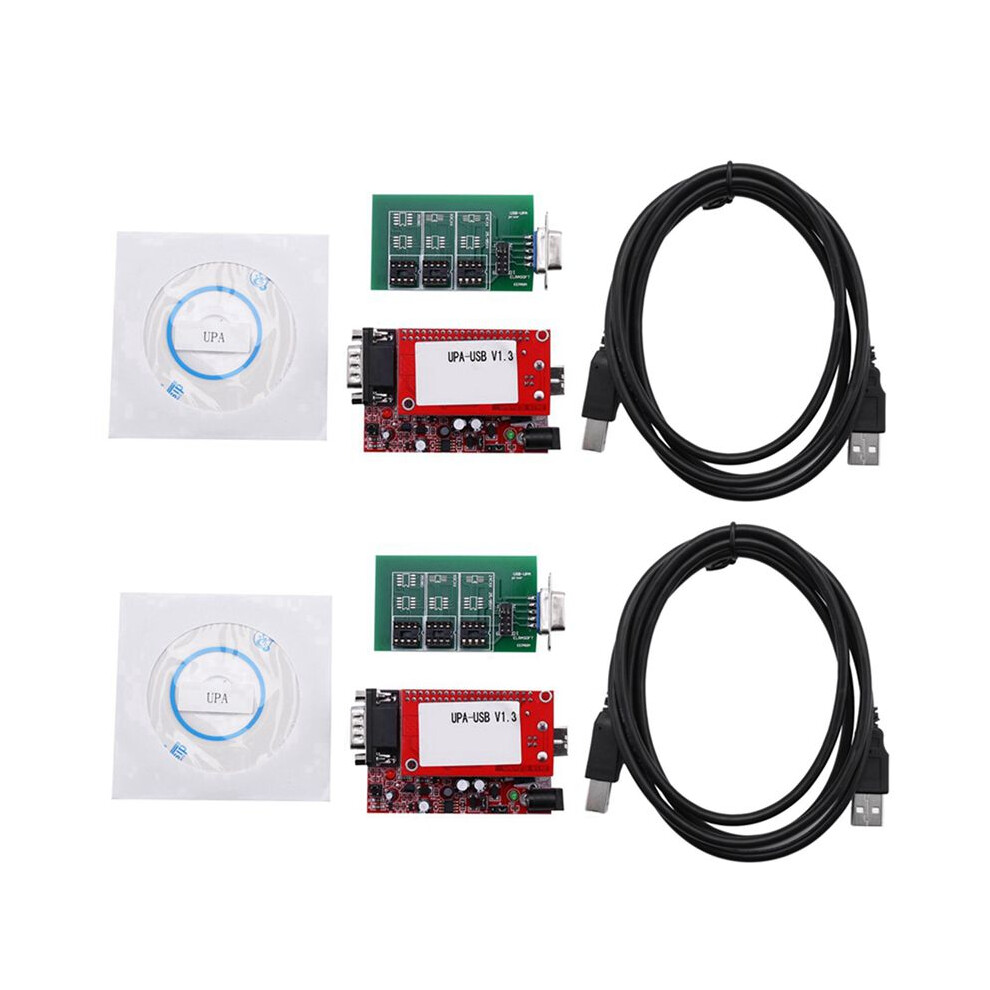

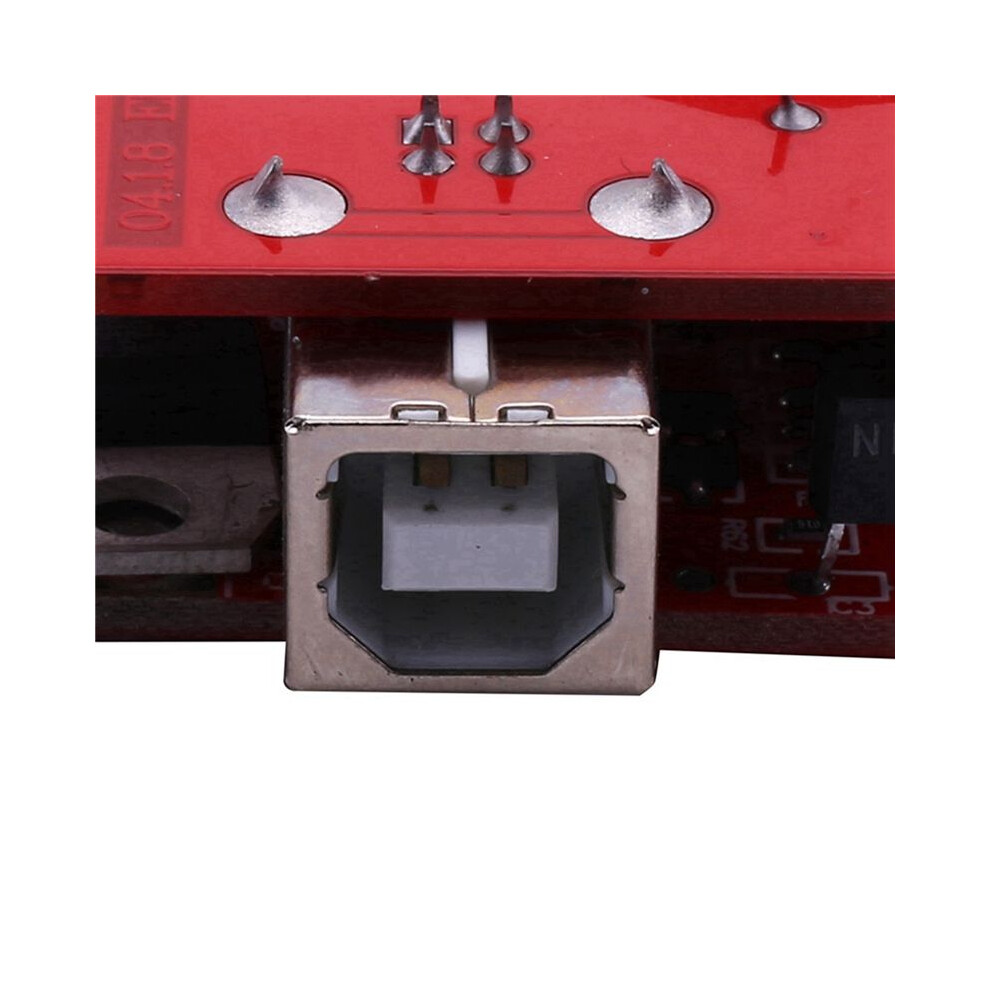

2X Upa USB Programmer Diagnostic-Tool Upa-USB Ecu Programmer Upa USB V1.3 with Adapter for 2013 Version Main Unit
Brändi ISTOVO
Uusi
Varastossa
Miksi tulet rakastamaan ostoksia OnBuyssa:
- Ansaitse Cashback jokaisesta ostoksesta – käytä se heti seuraavaan tilaukseesi
- Ilmainen toimitus – miljooniin tuotteisiin sivustolla
- Asiakkaat rakastavat meitä – 128,000 arvostelua arvosanalla “Erinomainen”
45,79 €
66,45 €
Alennus 31%!
+4,12 € Toimitus
1%
Mitä on välitön Cashback?
Lue lisää
OnBuyn myymien tuotteiden hinnat sisältävät ALV:n.
Korottomat maksuvaihtoehdot saatavilla
Katso koko tuotekuvaus ja tiedot
Toimitus: Vakio (4,12 €) | pe 17. - ke 22. heinä
Palautukset: 30 päivää
180 päivän maksuturva
Suosituimmat tuotteet kategoriassa Ompelukaapit
Kuvaus ja tiedot
Yhteenveto

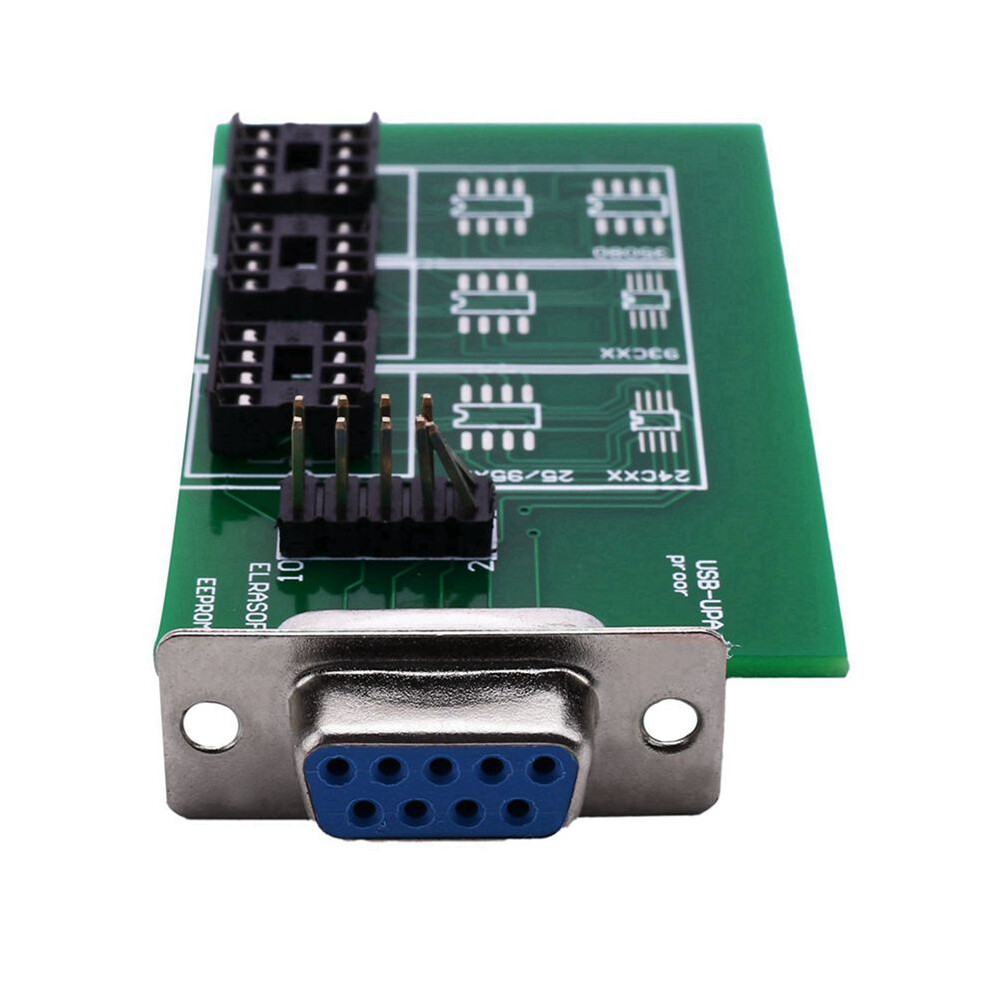

- Simply connect the motherboard of the UPA programmer directly or using a DB9 male / female extension cable (1: 1) Insert the correct configuration key into the slot on the main board and start programming via ZIF or DIP female ! You can also use the included DIL to 10 flat ribbon pins, place it inside the ZIF plug and connect a clip or clamps for the use of ISP from there.
- Motorola MCU. Choose the adapter you want to use, connect the flat cable for the adapter (PIN1 is always indicated on both the cable and the adapter) and also on the 10-pin ISP connector on the main board.
- Select the VCC supply source via the bridge on the main board next to the ISP connector (on = target upa supply ... off = target has its own supply). Slide the adapter over the soldered PLCC MCU on the target PCB. (No welding, no pinout revision, no pin counting, saves a lot of time and problems and allows your work to be faster, more accurate and easier). Once your workshop is equipped with our set of adapters, you will have a new UPA experience.
- STMicroelectronics :ST62-40/45/49; NSC：CR16-HCS5(9)/MCS5(9)/MES5(9)/MFS5(9)/MCT5(9)/HCT5(9)
- for Microchip: PIC12F-508/509/629/675,PIC16F-627(A)/628(A)/648A/72/73/74/76/77/818/819/83/84(A)/870/871/872/873(A)/874(A)/876(A)/877(A)
2X Upa USB Programmer Diagnostic-Tool Upa-USB Ecu Programmer Upa USB V1.3 with Adapter for 2013 Version Main Unit Kuvaus
Simply connect the motherboard of the UPA programmer directly or using a DB9 male / female extension cable (1: 1) Insert the correct configuration key into the slot on the main board and start programming via ZIF or DIP female ! You can also use the included DIL to 10 flat ribbon pins, place it inside the ZIF plug and connect a clip or clamps for the use of ISP from there.
Motorola MCU. Choose the adapter you want to use, connect the flat cable for the adapter (PIN1 is always indicated on both the cable and the adapter) and also on the 10-pin ISP connector on the main board.
Select the VCC supply source via the bridge on the main board next to the ISP connector (on = target upa supply ... off = target has its own supply). Slide the adapter over the soldered PLCC MCU on the target PCB. (No welding, no pinout revision, no pin counting, saves a lot of time and problems and allows your work to be faster, more accurate and easier). Once your workshop is equipped with our set of adapters, you will have a new UPA experience.
STMicroelectronics :ST62-40/45/49; NSC：CR16-HCS5(9)/MCS5(9)/MES5(9)/MFS5(9)/MCT5(9)/HCT5(9)
for Microchip: PIC12F-508/509/629/675,PIC16F-627(A)/628(A)/648A/72/73/74/76/77/818/819/83/84(A)/870/871/872/873(A)/874(A)/876(A)/877(A)
for Motorola:
MC68HC05-B6/B8/B16/B16/B32/E6/E6/H12/L28/P3/P3 x /X16/X32
MC68HC08AS20, MC68HC08AS32, MC68HC08AS60, MC68HC08AZ32, MC68HC(9)08AZ32A, MC68HC908AZ60, MC68HC908AZ60A, MC68HC11/A1/A8/E9/EA9, MC68HC11-E20/F1/K4/KA2/KA4/KG4/KS2/KS8/L6/P2/PA8/PH8
MC68HC912-B32/BE32/D60/D60A/DC128A/DG128/DG128A, MC9S12-D64/A128/DG128/DG256/H128/H256
Atmel 8051 Architecture: AT89S-51/52/53/8252/8253
Atmel AVR 8-Bit Risk: AT90S-1200/2313/232/2333/2343/4433/4434/8515/8535, ATmega-8/16/161/162/163/323/64/103/128, ATtiny-12/15/2313
EEPROMs: 24C-01/02/04/08/16/32/64/65/128/256/512, 85C-72
Tiedot
| OPC | PP96YQN |
|---|---|
| Brändi | ISTOVO |
| Koodit | 6132295098340 (EAN) |
| Tuote- ja turvallisuustiedot |
Tuotetiedot
| Height | 10cm |
|---|---|
| Width | 13cm |
| Length | 19cm |
| Weight | 0.306kg |
| Colour | red&green&blue |
| Material | Plastic + metal |
