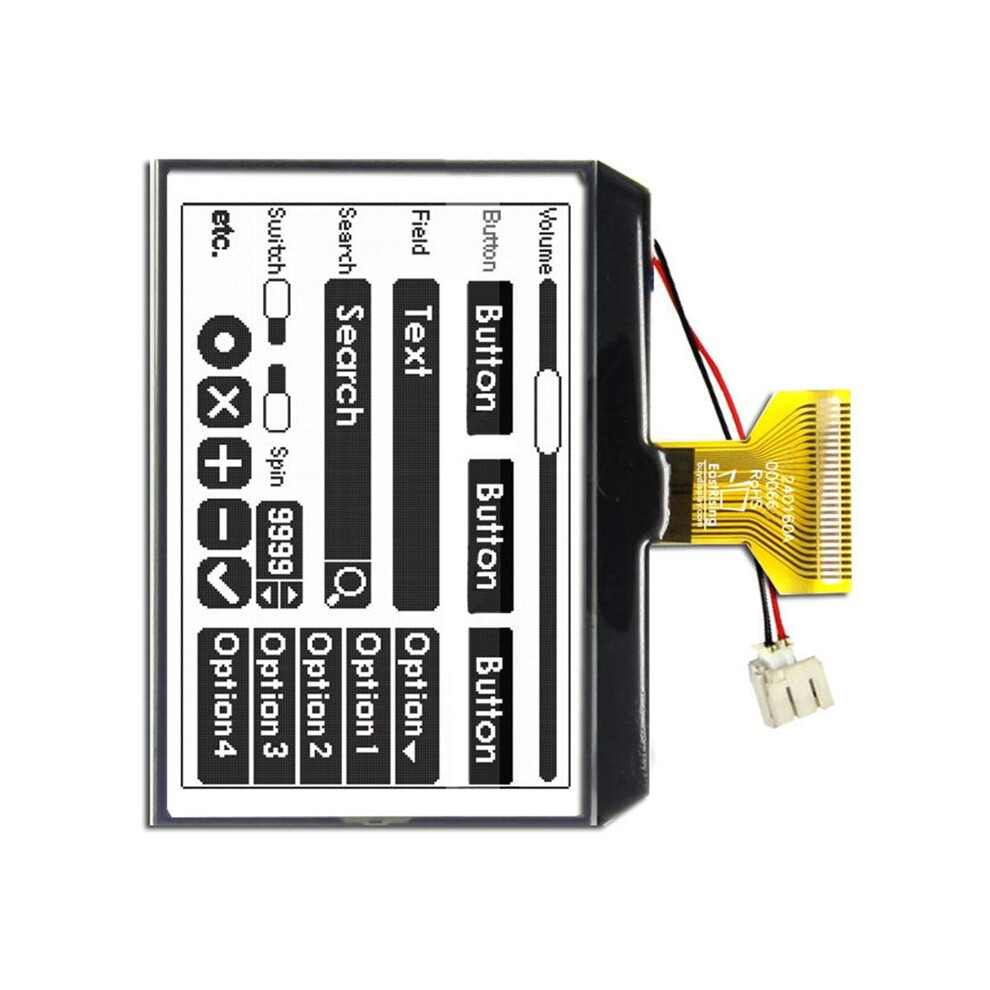

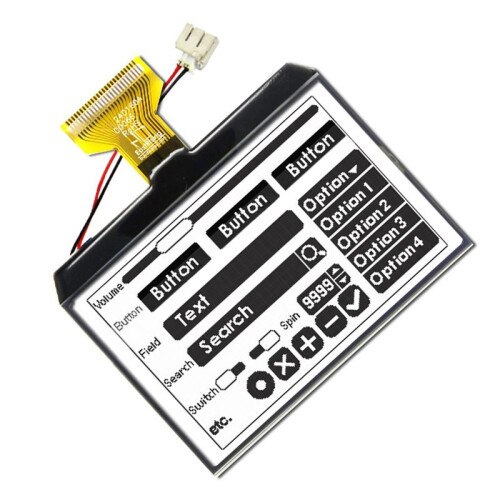

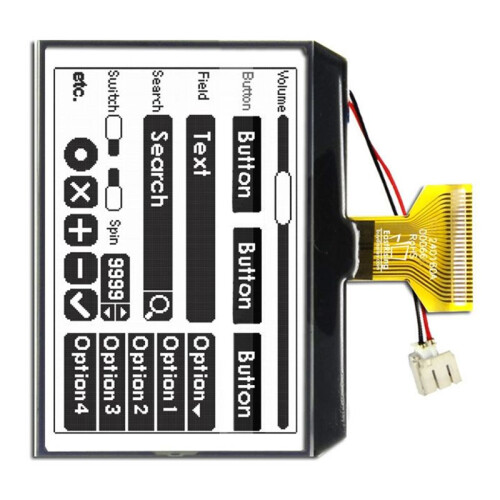

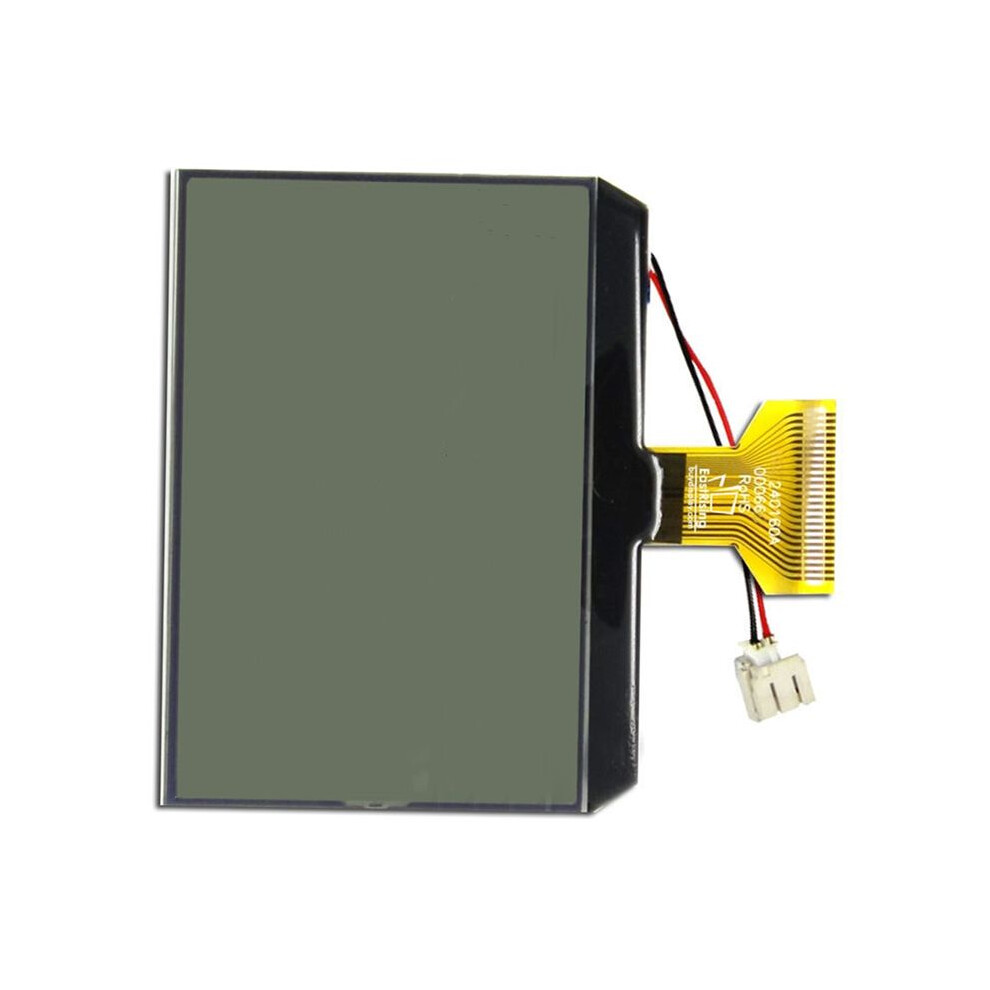

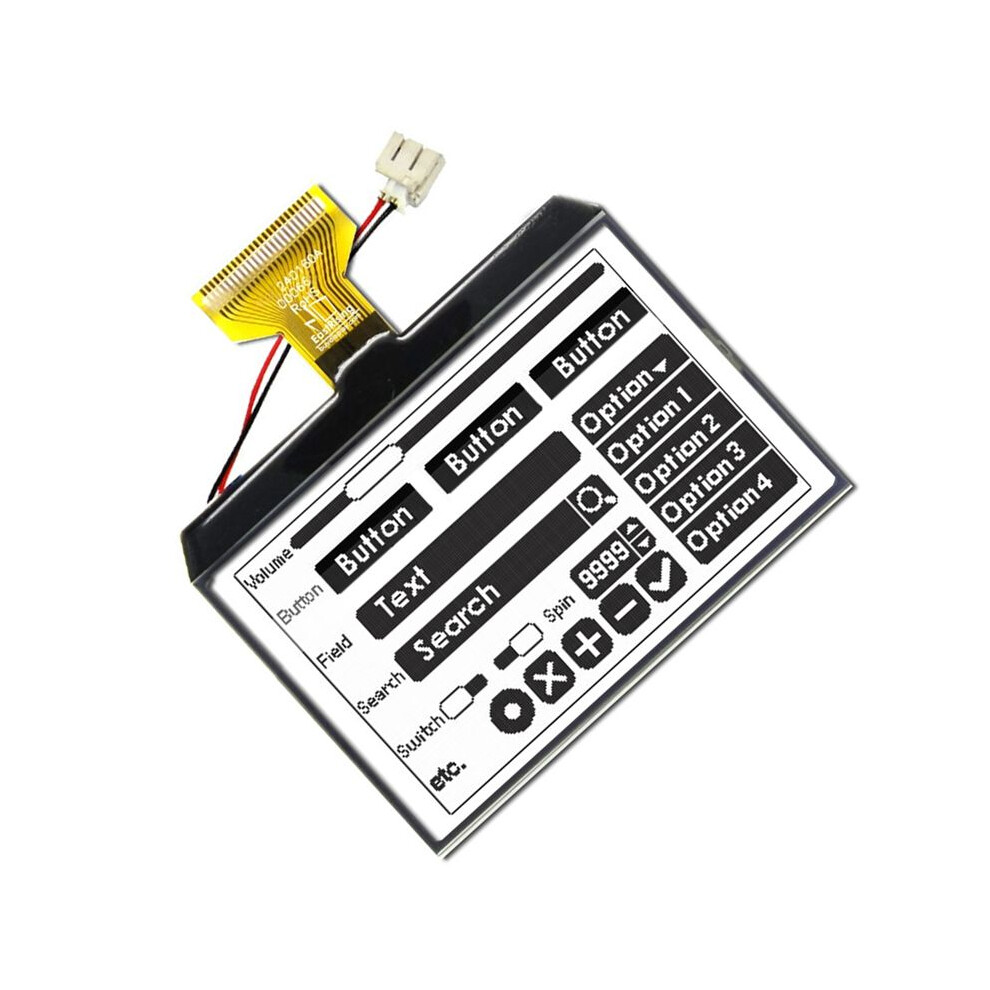

3.4inch 240x160 Dot Matrix LCD Display Serial Interface Black White Free Backlight Connector

3.4inch 240x160 Dot Matrix LCD Display Serial Interface Black White Free Backlight Connector Kuvaus

ERC240160FS-1 is 3.4 inch white background with 240x160 monochrome black pixels cog(chip glass) lcd module,ST7586 controller,compact size,high contrast,wide operating temperature,wide view angle,white led backlight,fstn lcd,fpc connection,optional led backlight connector and 4-wire resistive touch panel.It supports 6800 8-bit,8080 8-bit parallel+3/4-wire serial spi interface.The FPC is the soldering type,no need connector.
It's easily controlled by MCU such as 8051,for ,for AVR,for ,ARM and for Raspberry Pi.It can be used in any embedded systems,industrial device,security,medical and hand-held equipment.
Part Number: ERC240160FS-1
Display Format: 240x160 Dots

Interface: 3-wire SPI, 4-wire SPI, 6800 8-bit Parallel , 8080 8-bit Parallel
IC or Equivalent: ST7586
Appearance: Black White

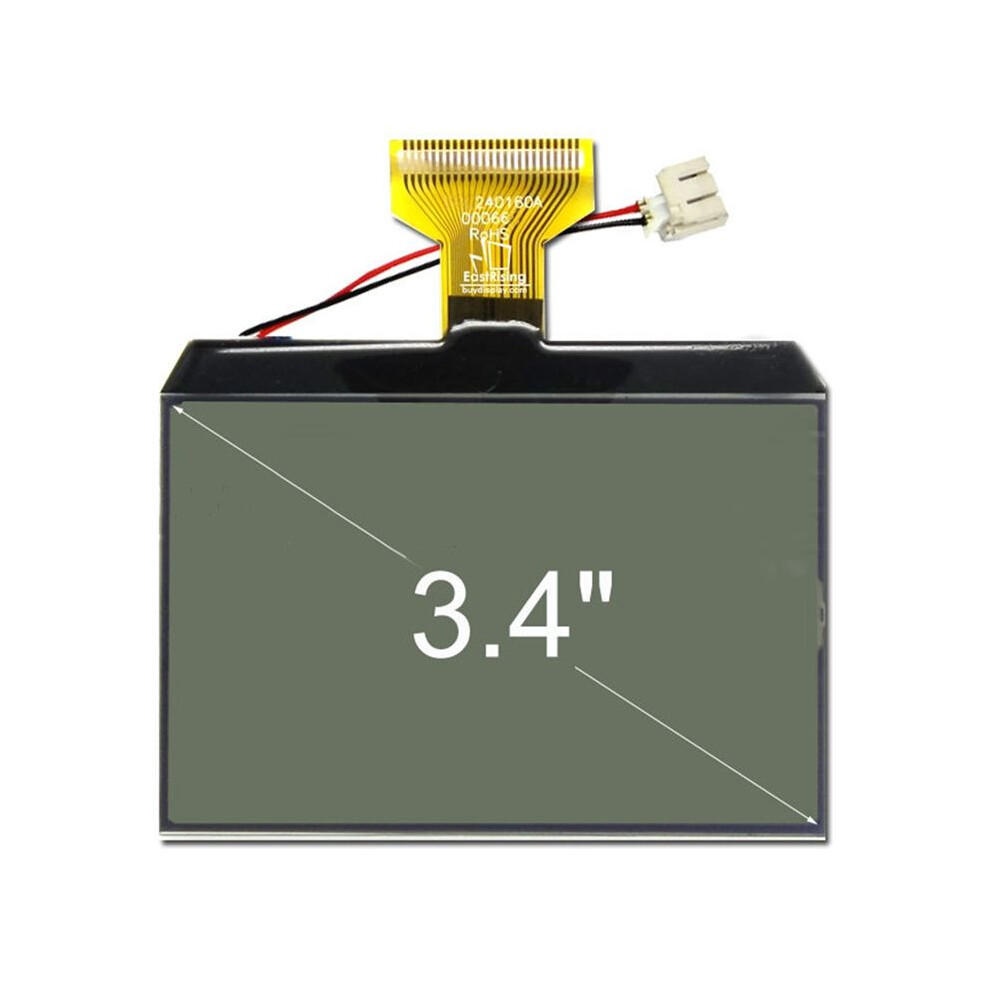

Diagonal Size: 3.4inch
Connection: Soldering FPC

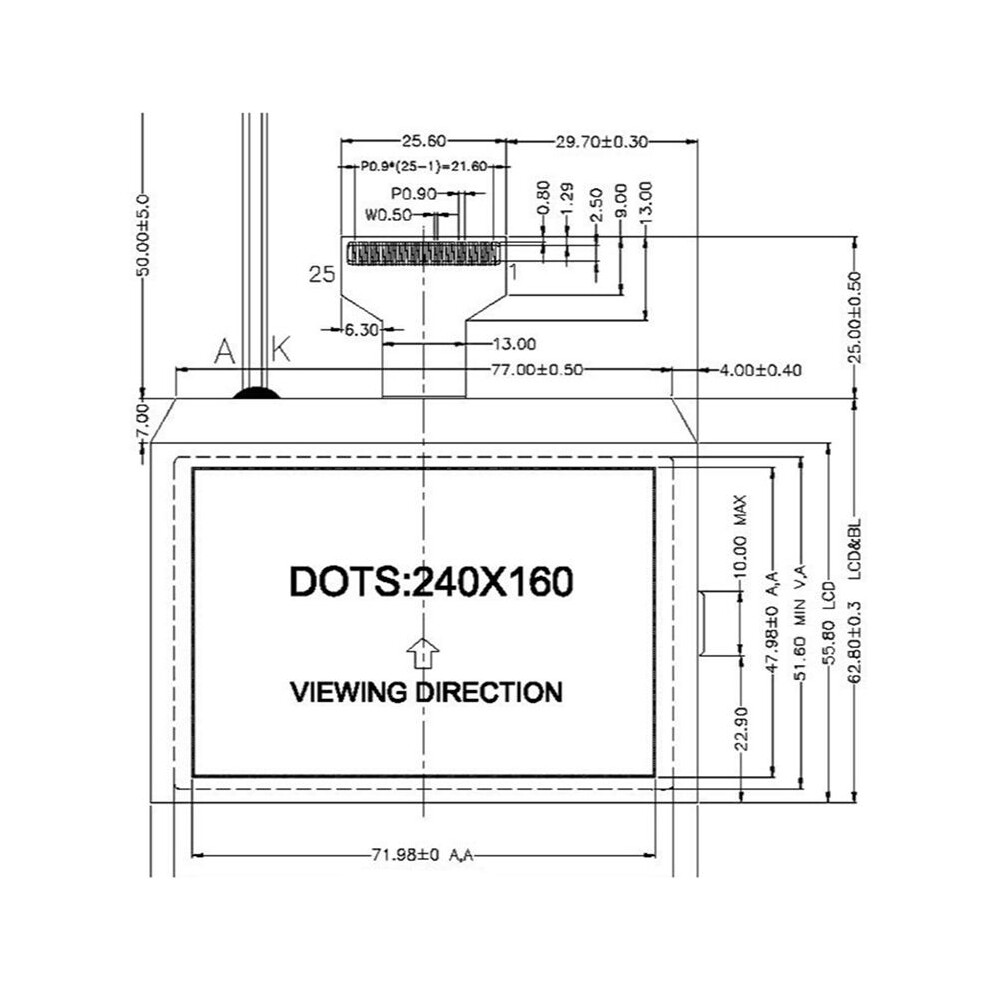

Outline Dimension: 85.0(W)x62.8(H)x4.4(T)mm
Visual Area: 77.58x51.6mm
Active Area: 71.98(W)x47.98(H)mm
Dot (Pixel) Size: 0.28x0.28mm
Dot (Pixel) Pitch: 0.30x0.30mm
IC Package: COG
Display Type: FSTN-LCD Grey
Touch Panel Optional: Yes
Sunlight Readable: Yes
Viewing Direction: 0.25
Backlight Color: White Color
Backlight Current (Typ): 75mA
Power Supply(Typ): 3V
Supply Current for LCM(Max): 1200uA
Operating Temperature: -20-70
Storage Temperature: -30-80
Color:As Shown
Material:PCB

Package Contents:
1 * LCD Display Module
