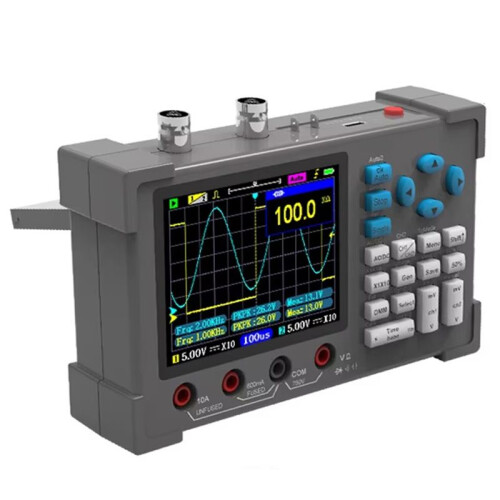

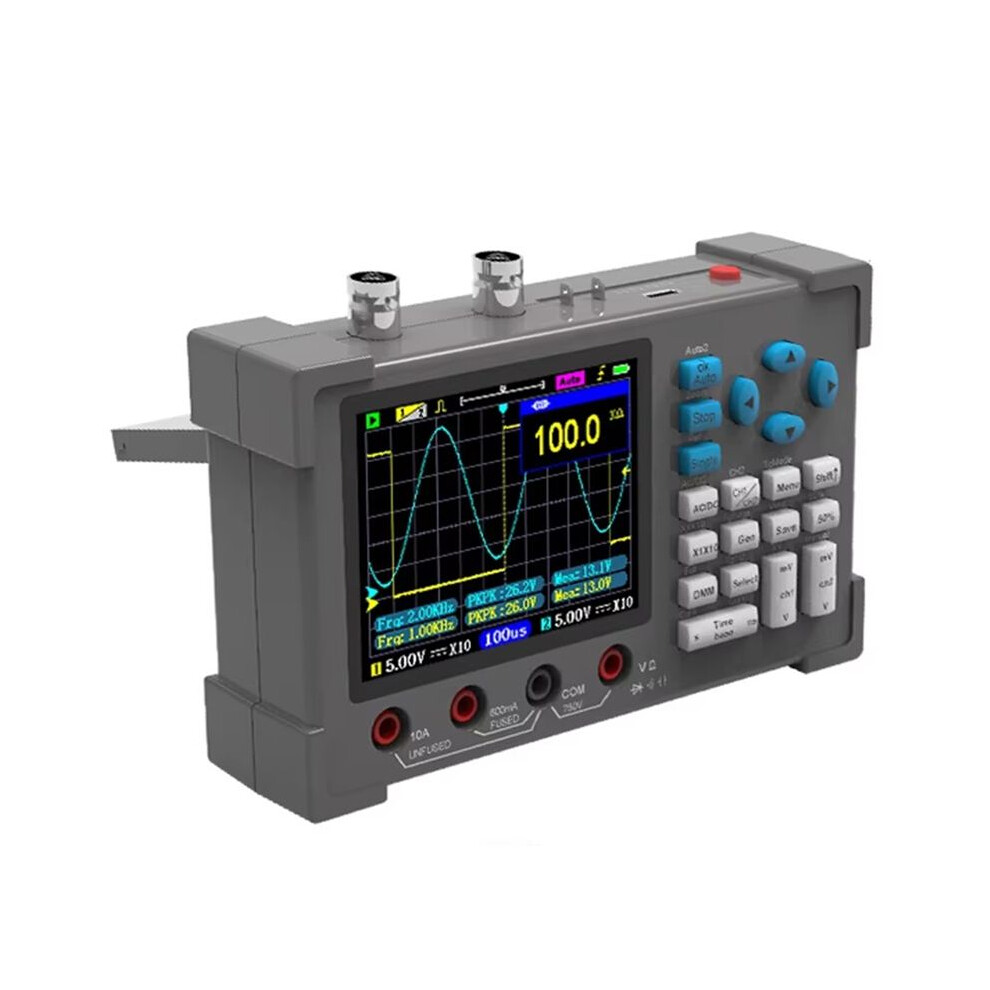

3in1 Dual Channel 250MSa/S Sampling Rate 3.2inch Digital Oscilloscope

3in1 Dual Channel 250MSa/S Sampling Rate 3.2inch Digital Oscilloscope Kuvaus

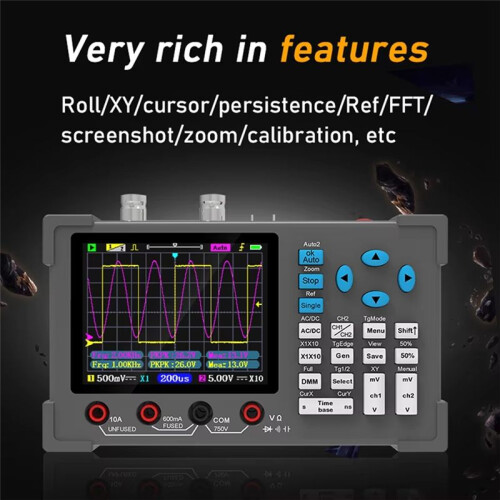

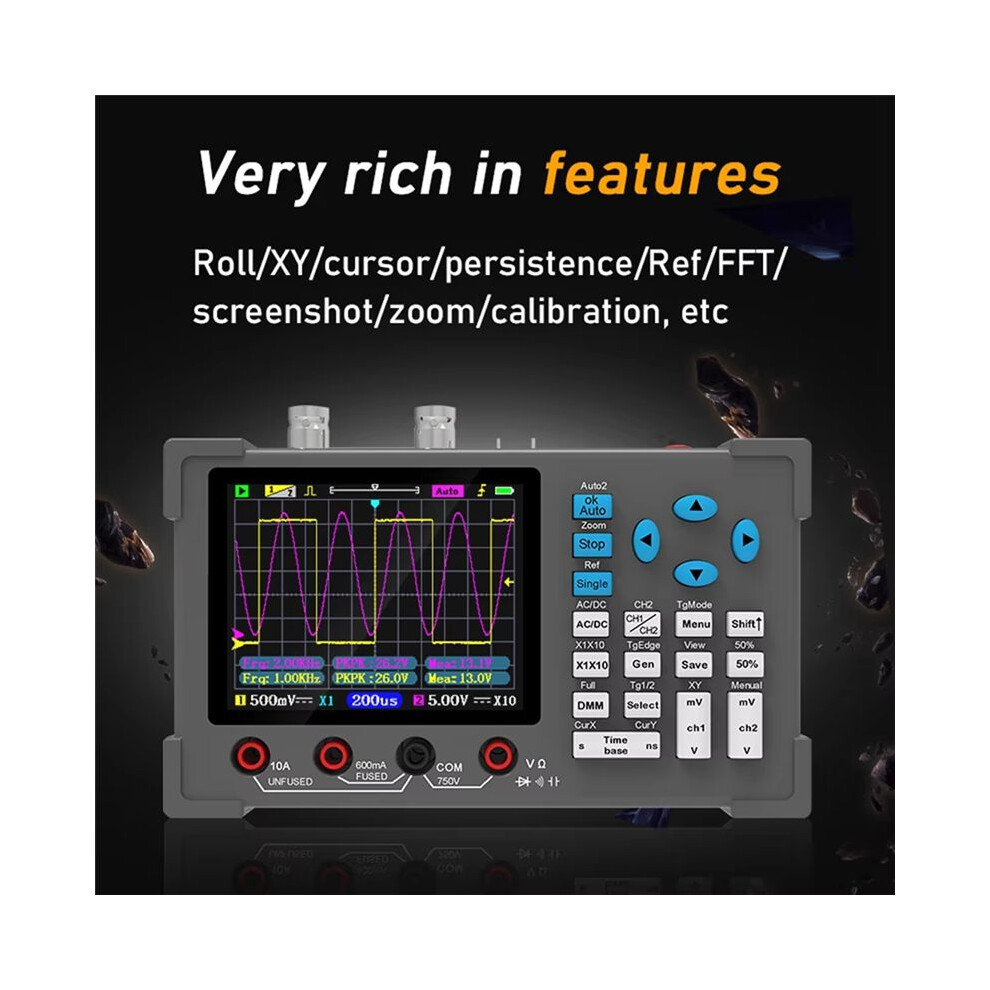

Features:[3In1 Design with IPS Display]: This product ingeniously integrates digital oscilloscope, multimeter, and signal generator functions into one device. 3.2-inch clear-definition IPS display, high sensitivity full view display, channel 2 waveforms can be set to green/ cyan/.
[Signal Generator]: Built-in waveform signal generator, it can output sinewave, squarewave, trianglewave, and so . The voltage amplitude is 2.5V, the frequency is adjustable from 0-2Mhz, and the squarewave duty cycle is adjustable from 1% to 99%.
[High-precise Multimeter]: Built-in true RMS multimeter, that supports quick software calibration. With /ACvoltage, /ACcurrent, resistance, capacitance, diode, and continuity test. When measuring low voltage /resistance/continuity, the oscilloscope and multimeter functions can be used simultaneously (small window in the upper right corner).
[Digital Oscilloscope Function]: Dual channel oscilloscope function, with 120MHz bandwidth and 250MSa/s sampling rate. With perfect trigger function (automatic, single, normal).
[Two Automatic Modes Adjustment]: Support one-button automatic and fully-automatic mode, no complicated operation, you can quickly detect and display the waveform. In fully automatic mode, no keystrokes are required, and continuous automation is performed.

[High Bandwidth & Sampling Rate]: The real- sampling rate is 250MSa/s, dual-channel mode bandwidth is halved to 60Mhz.
[Dual Channel]: With dual-channel mode, which can measure and display two signal waveforms at the same for waveform comparison and analysis.
[Wide Applications]: It can easily handle measurement in various fields, widely used in the fields of testing and debugging of electronic circuits, troubleshooting and repairing of elect
Specifications:
Name: 3in1 Digital Oscilloscope
Material: ABS
D
